Description
Product Feature

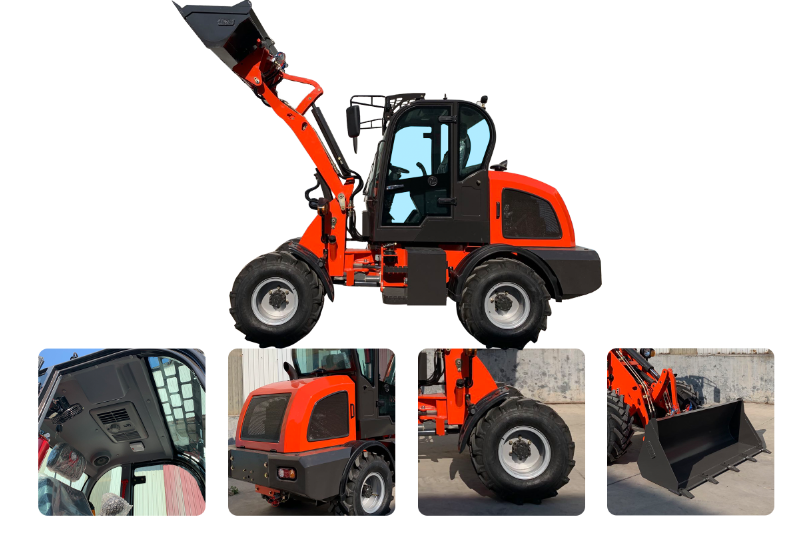

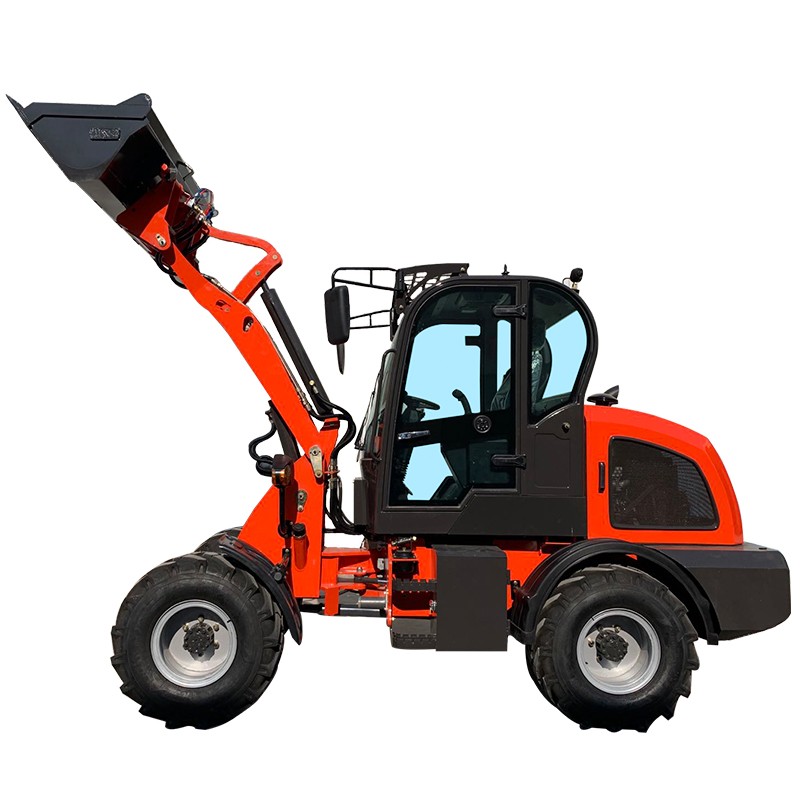

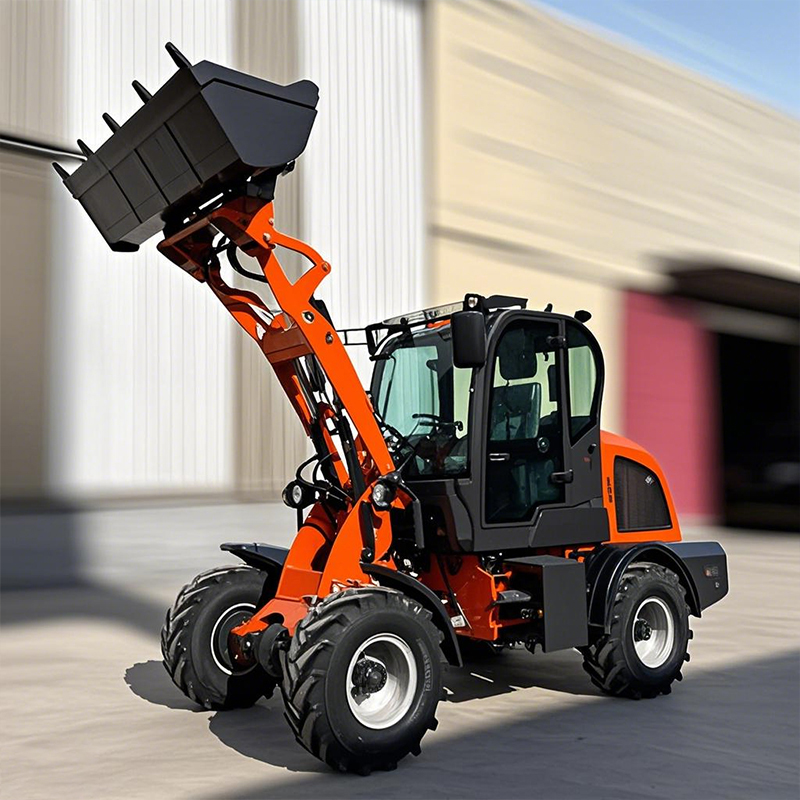

The MYZG ZL-812 Wheel Loader has a smart size, but the load capacity is up to 1.2 tons. It can be equipped with different attachments and does well in small farm operations. The brand new Rops & Fops cabin is safer, more spacious and comfortable, and it also has a better view which can check the front work clearly. The floating oscillating articulated system is more suitable for driving on rough roads. More designs help you work easier.
Zl812, can be configured with European engine, high-quality transmission, four-wheel drive full hydraulic steering, strong power, higher efficiency, high adaptability to the environment, more suitable for low working conditions.
●4ways valve bank
●Hydraulic pressure test port
●Varta anti-freeze battery(24V)
●LED light
●Engine preheat(Cold region)
●Rear trailer hook system
Parameter
yunnei (euro v)
rated load capacity
1200kg
rated bucket capacity
0.6-0.9m³
operating weight
3500kg
engine model
rated power
45KW
dimensions
4600×1760×2560 mm
dump height
1950 mm
Max.turning angle
43°
min.turning radius
4050mm
wheel base
1360mm
tyre size
20.5/70-16
1- High quality powder coating
Quality creates added value. The powder coating is a key feature of the MYZG quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.
2- High shear forces from planetary axle
The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.
3- One bigger and stronger lift cylinder
MYZG always installs strong lift cylinder in all ZL812 series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.
4- Easily accessible lubrication points
Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at MYZG. Optionally, a central lubrication system is available that takes over the lubrication for you.
Detail
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
DIFFERENTIATED PRODUCTS
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
