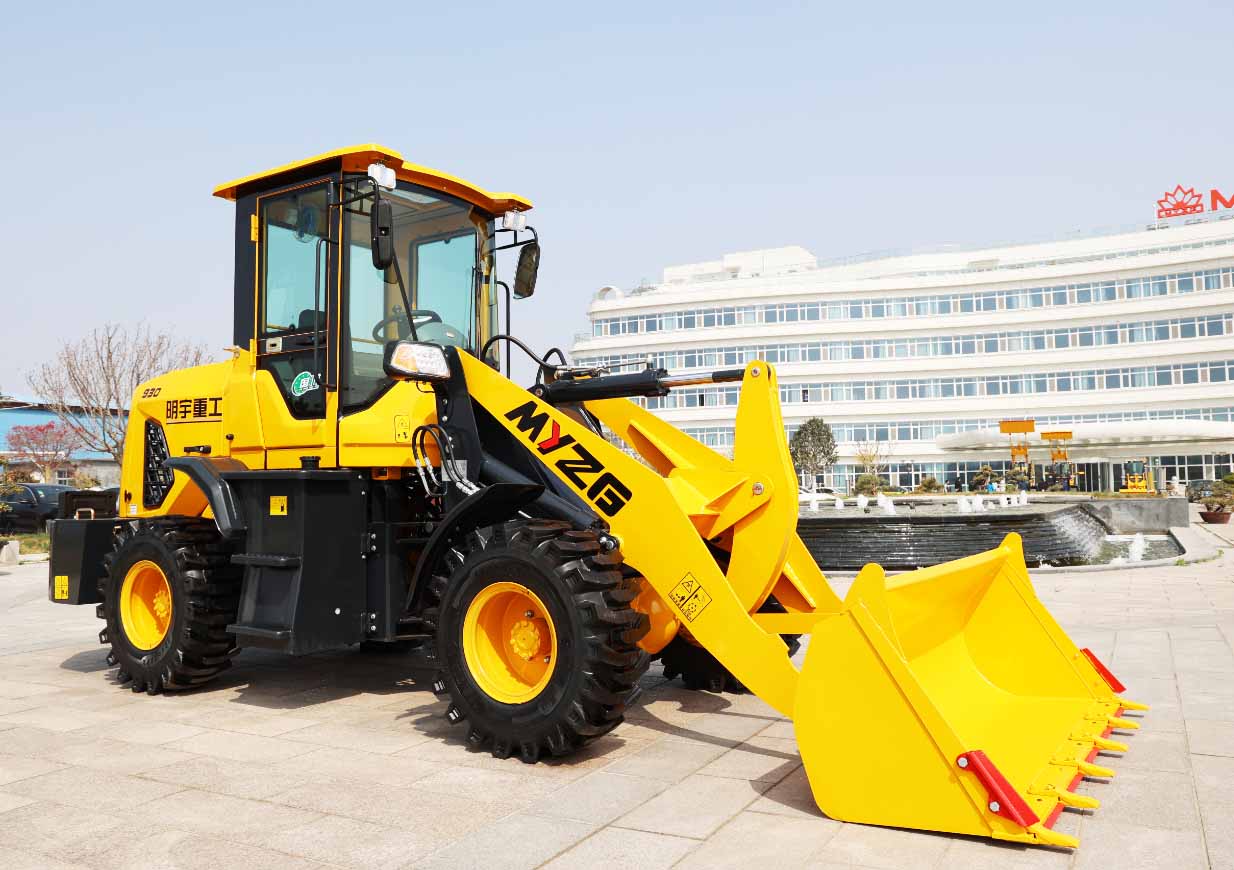

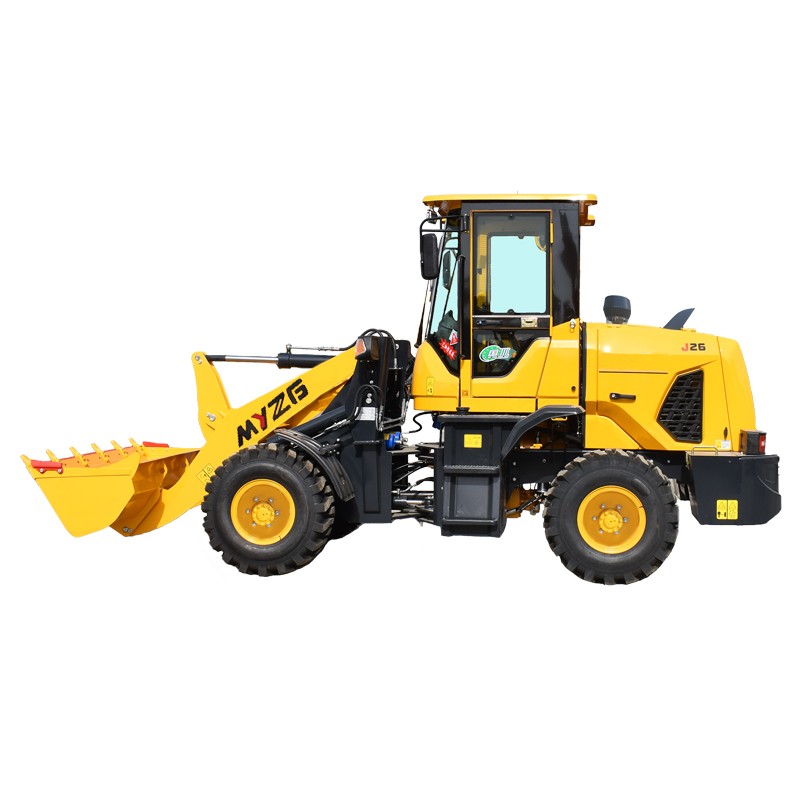

J26 wheel loader
Product Feature
Minyu J26, MYZG just developed mini loader, is the alley magic, although small,but work a lot, shovel loading force is very strong, the use of narrow wheel base,suitable for a variety of conditions
·Traction force ≥ 16KN, rising force 19KN, outstanding capability.
·Turning radius 3550mm, strong adaptability
· Extra long wheelbase, more heavy duty
· Key highlights
Parameter
rated load capacity
1200 kg
rated bucket capacity
0.55m³
operating weight
2800kg
engine model
QUANCHAI 4B2-52M22
rated power
38kw
rated speed
2400 r/min
dimensions
5420*1790*2645mm
dump height
3000mm
dump distance
400mm
min.turning radius
3550mm
wheel base
2350mm
wheeltrack
1390mm
tyre size
1200-16
Variable hydraulic system is adopted in which oil flow is supplied to demand, for less power loss and higher efficiency.
Ergo-power electric control gearbox enables smooth and comfortable shifting.
The cooling fan with temperature control is driven by a hydraulic motor. Reversal rotation available to extrude dust.
Integrated control handle, easy to operate.

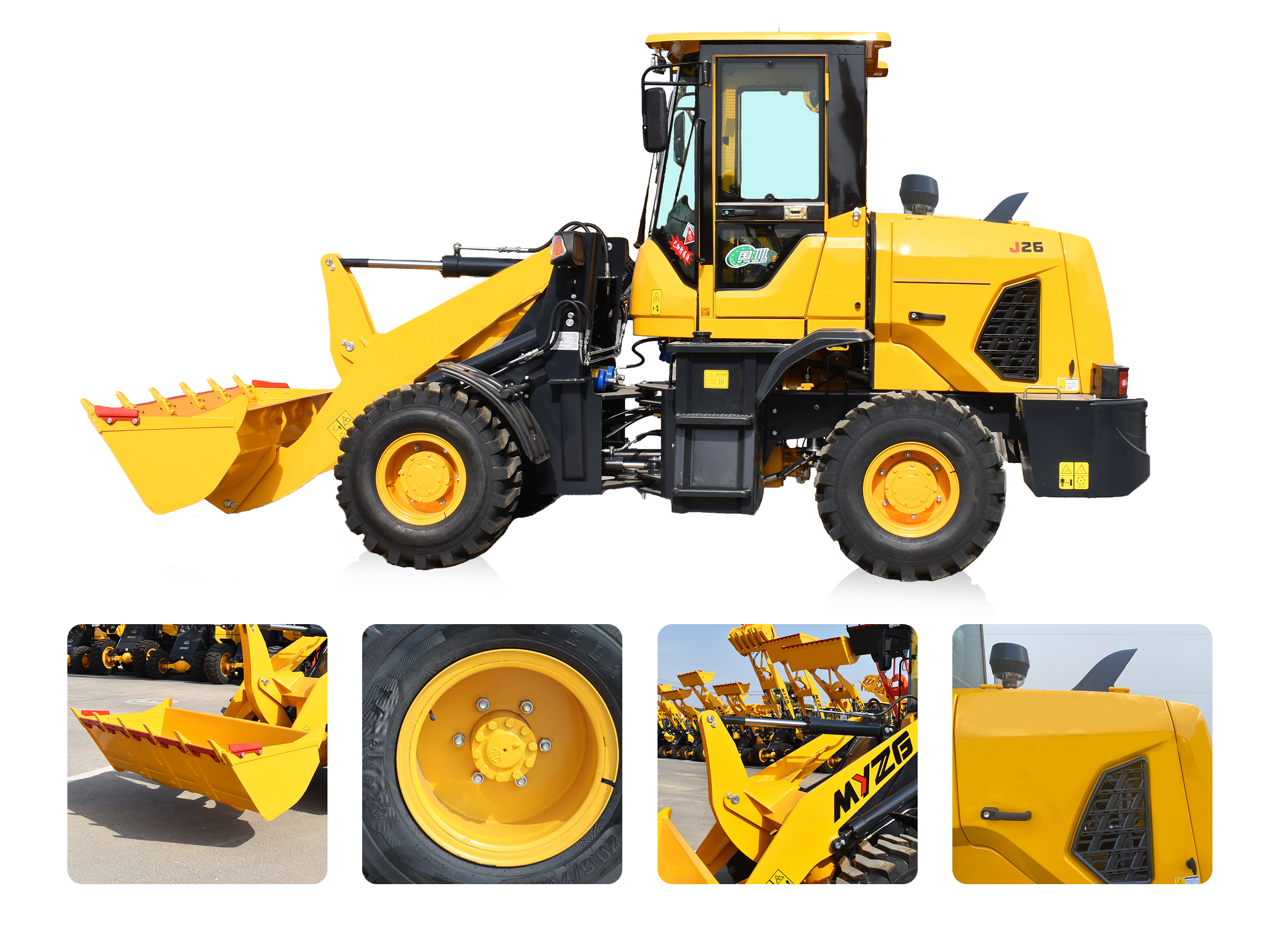

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
