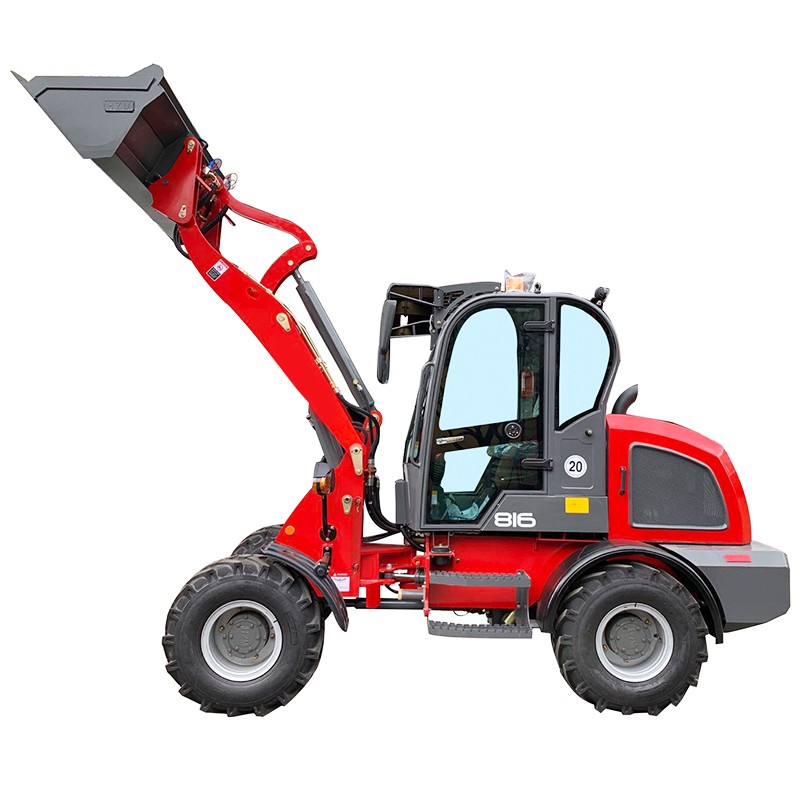

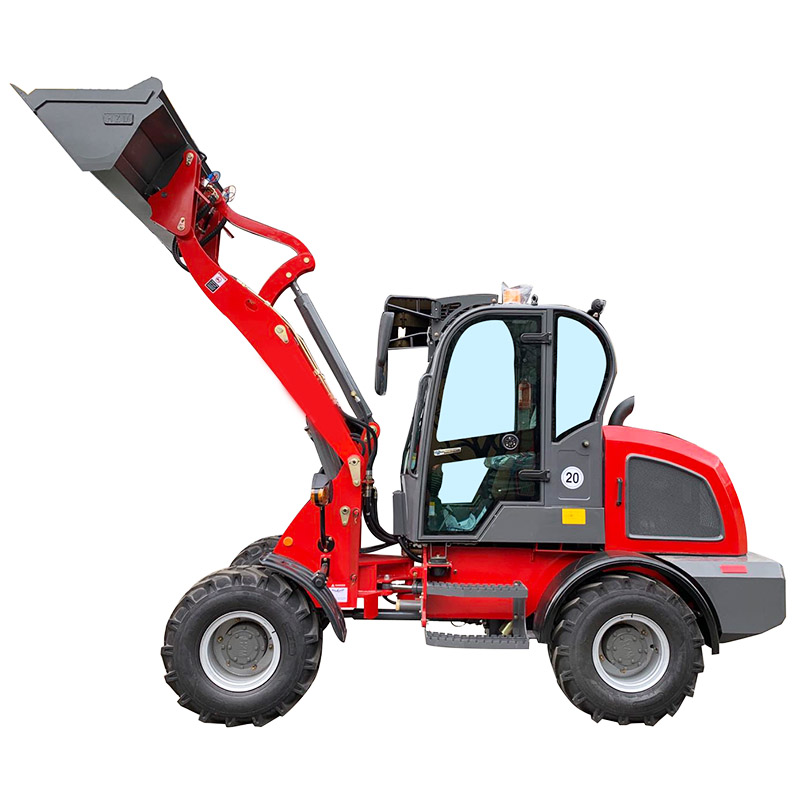

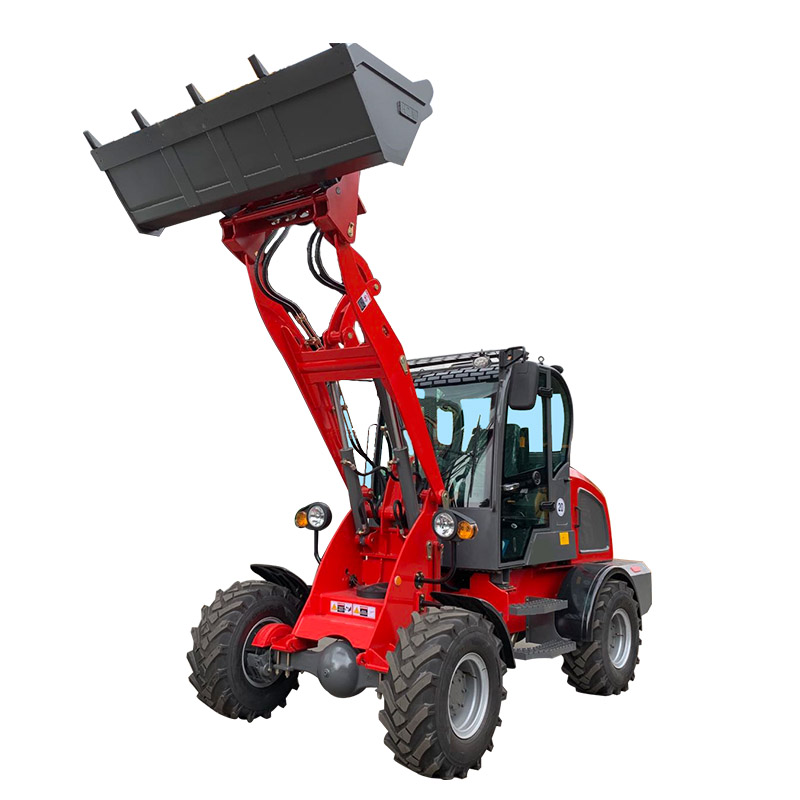

ZL-816 wheel loader

ZL-816 wheel loader
  • ZL-816 wheel loader

Short Description:

Rated load capacity:1600KG Rated bucket capacity:0.8-0.9 m³ Dimensions:4950*1850*2580mm Dump height:2180mm...


  • Rated load capacity:1600KG:
  • Rated bucket capacity:0.8-0.9 m³:
  • weight:3900kg:

Product Details

Product Tags


Product Feature

ZL816, energy-efficient, machine performance is greatly improved, the whole machine vibration and noise is decreased obviously, the whole machine has a high cost performance

●Digital screen dashboard
●4ways valve bank
●Hydraulic pressure test port
●Varta anti-freeze battery(24V)
●LED light

Parameter


rated load capacity 1600kg
rated bucket capacity 0.8-0.9m³
operating weight 3900kg
engine model

yunnei (euro v)

QUANCHAI (stage II)

rated power 45KW
dimensions 4950×1850×2580 mm
dump height 2180 mm
Max.turning angle 45°
min.turning radius 4000mm
wheel base 1500mm
tyre size 20.5/70-16

1.Heavy duty articulation, adapt oscillating floating function, it can work well especially in terrain. Suit for both construction and agricultural environment.


2.Spacious cabin, give operator more comfortable driving experience, and the advanced height operator can easy to observe the lifting situation.


3.Lift-up engine hood, easy to check and for maintenance.


4.Iron powder rear bumper, make the machine more stable.


5.Battery at two sides of the rear bumper, easy for charging.


6.Streamlined and modern design, meet the preferences of contemporary customers.


7.TÜV CE certification guarantee the quality and make all reliable.

Detail


DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.


About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
