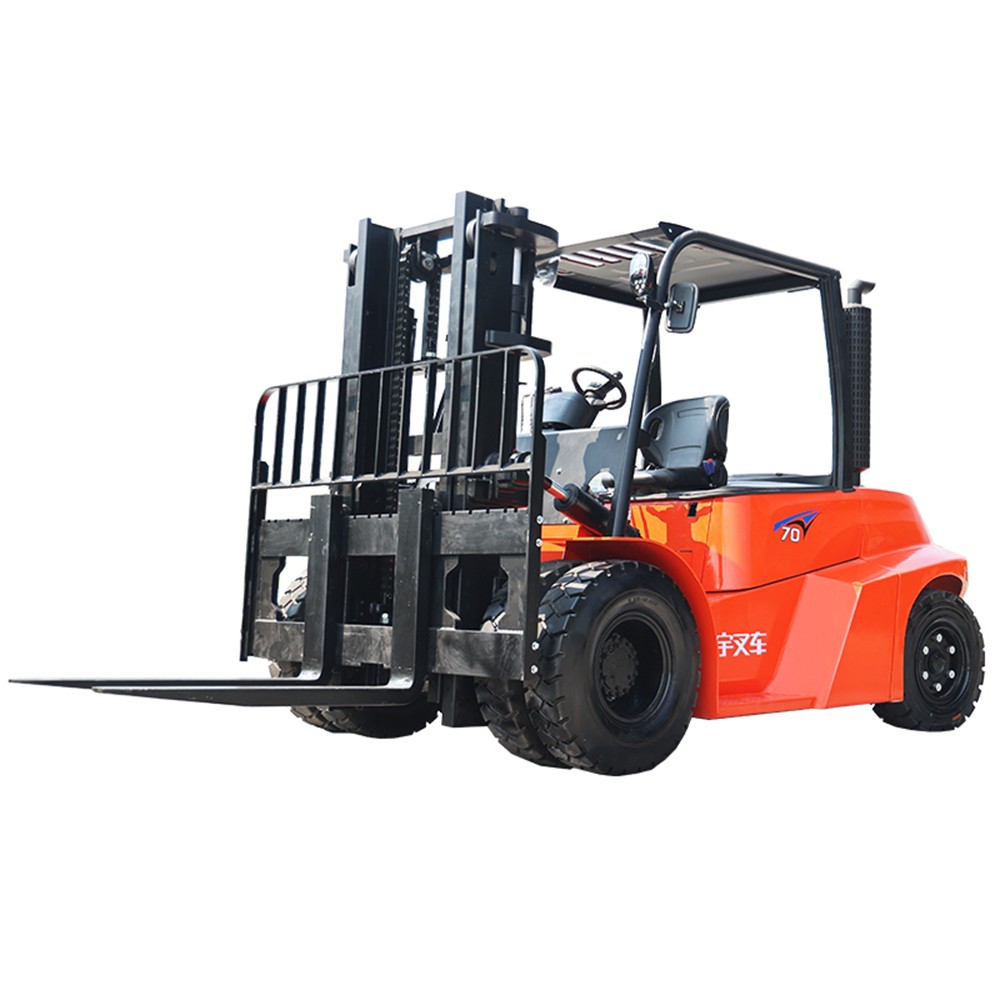

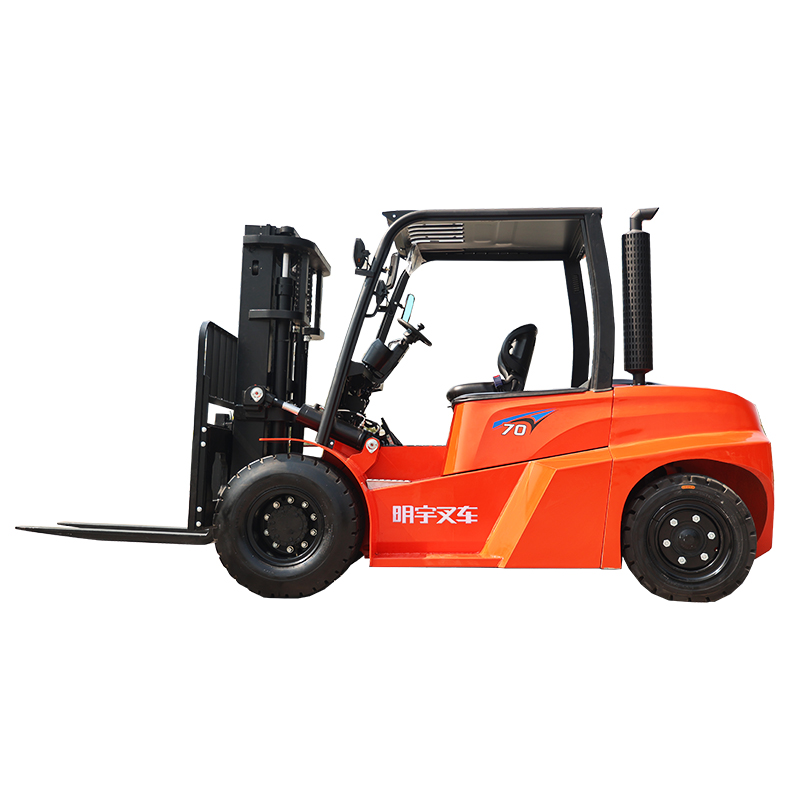

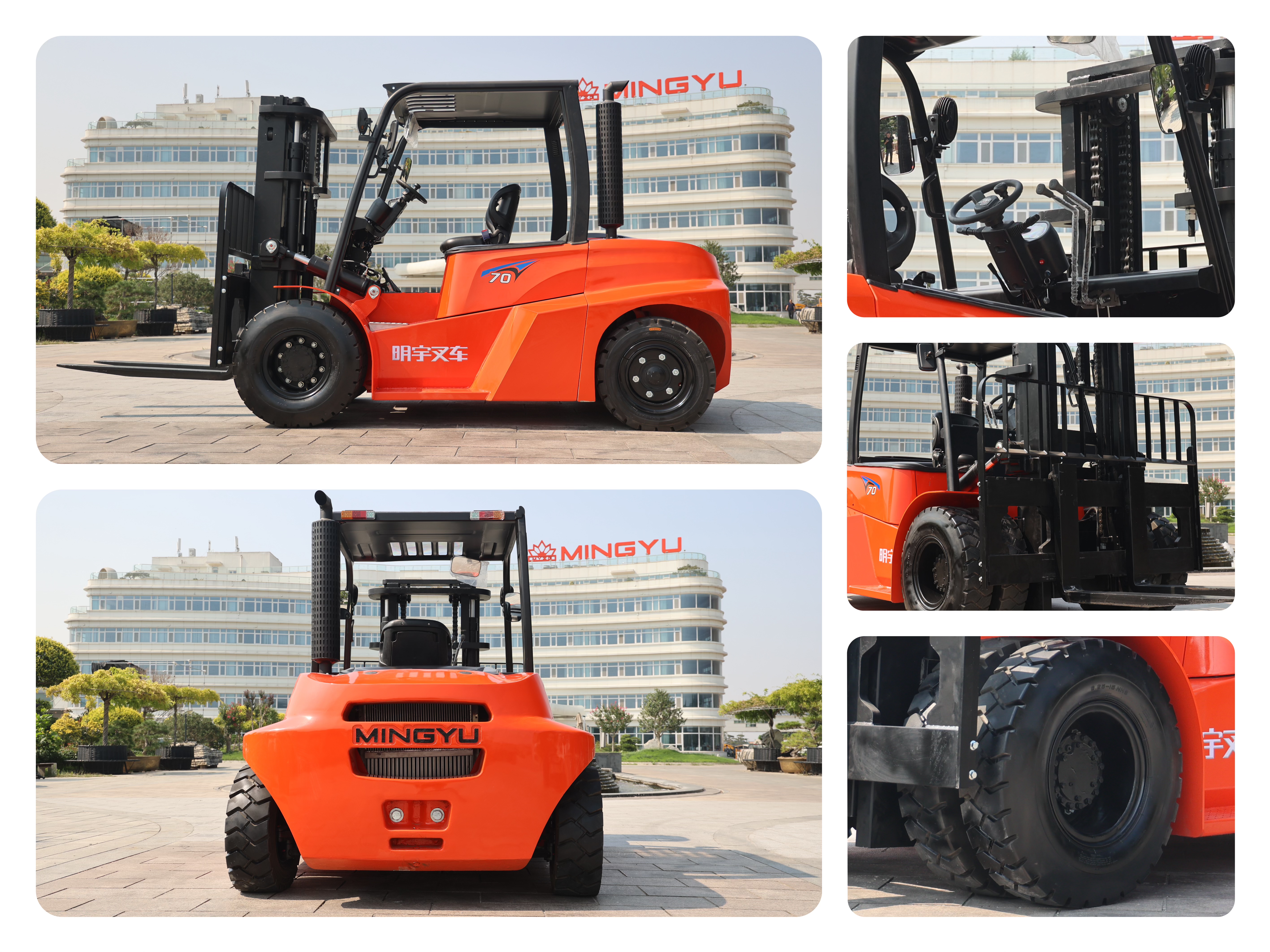

CPC70 diesel forklift

CPC70 diesel forklift
  • CPC70 diesel forklift

Short Description:

CPC70 diesel forklift...


  • Rated load capacity:7000kg:
  • weight:9350kg:
  • Standard lifting height:3000mm:
  • Engine:Mitsbishi / Isuzu / xichai / quanchai :

Product Details

Product Tags

THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY


PRODUCT FEATURE

MYZG perform a new design for it, and make this type trucks not only can provide exceptional comfort and safety, but also more durable.

● More comfortable for driver

(1)The suspended engine and transmission can effectively reduce the vibration which transmitted to the operating system, and can improve the level of driver fatigue significantly . The suspended type cab, compared with the H series, reduce vehicle vibration 30%
(2) The comfortable operating
Reducing the distance between double handle switch and steering wheel. Control handle is disposed in the comfortable position. Comprehensive dashboard is easy to read, including coolant temperature, fuel gauge, preheat instruction. Optimized pedal system; The brake pedal is widened. Spacious legroom and footsteps space. Multifunctional suspended seat increase the support of the driver, and reduce vibration, and adjust driver's weight balance, and adjust front and rear tilt, and have eat tool bag and seat belt. Steering wheel adjusting mechanism is disposed appropriate position which is easy to adjust . It is reliable and secure. The range of steering wheel adjustment is 9 degrees forward and backward. The cover completely have been sealed between the cab and the engine cabinet, and it reduce driver's ear noise effectively.


● More safe and durable

By using impedance composited muffler, this truck can make the sound power level reduce by 5%.Widened view mast,smooth mast rail, enlarged inner width
The three-stage mast with front cylinder single chain arrangement reduce the interior space usage from chain, and reduce blind spots, and make the fork tip visible.
When Lifting speed keeping constant, quantitative pump load sensing steering system can reduce gear pump’s displacement, and reduce torque of the driving pump, and finally reduce fuel consumption. Aluminum radiator with split fin structure can effectively reduce the failure rate, and it is easy to replace the radiator core, so can save maintenance costs. The fan, radiator and muffler’s layout have been optimized,  can increase the counterweight vent area, so that smoother airflow can cross the radiator. So this structure can reduce engine temperature 20% and transmission oil temperature 30%.


● Easy maintenance and green

Hood’s maximum opening angle is been up to 80 °, so the inspection and maintenance is very easy for spaciousness. We apply a separate integrated electrical box. The structure can make the main electrical components can protect against oil, water, dust and separated heat, greatly reduce the electrical failure rate, and can be easy to maintenance.

● Overall performance

Electro-hydraulic reversing and intelligent shift system, Rotary direction switch. Fully enclosed dashboard. Hydraulic lines and electrical wiring is not been exposed.

Toyota seat

THE MAIN PARAMETER

Fuel type diesel overall leghth with fork 4800mm
Rated load capacity 7000kg overall leghth without fork 3580mm
Load Center 600mm overall width 1995mm
Lifting height 3000mm Overall lifting height of mast 4420mm
Free lifting height 200mm Mast Lowered Height 2625mm
Fork size 1220×150×65mm tyre front 8.25-15-14PR
Mast tilt Angle front and rear 6/12Deg. tyre rear 8.25-15-14PR
min turning radius 3380mm wheel base 2250mm
ground clearance 200mm wheel track 1470/1700mm
Height of roof guard from ground 2460mm overall weight 9350kg
front overhang 590mm battery (12/100)×2 V/Ah
Max driving speed full load 29km/h engine type Mitsbishi / Isuzu / xichai / quanchai
Max lifting speed full load 500mm/s Starting rated power 85kw
Max traction full load 53KN transmission hydraulic
Max climbing angle 20(%) working pressure 20Mpa



Benefits:

  • Efficiency: Enhances productivity through swift loading and unloading of materials, reducing downtime and operational costs.

  • Reliability: Consistent performance in diverse environmental conditions, from indoor warehouses to outdoor construction sites.

  • Safety: Advanced safety features promote secure handling and minimize risks during operation.

Conclusion: The 7-ton diesel forklift stands as a reliable choice for industries seeking efficient material handling solutions in varied operational settings, ensuring both performance excellence and operational safety.






According to demands, can be matched with different accessories
