B35D electric forklift
MYZG B35D (CPD35D) 3.5-Ton Sit-Down Electric Forklift Truck (80V / 200Ah)
Heavy-Duty Material Handling Powerhouse: 3500kg Rated Load Capacity, 1900mm Extended Wheelbase, Powerful 18kW Drive Motor, 23kW Hydraulic Motor, and Zero-Emission Efficiency.
Executive Overview: High-Capacity 3.5-Ton Clean Electric Logistics Solution
The MYZG B35D (CPD35D) 3.5-Ton Electric Forklift engineered by Mingyu Heavy Industry (MYZG) brings heavy-duty handling power to modern zero-emission, eco-friendly industrial operations. Combining robust structural integrity with high-torque electric powertrain performance, the B35D is designed to replace internal combustion diesel forklifts in heavy manufacturing, timber processing, logistics hubs, paper roll handling, and port yard container loading.
Equipped with a high-capacity 80V / 200Ah battery system, an 18 kW drive motor, and a powerful 23 kW oil pump motor, the B35D handles a maximum rated lifting capacity of 3500 kg at a 500 mm load center. Featuring an extended 1900 mm wheelbase for superior longitudinal stability, an unladen weight of 4685 kg, 15% full-load gradeability, and a lifting speed of up to 380 mm/s, this machine delivers uncompromised productivity both indoors and outdoors.
MYZG B35D (CPD35D) Factory Technical Specifications
Review the complete factory engineering parameters and performance metrics for the MYZG B35D (CPD35D) 3.5-Ton Electric Forklift:
| Technical Parameter | Factory Specification Detail |
|---|---|
| Model Identification | B35D (CPD35D) |
| Power Type / Source | Accumulator / Battery Powered (Electric) |
| Battery Voltage & Capacity | 80V / 200Ah |
| Rated Load Lifting Capacity | 3500 kg (3.5 Tons) |
| Load Centre Distance | 500 mm |
| Driving Style | Sit-down Type |
| Drive Motor Power | 18 kW |
| Oil Pump Motor Power | 23 kW |
| Overall Length (With Fork / Without Fork) | 3757 mm / 2682 mm |
| Overall Width | 1232 mm |
| Mast Height (Lowered / Max Height Working) | 2062 mm / 4183 mm |
| Overhead Guard Height | 2105 mm |
| Distance Seat Surface to Overhead Guard | 980 mm |
| Standard Lifting Height & Free Lift Height | 3000 mm / 45 mm |
| Fork Adjustment Range | 260 – 1100 mm |
| Wheelbase | 1900 mm (Extended Heavy-Duty Chassis) |
| Front / Rear Overhang | 455 mm / 464 mm |
| Front / Rear Wheel Track | 1005 mm / 988 mm |
| Minimum Ground Clearance | 127 mm |
| Minimum Turning Radius | 2450 mm |
| Min. Right-Angle Aisle Width (1100×1100 Pallet) | 4205 mm |
| Gantry / Mast Tilt Angle (Front / Rear) | 6° / 12° |
| Max. Lifting Speed (Without Load / Full Load) | 380 mm/s / 300 mm/s |
| Max. Operating Speed (Without Load / Full Load) | 13 km/h / 12 km/h |
| Max. Gradeability (With Full Load) | 15% |
| Unladen Total Machine Weight | 4685 kg |
| Wheels Count (Driving / Steering) | 2 / 2 |
| Tyre Type (Front / Rear) | Pneumatic Tyre / Pneumatic Tyre |
| Tyre Size (Front / Rear) | 28*9-15 / 6.50-10 |
| Brake Systems (Driving / Parking) | Foot Brake / Hand Brake |
Engineering Breakdown & Key Product Advantages
1. Powerful 18kW Drive Motor & 23kW Oil Pump Motor System
The MYZG B35D features an industrial-grade electric motor package composed of an 18 kW traction motor and a 23 kW hydraulic pump motor. Driven by a robust 80V / 200Ah battery system, this setup yields immediate, controllable torque for effortless travel up to 13 km/h (12 km/h full load) and high hydraulic pump throughput supporting full-load lifting speeds up to 300 mm/s (380 mm/s without load).
2. 3500kg Load Rating & 1900mm Extended Wheelbase Stability
Engineered to handle extra-heavy materials, the B35D elevates capacity to a rated 3500 kg (3.5 tons) at a standard 500 mm load center. To support this heavier payload, MYZG expanded the chassis wheelbase to 1900 mm and increased the total unladen machine weight to 4685 kg. This extended counterweight balance prevents forward tipping and mast oscillation during high lift operations up to 4183 mm maximum working height.
3. 15% Full-Load Gradeability & Heavy Pneumatic Tires
The B35D seamlessly operates across uneven outdoor terrain and indoor concrete floors. Equipped with deep-tread pneumatic tires (28*9-15 front, 6.50-10 rear) and 127 mm ground clearance, the machine easily traverses outdoor gravel yards, tarmac roading, and threshold transitions. A 15% full-load gradeability allows the forklift to carry heavy 3.5-ton pallets up steep container loading ramps with total security.
Target Application Environments
With its 3.5-ton load rating, zero-emission powertrain, and rugged pneumatic chassis, the MYZG B35D thrives across demanding industrial landscapes:
Heavy Manufacturing & Metals
Handling heavy steel coils, raw casting molds, machinery components, and dense palletized metal goods.
Lumber & Building Material Yards
Moving heavy timber packs, stone slabs, cement bags, and construction materials across indoor and outdoor yards.
Port Terminals & Container Loading
Rapid loading/unloading of heavy freight containers, logistics trucks, and shipping bays with zero exhaust fumes.
Frequently Asked Questions (FAQ)
Q: What is the load capacity and wheelbase of the MYZG B35D electric forklift?
A: The MYZG B35D (CPD35D) features a 3500 kg (3.5 ton) rated load capacity at a 500 mm load center, supported by an extended 1900 mm wheelbase for higher stability.
Q: What power system and motors are used in the B35D model?
A: The B35D operates on an 80V / 200Ah battery system, featuring an 18 kW traction drive motor and a high-performance 23 kW hydraulic pump motor.
Q: Can the B35D be equipped with custom masts or attachments?

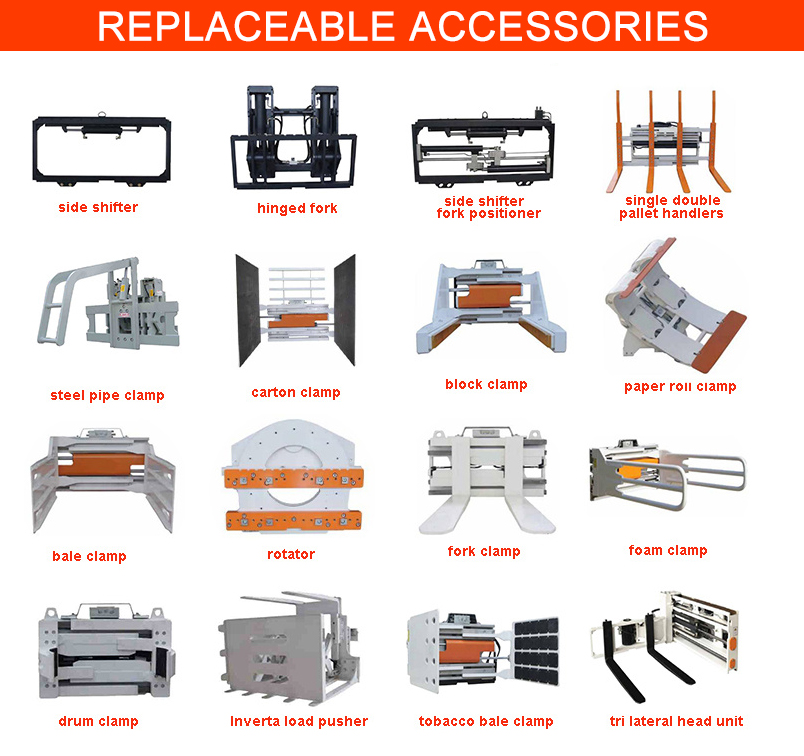

A: Yes, MYZG offers custom options including 2-stage or 3-stage full-free masts (up to 6m lift height), side shifters, fork positioners, paper roll clamps, and lithium battery configurations.
Get a Direct Factory Price Quote on the MYZG B35D 3.5-Ton Electric Forklift!
Contact MYZG Machinery today for direct manufacturer pricing, lithium battery upgrades, custom attachments, and global freight shipping solutions!
