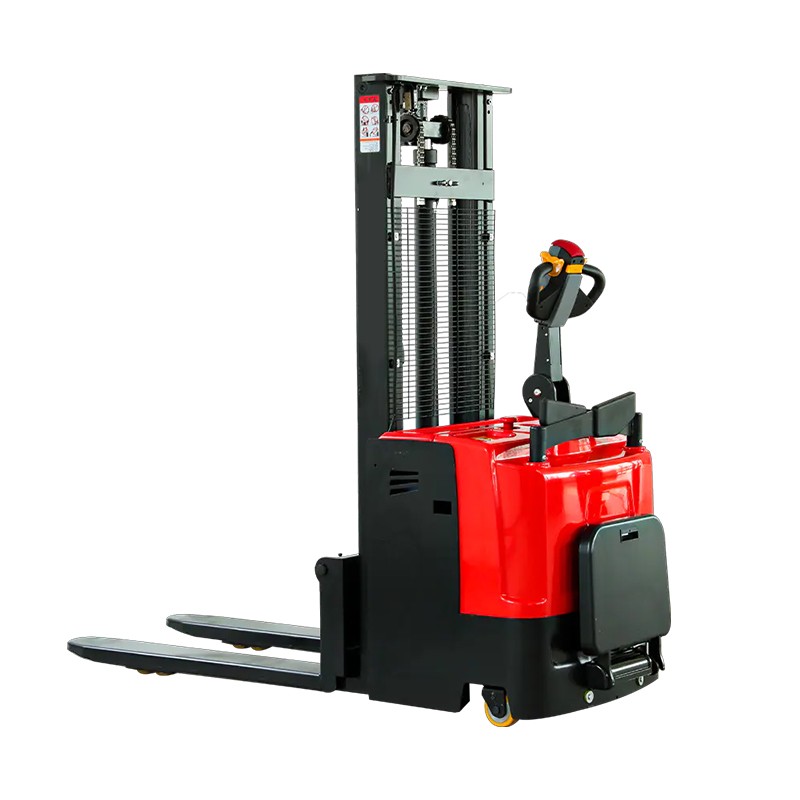

ZGFORKLIFT / MYZG CDDD Standing Electric Pallet Stacker for Pallet Compatibility and Uptime Planning

The ZGFORKLIFT / MYZG CDDD is a standing electric pallet stacker based on the verified CDD15/20D platform. Shandong Zhuogong Machinery equipment Co.,Ltd presents this new application-focused page for buyers who must move, lift and stage palletized goods in warehouses, factories and logistics buildings. The exact source lists 1500 kg and 2000 kg capacity choices, a 600 mm load center and several lift-height configurations. Final capacity at height, mast type and market configuration are confirmed in the written quotation. stacker product category.

Customer need and CDDD solution

A buyer usually needs more than a rated-capacity label. The machine must enter doors, turn between racks, place the actual pallet, travel for the planned shift and stop safely on the real floor. CDDD planning therefore starts with pallet dimensions, heaviest load, load center, required lift, residual capacity, aisle geometry, floor joints, ramp gradient, travel distance, hourly cycles and charging windows. This job-first approach reduces selection errors and makes price comparisons more meaningful.

Verified specification reference

verified CDD-D source product.

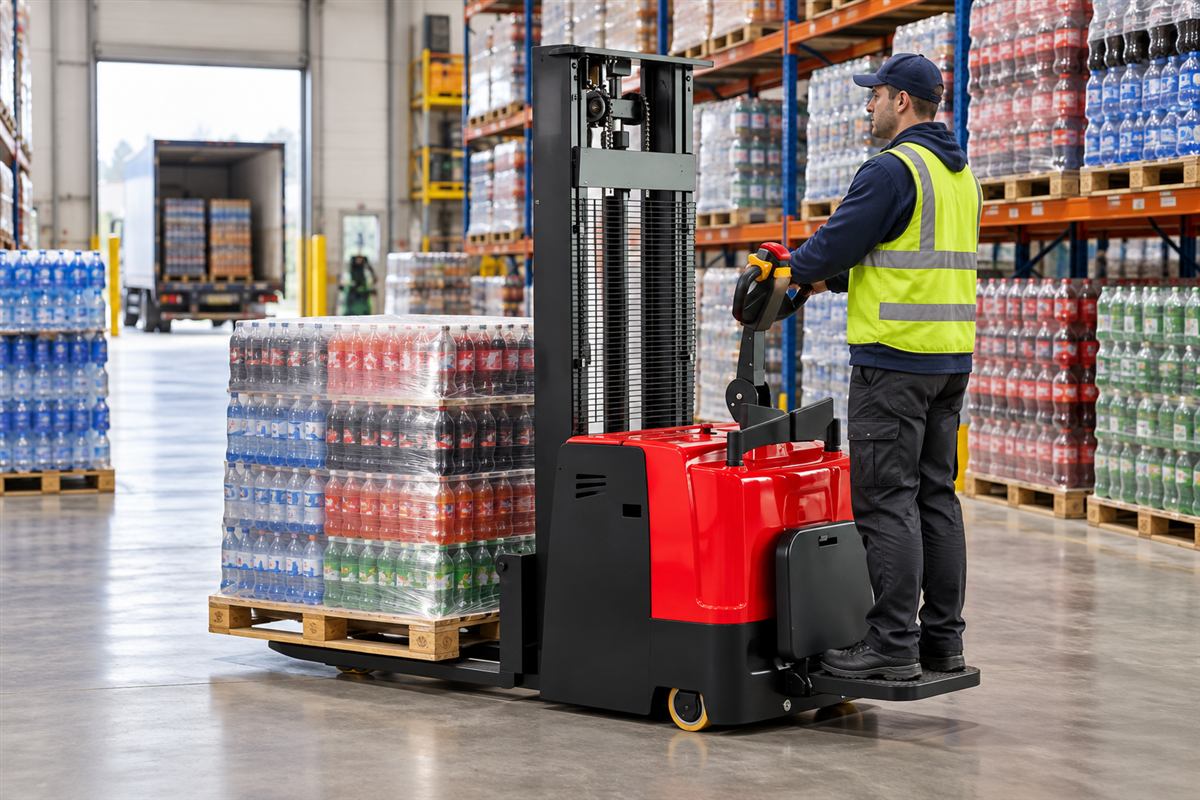

Warehouse racking applications

In a distribution warehouse, the CDDD can transfer pallets from receiving lanes to staging areas, replenish compatible racks and bring outbound loads to dispatch. Its source-listed 850 mm frame width, 2070 mm turning radius and 2985 mm intersecting-aisle reference help layout evaluation, but they do not replace a route survey. Allow clearance for pallet overhang, rack guards, columns, doors, pedestrians and the operator platform before approving a fleet route.

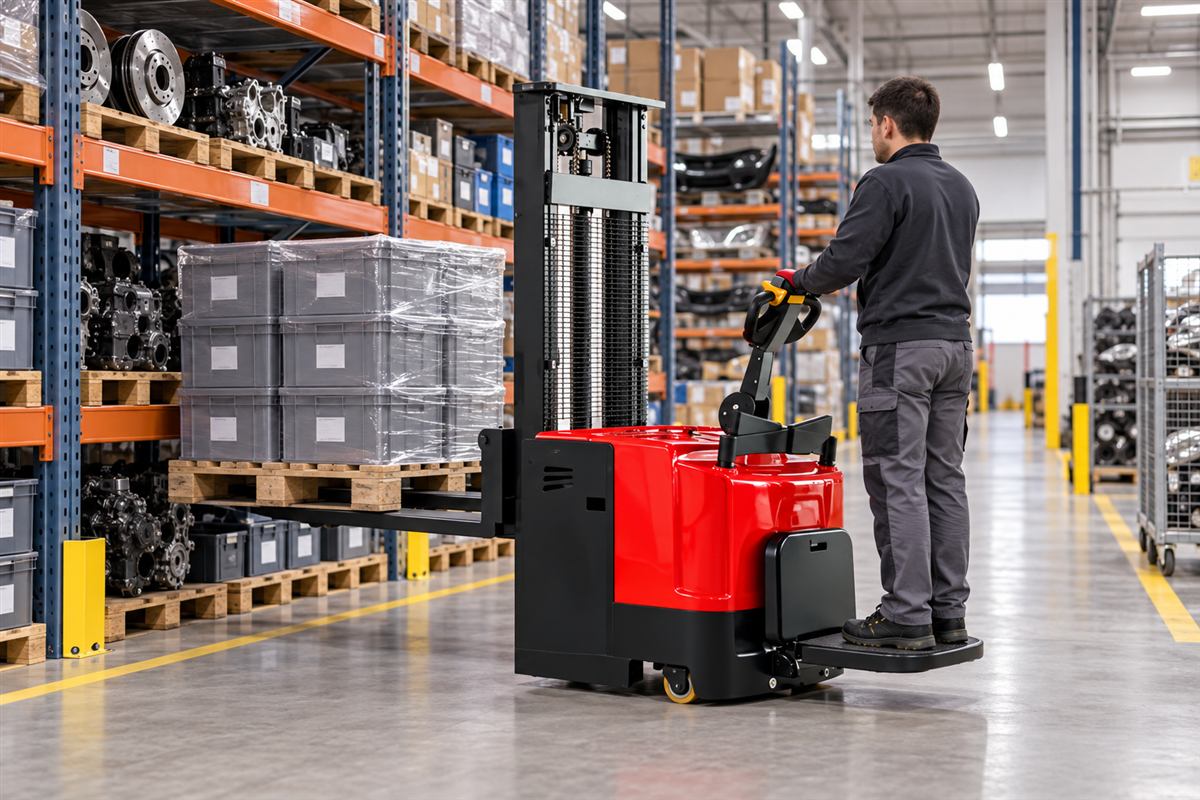

Production and line-side supply

For manufacturing, the electric drivetrain supports quieter line-side delivery without tailpipe exhaust. Typical duties include feeding packaged components, moving work in process and returning empty containers. The stacker should be matched to load stability, fork pockets and traffic rules. Where sensitive goods are handled, the buyer should also review hygiene, wheel marking, charging-zone controls and site-specific electrical rules instead of assuming one warehouse configuration fits every plant.

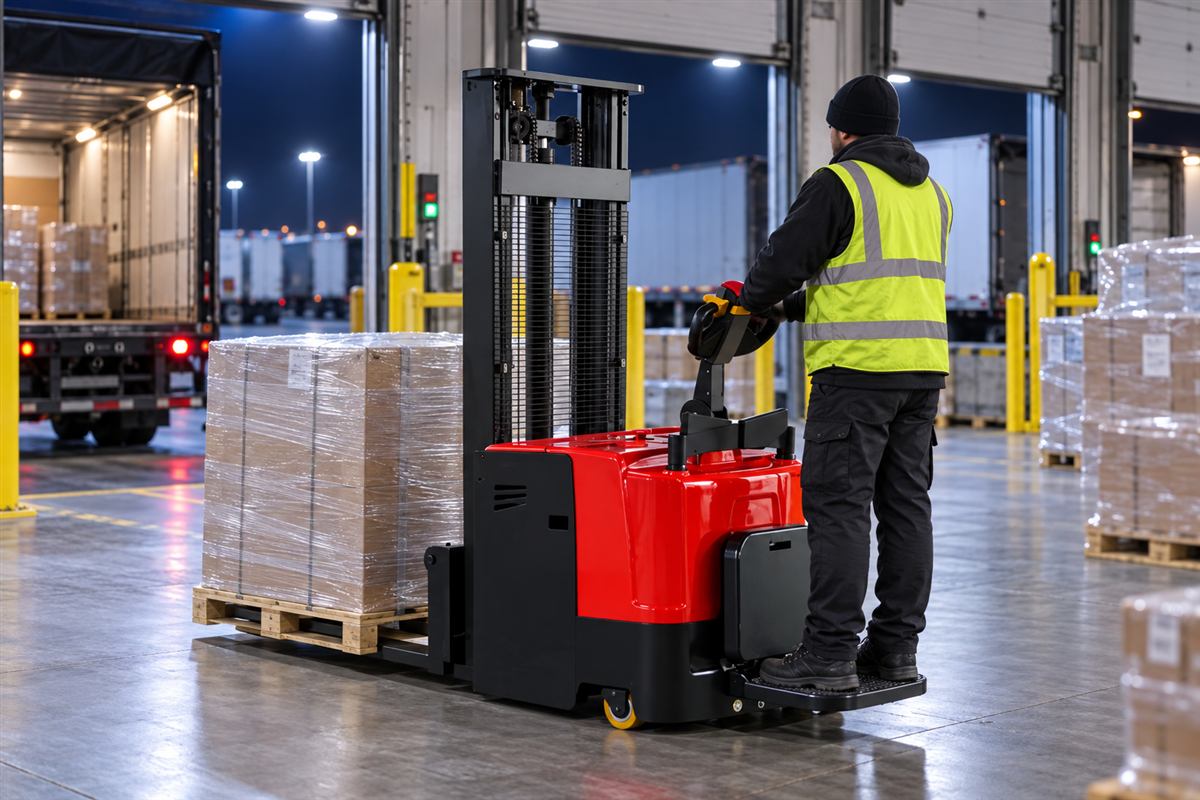

Cross-dock and dispatch flow

At cross-docks and dispatch areas, CDDD can move prepared pallets between sorting lanes and stationary vehicle loading zones when the dock system is suitable. Confirm dock plate rating, trailer restraint, door height, floor edge protection and weather exposure. The source lists 8/5 percent gradeability without/with load, but this is a reference value, not permission to use an unsafe ramp. Braking, traction and operational limits must be reviewed for the real route.

How to select the correct configuration

Choose between the 1500 kg and 2000 kg versions using the worst expected load, not the daily average. A longer pallet moves the center of gravity forward and can reduce residual capacity at elevation. Send the pallet length, width, height, gross mass, fork-entry direction and target beam height. The source lists 1600 to 3500 mm lift choices; final mast height, collapsed height, free lift, service weight and load chart must be confirmed for the selected build.

Buying guide and quotation checklist

A useful quotation request includes load drawings or photographs, pallet type, aisle measurements, doorway height, floor condition, shifts per day, travel distance, charging supply, ambient temperature and required delivery market. Also state whether fixed or adjustable fork spacing is preferred and whether special attachments are under consideration. Comparing quotations line by line prevents a low initial price from hiding a different mast, battery, charger, wheel material, connector or spare-parts package. application and buying guides.

Battery and charging planning

The exact source records a 24 V / 120 Ah battery arrangement with a listed battery weight of 35 × 2 kg. Runtime cannot be promised from capacity alone because it changes with travel, lift cycles, load, floor resistance, temperature and operator habits. Plan a ventilated and protected charging position, suitable electrical input, cable management, emergency isolation and inspection responsibility. Battery technology, charger input and destination-market plug are confirmed in the order.

Safety and operator preparation

Operator training must cover pre-use inspection, load-centre awareness, fork entry, pedestrian priority, horn use, corner speed, mast visibility, parking and emergency isolation. The emergency reversing function, power disconnect, low-speed mode and automatic deceleration described by the source support safe work only when maintained and used correctly. Never travel with a raised load, exceed the load chart or enter a damaged pallet without assessment.

Maintenance and total ownership cost

Total ownership cost includes energy, planned maintenance, wheels, batteries, chargers, forks, mast rollers, chains, bearings, downtime and operator time. Daily checks should look for wheel damage, hydraulic leakage, abnormal noise, fork wear, chain condition, connector heat and safety-device function. Maintenance intervals follow the supplied manual and duty severity. A clean machine history and organized spare-parts list make uptime easier to manage than reactive repair alone.

Parts, service and uptime planning

For service planning, identify high-wear items before shipment and keep the model, serial number and configuration record with the machine. A starter stock may include appropriate wheels, seals, switches, contactors and approved service items after the final build is known. Remote diagnosis works faster when the customer provides a clear fault description, operating conditions, photos or video and controller indications. Parts compatibility must be checked against the delivered serial configuration.

Dealer and rental business value

Dealers and rental operators can position CDDD for indoor pallet movement where a full counterbalance forklift is unnecessary. Profitable fleet planning depends on qualifying the application, documenting handover, training users and scheduling inspections between rentals. A dealer should avoid selling only by lift height; aisle fit, pallet entry, load centre, battery plan and local support determine repeat business. Local spare stock and transparent response procedures strengthen long-term customer confidence.

Compliance, export experience and trust

CE-related documentation and other destination requirements depend on the ordered configuration and market, so availability is checked before contract rather than assumed from a generic page. Because CDDD is electrically powered, engine-emission EPA programs may not apply in the same way as diesel equipment; any destination rule is reviewed for the final machine. Export packing, manuals, labels, charger input and document scope are confirmed in writing. No unverified certificate number or customer identity is claimed here.

Frequently asked questions

Is CDDD rated for 1500 kg or 2000 kg?

The verified source lists both CDD15D and CDD20D capacity choices. The ordered version and residual capacity at the required height must be confirmed in the quotation.

Can it work in a narrow aisle?

The source lists an 850 mm frame width, 2070 mm turning radius and 2985 mm intersecting-aisle reference. Measure the complete route and add pallet and safety clearances.

Which lift height should I choose?

The source lists choices from 1600 to 3500 mm. Select by target beam, pallet height, residual capacity, collapsed mast and doorway limits.

Is certification included?

Document scope depends on configuration and destination. Request the needed market documents before order so they can be checked and stated in writing.

Request a job-matched quotation

To receive a useful quotation, send the real job instead of only the model name. Include the heaviest pallet, dimensions, target lift, aisle, door and ramp data, shifts, charging supply, destination port and required documents. The export team can then propose the correct capacity, mast, forks, battery and service package, identify items needing confirmation and return a commercial offer that can be compared on the same technical basis. contact the MYZG export team.
