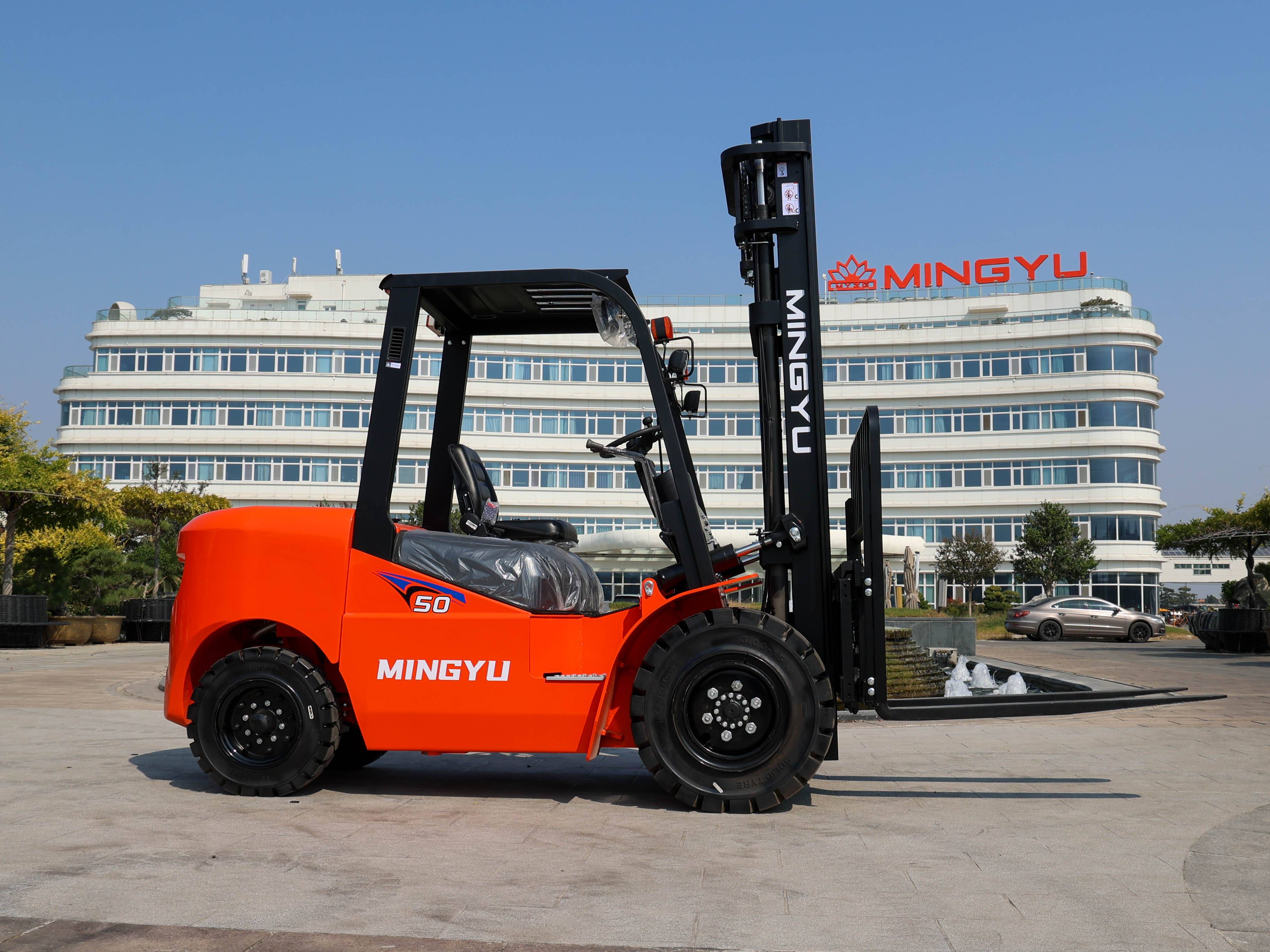

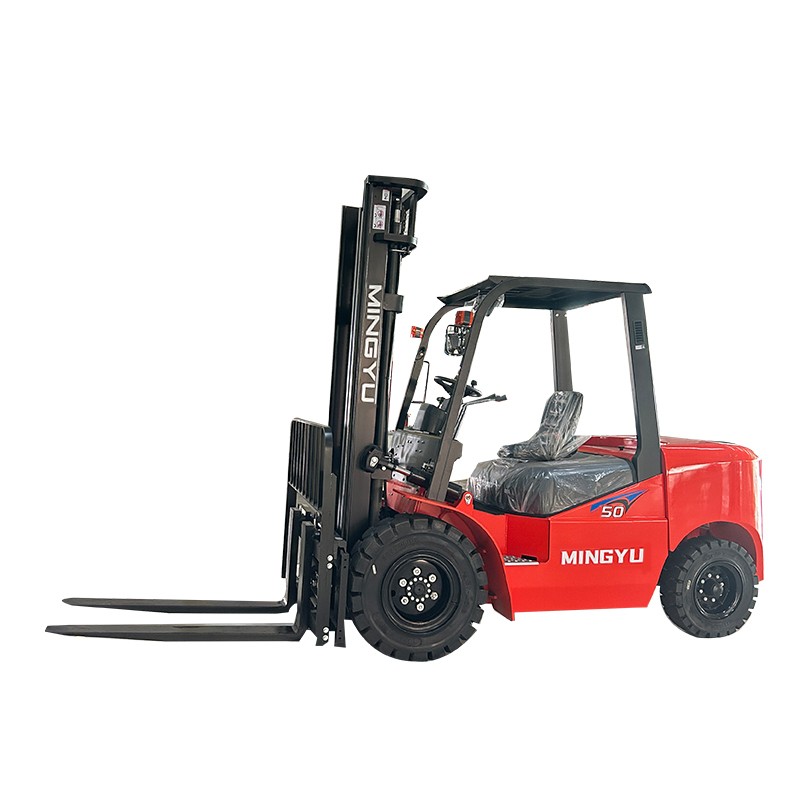

CPC50 diesel forklift
Product Feature
MYZG CPC50 forklift trucks are widely used in factories, warehouses, stations, wharves, ports and so on for loading, unloading and transporting of the packaged goods, besides, can be used for the handling of the bulk goods and unpackaged goods after equipping other attachments of forklift trucks.
Appearance
With the newest appearance design method, the whole forklift has smooth profile lines, presents the dynamic effect, and meets the newest appearance design fashion.
Safety
With the long axle base design, the whole forklift has better longitudinal stability. At the same lifting height, compared with the original forklifts, the lifting capacity is improved by great degree. Meanwhile, the rear axle load is reduced, and the life of the steering tyres is extended.
Comfortability
With the man-machine engineering technology same to that for R series, the space for legs and boarding is larger, the operating vision is extended. The operating comfortability is greatly improved, and the fatigue strength of the operator is reduced.
Reliability
With the thicker rear leg of the overhead guard, the engine air admission quantity is increased, the air admission resistance is reduced. The engine can conduct more sufficient combustion, and the engine life is extended.
Parameter
| Model | CPC(D)50M | |
| Power Type | diesel | |
| rated load lifting capacity | 5000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 4540mm |
| without fork | 3330mm | |
| wideth | 1450mm | |
| height | Do not raise the mast height | 2298mm |
| Overhead guard height | 2220mm | |
| Max height at working | 4210mm | |
| wheel base | 2300mm | |
| front overhang | 490mm | |
| rear overhang | 570mm | |
| front wheel track | 1230mm | |
| rear wheel track | 1000mm | |
| minimum ground clearance | 180mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 40mm | |
| Fork adjustment range | 300-1380mm | |
| minimum turning radius | 3170mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4960mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 490mm/s | |
| Maximum lifting speed with full load | 400mm/s | |
| Maximum operating speed without load | 21Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 5900kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 250-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine |
quanchai Mitsbishi / Isuzu/Cummins |
|
| rated power | 89kw | |
| rated speed | 2400r/min | |
(1) China engine OR Japan Mistubishi Engine;
(2) Auto electric hydraulic transmisson by TCM technology;
(3) Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(4) Copper radiator, with better heat radiation;
(5) Waterproof overhead guard;
(6) LED Light with protection guard;
(7) Tilt-cylinder dustproof protection;
(8) Luxury fully suspended seat with armbelt and safety belt;
(9) Warning light;
(10) Triangle rearview mirror, adopt a convex mirror to get a wider view;
(11) Red/Yellow/Green/Blue colors for your choice;
(12) Standard Duplex 3m mast.
(13) Toyota seat

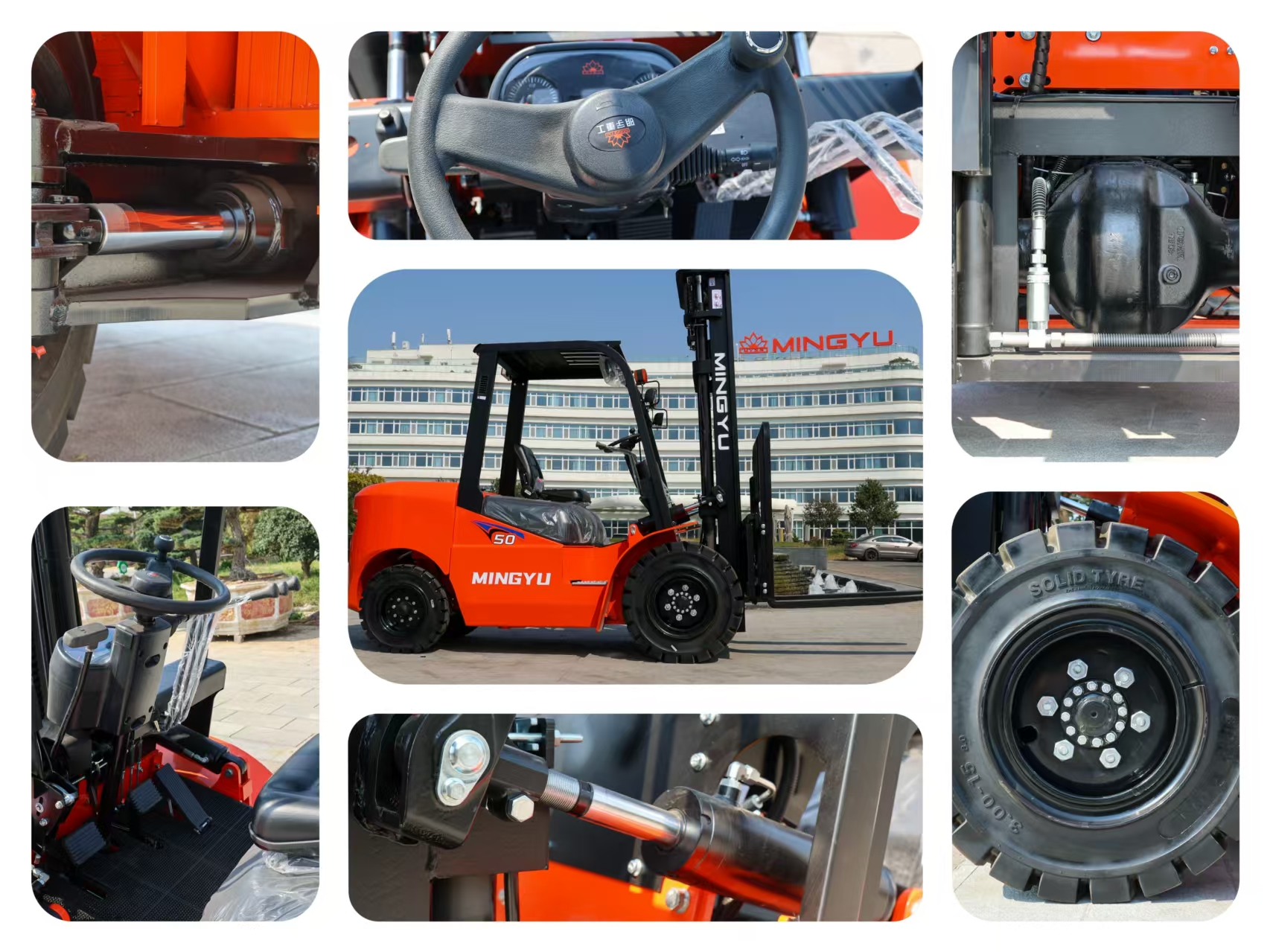

Detail
(6) Others: Double air filter, Vertical exhaust, Fork extension, Cab, Fork positioner
According to demands, can be matched with different accessories
Why Choose the Mingyu 5-Ton Diesel Forklift?
Unmatched Performance and Efficiency
Robust and Durable Construction
Superior Safety Features
