ZGLOADER / MYZG WZ30-25 Backhoe Loader for Practical Digging and Loading Projects

A task-focused guide to a dual-purpose loader backhoe with 7640 kg operating weight, a 1.0 m³ front bucket, a 0.3 m³ rear bucket and 2770 mm front dumping height.

A two-function machine for sites that cannot justify two separate units

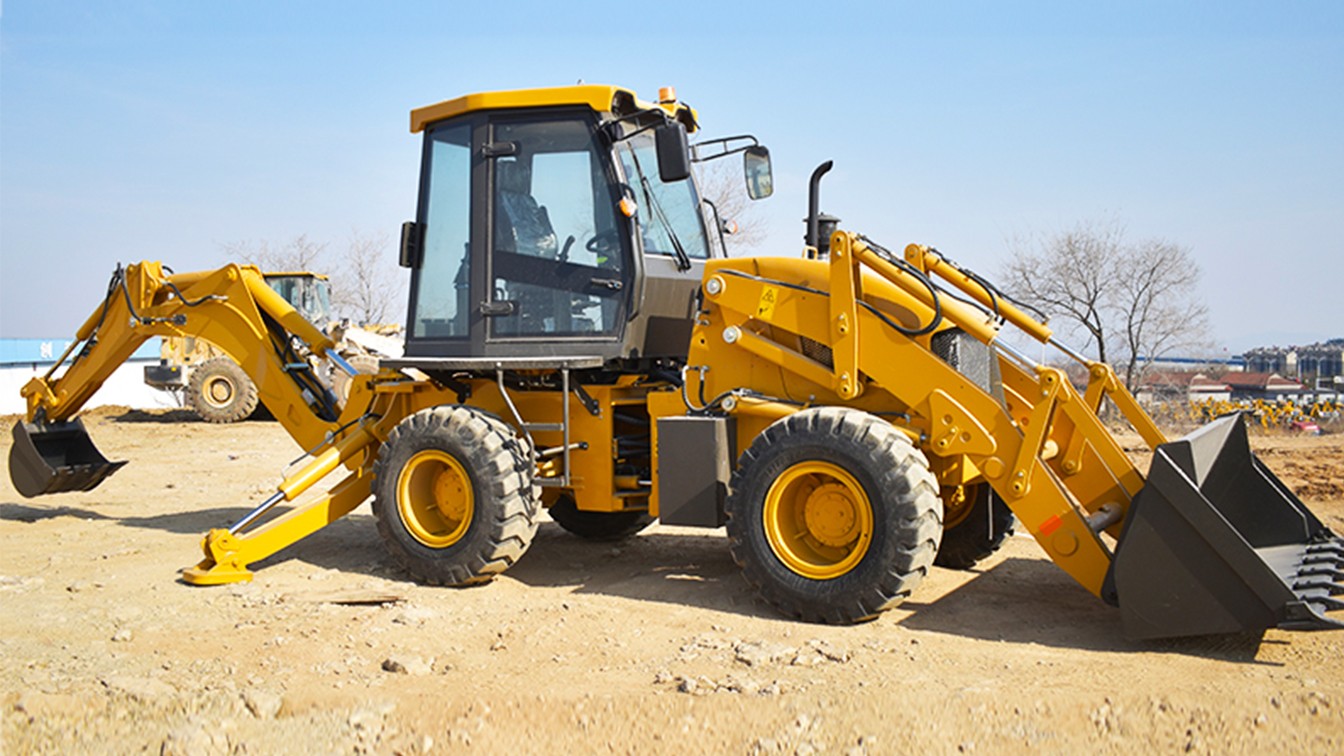

The ZGLOADER / MYZG WZ30-25 is a backhoe loader built for contractors, farms, road crews and utility teams that need to excavate, load, backfill and grade without moving two machines between jobs. It is manufactured by Shandong Zhuogong Machinery equipment Co.,Ltd and can be compared with the company’s broader All Products range when a buyer is deciding between a loader, excavator and combined machine.

The practical value is task switching. The rear excavator opens drainage, cable, water and foundation trenches; the 1.0 m³ front bucket handles soil, gravel, sand and cleanup material. One operator can dig, reposition, load, backfill and grade without coordinating a separate excavator and loader on moderate-volume sites.

Customer problems the WZ30-25 is intended to solve

Buyers often face short schedules, narrow access, limited transport capacity and crews that alternate excavation and loading several times per shift. The verified WZ30-25 source lists 7640 kg operating weight, 6170 × 2268 × 3760 mm dimensions, 2370 mm wheelbase, a 0.3 m³ rear bucket, a 1.0 m³ front bucket, 2770 mm dumping height and 925 mm dumping distance. These values form a reliable basis for job and transport planning.

Verified WZ30-25 factory specification reference

The table uses values from the existing WZ30-25 source record and keeps them identical in all four languages. Buyers can review the established WZ30-25 product page for comparison. The source lists YC4A105Z-T20 Stage II and Xinchai Euro V engine options; the actual engine, emission package, attachments, hydraulics and destination documents must be confirmed in writing for the ordered configuration.

Engineering advantages in real work

1. Digging and loading without changing the base machine

A 0.3 m³ rear bucket and 1.0 m³ front bucket support trenching, spoil handling, backfilling, truck loading and rough grading in one work sequence. The front dumping height is 2770 mm and dumping distance is 925 mm. Maximum digging depth, breakout force and attachment performance are not assumed here and must be confirmed in the final configuration sheet.

2. Yuchai power and mechanical driveline

The source lists YC4A105Z-T20 Stage II and Xinchai Euro V as engine options. The selected engine, rated power, fuel, altitude range, cooling package and local emission requirements should be matched to the destination before production. No certificate number or performance value is inferred from the option name alone.

3. Dimensions that support transport and site planning

Overall dimensions are 6170 × 2268 × 3760 mm with a 2370 mm wheelbase. These figures help contractors assess gates, road access, trailer or container planning, overhead clearance and the operating space required for the rear boom and stabilizers. Final shipping dimensions and weight should be reconfirmed after attachments are selected.

4. Tyres and operating discipline for mixed surfaces

The verified tyre specification is 16/70-20. Traction and ground impact depend on tread, pressure, surface, load and operator technique. On slopes, soft shoulders or excavation edges, assess ground support, follow the supplied operating limits and place stabilizers on firm pads.

Application scenarios and job matching

Typical uses include utility trenches, roadside drainage, rural water lines, small foundations, farm tracks, estate maintenance, aggregate loading, demolition cleanup and municipal repair. The related guide on what a backhoe loader is primarily used for explains why this machine type is valuable when frequent task switching matters more than the peak output of a dedicated excavator or wheel loader.

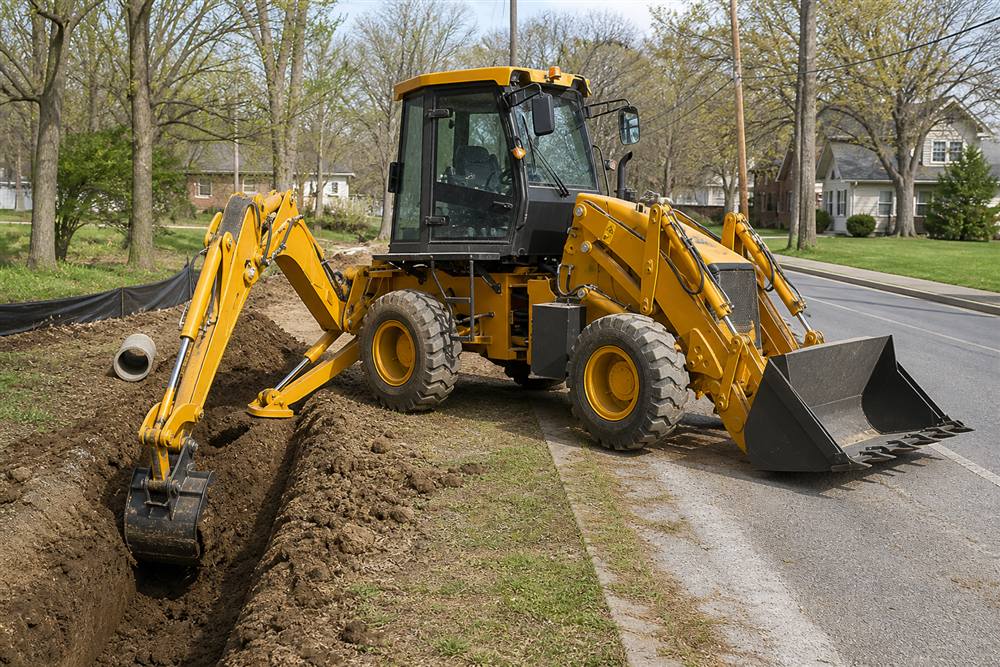

Utility and drainage work

Open controlled trenches for water, drainage, electrical or communications routes, place spoil away from the edge, load excess material and backfill after approved installation and inspection procedures.

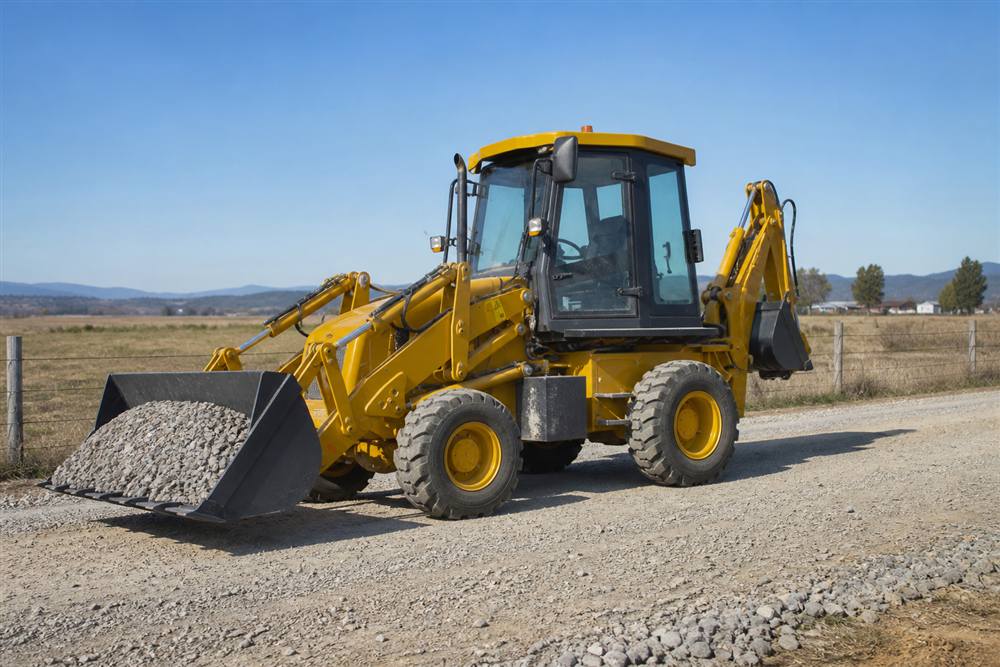

Farm and rural infrastructure

Maintain tracks, clean ditches, prepare culverts, move soil or gravel and support yard improvements. Attachment and hydraulic requirements should be defined before ordering rather than assumed after delivery.

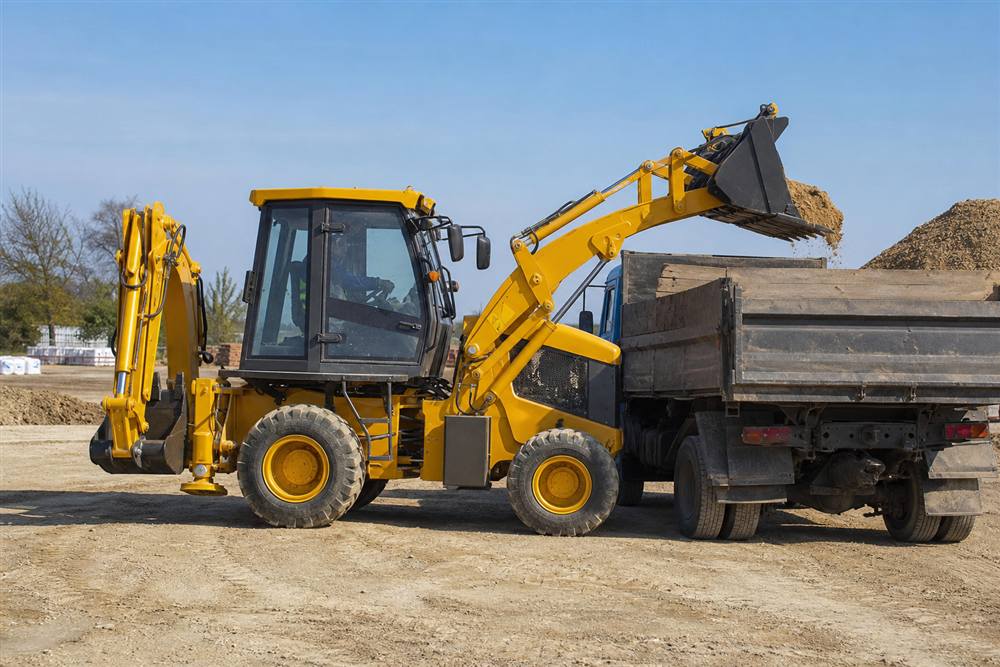

Road, municipal and small construction projects

Support shoulder repair, light site preparation, foundation excavation, debris handling and truck loading where mobility between nearby tasks and two-function utilization can lower fleet complexity.

WZ30-25 backhoe loader selection and purchasing guide

A useful inquiry includes soil type, trench width and target depth, material density, truck side height, daily hours, travel distance, gradients, road rules, climate, attachments, hydraulic demand, destination port and local service capability. Confirm that 7640 kg operating weight, 1.0 m³ front bucket, 0.3 m³ rear bucket, 2770 mm dumping height and 925 mm dumping distance suit the job. Request a written configuration, final dimensions, engine and emission details, included tools, parts list, manuals and warranty terms.

Maintenance planning and total cost of ownership

Daily inspection should cover engine fluids, cooling, filters, hoses, cylinders, pins, bushings, tyres, wheel fasteners, brakes, steering, lights, buckets, cutting edges, stabilizers and visible leaks. Planned service intervals must follow the supplied manual. Compare fuel, filters, wear parts, tyre life, attachment maintenance, operator training, planned downtime, transport and local technician access—not only the purchase price.

Parts, dealers and repeat-business support

Distributors and rental fleets can position the WZ30-25 around verified applications instead of presenting only a specification table. A stronger local offer combines site qualification, a digging and loading demonstration, operator handover, preventive-maintenance planning and identified fast-moving parts. For configuration, service and dealer discussions, contact the MYZG export team with the intended market and job profile.

CE, EPA, export service and buyer confidence

CE-related evidence, engine-emission documents and destination compliance depend on the final configuration and market, so they should be requested and checked in writing. EPA applies only where the selected engine and destination require it; this page does not assume a certificate number. MYZG can support configuration review, pre-shipment inspection, export packing, manuals, shipping documents, parts identification and after-sales communication. Cooperation references should be shared only when permission and verifiable facts are available.

Frequently asked questions

How deep can the WZ30-25 backhoe loader dig?

The verified source confirms a 0.3 m³ rear bucket but does not provide a dependable maximum digging-depth figure. State the required trench depth and arm configuration so it can be confirmed in the quotation.

What can the front loader handle?

The source lists a 1.0 m³ front bucket, 2770 mm dumping height and 925 mm dumping distance. Material density, bucket choice and truck geometry must be considered before confirming production.

How should I request a quotation?

Send the job, material, trench, load, height, climate, attachment, emission, transport and service requirements. MYZG can then prepare a written job-matched proposal instead of an incomplete price-only answer.

Get a job-matched WZ30-25 quotation

Share your application, destination port and required attachments. The export team will review configuration, documentation, packing and parts support before issuing the quotation.
