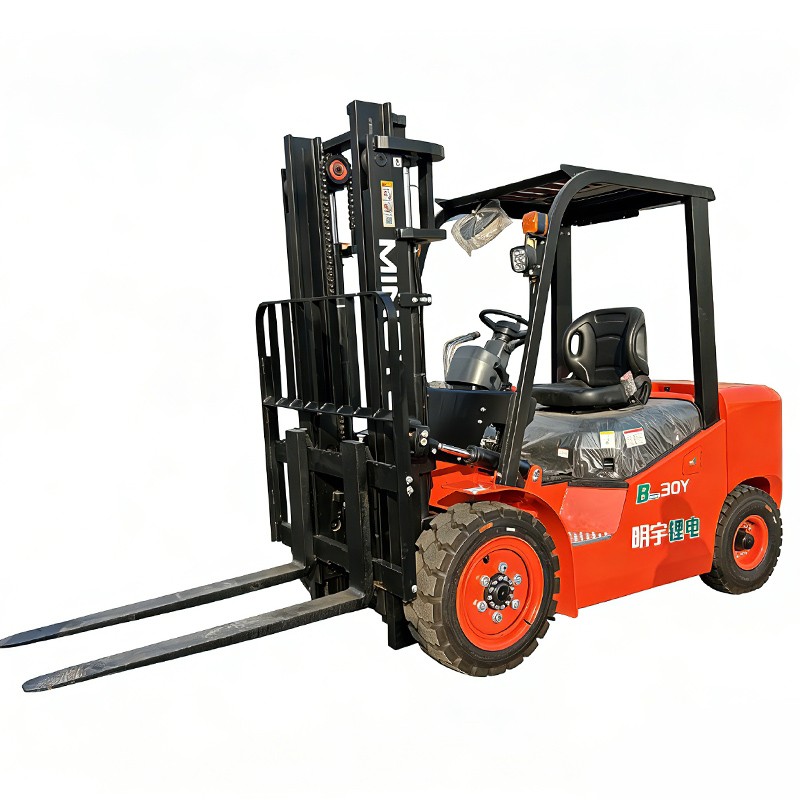

ZGFORKLIFT / MYZG CPD30 3 Ton Lithium Electric Forklift

The ZGFORKLIFT / MYZG CPD30 is a compact lithium electric counterbalance forklift for businesses that need to move palletized goods without local engine exhaust. The verified source configuration is rated at 3000 kg with a 500 mm load center and documents an 80 V / 206 Ah lithium battery. Shandong Zhuogong Machinery equipment Co.,Ltd treats the job, route and load as the starting point, so the delivered solution is matched to the real warehouse rather than selected from capacity alone. electric forklift range.

Customer need and practical solution

The ZGFORKLIFT / MYZG CPD30 is a compact lithium electric counterbalance forklift for businesses that need to move palletized goods without local engine exhaust. The verified source configuration is rated at 3000 kg with a 500 mm load center and documents an 80 V / 206 Ah lithium battery. Shandong Zhuogong Machinery equipment Co.,Ltd treats the job, route and load as the starting point, so the delivered solution is matched to the real warehouse rather than selected from capacity alone.

Verified CPD30 reference data

all products.

The table below contains only data confirmed from the existing CPD30 source. Mast height, free lift, overall dimensions, tyres, charger input, fork size and optional attachments must be confirmed on the final technical sheet and quotation. This protects buyers from assuming that one catalogue configuration fits every aisle, door, pallet, lift height or electrical supply. It also gives distributors a clear baseline for comparing options and documenting the delivered truck.

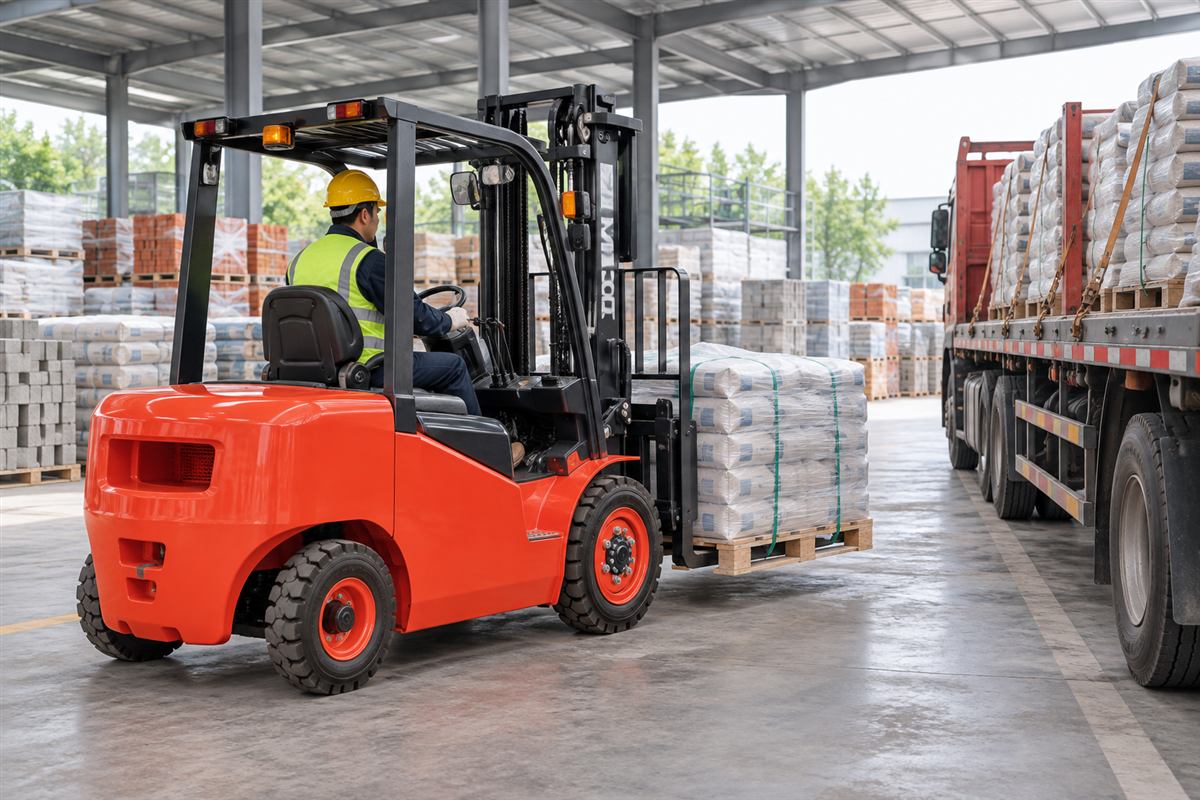

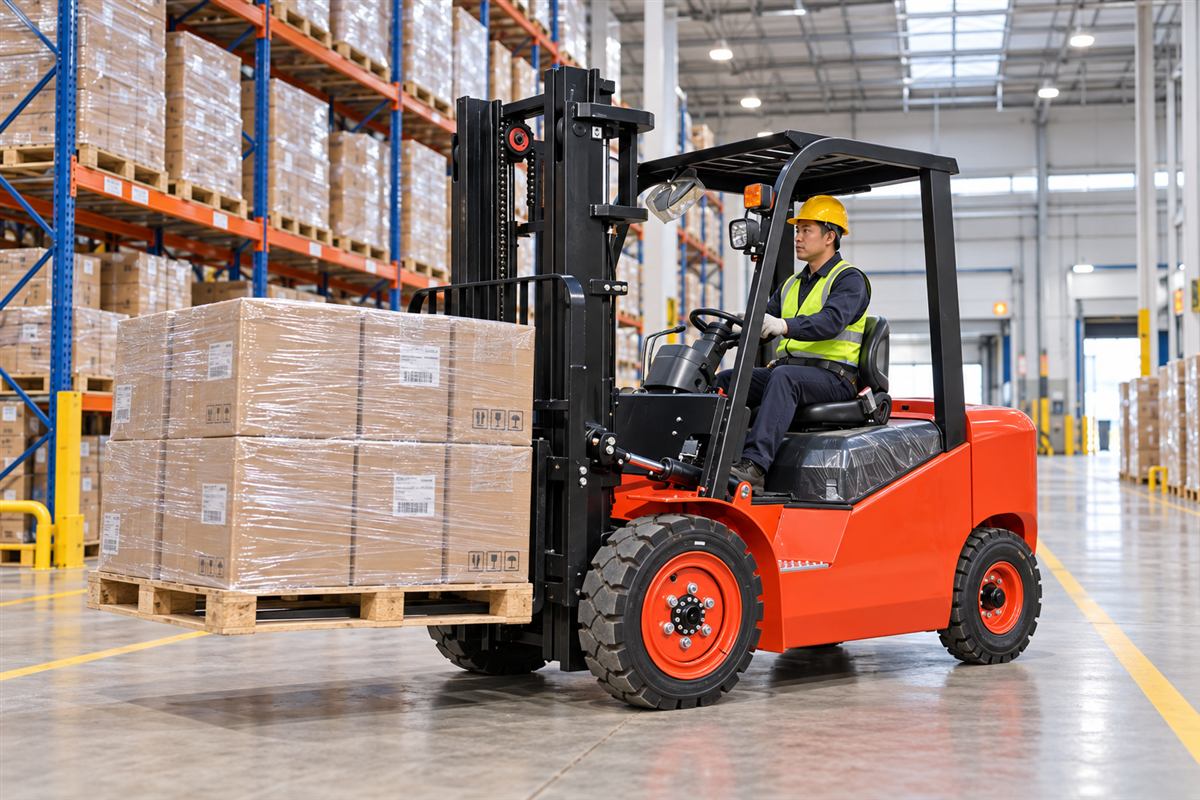

Warehouse receiving and put-away

In receiving areas, CPD30 can unload correctly restrained vehicles, move standard pallets to inspection and feed put-away lanes. Buyers should measure dock plates, trailer floors, doorways, aisle intersections, rack beams and turning space. The practical solution combines a compact electric truck with a traffic plan, pedestrian separation and a residual-capacity review. For multi-shift warehouses, map peak pallet flow instead of using only average daily volume.

Food and beverage distribution

Food, beverage and consumer-goods distributors often value quiet operation and no engine exhaust at the point of use. The forklift can support pallet transfer, replenishment and dispatch where the floor is prepared and the load is stable. Confirm cold-room temperature, condensation risk, wash-down exposure and packaging fragility before selection. Battery and electrical protection, tyres and operating procedures must match the environment; this page does not imply suitability for every hygienic or explosive area.

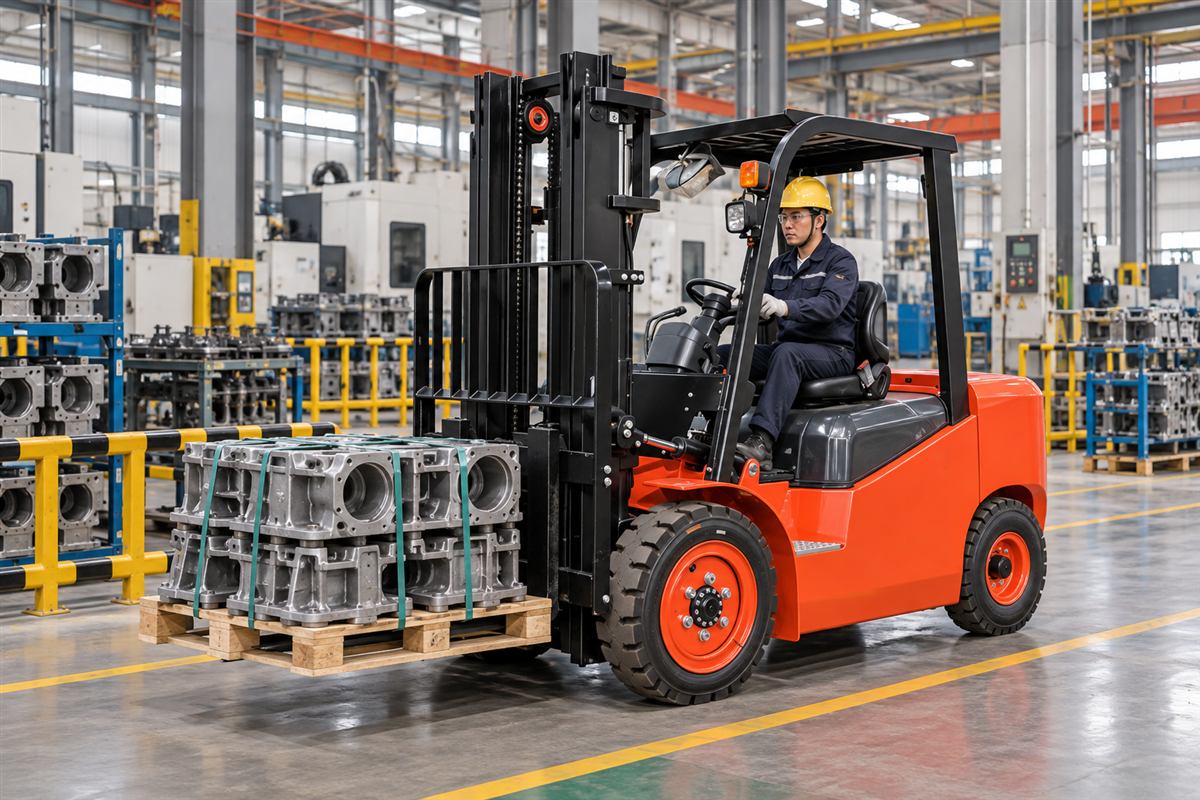

Manufacturing line-side supply

At factories, a 3 ton lithium forklift can supply components, packaging and finished goods to line-side buffers while reducing fuel handling inside the building. Route design should separate people, tuggers and forklifts, with marked crossings and controlled reversing zones. Long bins, stillages or attachments change the load center and may reduce capacity. A trial with the actual pallet and rack height is the best way to validate productivity and visibility.

Model selection and residual capacity

Rated capacity is 3000 kg at a 500 mm load center in the verified reference configuration. Lift height, long loads, off-center loads, attachments and tilted handling reduce usable capacity. Send the heaviest normal load, dimensions, center of gravity, pickup and placement height and attachment requirement. The supplier should return an approved residual-capacity chart and nameplate for the final mast, fork and attachment combination before operation.

Battery and charging plan

The documented battery is 80 V / 206 Ah, but operating time depends on travel distance, lift cycles, load mass, floor resistance, temperature, tyres, operator behavior and idle time. Match the charger to local voltage, frequency, connector and battery protocol. Plan a protected charging position, cable management, isolation, ventilation as required by the supplied system and an emergency procedure. Opportunity charging must follow the battery and charger instructions.

Buying guide and quotation checklist

A useful request for quotation includes pallet and load drawings, maximum and typical mass, rack height, aisle width, lowest overhead clearance, door size, gradients, floor condition, daily hours, shift pattern and ambient temperature. Compare proposals by residual capacity, mast, forks, tyres, battery, charger input, safety devices, manuals, warranty, spare-parts plan, packing and shipping dimensions. A low initial price can be outweighed by poor fit or downtime. buying and application guides.

Safety and operator preparation

Only trained and authorized operators should use the forklift. Daily inspection should cover forks, carriage, chains, mast channels, hoses, tyres, wheel fasteners, brakes, steering, lights, alarms, overhead guard, seat restraint, battery connector and charger. Carry the load low, keep within the approved route, slow at blind intersections and never allow people beneath raised forks. Site rules and the delivered operator manual take priority.

Maintenance and total ownership cost

Electric drive removes engine oil, fuel filters and exhaust maintenance, yet preventive service remains essential. Schedule mast lubrication, chain measurement, hydraulic inspection, fork wear checks, tyre and brake service, steering checks, connector inspection and controller cooling cleaning. Calculate total ownership cost from electricity, battery care, tyres, planned parts, labor, operator training, charger infrastructure and downtime rather than purchase price alone.

Parts and after-sales support

For accurate parts support, provide the serial plate, delivered configuration, clear photographs and a fault description. MYZG can coordinate manuals, parts identification, export packing and after-sales communication. A sensible dealer stock may include configuration-matched seals, connectors, contactors, mast rollers, brake items and wear components. Parts should be selected against the delivered serial and technical file, not only the CPD30 model name.

Dealer, rental and fleet opportunity

Dealers, rental companies and fleet managers can position CPD30 for retail distribution, light manufacturing, third-party logistics and regional warehouses. A strong local offer includes a site survey, load trial, charging review, operator handover, planned maintenance and critical-parts stocking. Recording application data also improves replacement planning and helps the dealer recommend the correct battery, mast and tyres for future units.

Compliance, export experience and trust

CE documentation, battery transport papers, charger conformity and destination-country requirements depend on the final configuration and must be confirmed in writing. EPA engine-emission certification is generally not the governing evidence for a battery-electric forklift because it has no combustion engine at the point of use. MYZG supports export review and service communication without inventing certificate numbers, customer names or performance records.

Frequently asked questions

Can CPD30 lift 3000 kg at every height? No; use the approved residual-capacity chart. Can it operate outdoors? Only on controlled prepared routes compatible with tyres, slope, weather protection and electrical safeguards. Is fast or opportunity charging available? It depends on the approved battery and charger. Can an attachment be fitted? Yes only after capacity, hydraulics and visibility are reviewed for that attachment.

Request a job-matched quotation

For a configuration-based quotation, send load mass and dimensions, center of gravity, lift height, aisle and door measurements, floor and slope, cycles per hour, shift length, temperature, attachment, charger supply, destination port and required documents. The export team can then propose the suitable mast, forks, tyres, battery and service package and explain which compliance documents apply to the final shipment. request a quotation.
