Description

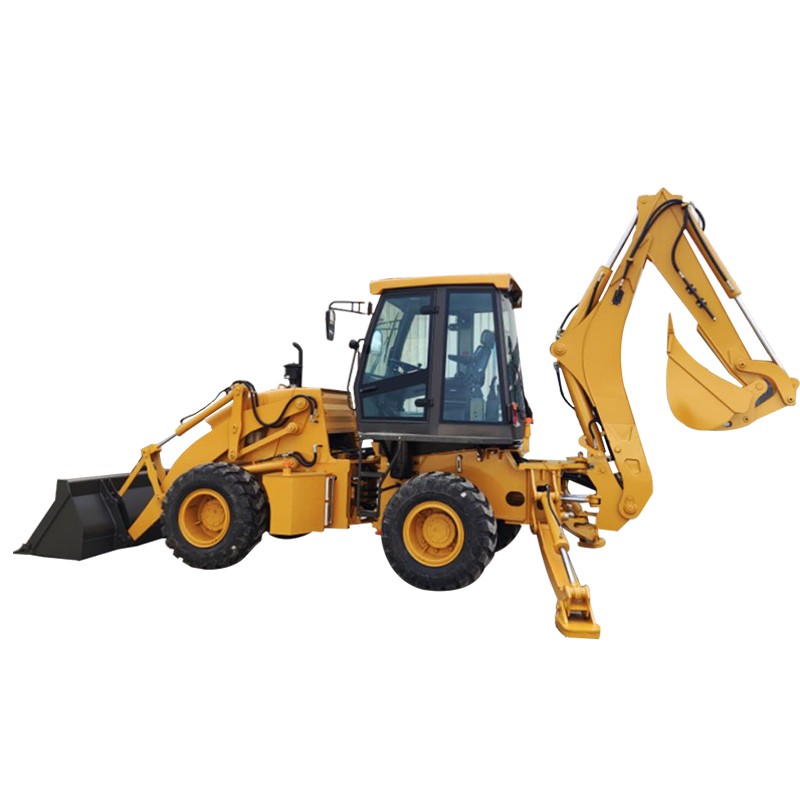

| The Main Performance Parameter of Backhoe Loader WZ30-25 |
| Transport Dimension | |
| L*W*H | 6170×2268×3760 |
| Wheel base | 2370mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 58KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2770mm |
| Bucket Dumping Distance | 925mm |
| Digging Depth | 27mm |
| Backhoe Capacity | 0.3m3 |
| Max. Digging Depth | 4082mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 65KN |
| Engine | |
| Model | YUCHAI YC4A105Z-T20 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber |
| Cylinder-Inside Diameter*Stroke | 4-108×132 |
| Rated Power | 75KW |
| Rated Speed | 2200r/min |
| Min. Fuel Consumption | ≤230g/km.h |
| Max.Torque | ≥400N.M/1500r/min |
| Displacement | 4.8L |
| Steering System | |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 o |
| Min. turning radius | 5018mm |
| Pressure of the system | 14Mpa |
| Axle | |
| Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 8.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 84.40% |
| Inlet Pressure | 1.3Mpa—1.5 Mpa |
| Outlet Pressure | 0.25Mpa—0.3 Mpa |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max.Speed | 22Km/h |
| Tyre | |
| Model | 16/70-20 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Digging Power of Excavator Grab | 60KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
