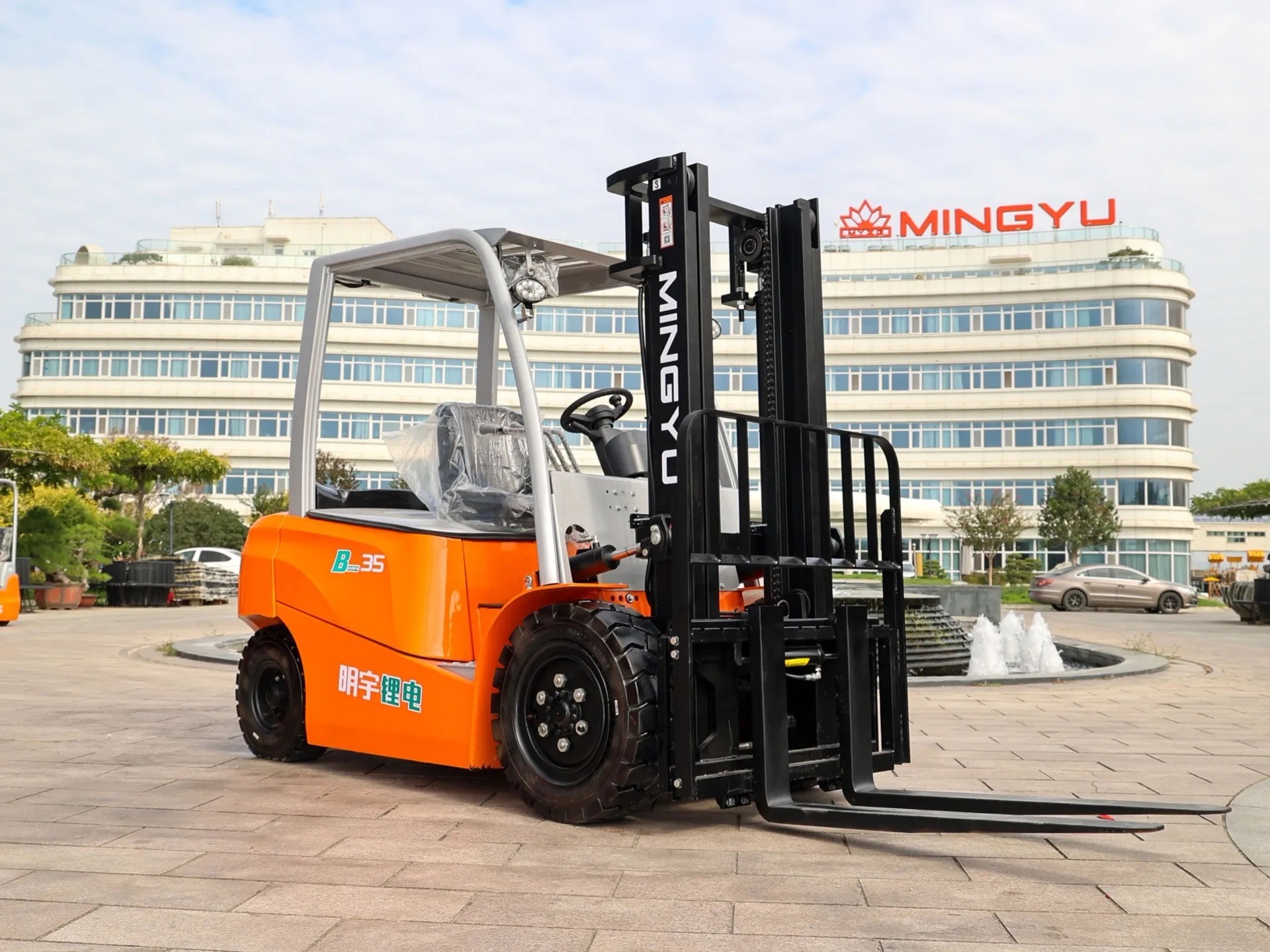

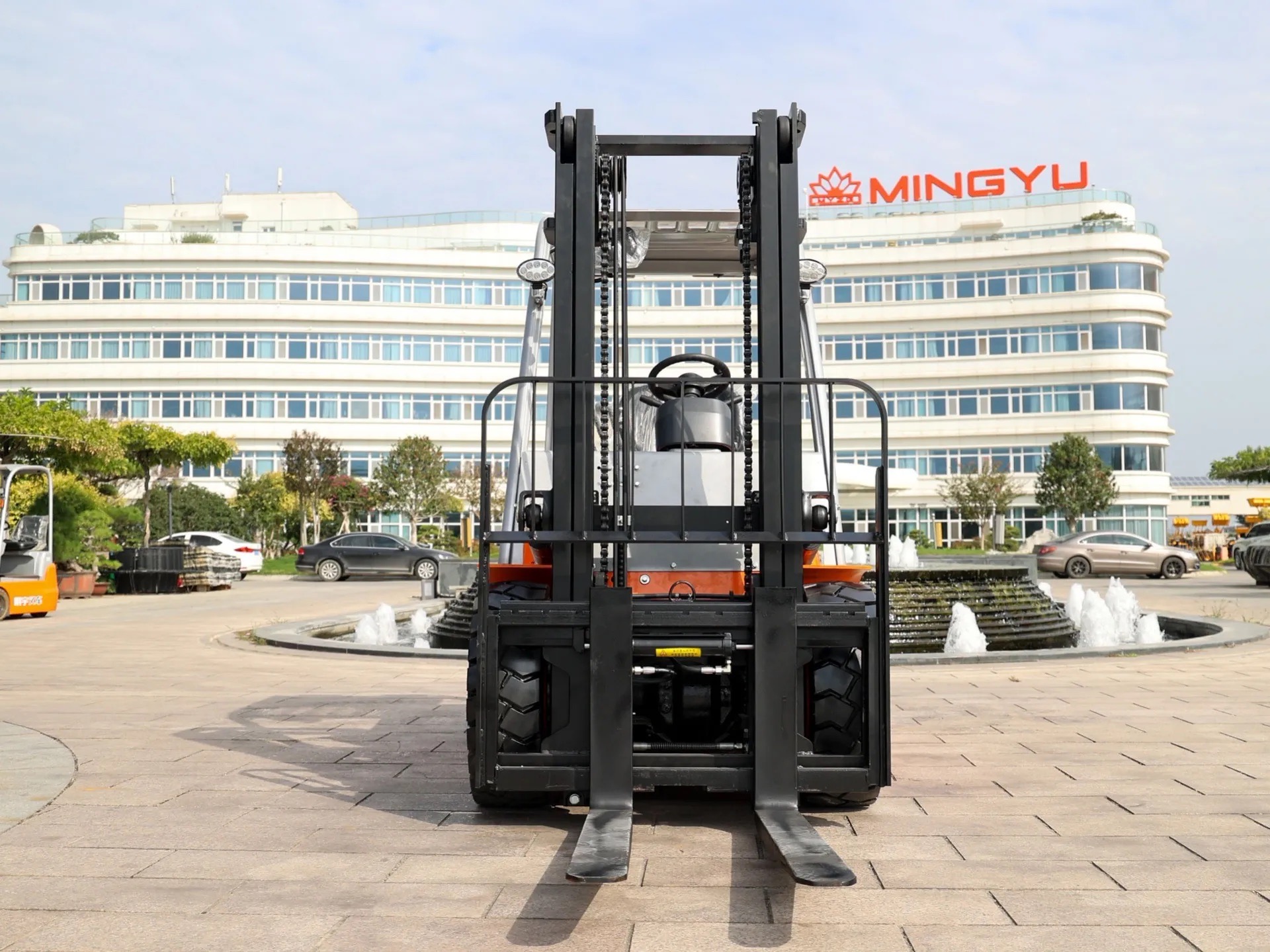

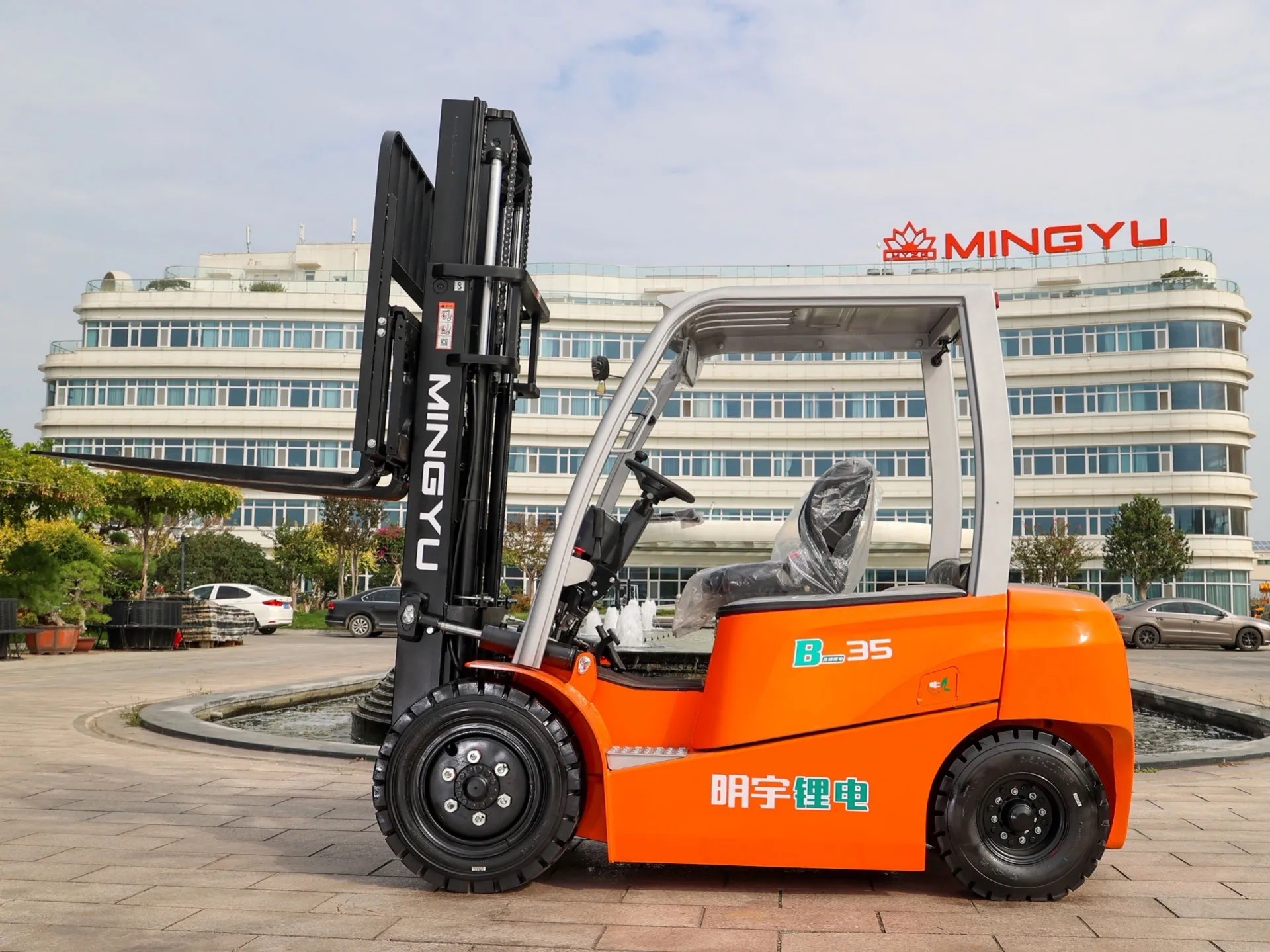

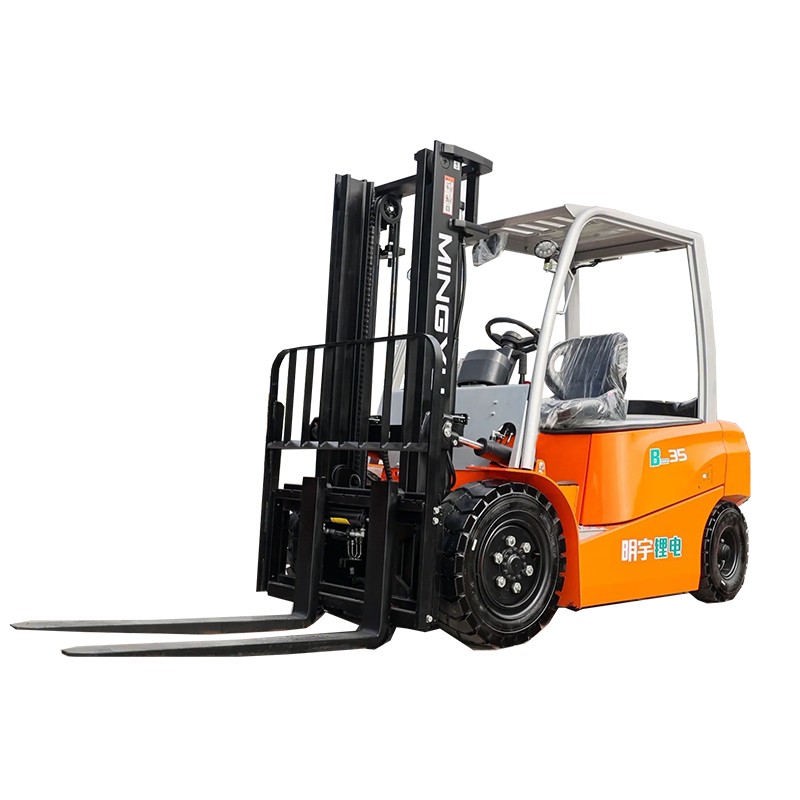

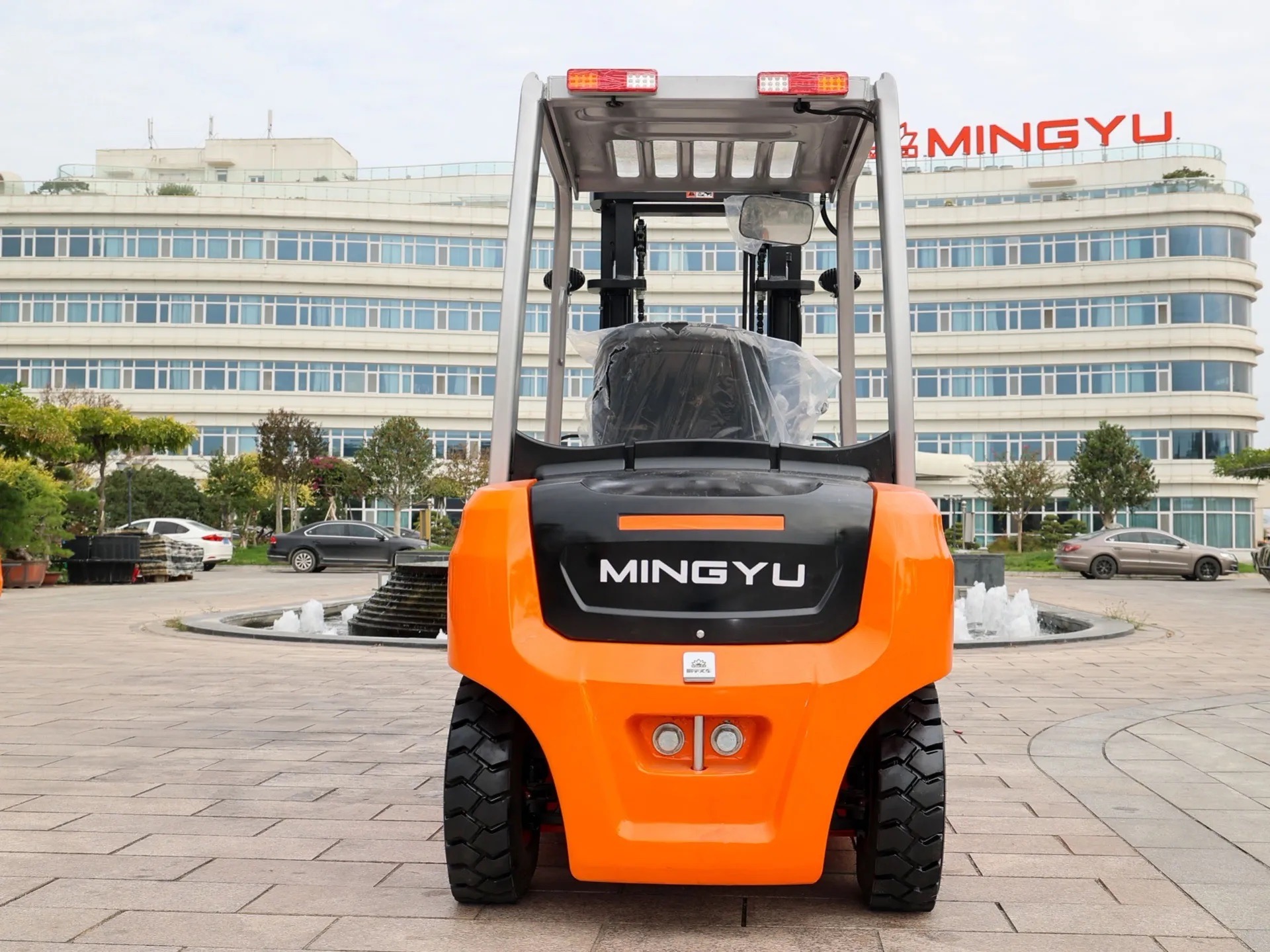

CPD35-B electric Forklift
3,500lbs lifting capacity
The newest generation CPD35-B Electric Forklift is designed to move freely throughout its operational environment. The new designed steering wheel\ new brake system and the easy-tooperate levers provide total handling operation.The extra foot space is provided to reduce operator fatigue significantly. The new wide-open, non-slip step makes getting in and out easy and safe.
Product Feature
● Comfortable
Magnetic brake on driving axle ,the truck can automatic parking in slope or flat.
Rear handle with horn function contributes to stable sitting pose when travelling backward and driving comfort and safety.
Automobile type direction switch effectively improve driving comfort level.
Sensor operated power steering(option),more comfortable.
Side battery as option, easy replacement.
Finger switch as option, more speedy operation.
● Improved driver’s view
Newly designed wide-view mast with special chains enlarges operator’s view effectively.
Larger arc shape of the overhead guard and grid tray with proper angle increase operator’s upward view.
● Safety
Better loading capacity at high position.
Automatic deceleration on curved road, more intelligent and safe.
Standard configuration of warning light and drive OPS system improve whole truck’s safely.
● Working efficiency
Small turning radius makes steering flexible and easy.
The truck has fast driving and lifting speed, higher working efficiency.
Three speed mode, high performance.
Larger battery capacity for longer single shift time.
● Energy efficiency
With optimized hydraulic system, the truck is more energy-efficient and has lower energy consumption.
Save more than 80% lighting energy with LED lights.
Motor regenerative braking can recycle more electric energy.
● Maintainability
The cover can be disassembled easily, contributes to quick and convenient maintenance.
| Model | CPD35 | |
| Power Type | accumulator | |
| rated load lifting capacity | 3500kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3757mm |
| without fork | 2682mm | |
| wideth | 1232mm | |
| height | Do not raise the mast height | 2062mm |
| Overhead guard height | 2105mm | |
| Max height at working | 4183mm | |
| Distance from seat surface to top guard frame | 980mm | |
| wheel base | 1780mm | |
| front overhang | 455mm | |
| rear overhang | 464mm | |
| front wheel track | 1005.5mm | |
| rear wheel track | 988mm | |
| minimum ground clearance | 127mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 45mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2450mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4205mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 380mm/s | |
| Maximum lifting speed with full load | 300mm/s | |
| Maximum operating speed without load | 13Km/h | |
| Maximum operating speed with full load | 12Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 4215Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28x9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 153.6V/105Ah | |
| drive motor power | 13.1Kw | |
| Oil pump motor power | 16.5Kw | |
Tight turning radius suitable for narrow aisle applications.
Adjustable Levers for Easy Battery Access
Dual Front AC Driving Motors,Toyota seat
Panoramic Rearview Mirror
STANDARD FEATURES
Stability
Advanced parallel layout of drive motor and lower located battery up to chassis bottom provide good stability to the truck.
Comfortable
New designed wide view mast provides better forward view ability.
Advanced

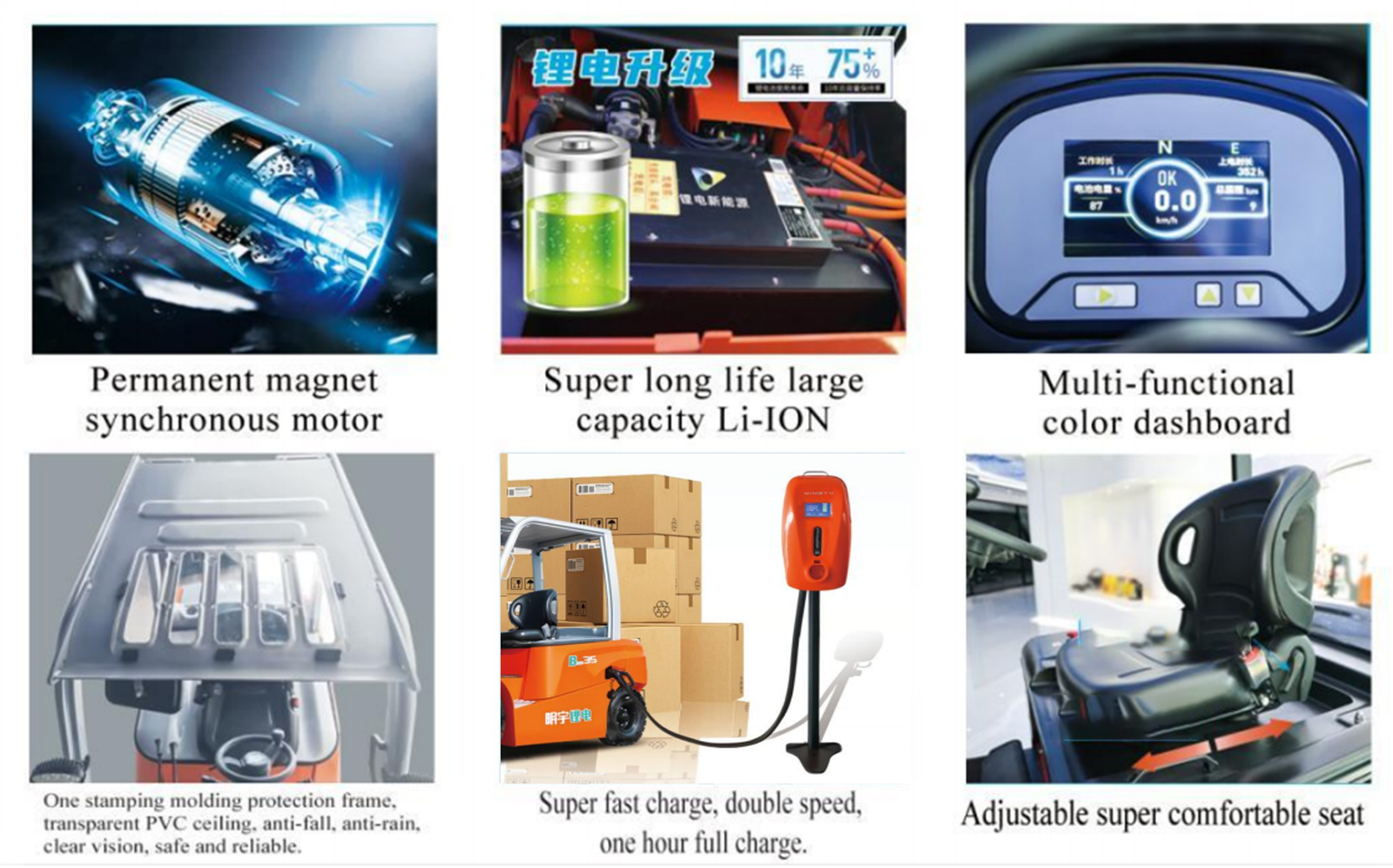

Multi functions big LED dashboard provides running hours, battery power, and self diagnosis functions, and with high accuracy even in bad environment.
Service Ability
CE certificate is available.
According to demands, can be matched with different accessories
