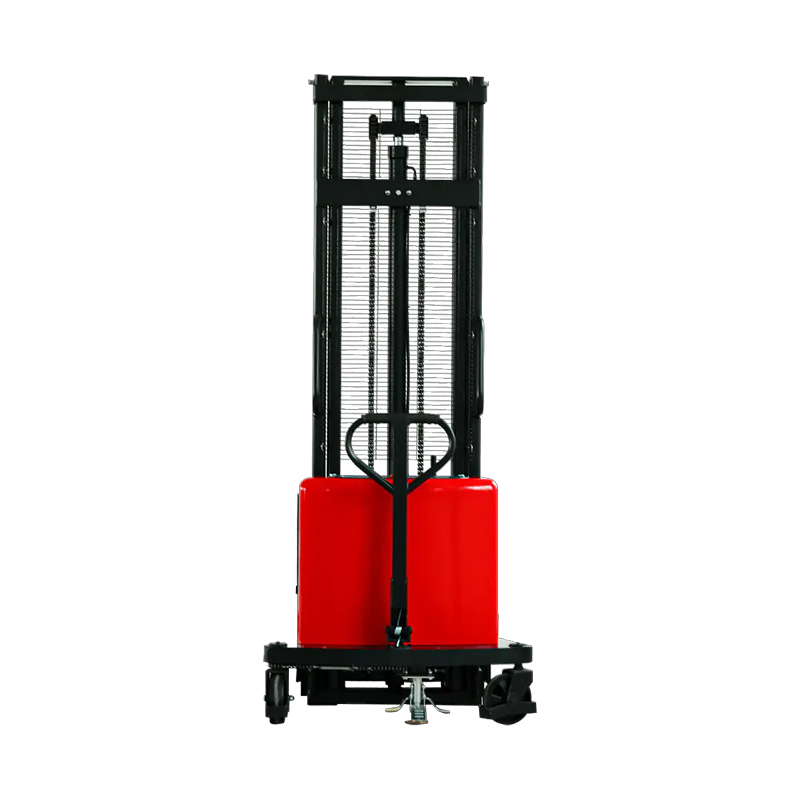

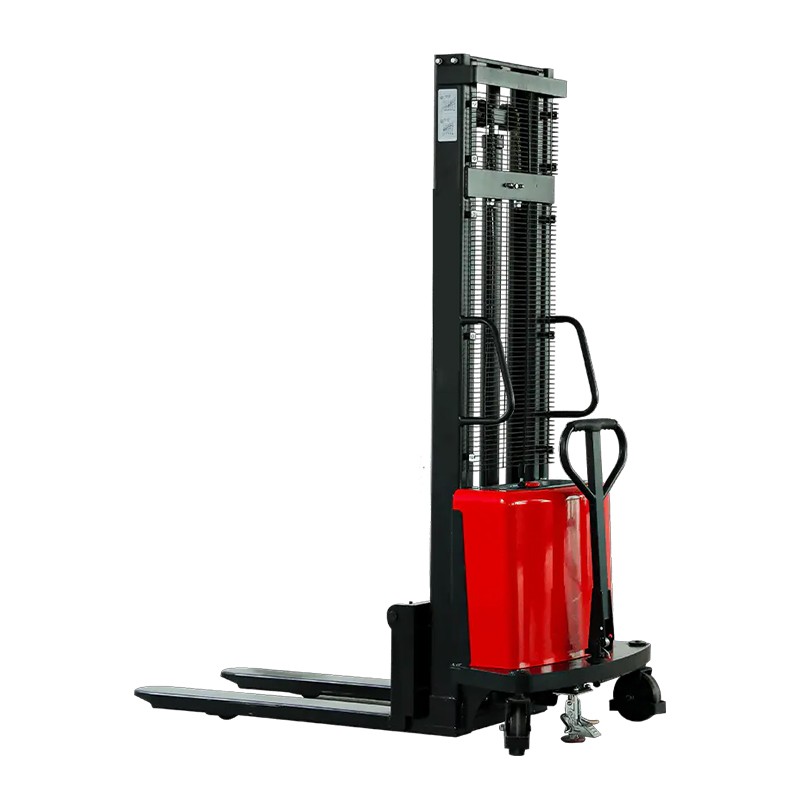

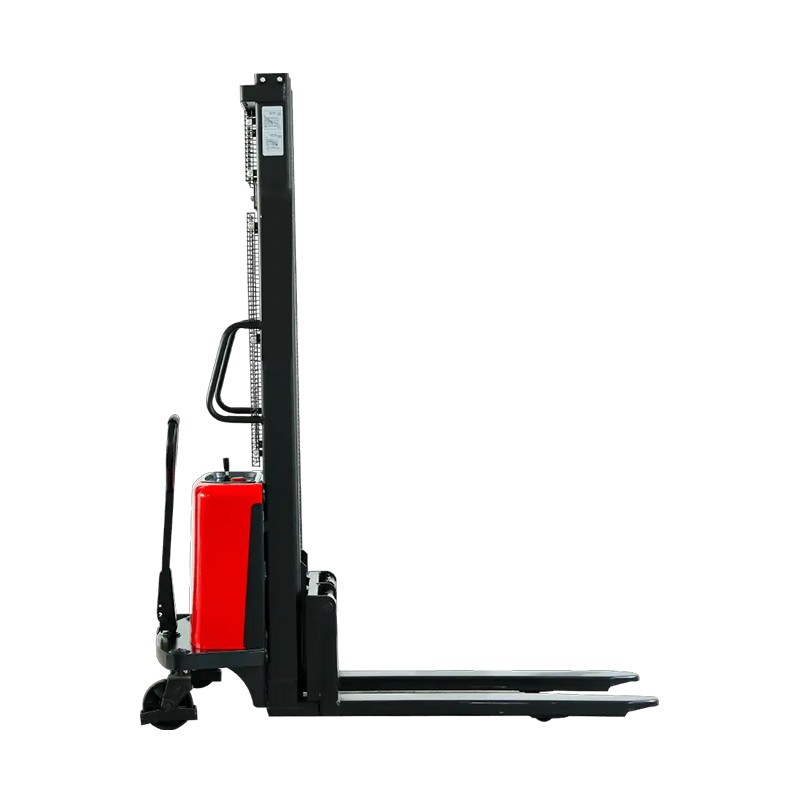

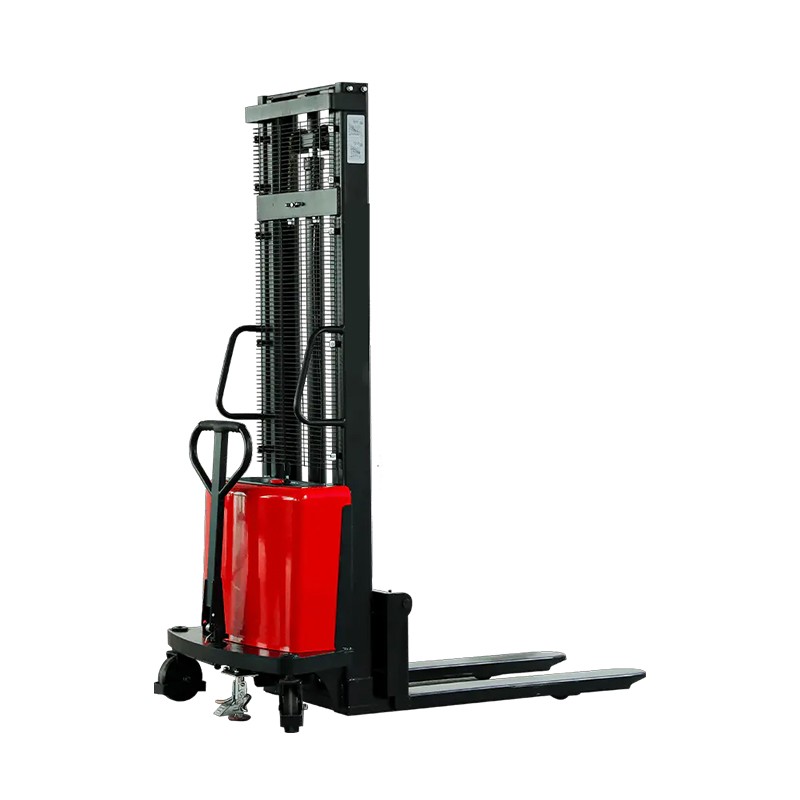

SBD101/520 Electric Walk-Behind Pallet Stacker 1000-2000kg Capacity

The SBD101/520 electric walk-behind pallet stacker represents a significant advancement in material handling technology, designed to meet the rigorous demands of modern warehouse and logistics environments. With multiple load capacity options ranging from 1000kg to 2000kg, this versatile equipment can handle various payload requirements while maintaining optimal stability and performance. The stacker features a robust 2-stage mast construction that enables lifting heights up to 3500mm, making it suitable for high-level storage applications. Its compact design, with an overall length of 1877mm (including forks) and width of 770mm, allows for easy maneuverability in confined spaces. The 12V/120Ah battery system provides reliable power for extended operational periods, while the 1.6kW DC series motor ensures smooth and efficient lifting operations. The carefully engineered wheelbase of 1300mm and minimum turning radius of 1625mm contribute to its exceptional handling characteristics, enabling operators to navigate through narrow aisles and crowded work areas with precision and confidence.

Engineered for durability and operational efficiency, the SBD101/520 stacker incorporates several innovative features that enhance its performance and reliability. The mast system, available in both single and 2-stage configurations, is constructed from high-strength steel to withstand heavy-duty use while maintaining precise control during lifting operations. The fork dimensions of 1150mm length, 160mm width, and 55mm thickness are optimized for standard pallet handling, with an adjustable outside width of 670mm to accommodate various pallet sizes. The low fork lowered height of 85mm facilitates easy pallet entry and retrieval, while the minimum front height of 28mm ensures compatibility with different loading dock configurations. The heavy-duty wheels, including 180*50mm caster wheels, provide excellent stability and load distribution, reducing floor wear and improving overall maneuverability. These design elements work in harmony to create a stacker that not only meets but exceeds industry standards for performance and reliability in demanding material handling applications.

The electrical system and power management features of the SBD101/520 stacker demonstrate a commitment to energy efficiency and operational convenience. The 12V/120Ah battery system delivers consistent power output while supporting extended shift operations, with the DC series motor providing reliable performance at a rated output of 1.6kW. This power configuration ensures smooth acceleration and precise speed control, contributing to both operator safety and load security. The stacker's service weight varies according to mast configuration, ranging from 350kg for single mast models to 490kg for 2-stage mast units with maximum lifting height, reflecting the robust construction while maintaining manageable weight for operational flexibility. The comprehensive safety features include overload protection and emergency stop systems, ensuring compliance with international safety standards and providing operators with confidence during intensive material handling tasks.

In practical application scenarios, the SBD101/520 electric pallet stacker proves to be an invaluable asset across various industries and operational environments. The equipment's versatility is demonstrated through its ability to handle different mast configurations and lifting requirements, from basic pallet transportation to high-level stacking operations in warehouse racking systems. The optimized load center of 500mm ensures stable handling of various load types, while the compact dimensions make it ideal for use in retail environments, manufacturing facilities, and distribution centers. The stacker's design prioritizes operator comfort and efficiency, with ergonomic controls and excellent visibility during operation. With its combination of robust construction, advanced features, and adaptable performance characteristics, the SBD101/520 represents a comprehensive solution for businesses seeking to enhance their material handling capabilities while maintaining high standards of safety and operational efficiency in diverse working conditions.
