ZGFORKLIFT / MYZG CBD15 Walk-Behind Electric Pallet Truck

Compact powered travel for controlled warehouse routes

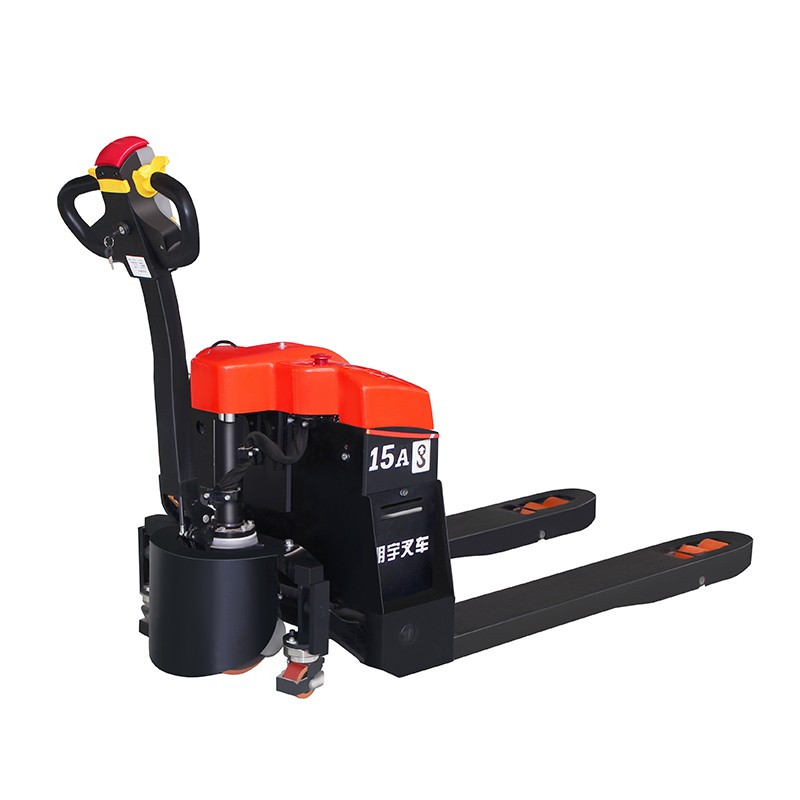

Verified CBD15 product reference

The CBD15 walk-behind electric pallet truck is designed for horizontal movement of compatible pallets in supermarkets, delivery operations, stock replenishment, production supply and warehouse dispatch. The verified source shows a pedestrian tiller machine without a rider platform or lifting mast. It states 1500 kg rated capacity, 303 kg unladen weight and 2300 × 690 × 1180 mm outline dimensions. It also lists 200 mm maximum lift height, 80 mm lowered fork height, 1160 mm fork length, 680 mm fork outside width and a 600 mm load-center reference. Confirm the ordered fork arrangement, battery and charger in writing because photographs alone do not define a delivered configuration. browse the material-handling category

Applications and equipment selection

Begin selection with the real pallet and route: record pallet openings, entry direction, maximum verified gross load, aisle and doorway widths, turn space, dock plates, thresholds, floor joints, gradients, travel distance, stop frequency, pedestrian crossings and charging time. This low-lift truck moves loads at floor level; it is not a stacker or forklift and must not be selected for elevated rack placement. A route survey helps decide whether a compact walk-behind machine fits the duty or whether a rider pallet truck, stacker, forklift or rough-surface solution is required. review the verified CBD15 source product

Operating workflow and maintenance

Safe work starts with a stable pallet, centered load, both forks fully inserted and a route clear of people and debris. Walk beside the machine in the position defined by the delivered manual, reduce speed at turns, doors and dock transitions, maintain visibility and park on level ground with forks lowered. Before each shift check forks, frame, load rollers, drive and stabilizer wheels, tiller, travel and emergency controls, braking response, battery connector, cables and visible hydraulic parts. Cleaning, isolation and charging must follow the supplied instructions and local workplace rules.

Total ownership cost and parts planning

Total ownership cost is shaped by energy use, battery care, wheels and rollers, brakes, switches, contactors, seals, bearings, charger condition, planned service and downtime. Buyers should compare route productivity and operator travel time instead of looking only at purchase price. A practical parts plan identifies normal wear items and the configuration delivered to each serial-numbered unit. Dealers and rental partners can add value through application surveys, commissioning, operator familiarization, scheduled inspection, parts stocking and clear escalation channels for technical questions. read application and purchasing guidance

Trust, export and dealer support

CE-related documentation and market requirements depend on final configuration and destination and must be checked before contract. EPA engine-emission requirements do not apply to a battery-electric pallet truck in the same way as diesel equipment, but battery transport rules, electrical standards, labels, manuals and local workplace requirements still need review. Shandong Zhuogong Machinery equipment Co.,Ltd provides export coordination and service communication without inventing certificate numbers, named customers, performance figures or options that are not confirmed for the supplied unit.

Trust, export and dealer support

A useful quotation request includes pallet dimensions and openings, maximum load, average and peak travel distance, floor and ramp details, shift pattern, charging window, ambient temperature, doorway and aisle limits, destination, requested documents and after-sales expectations. This information allows ZGFORKLIFT / MYZG to match the actual workflow and explain what is standard, optional or market-dependent. The objective is a dependable material-flow solution with measurable operating fit, not an unsupported list of claims.

Trust, export and dealer support

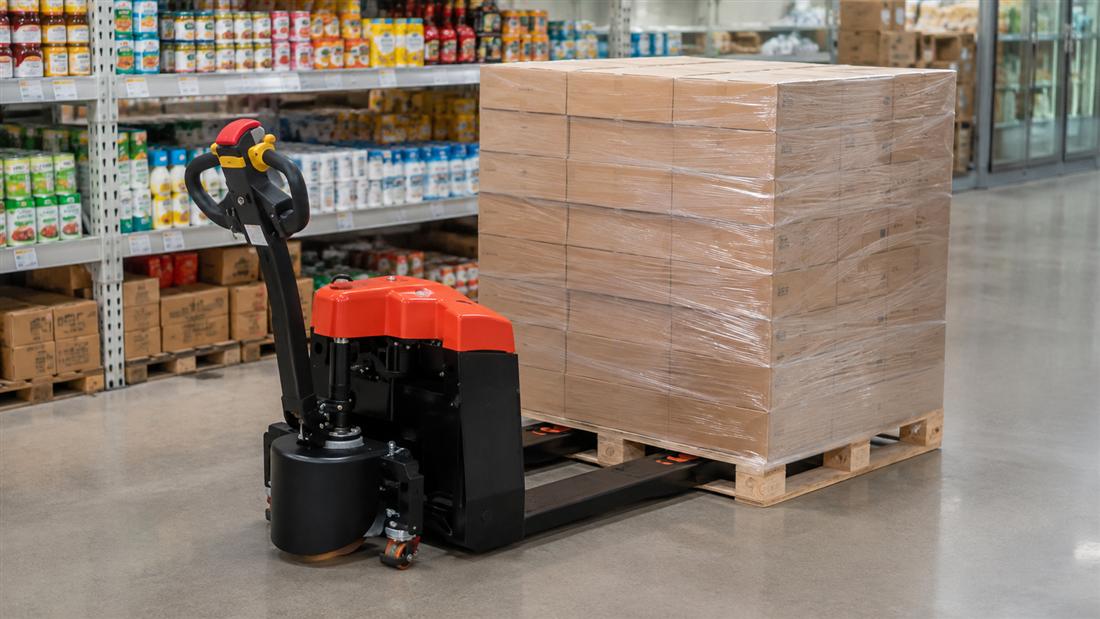

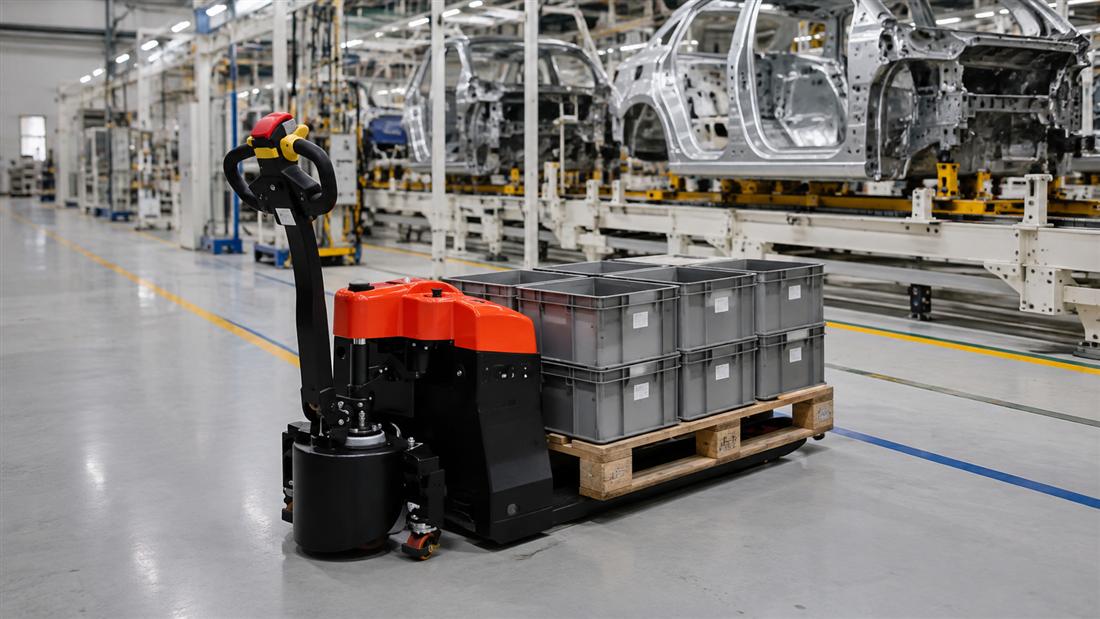

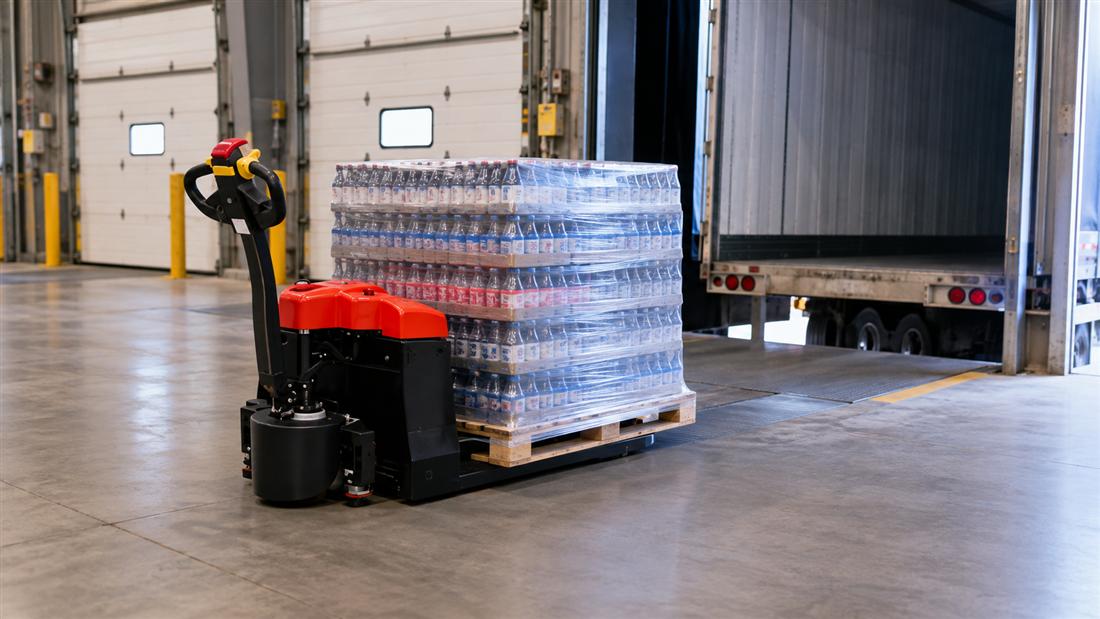

For quotation conversion, send pallet dimensions, maximum load, route map, floor and ramp details, daily distance, shifts, charging window, destination, delivery terms, documents and spare-parts expectations. Dealers can turn this information into a site survey, commissioning plan, operator familiarization and scheduled service offer. The three work images are AI-generated illustrations based on the verified red-and-black CBD15 appearance; they are not customer-project evidence and do not add unconfirmed equipment.

Request a job-matched quotation

Send your pallet, load, route, floor, shift, charging, destination and documentation requirements to receive a clear configuration review and quotation. contact the MYZG export team.
