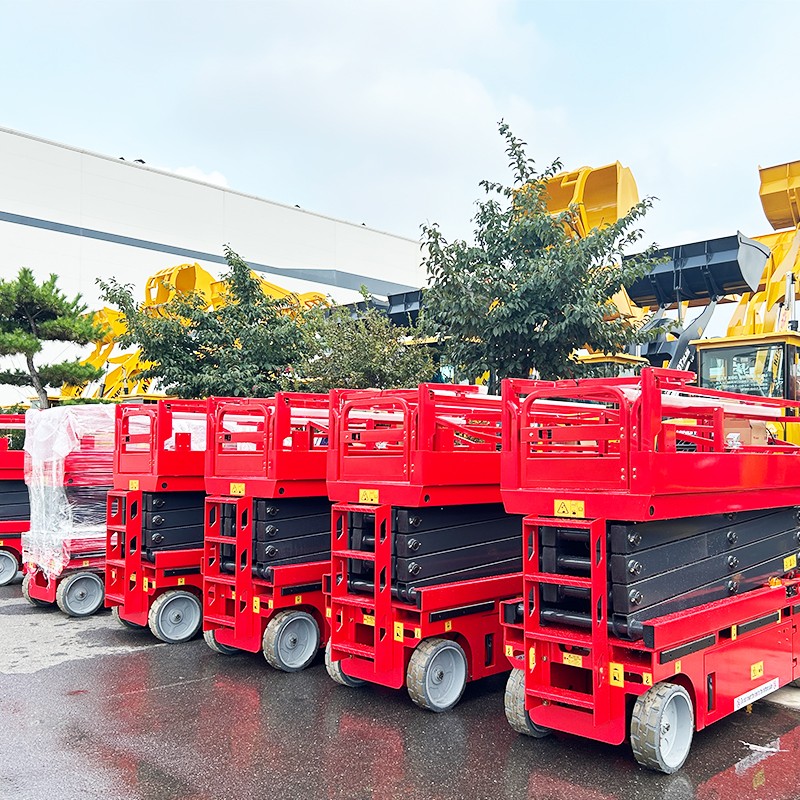

ZGFORKLIFT / MYZG S12-320HD 12m Self-Propelled Scissor Lift
ZGFORKLIFT / MYZG S12-320HD 12m Self-Propelled Scissor Lift
The ZGFORKLIFT / MYZG S12-320HD is a model-specific self-propelled electric scissor lift for teams that need a large guarded deck, repeatable 12 m working height and controlled movement around prepared job sites. Verified reference data include a 10 m maximum platform height, 320 kg main-deck load, 113 kg extension-deck load, 0.9 m extension, 24V 203Ah battery pack and 24V 30A charger. Shandong Zhuogong Machinery equipment Co.,Ltd supplies the machine for warehouse maintenance, factory shutdowns, commercial properties, indoor construction and rental fleets. aerial platform range.
Customer need and the mobile lift solution
This model addresses jobs where a one-person mast lift is too small and scaffolding consumes too much setup time. The 2.27 × 1.11 m platform supports personnel, approved tools and material within the 320 kg limit, while the extension deck helps approach work above low obstacles. Self-propelled controls reduce repeated manual repositioning. Electric power produces no engine exhaust at the machine and is suitable for many enclosed facilities, but the site must still approve floor capacity, traffic separation, charging, gradients, wind and overhead-clearance controls.
Verified reference specifications
complete MYZG product catalog.
| Model | S12-320HD |
| Maximum working height | 12.00 m |
| Maximum platform height | 10.00 m |
| Safe working load | 320 kg |
| Extended deck safe load | 113 kg |
| Platform size | 2.27 × 1.11 × 1.10 m |
| Overall size, rails unfolded | 2470 × 1150 × 2450 mm |
| Overall size, rails folded | 2470 × 1150 × 1920 mm |
| Platform extension | 0.90 m |
| Ground clearance | 0.10 / 0.02 m |
| Wheelbase | 1.89 m |
| Turning radius, inner / outer | 0 / 2.20 m |
| Lifting speed | 3–5 m/min |
| Gradeability | 25% |
| Travel speed, stowed / elevated | 3.5 / 0.8 km/h |
| Battery / charger | 24V 203Ah / 24V 30A |
| Machine weight | 2600 kg |
| Tyres | 381 × 127 mm |
Application scenarios
Warehouse rack and lighting programs
Move between planned maintenance points for lights, sprinklers, cameras and signs. The 1.15 m machine width, zero inner turning radius and 2.2 m outer radius help route planning, but aisle clearance and floor loading must be measured before delivery.
Factory installation and shutdown work
Support cable tray, pipe, ventilation, sensor and overhead-equipment tasks. The 320 kg deck is useful for tools and approved materials, while the 113 kg extension limit must be treated separately during load planning.
Commercial buildings and public facilities
Complete ceiling, decoration and inspection work with low noise. Managers should plan clean charging, non-marking floor protection where required, public exclusion zones, elevator or ramp access and emergency procedures.
Construction fit-out and rental fleets
Serve drywall, fire protection, electrical and finishing contractors on prepared floors. Rental providers should match working height, machine weight, deck load, battery duty cycle and transport dimensions to each customer rather than renting by height alone.
Selection guide: choose the right aerial platform
Begin with platform height, working height and usable deck load as three separate values. Confirm that 10 m platform height places the worker correctly for a 12 m working envelope, then calculate people, tools and material against 320 kg and the extension section against 113 kg. Check doorway width, folded height of 1.92 m, 2600 kg machine weight, floor point loading, turning space, ramp angle, site slope, wind limits, charging voltage and daily travel. Gradeability of 25% describes travel capability, not permission to elevate on that slope.
Buyer's guide and quotation checklist
undefined application and buying articles.
Safe operation and daily inspection
Inspect entry gate, guardrails, toe boards, platform and ground controls, emergency stops, emergency lowering, alarms, pothole protection, tyres, wheel fasteners, scissor pins, hydraulic hoses and cylinders, wiring, batteries and charger before each shift. Test functions in a controlled area. Travel elevated only where the delivered manual permits it, and never exceed deck or extension loads, climb the rails, add improvised height, use the machine as a crane, or elevate outside approved surface, slope and wind limits.
Battery and preventive maintenance
Use battery records to plan charging and replacement. Charge with the matched 24V 30A unit, maintain terminals and electrolyte where applicable and avoid repeated deep discharge. Inspect hydraulic oil, leaks, scissor pins and bushings, rollers, tyres, sensors and wiring at the prescribed intervals. Keep the deck and pothole devices clear of debris. Rental fleets should record hour-meter data, charge condition, inspection results, fault codes and damage images at every delivery and return, then stock wear and electrical parts by serial number.
Distributor and rental-fleet opportunity
The S12-320HD gives distributors a clear model for logistics, industrial service, commercial maintenance and interior contractors. Qualify leads through working height, deck load, aisle width, floor rating, transport route, charger supply, daily cycles and service expectations. A useful demonstration covers narrow-space steering, extension-deck load, emergency lowering, charging and daily inspection. Dealer value is created by operator handover, fast parts identification, preventive-maintenance packages and documented uptime.
Compliance, export service and buyer confidence
Shandong Zhuogong Machinery equipment Co.,Ltd supports final configuration, production communication, export packing, shipping documents, spare parts and after-sales coordination under the ZGFORKLIFT / MYZG brands. CE declarations and applicable aerial-platform requirements depend on the exact S12-320HD configuration and destination and must be confirmed in writing before order. EPA engine certification is generally not applicable to the fully electric drive; every requested document must match the final serialised machine. contact the MYZG export team.
Frequently asked questions
What is the difference between working height and platform height?
The verified S12-320HD values are 12 m maximum working height and 10 m maximum platform height. Compare like-for-like definitions.
How much can the extension deck carry?
The verified safe load is 113 kg on the extension, compared with 320 kg on the main platform. Follow the delivered load-distribution instructions.
Can it climb a 25% ramp and work there?
The 25% figure is gradeability for travel under permitted conditions; it does not authorize elevation on a 25% slope. Working slope limits come from the delivered manual and safety system.
What data are needed for a quote?
Send task height, personnel and materials, aisle and doorway sizes, floor capacity, ramps, daily cycles, charging supply, destination port and required compliance documents.
Request a site-matched quotation
Send a route video, floor information, task photographs and load details. MYZG can prepare an S12-320HD configuration quotation, transport plan, charger confirmation, spare-parts package and dealer or fleet service proposal without using a misleading one-price-fits-all offer.
