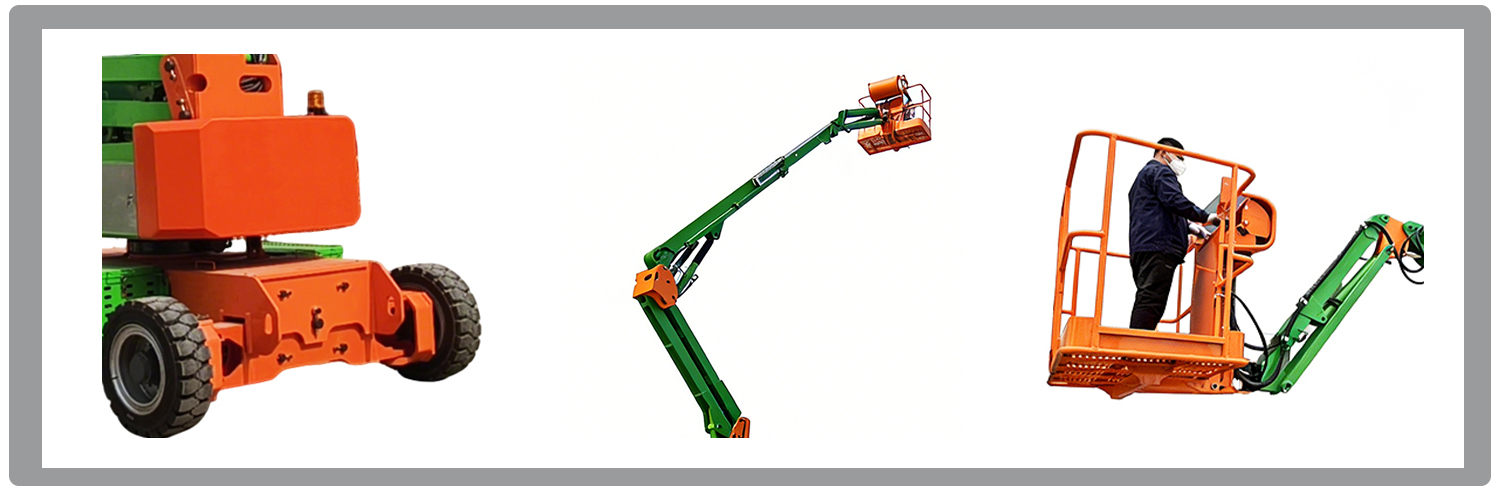

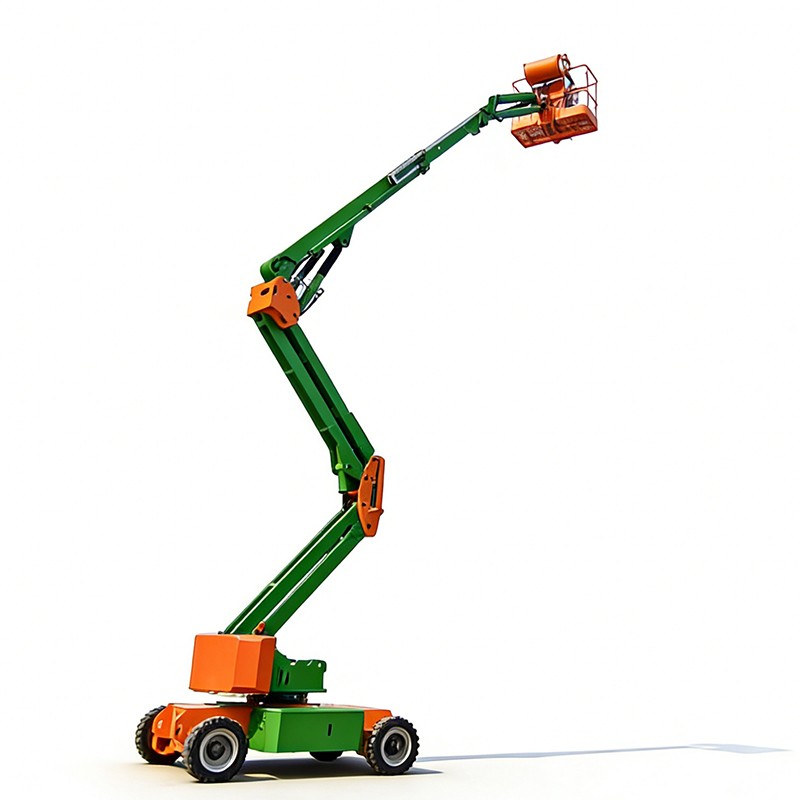

MYZG/SDZG ZG-QB16 Articulating Boom Lift
MYZG ZG-QB16 Articulating Boom Lift: Master the High-Altitude Challenges
Produced by Shandong Mingyu Heavy Industry (SDZG), this machine is built with high-strength steel and advanced hydraulic systems to ensure operator confidence at maximum extension.
Why Choose Pure Electric?
The transition to the electric ZG-QB16 offers immediate advantages for your fleet:
Zero Emissions: Safe for indoor use in warehouses, shopping malls, and manufacturing plants without the need for additional ventilation.
Whisper-Quiet Operation: Perfect for work in residential areas, hospitals, and schools where noise pollution must be minimized.
Reduced Operating Costs: Eliminate diesel fuel expenses and simplify your maintenance schedule by removing engine-related components like oil filters and spark plugs.
Technical Specifications: ZG-QB16 Model
Max. Working height
16.58m
Max. Platform height
14.58m
Max. Up and over clearance
7.86m
Max. Working radius
8.6m
Platform length
0.76m
Platform width
1.83m
Height - stowed
2.32m
Length - stowed
6.85m
Width
2.32m
Ground clearance - center
0.36m
Max capacity
256kg/350kg
Number of platform occupants
2-3
Platform rotation
±80°
Turntable rotation
355°
Drive speed - stowed
0-5.2km/h
Gradability - stowed
30%
Max. Working angle (tilt sensor activation)
5°
Turning radius (outside)
4.7m
Turning and steer
2x2
Weight
7250kg
Battery
48V/320Ah
Control voltage
12V/DC
Pump motor
7kW
Drive motor
2x3.3kW
Compliant with standards
EN280, GB 25849
Built for Maximum Job Site Efficiency
The ZG-QB16 is more than just a lift; it is a high-performance tool designed to reduce downtime and improve safety.
All-Terrain Capabilities
With 4WD drive mode and large 440/80R24 tires, this boom lift can traverse mud, gravel, and uneven construction sites with ease. The 30% gradeability ensures you can move the machine to the exact location needed, regardless of the incline.
Precision Braking and Steering
Safety is paramount when working at heights. The ZG-QB16 features a wet brake service system and automatic parking brake for reliable stopping power and stationary security. With a tight external turning radius of 4.2 meters, navigating around existing structures is effortless.
Operator-Centric Design
The spacious cabin (0.98m width) is designed for comfort and visibility. The control interface allows for proportional control of all functions, meaning the operator can move the boom with surgical precision, reducing the risk of contact with nearby structures.
Industry Applications
The ZG-QB16 is the preferred choice for sectors requiring versatile aerial access:
Construction & Engineering: Steel structure installation and facade work.
Shipyards & Ports: Repairing and maintaining large vessel hulls and dock equipment.
Facility Management: HVAC maintenance and lighting repairs in large stadiums or airports.
Energy Sector: Wind turbine maintenance and power line inspections.
