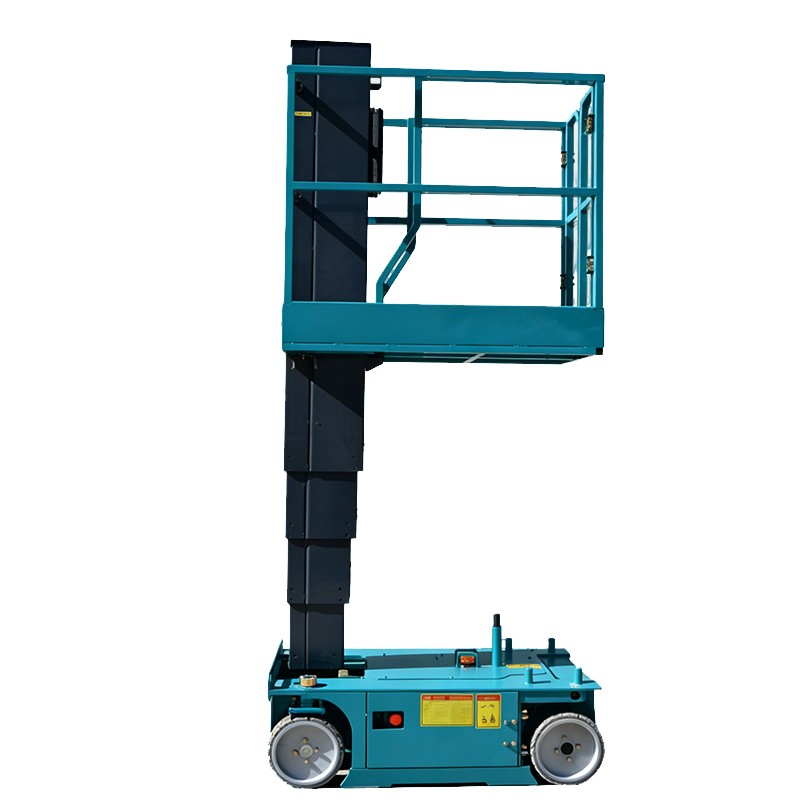

MYZG ZG-TT06 Self-Propelled Telescopic Mast Lift

MYZG ZG-TT06 Self-Propelled Telescopic Mast Lift: The Master of Tight Spaces

This 6-meter (working height) powerhouse is engineered to drive through standard doorways, navigate narrow aisles, and fit into passenger elevators with ease. It is the definitive tool for modern logistics, high-end retail, and sensitive indoor maintenance.

Precision Mobility & Drive-at-Height Capability

Ultra-Compact Footprint: With a width as narrow as 760mm, this machine can navigate through single doorways and congested manufacturing floors where other lifts cannot go.

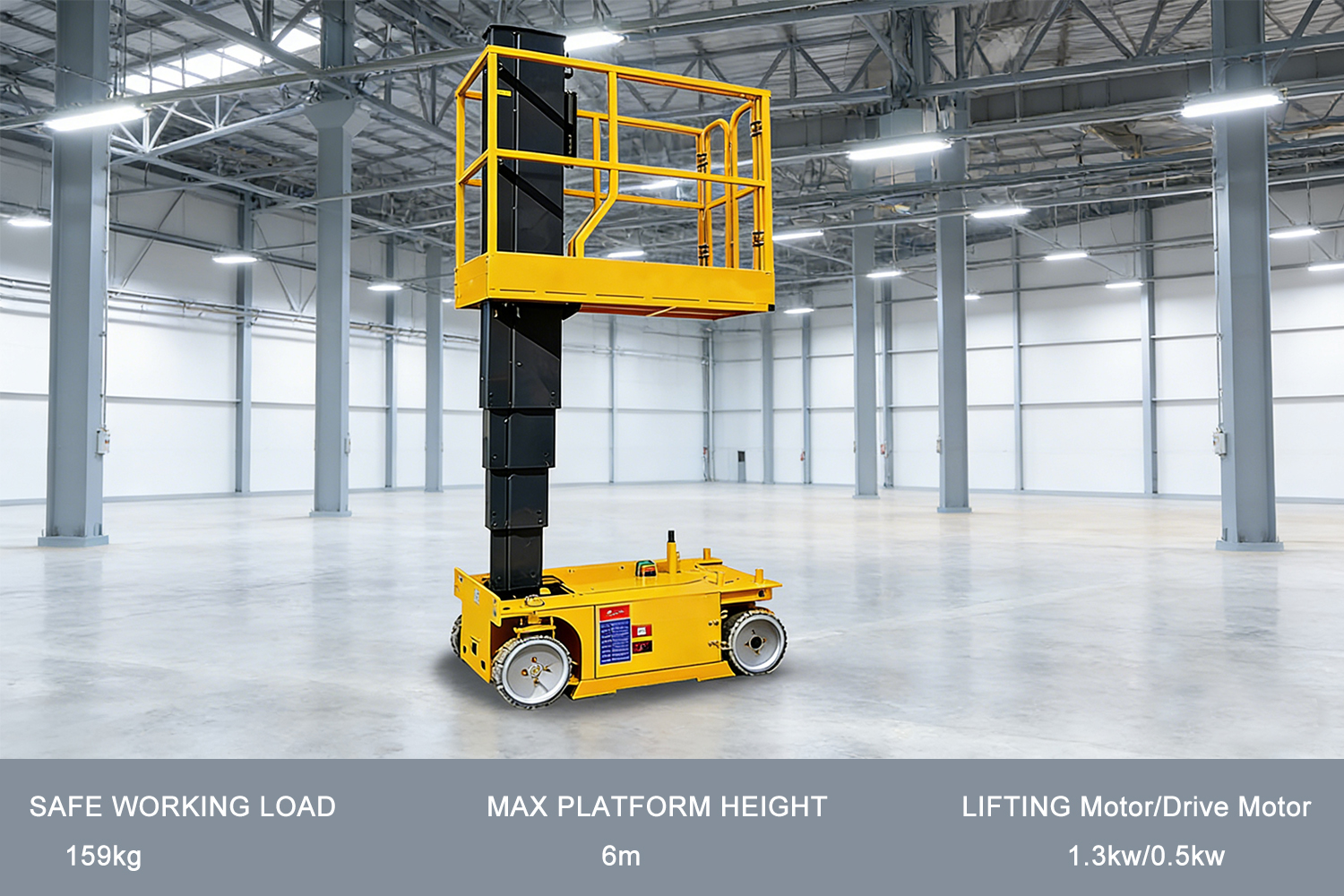

Technical Specifications: ZG-TT06 Model

Advanced Safety & Stability Protocols

Safety is the core of the MYZG engineering philosophy. The ZG-TT06 is equipped with multi-layered protective systems:

1. Automatic Pothole Protection
A mechanical safety system automatically deploys "pothole guards" when the platform begins to rise. This reduces ground clearance, ensuring the machine remains stable if a wheel encounters an unexpected floor depression.

2. Intelligent Sensors
Tilt Alarm: Integrated dual-axis sensors monitor the chassis level. If the slope exceeds the safe working angle (typically 1.5° / 3°), the machine will cut off lifting and travel functions to protect the operator.

Overload Sensing: Prevents the mast from ascending if the weight on the platform exceeds the rated capacity, protecting the structural integrity of the telescopic cylinders.

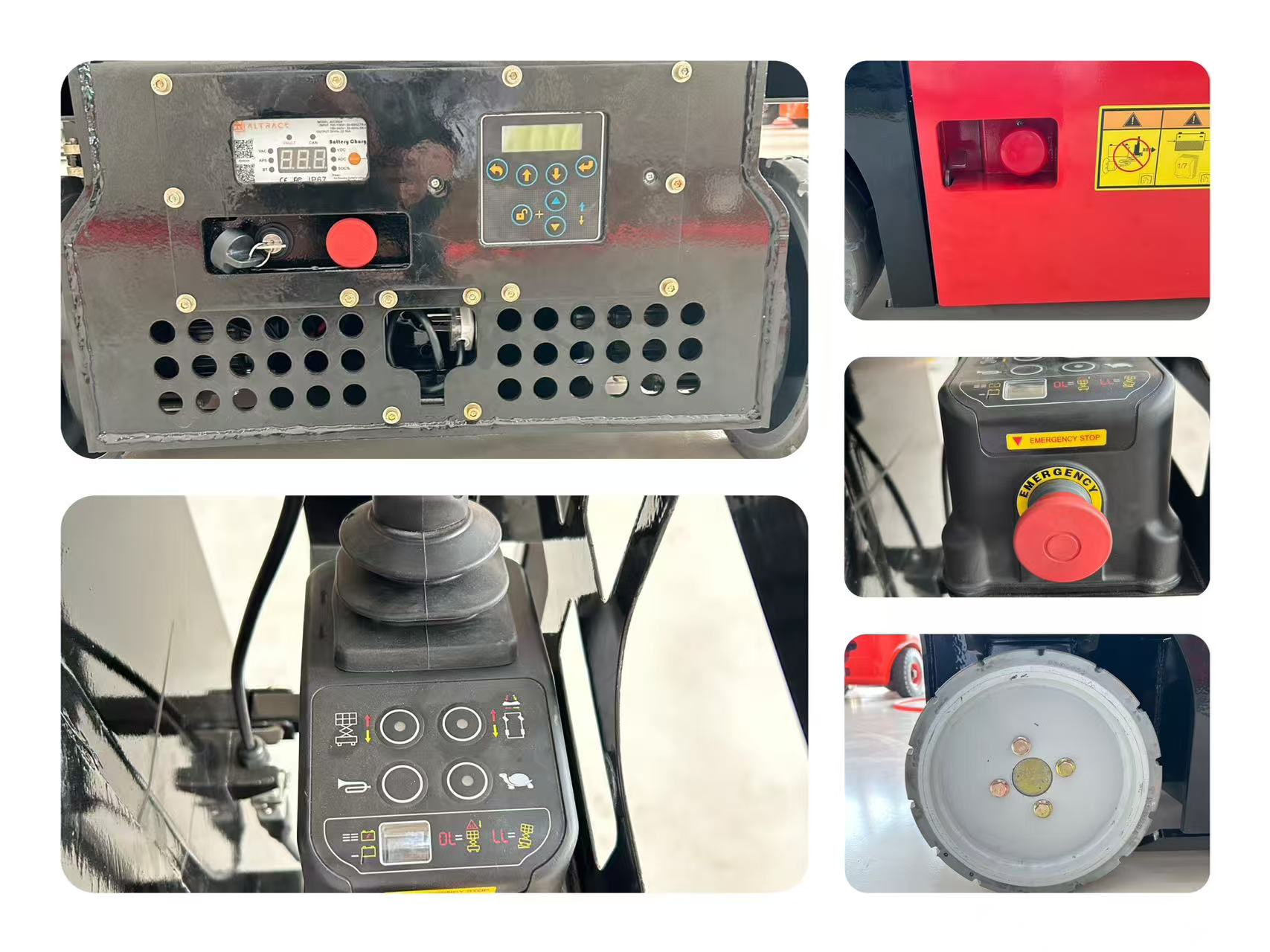

3. Emergency Operations
Emergency Lowering Valve: Located at the base, allowing for a controlled, manual descent in the event of total power loss.

Emergency Stop: Easily accessible buttons on both the platform and ground control panels for instant power disconnection.

Performance Features for Modern Facilities

Non-Marking Tires: Equipped with durable, solid rubber tires that leave zero scuffs on polished concrete, marble, or delicate indoor flooring.

Proportional Controls: The high-sensitivity joystick allows for smooth, gradual movements. This precision is essential when working near overhead sprinklers, glass atriums, or electrical lines.

Maintenance-Friendly Design: Swing-out battery and hydraulic trays provide 360-degree access for rapid daily inspections and servicing, significantly lowering the total cost of ownership.

Large Work Platform: Despite its compact size, the platform provides enough room for an operator and their heavy toolkits, including a built-in lanyard attachment point.

Ideal Industry Applications
The ZG-TT06 Telescopic Mast Lift is the specialist's choice for:

Data Centers: Navigating narrow server rows for overhead cable management.

High-End Retail: Changing lights and adjusting displays in busy malls without closing aisles.

Aviation: Accessing aircraft components in tight hangar spaces.

Warehousing: Perfect for inventory audits and fire sprinkler maintenance in high-density racking areas.
