Description
Product Feature

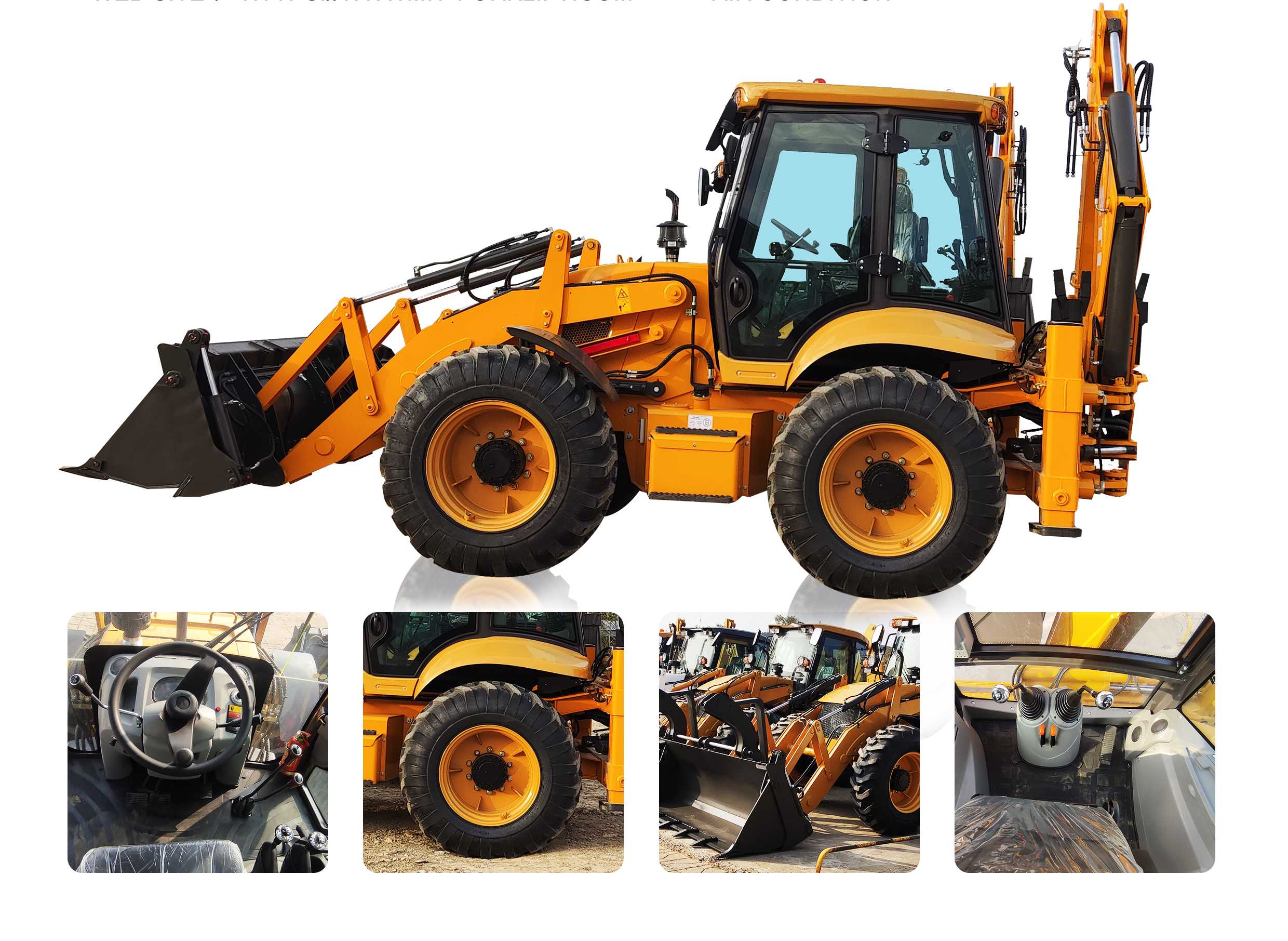

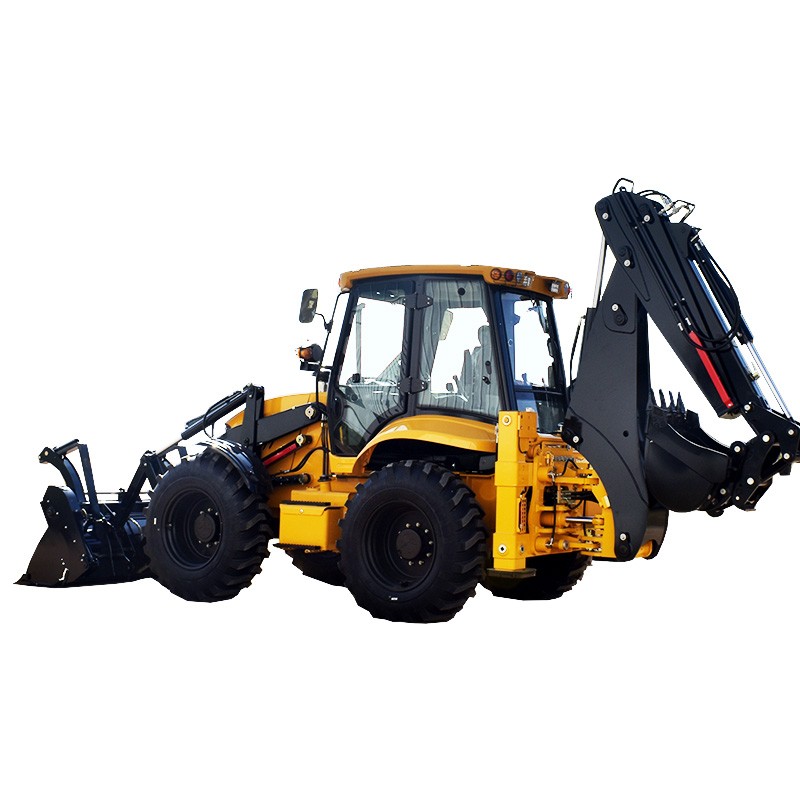

The 4-wheel steer MYZG 388H is one of the largest line of backhoes MYZG produce.
The 388H is a product of MYZG’s Efficient Design philosophy, responding to rising fuel prices and environmental concerns with class-leading efficiency and low running costs.
Parameter
Overall Operating Weight | 10300KG |
dimensions | 6450×2500×3940mm |
Wheel base | 2335mm |
Bucket Dumping Height | 3050mm |
Bucket Dumping Distance | 870mm |
Max. Digging Depth | 3820mm |
Loading Lifting Capacity | 2500KG |
Backhoe Capacity | 0.3 m3 |
Bucket Capacity | 1.2m3 |
Tyre | 16.9-28 |
Engine | YC4A105Z-T20 75kw |
Digging Depth | 3820mm |
PRODUCT FEATURE
(1)THE SAFE CHOICE
Getting into a MYZG 388H Eco is easy and safe – there are large grab handles, a wide door opening, and open grid design steps that prevent dirt build-up.
(2)PRODUCTIVITY
The Hydraulic Speed Control (HSC)—which combine with high torque at low engine speed—gives more tractive effort, faster cycle times, excellent pushing power and hill climbing performance.
(3)BUILD QUALITY
Heavy duty reinforced excavator end with replaceable wear plates on the bucket and dipper to provide protection from abrasive material such as rock.
Our new unique integral shovel street pads option prevents ground damage from your MYZG 388, therefore, costly repairs.
Power brakes allow efficient, safe stopping power with low pedal effort.
You can keep a close eye on your MYZG 388H ECO with MYZG’s LiveLink telematics system; this protects your business from unauthorised usage and vehicle thefts.
In challenging conditions, the Limiting Slip Differential (LSD) axles automatically kick in to provide additional traction.
Power brakes system provides proportional braking throughout the pedal travel for improved braking effort and control.
Composite fenders, bonnets and nose are fitted to enhance protection on the loader end against damage.
Purpose designed MYZG drivetrain with YUCHAI /XINCHAI /Cummins engine, MYZG transmission, and MYZG axles for optimum productivity and excellent efficiency.
Simple gear-pump hydraulic system for reliability and long-term durability.
Detail
About us
MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
