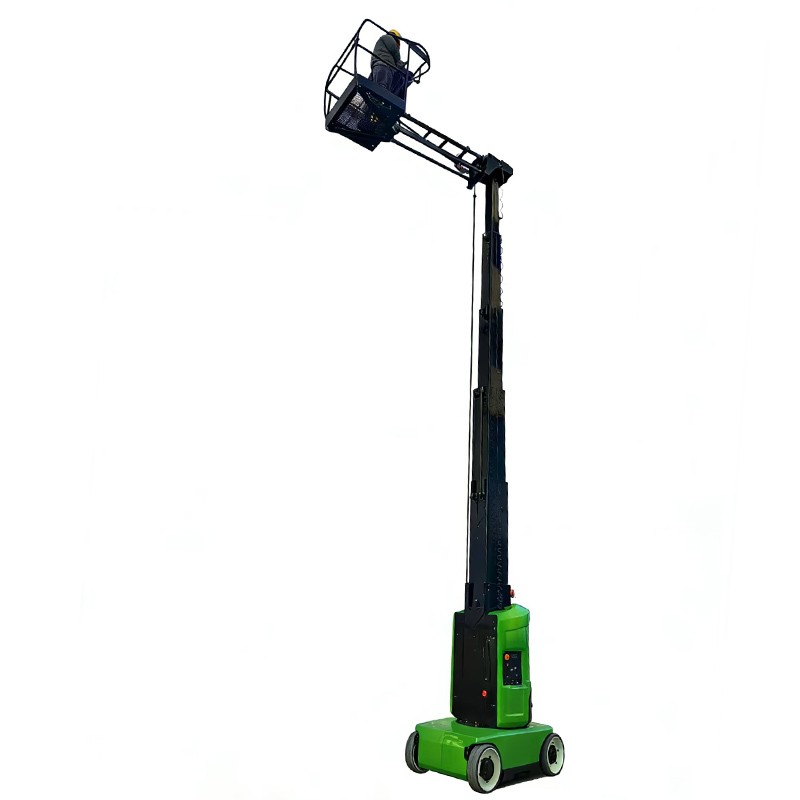

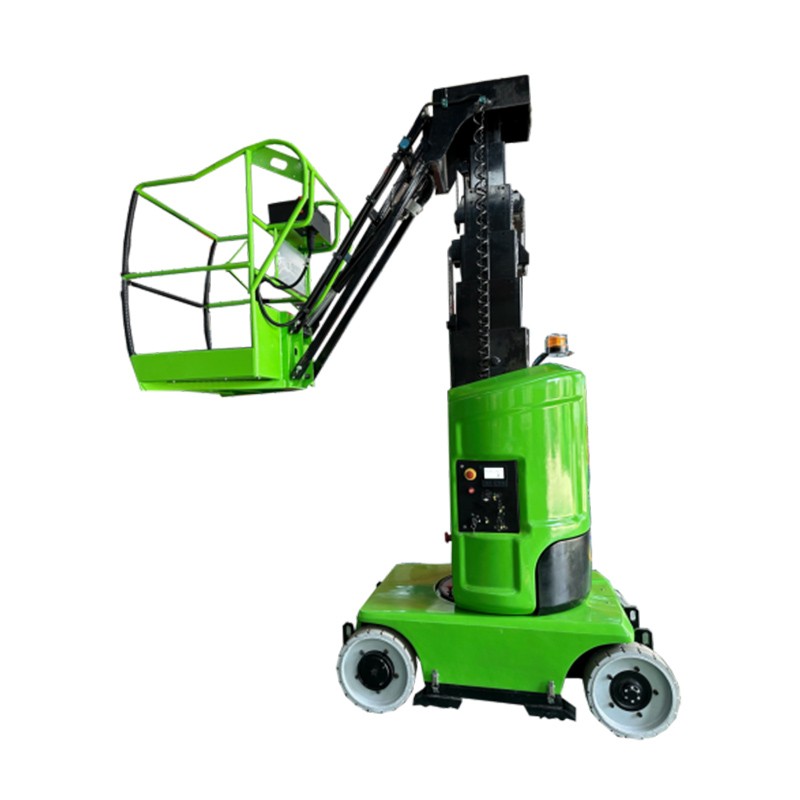

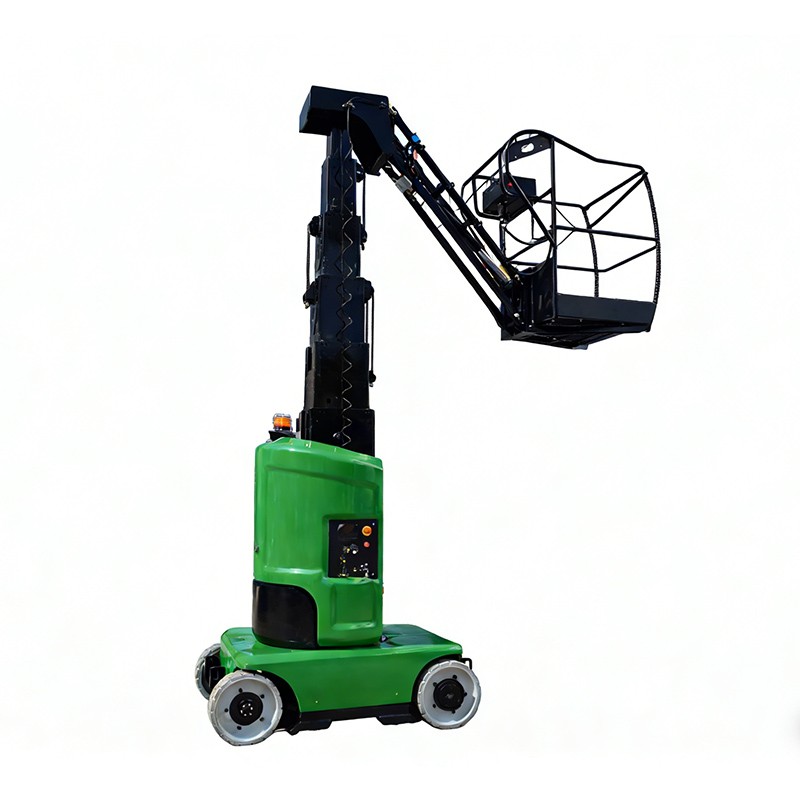

MYZG ZG-TT1011 Self-Propelled Telescopic Mast Lift
MYZG ZG-TT1011 Self-Propelled Telescopic Mast Lift: The Ultimate Compact Reach Solution
This machine is engineered for professionals who need to navigate through standard doorways, into passenger elevators, and along tight warehouse aisles without sacrificing reach or safety.
Precision Mobility & Drive-at-Height Capability
The ZG-TT1011 isn't just a lift; it's a mobile workstation that moves with you.
Simultaneous Operation: Operators can drive, steer, and lift from the platform simultaneously, significantly reducing the time spent repositioning for small adjustments.
Zero-Emission DC Drive: Powered by a clean 24V electric system, the ZG-TT1011 is whisper-quiet and produces no exhaust, making it the premier choice for food-grade facilities, hospitals, and cleanrooms.
Compact Turning Radius: Its ultra-short wheelbase and specialized steering geometry allow it to pivot in its own length, making it more maneuverable than any standard scissor lift.
Technical Specifications: ZG-TT1011 Model
Based on the technical data for the 10-meter mast series, here are the core performance metrics:
Loading Capacity
200kg
Max. Occupants
2
Turning Radius (Inside/Outside)
0.23/1.65m
Turret Rotation
345°
Jib Movement
130°
Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.5km/h
Up/Down Speed
42/38 s
Max. Working Slope
X-2.5°, Y-2.5°
Tyres
Φ 381×127mm
Driving Motor
24V/0.9kW
Lifting Motor
24V/3kW
Battery
24V/200Ah
Charger
24V/30A
Weight
2800kg
Advanced Safety & Stability Architecture
At a 10-meter vertical reach, stability is paramount. The ZG-TT1011 includes a multi-layered safety redundancy system:
1. Automatic Pothole Protection
A mechanical safety system automatically deploys "pothole guards" when the platform is raised. This effectively reduces ground clearance to almost zero, preventing the machine from tipping if a wheel encounters an unexpected floor depression or debris.
2. Intelligent Tilt & Load Sensors
Tilt Alarm: Dual-axis sensors monitor the chassis level. If the slope exceeds the safe working angle (1.5°–3°), the machine cuts off lifting and travel functions to protect the operator.
Overload Sensing: Integrated pressure sensors prevent the lift from ascending if the platform weight exceeds the rated capacity, protecting the telescopic mast's structural integrity.
3. Emergency Systems
Manual Lowering Valve: Located at the base to ensure a controlled and safe descent during a power failure.
Emergency Stop: Prominent buttons on both the platform and ground control stations for instantaneous power disconnection.
Productivity Features for Modern Facilities
Doorway Friendly: With a width of only 760mm, this lift glides through standard single doors and into elevators, reaching areas larger machines cannot.
Non-Marking Solid Tires: Equipped with high-durability tires that leave zero scuffs on polished concrete, marble, or delicate indoor flooring.
Proportional Controls: The high-sensitivity joystick provides smooth, gradual control for both travel and lift functions—essential when working near fragile overhead sprinklers or glass.
Maintenance Made Easy: The "swing-out" component trays provide 360-degree access to batteries and hydraulic valves, drastically reducing the time required for daily inspections.
Ideal Industry Applications
The ZG-TT1011 Telescopic Mast Lift is the specialist's choice for:
High-Density Warehousing: Inventory checks and small-item picking in narrow aisles.
Data Centers & Retail: Maintaining overhead servers and lighting in cramped, sensitive environments.
Hospitality & Museums: Adjusting chandeliers and high-altitude displays without moving furniture.
Industrial Plants: Safe aerial access for electrical wiring and HVAC maintenance in congested manufacturing areas.
