Description
Product Feature

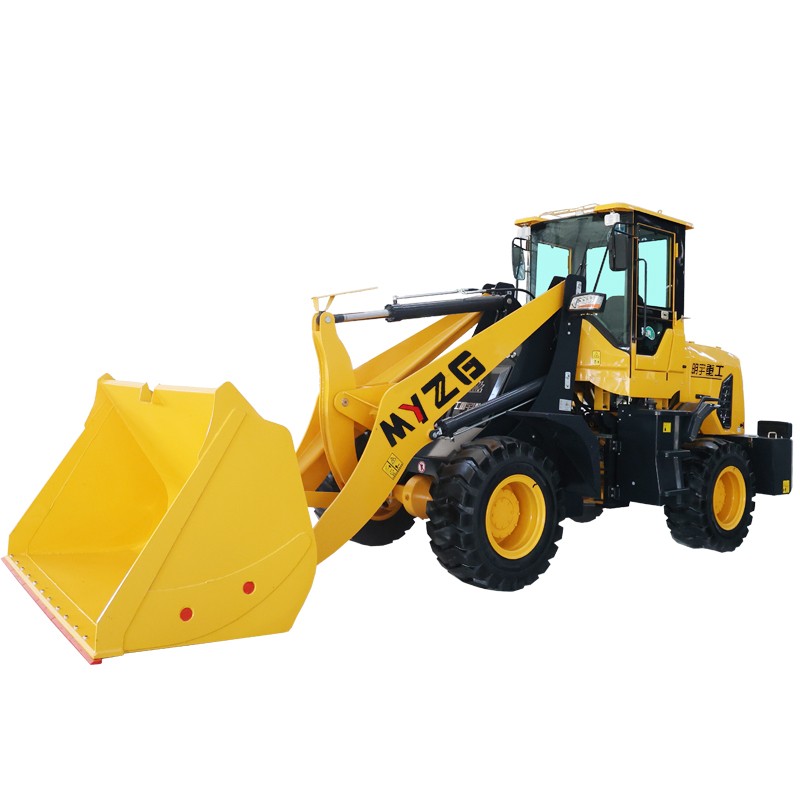

Minyu G38 grain loading artifact, 4.5m unloading height, to meet different
unloading needs, 2.15 increase the bucket, capacity up to 2 cubic, efficient
forward, enjoy the joy of harvest.
·Traction force ≥ 30KN, rising force 20KN, outstanding capability.
·Turning radius 3560 mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
| Rated load capacity | 2200kg |
| Rated bucket capacity | 2m3 |
| Operating weight | 6850kg |
| Engine model |
QUANCHAI 4C6-88M22 |
| Rated power | 76kw |
| Rated speed | 2400 r/min |
| Dimensions | 7100*2250*3090mm |
| Dump height | 4500mm |
| Dump distance | 670mm |
| Min.turning radius | 3560mm |
| Wheel base | 2730mm |
| Wheeltrack | 1600mm |
| Tyre size | 16/70-20 |
1.Meritor axles with excellent reliability and bearing capacity are adopted to complete the operation in various heavy-duty working conditions.
2.The optimal matching of power system and transmission system greatly increases traction force. Long span articulated structure is adopted for larger ground clearance, ensuring good passing-through performance even in winding mountain roads.
3.Upgraded sealing technology in the hydraulic system and butt welding technology of steel tubes improve the sealing performance significantly.
4.CAE analysis is applied to structural components system to optimize the structure. Welding robot is used to ensure reliability of the structure components system.
5.Central articulated structure enables the rear wheel track to overlap the front one, decreasing power loss while increasing the tipping load and the breakout force for excellent performance in heavy-duty working condition.
6.Optimized working devices increase the lifting force, load ratio of bucket and overall efficiency.
7.ZF electronic controlled gearbox is adopted for excellent reliability and easy & comfortable operation, which reduces the driver’s fatigue when performing continuous work, thus improving the efficiency.
8.Full decorated cab with all-around clear visibility, ample space, low noise, comfortable seat and optimized shock damping system provides a pleasant driving environment with A/C as standard configuration.

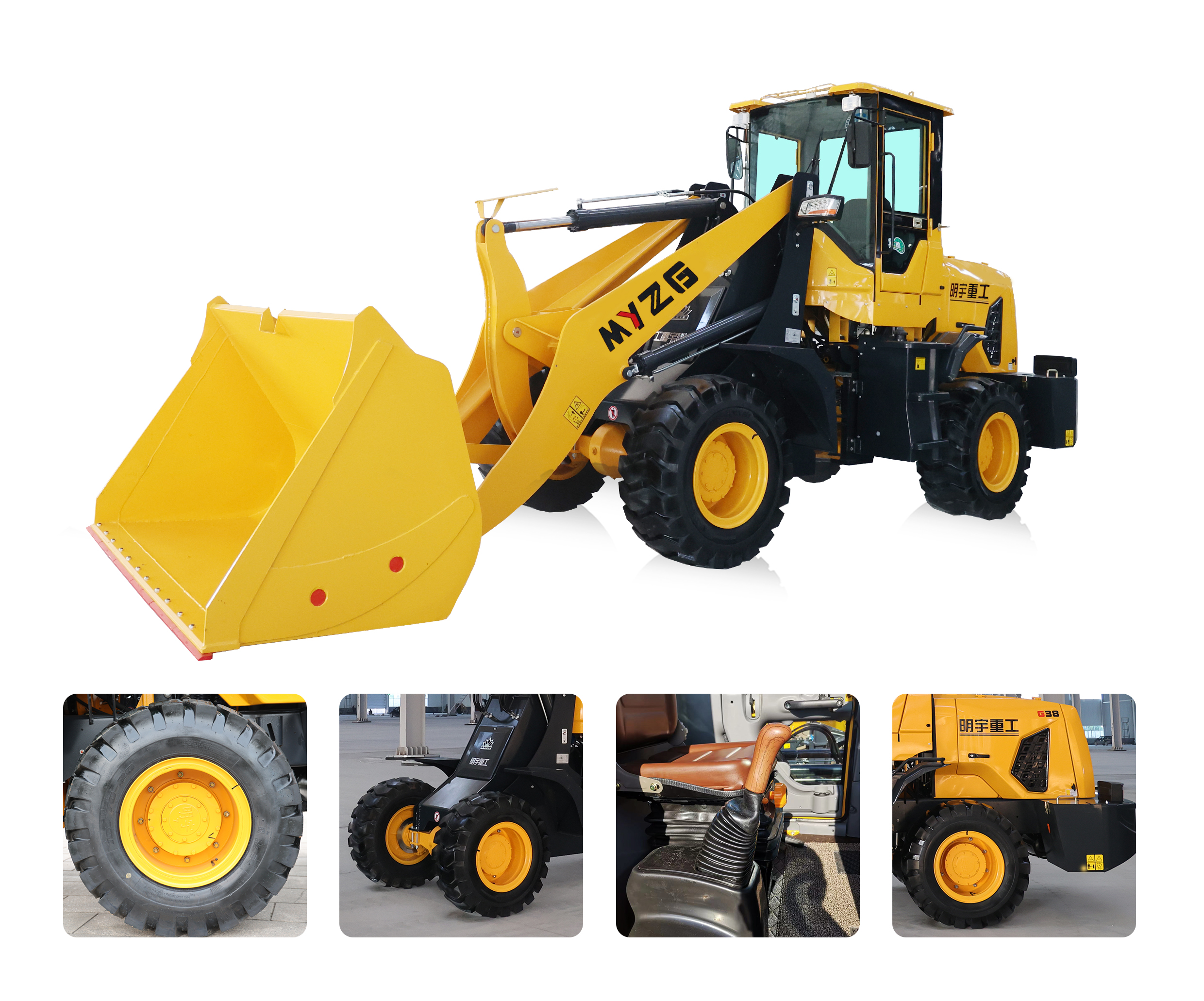

Detail
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
