Product Feature

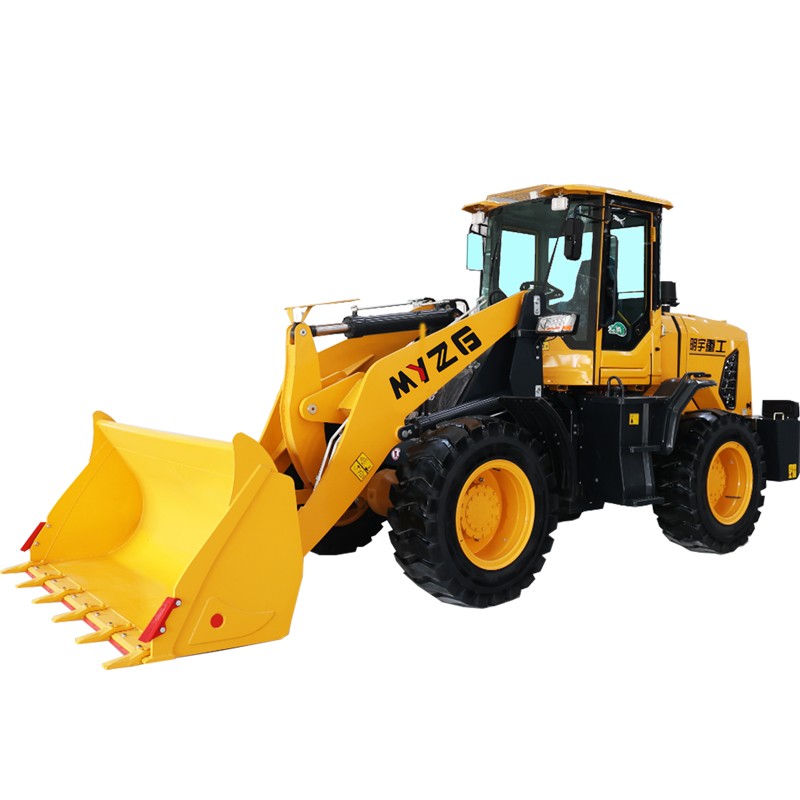

ZL946b loader of Mingyu Heavy Industry, the front and rear frame adopts the special box structure of Mingyu, the center of gravity of the whole machine is reasonable distribution, strong bearing capacity, equipped with 1.2-1.7 cubic large capacity bucket for different working conditions.

·Traction force ≥ 40KN, rising force 40KN, outstanding capability.

·Turning radius 3380 mm, strong adaptability

· Extra long wheelbase, more heavy duty

Parameter

rated load capacity	2200kg
Bucket width	1.2m³ （big bucket:1.8m³）
operating weight	6280kg
engine model	YUCHAI YCD4J22T-115 yunnei (euro v)
rated power	85kw
rated speed	2400r/min
dimensions	6700*2210*2990mm
dump height	3500mm
dump distance	870mm
min.turning radius	3600mm
wheel base	2680mm
wheeltrack	1700mm
tyre size	16/70-24

HIGH EFFICIENCY

· YUCHAI Engine Tier 2, higher power to 85kW
· The energy-saving low-speed engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%
· 2nd generation engine body, more robust and can lengthen the maintenance period, reduce the operating cost

HIGH RELIABILITY

· Axis-Fixed power shift gearbox with high/low speed, F4/R2
· Easy operation, high reliability, convenient maintenance

HEAVYDUTY

· MYZG  second generation enhanced driving axle is the best in performance, with large bearing capacity to meet the driving force and escape ability of bad conditions
· Stable and reliable performance, convenient operation and maintenance

COMFORTABILITY

· Arc shape front glass, giving more operating spaces and good vision
· New ZL series cab, larger space, better sealing performance, more comfort and low noise
· More air vents and new rock switch arrangement bring you good driving experience

SERVICEABILITY

· New Engine hood provides larger opening angle, enable the technician do the service and repair easily
· Side-opening type steel-made engine hood with large side door, which is easy to maintain. Oil filters, air filters are all arranged in one side, which enable the maintenance at one stop

Detail

DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.

About us

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
