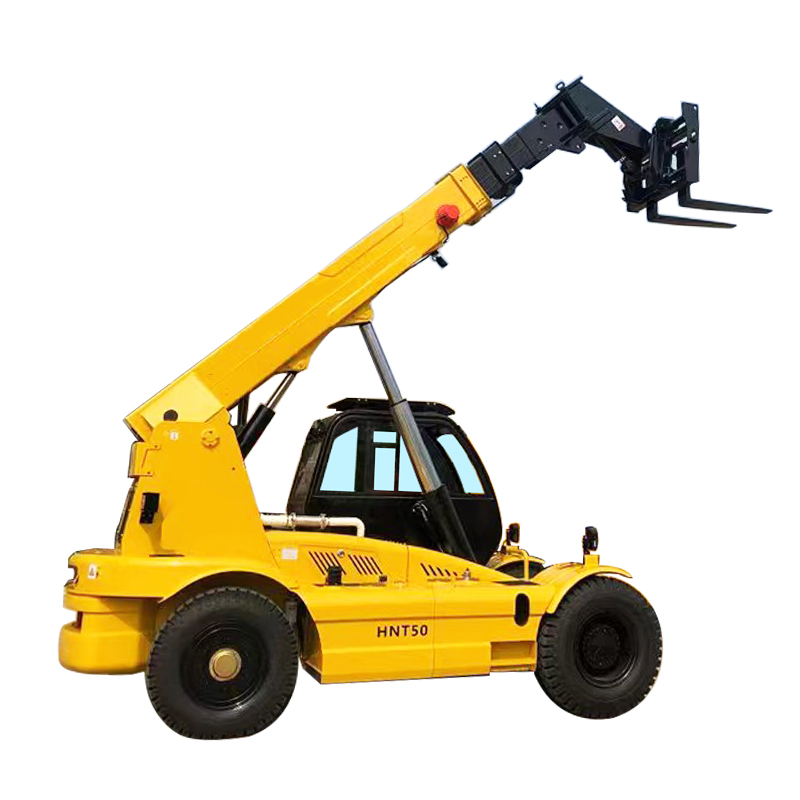

ZL-50 Telescopic Handler
PRODUCT FEATURE
MYZG new generation series telescopic forklift loader is applied with all-new visual identity appearance, panoramic cab, and optimized ergonomic design to realize high fashion, beauty, and operation comfort. With electronic control gearshift, multiple steering modes, this product can be installed with diversified attachments to realize powerful working condition adaptability. The SAR rollover protection and safety interlock control technology guarantees the operation safety.
PARAMETERS
Rated load capacity
≤5000kg
Basic boom Lifting height
5300mm
Max. Lifting height
7000mm （8800mm)
engine model
Cummins / yuchai
Rated power
93 kw / 73.5kw
Rated turning speed
2200 rpm
dimensions
5900*2350*2655 mm
lifting weight at max. height
2000kg
Wheel tread（Front/Rear)
1638/1845mm
Wheel base
2988mm
Min. Ground clearance
310mm
Min. Turning radius
6800mm
Weight unladen
13000 kg
Front Tyre
10.00-20
Rear Tyre
9.00-20
Arm tilt angle up/down
60°/-12°
PROTECTION AND SECURITYA
MYZG Adaptive Load Control automatically monitors hydraulic operation to help maintain the longitudinal stability of your Loadall.
In addition to ROPS and FOPS certification, our cab has a presence sensor that disables the equipment when the operator gets up from the seat.
Outrigger cylinders with check valves further increase the safety of operation, as check valves block the flow of oil in case of rupture or leakage in pipes or hoses.
