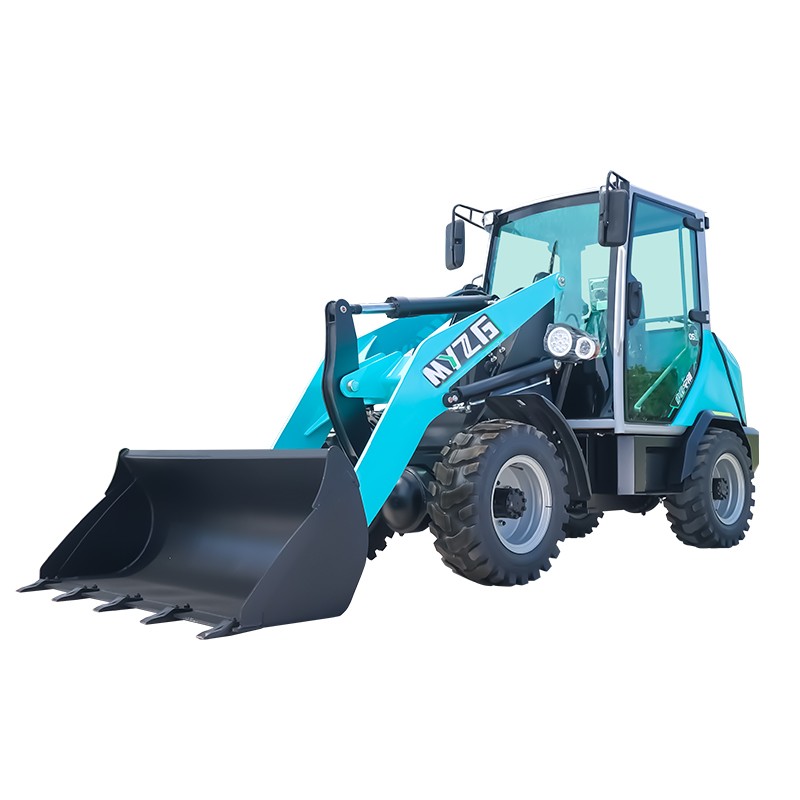

E20 Electric Wheel Loader

E20 Electric Wheel Loader
  • E20 Electric Wheel Loader

Short Description:

Mini dumper,Small wheel loader,Farm machinery,Electric loader,Construction machine,Mini loader,Front end loader,Machinery,Electric Wheel Loader,Skid steer loader,...


  • Rated load capacity:1200kg:
  • rated bucket capacity : 0.3m³:
  • Weight unladen :2500kg:

Product Details

Product Tags


Product Feature

The power ratings of the electrically-driven E20 wheel loader correspond to those of a conventional diesel-operated machine.

The installed 154-Volt lithium-ion battery is available in three power ratings so that the running and charging times can be optimally coordinated with the work requirements.Different charging cables and plugs ensure the machine’s flexible charging options.

The E20 works on-site completely free from exhaust gases and with significantly lower noise emissions.  For the end user, this means greater flexibility in application, environmental protection and significant savings with operating costs.

The low design of the front end therefore provides the perfect visibility and high tipping loads. It will master pallets with paving stones or other transported goods up to 1.26t effortlessly.



1. Passed CE quality certification.
2. Standard configuration with Quick Hitch and Electric Joystick, easier to operate.
3. Optional DC battery system and AC battery system, with zero-pollution.
4. Maintenance-Free Batteries makes later use more convenient and more secure.
5. The small size can work in a small limited space, and is flexible in operation.
6. Multi-options for attachments.
7.It has a rated load of 550 kg, with a maximum breakout force of 13 kN, so it can handle most light-duty tasks.




Parameter

voltage 154v
capacity 206ah
quantity of electricity 32kwh
rated load capacity 1200kg
rated bucket capacity 0.3m³
width of bucket 1.55m
wheel base 2150mm
wheel track 1140mm
dumping height 3000mm
tyre model 10.5-16
weight unladen 2500kg

High productivity thanks to the low front carriage

The low front carriage makes high tipping loads and break out forces possible;   this way, the maximum load per work cycle can be moved.

The low front carriage provides for an outstanding overview of the attachment, the immediate work area and the entire surroundings of the machine, which guarantees safe working with the machine.

The auxiliary hydraulics at the front on the load arm are protected by piping (3rd control circuit, 4th control circuit, overflow line, unpressurized return line, depending on the model).   That is a unique selling point in the compact wheel loader class.   Wear and tear is minimized and, as a result, the service life of the machine is increased.

Comfort cab

The comfort cabin enables safe and concentrated working: 4-pillar design, deep-drawn windows, and a panoramic windshield for optimal all-round visibility.  The thought-out heating design with electrically heated front and rear windshields, heated seats, as well as roof panel heating ensure for a comfortable working climate.  Ergonomically organized operating elements, new interior, and reduced vibrations and noises in the interior increase the operator’s comfort.

The spatial provision within the cabin is pioneering among the very compact wheel loaders.  Depending on equipment and configuration, there are two different joysticks available.  The Coming-Home lighting provides additional comfort and safety.

The cab is also suitable for taller operators, which isn't always the case for very compact wheel loaders.  The pleasant working climate reduces operator fatigue.  The optimized access with non-slip steps ensures that the operator can get in and out safely.

Easy-to-read digital display

The main functions always in sight: With the digital display, the operator always has everything in sight while working.

On the outside of the display are the standard indications, like the warning light for the parking brake or the control lights for the indicator or the full beam.

In the central area of the display for information there are three main views and a variety of useful information, e.g. operating hour meter, charge status of the drive battery, remaining running time / remaining charge time, speed display, average consumption, recuperation level, date, time, or temperature of different components.

DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
