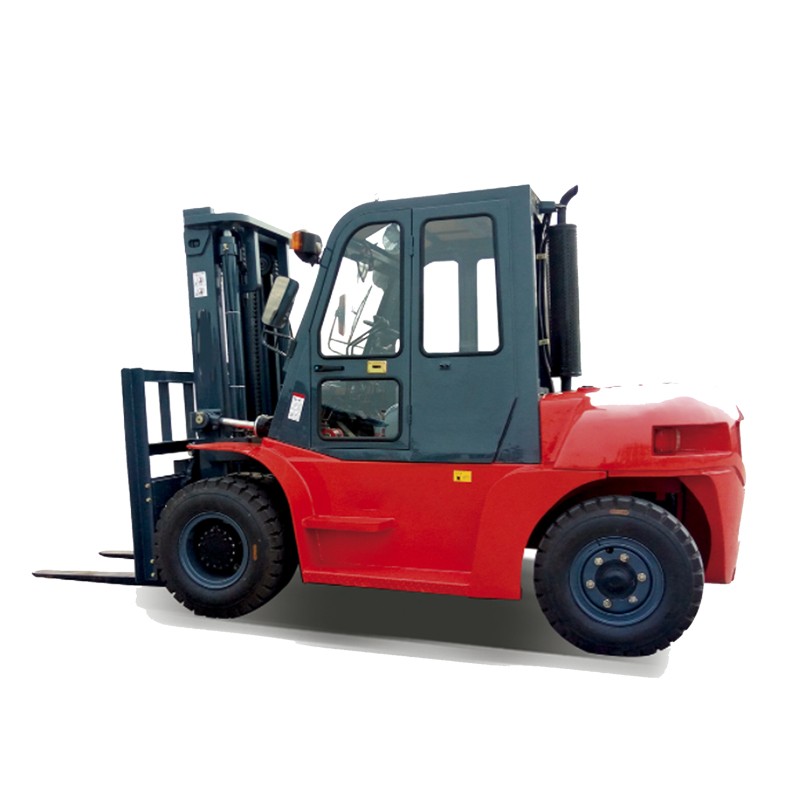

CPC60 diesel forklift

CPC60 diesel forklift
  • CPC60 diesel forklift

Short Description:

CPC60 diesel forklift...


  • Rated load capacity:6000kg:
  • weight:8640kg:
  • Standard lifting height:3000mm:
  • Engine:Mitsbishi / Isuzu / xichai / quanchai /Isuzu/Cummins:

Product Details

Product Tags

Product Feature


Overall appearance and performance improvement

Brand-new family design, integrating the characteristics of Heli’s new family PI;

Optimized carrying capacity design, the whole machine has higher high stability performance;

The front 3 / rear 3 gearboxes increase the driving speed of the whole machine, provide better acceleration performance and greater climbing ability;

Optimize the matching of hydraulic system, the lifting speed of the whole machine is increased by 5%, and the descending speed is increased by 30%;

Optimize the overall size of the whole machine, the whole machine has better maneuverability.


Intelligent upgrade of the whole machine

Equipped with ZF fully automatic gear shifting gearbox, gear shifting is accurate and stable, without shock at start, through clutch calibration and electronic micro-motion, to ensure efficient operation of the gearbox;

Full LCD instrument, human-computer interaction, the operator can monitor the status of the truck in real time; the instrument has expanded functions such as identification, maintenance reminder, operation display, and truck speed limit;

The truck electronic architecture based on CAN bus communication reduces the electrical wiring harness and control unit pins, improves the real-time and efficient communication of various parts, and greatly reduces the communication failure rate.


Improved machine safety

Intelligent protection of gearbox and engine to ensure the safety of  truck operation;

The operator's perception system (after the driver accidentally leaves the seat, the whole  truck's walking and lifting actions are terminated) to prevent potential safety hazards of misoperation.

When the parking brake is working, stop the running function of the  truck to improve the safety of running operation;

Neutral start function and anti-restart control based on ECU control;

Fingertip operating system non-neutral anti-restart protection, short circuit or open circuit limit operation protection;

The large-capacity air filter with safety filter element and pressure alarm function ensures the long-term safe operation of the engine.

Stamping roof-type roof guard to improve operation safety;

Optimize the power mount, increase the impact limit, and protect the powertrain from accidental impact;

Improved environmental protection and energy saving

The truck adopts an imported brand high-pressure common rail engine that meets the latest global emission requirements, and is used through an exhaust after-treatment unit, which greatly reduces the emission pollutants;

Standard configuration hydraulic variable plunger hydraulic pump, load-sensitive steering system, energy consumption of the whole machine is reduced by 10%;

The whole truck LED lighting system has low energy consumption, high brightness and long life.

Using the same technology as toyota


Parameter


Fuel type diesel overall leghth with fork 4770mm
Rated load capacity 6000kg overall leghth without fork 3550mm
Load Center 600mm overall width 1995mm
Lifting height 3000mm Overall lifting height of mast 4380mm
Free lifting height 200mm Mast Lowered Height 2500mm
Fork size 1220×150×60mm tyre front 8.25-15-14PR
Mast tilt Angle front and rear 6/12Deg. tyre rear 8.25-15-14PR
min turning radius 3320mm wheel base 2250mm
ground clearance 200mm wheel track 1470/1700mm
Height of roof guard from ground 2460mm overall weight 8640kg
front overhang 615mm battery (12/80)×2 V/Ah
Max driving speed full load 26km/h engine type Mitsbishi / Isuzu / xichai / quanchai/Cummins
Max lifting speed full load 400mm/s Starting rated power 85kw
Max traction full load 51.4KN transmission hydraulic
Max climbing angle 20(%) working pressure 20Mpa


According to demands, can be matched with different accessories




Why Choose the MINGYU 6-ton Diesel Forklift?

Superior Power and Performance

The MINGYU 6-ton Diesel Forklift delivers exceptional lifting capacity and robust performance, perfect for handling heavy loads with ease.

Reliability and Durability

Built with high-quality components, this forklift is designed to withstand tough environments, ensuring long-lasting reliability and reduced maintenance costs.

Operator Comfort

Featuring an ergonomic cabin with adjustable seating and intuitive controls, the MINGYU 6-ton Diesel Forklift ensures operator comfort and efficiency throughout long shifts.

Advanced Safety Features

Equipped with essential safety features such as load backrests and an advanced braking system, this forklift prioritizes operator safety and load stability.

Fuel Efficiency

With its fuel-efficient diesel engine, the MINGYU 6-ton Diesel Forklift helps you save on operational costs while maintaining powerful performance.

Versatile Applications

Ideal for various industrial applications, this forklift excels in warehouses, construction sites, and logistics operations, making it a versatile addition to your fleet.

Upgrade your material handling capabilities with the MINGYU 6-ton Diesel Forklift. Contact us today to learn more!
