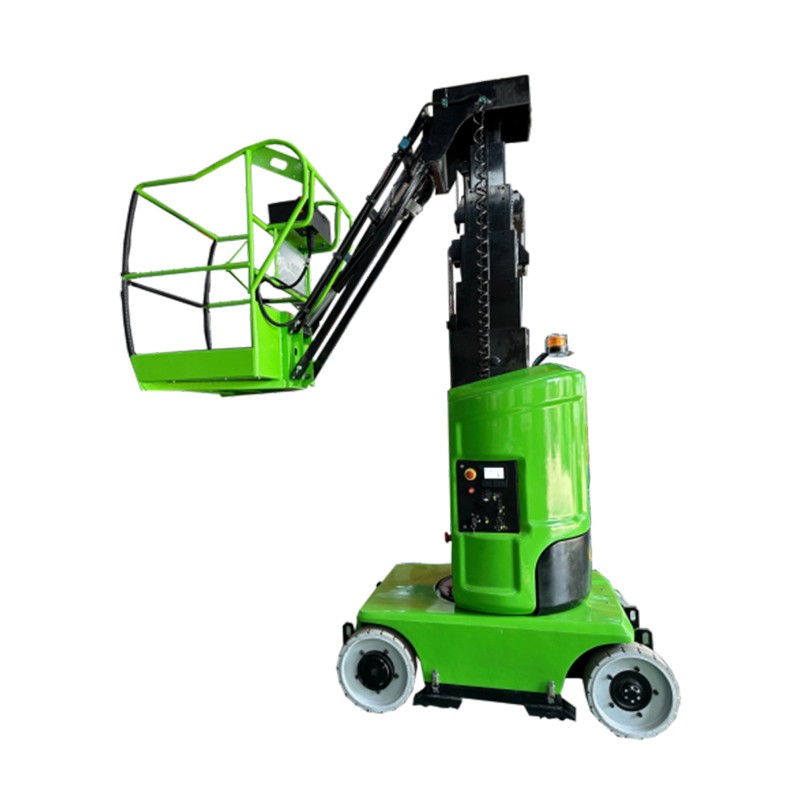

ZGFORKLIFT / MYZG ZG-TT1011 Self-Propelled Telescopic Mast Lift

The ZGFORKLIFT / MYZG ZG-TT1011 is a self-propelled telescopic mast lift for compact vertical access plus limited up-and-over positioning in warehouses, factories, data centers, retail facilities and property maintenance. Verified data include a 10 m working-height class, 200 kg capacity for two occupants, 760 mm width, 345° turret rotation and 130° jib movement. Shandong Zhuogong Machinery equipment Co.,Ltd supplies this 24V electric platform where a scissor lift is too wide and a full-size boom is unnecessary. aerial platform range.

Customer need and compact self-propelled solution

Teams lose time when they must lower and manually move a platform between nearby tasks. Platform-controlled travel and a 0.23/1.65 m inside/outside turning radius improve positioning around racks and machinery. The telescopic mast rises vertically while turret and jib movement align the platform with work not directly above the chassis. Electric drive produces no engine exhaust at the machine, but buyers must verify floor loading, aisle clearance, obstacles, charging, ventilation and traffic control.

Verified ZG-TT1011 reference specifications

complete MYZG product catalog.

Application scenarios

High-density warehouses

Inspect upper racks, lights, cameras, sensors and fire systems. The 760 mm width, 4.5 km/h stowed speed and 0.5 km/h raised speed support planned routes when the manual permits elevated travel.

Factories and production service

Reach cabinets, controls, cables and HVAC points around fixed equipment. Plan the rotation and jib envelope plus an exclusion zone around production.

Data centers, retail and sensitive interiors

Maintain lighting, signs and detectors with low noise. Confirm floor rating, non-marking tyre needs, clean charging, door width, elevator capacity and separation.

Rental fleets and contractors

Offer a specialist alternative between push-around mast lifts and wider scissor platforms for repeat tasks where compact access and two-person capacity save time.

Selection guide: route and work geometry

Choose by route and work geometry, not only the 10 m label. Measure doors, aisles, turns, elevators and ramps; verify that a 760 mm wide, 2800 kg machine can reach the work zone. Add occupants, tools and material within 200 kg. Plot height, turret and jib movement against obstacles. Confirm the X/Y 2.5° working-slope limit, floor capacity, charge supply, daily travel and rescue plan. A scissor lift or longer-reach boom may suit other tasks.

Compare mast, scissor and boom platforms

A push-around aluminum mast lift is light but normally moves from the ground. A scissor lift has a larger deck but needs more width. The ZG-TT1011 adds self-propelled travel, compact steering, turret rotation and jib articulation. A full boom provides much more horizontal outreach with a larger footprint and different training and transport requirements. Match the machine architecture to the repeated work sequence.

Buyer's guide and quotation checklist

undefined application and buying articles.

Safe setup and daily inspection

Inspect the gate, guardrails, controls, emergency stops and lowering, tilt and overload systems, pothole guards, tyres, mast, jib, hoses, wiring, battery and charger. Test steering, braking, travel and lift in a controlled area. Drive elevated only where the delivered manual permits it. Never exceed 200 kg or occupant limits, climb the rails, add improvised height, use the platform as a crane, or operate beyond approved slope, wind and surface conditions.

Battery, mast, jib and drive maintenance

Use hour and battery logs to plan service. Charge the 24V/200Ah battery with the matched 24V/30A charger, maintain terminals and avoid deep discharge. Inspect the 0.9kW drive motor, 3kW lift motor, hydraulic oil, hoses, mast rollers, wear pads, jib pins, turret, sensors, pothole guards and tyres. Keep trays clean and record fault codes, inspections and parts by serial number.

Distributor and rental-fleet opportunity

For distributors, this model targets warehouses, data centers, hospitals, retail groups, airports, museums and industrial contractors. Qualify height, aisle, turns, elevator, floor rating, obstacles, occupants, daily distance and charging. Demonstrations should reproduce a real task and teach joystick control, turret and jib positioning, inspection, charging and emergency lowering. Local value comes from application surveys, handover, parts mapping and maintenance.

Compliance, export service and buyer confidence

Shandong Zhuogong Machinery equipment Co.,Ltd supports configuration, production, export packing, shipping documents, spares and after-sales under ZGFORKLIFT / MYZG. CE documentation and applicable aerial-platform requirements depend on the final ZG-TT1011 configuration and destination and must be confirmed in writing. EPA engine certification is generally not applicable to the electric drive; every requested document must match the serialised machine. contact the MYZG export team.

Frequently asked questions

Can it pass a single doorway?

The referenced width is 760 mm, but measure door hardware, thresholds, height and turns along the complete route.

Can it travel while elevated?

The reference raised speed is 0.5 km/h. Elevated travel is allowed only within the delivered manual's conditions on an approved surface.

Does 10 m mean exact platform height?

The source identifies a 10 m working-height class. Ask the quotation to state maximum working and platform heights separately.

What data are needed for a quote?

Send height, load, people, aisles, doors, turns, elevator, floor rating, obstacles, cycles, charging, port and required documents.

Request a site-matched quotation

Send a route video, floor data, obstruction sketch and task photographs. MYZG can prepare a confirmed ZG-TT1011 configuration, transport and charging plan, spare-parts package and dealer or fleet service program without a misleading fixed price.
