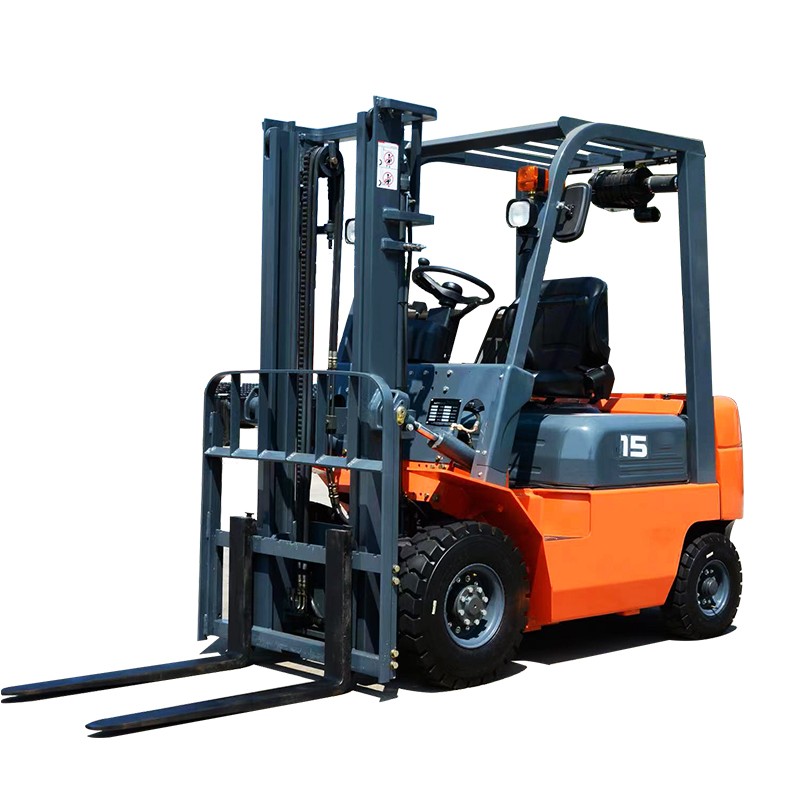

ZGLOADER / MYZG CPC15 1.5 Ton Diesel Forklift for Compact Outdoor Material Handling

A 1500 kg diesel counterbalance forklift with 3000 mm standard lift, 1955 mm turning radius, 20% gradeability and a documented 2660 kg unladen weight.

A compact diesel solution for real work sites

The ZGLOADER / MYZG CPC15 is a compact diesel forklift supplied by Shandong Zhuogong Machinery equipment Co.,Ltd for yards, service depots, nurseries, workshops and material stores that need dependable pallet movement without a larger truck.

Its 1500 kg rated capacity is specified at a 500 mm load center. The 1410 mm wheelbase and 1955 mm minimum turning radius support maneuvering in controlled aisles, while pneumatic tyres suit prepared outdoor routes. Capacity at height depends on the mast, load center and attachment and must be confirmed on the final load chart.

Verified CPC15 diesel forklift specifications

The following source data describes this 1500 kg counterbalance forklift. Buyers should confirm the selected engine, mast, fork length, tyres, emission package and destination documents in the quotation before ordering.

Customer needs and practical solutions

1. Compact access without sacrificing diesel availability

A 1955 mm turning radius and 1070 mm overall width help operators work around building-material bays, greenhouse service lanes and parts stores. Diesel refueling is practical for outdoor fleets, but the route, ventilation, noise rules and local emissions requirements must be assessed before use.

2. Stable handling for 1500 kg pallet work

The documented 2660 kg unladen weight, 500 mm load center and 1410 mm wheelbase form the operating basis. The load should travel low, centered and secured. Long loads, elevated loads and attachments change residual capacity and require written confirmation.

3. Pneumatic tyres for prepared mixed surfaces

Front 6.50-10-10PR and rear 5.00-8-8PR tyres support this 1.5 ton diesel forklift on maintained concrete, asphalt and compacted gravel. Operators should inspect tyre pressure, potholes, slopes, edges and floor capacity before each route.

4. Productive lift and service access

The source lists 3000 mm standard lift, 590 mm/s maximum lifting speed, 13.5 km/h maximum travel speed and 20% gradeability. A wide-opening engine hood and accessible service points can simplify planned checks, while actual performance depends on load, surface and configuration.

Application scenarios and operating fit

The CPC15 is suited to compact outdoor and ventilated mixed-use operations handling verified loads within the truck data plate and site risk assessment.

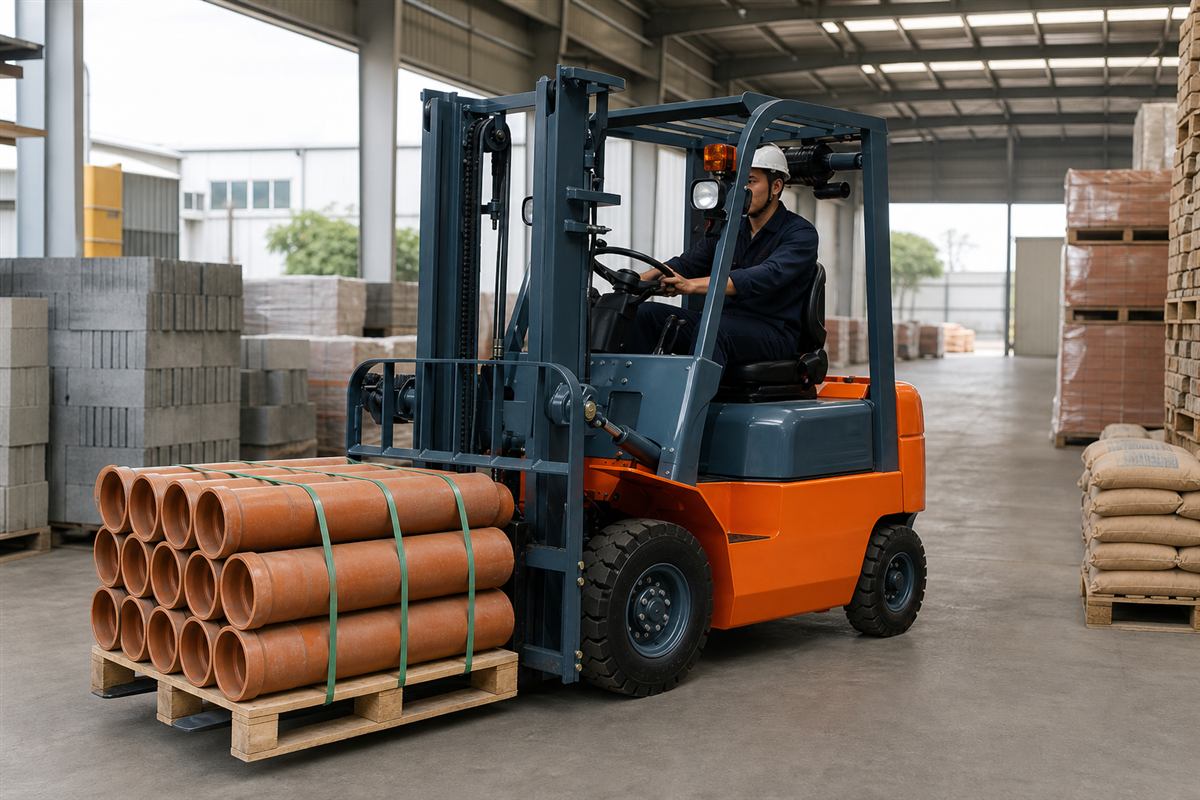

Construction-material storage

Move secured pallets of pipes, tiles, fittings and packaged supplies between covered storage, inspection and dispatch areas on marked routes.

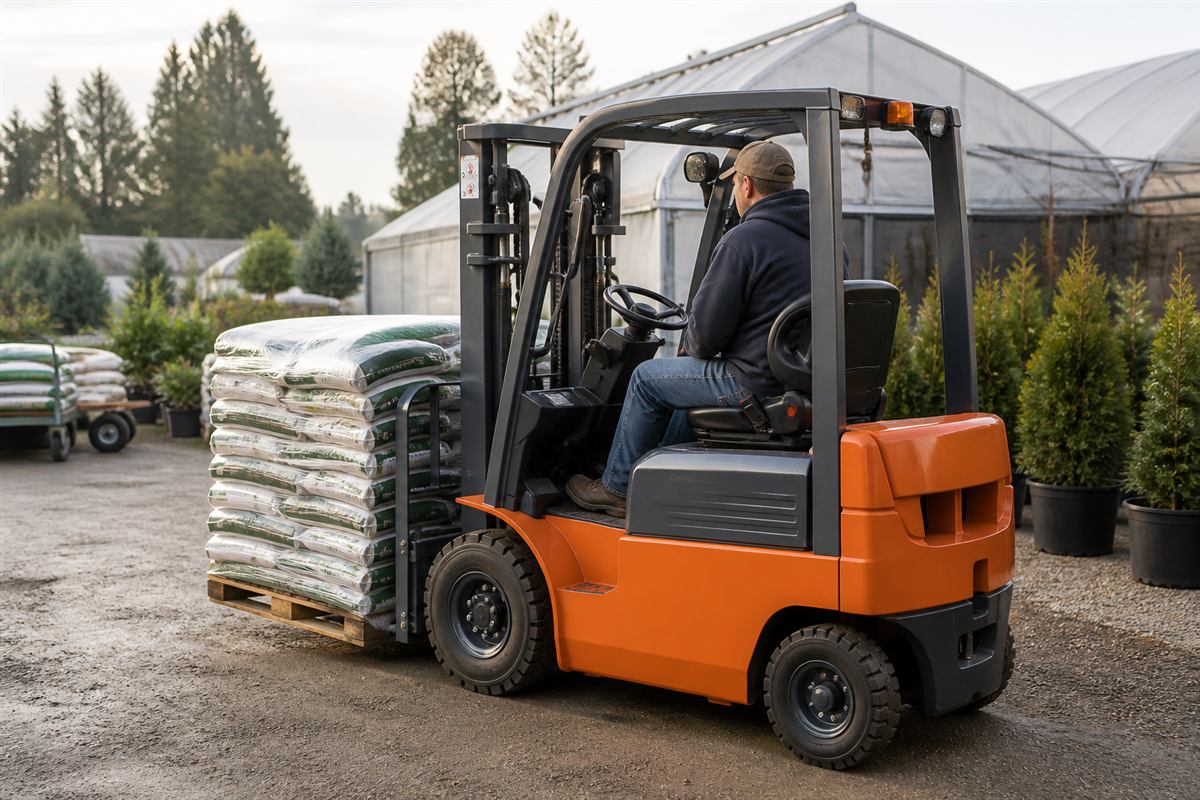

Commercial nurseries and agricultural supply

Handle bagged growing media, irrigation components and palletized supplies across greenhouse service yards with controlled pedestrian separation.

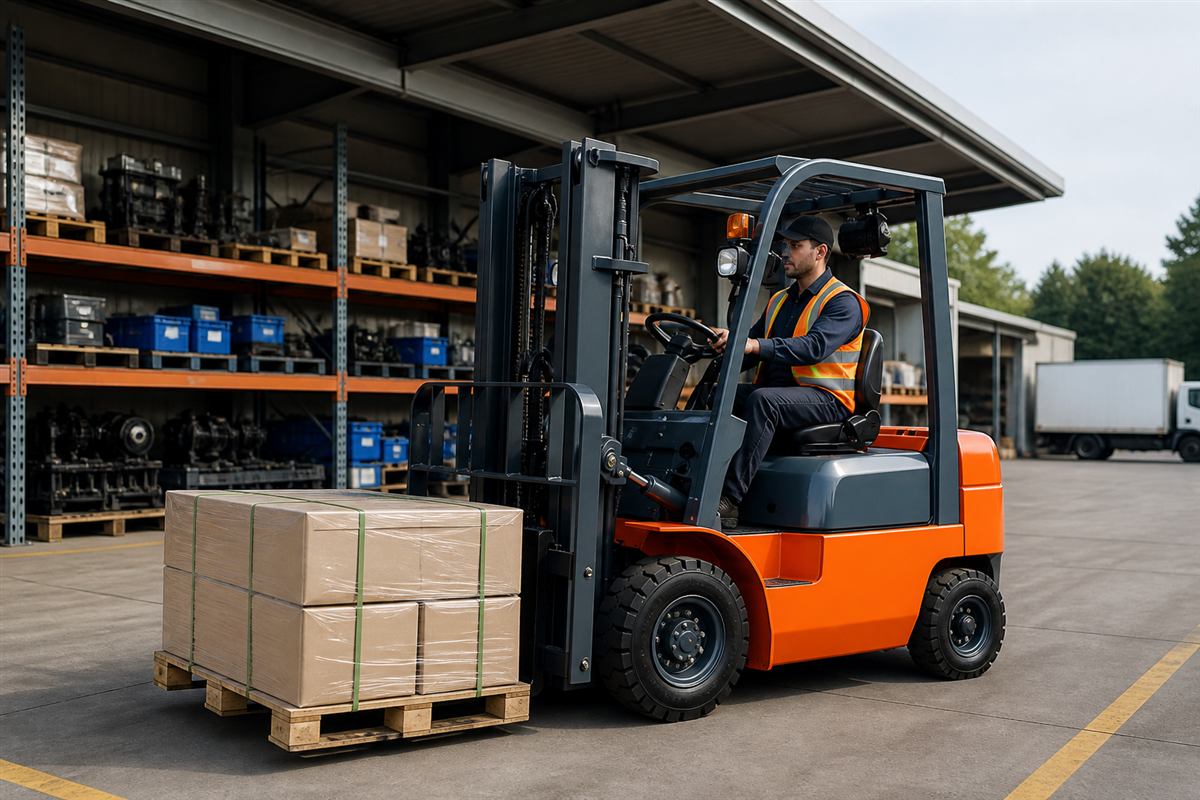

Machinery-parts and maintenance depots

Transfer boxed hydraulic parts, filters and service kits between receiving, shelving and workshop staging while keeping loads stable and low.

Purchasing guide and model selection

Send the real load dimensions and weight, load center, lift height, residual-capacity requirement, aisle and door widths, surface, slopes, daily cycles, attachment, engine preference, emissions requirement and destination. Compare CPC15 with larger models by usable capacity, access and duty cycle rather than nominal tonnage alone.

Maintenance and total cost of ownership

Daily checks cover forks, carriage, mast, chains, hoses, tyres, brakes, steering, horn, lights, restraint, coolant, engine oil and leaks. Planned service covers filters, cooling, fuel, transmission and hydraulics. Compare fuel, tyres, wear parts, training, service access, downtime and resale suitability, not purchase price alone.

Dealer, rental and spare-parts support

Dealers and rental fleets can position CPC15 for compact yards, nurseries, building suppliers and service depots. A responsible package combines site survey, load demonstration, operator handover, preventive maintenance and an identified spare-parts list. Contact the MYZG export and service team.

Compliance, export experience and trust

CE-related evidence, engine-emission documents, EPA applicability and destination requirements depend on the final engine and configuration and must be confirmed in writing; no certificate number is assumed. MYZG can support configuration review, inspection, export packing, manuals, shipping documents, parts identification and after-sales communication without inventing customer names or performance figures.

Frequently asked questions

Which engine is supplied with the CPC15?

The source lists Quanchai, Xinchai, Mitsubishi, Isuzu and Cummins as possible choices. Availability and the compliant emissions package must be confirmed for the final quotation.

What is the minimum turning radius of this CPC15 diesel forklift?

The documented minimum turning radius is 1955 mm. Add clearance for the pallet, fork length, rack guards and operator skill when planning aisles.

Can the CPC15 use attachments or a different mast?

Attachment and mast options can be discussed, but every change affects dimensions, weight and residual capacity. The final data plate and load chart must match the delivered configuration.

Request a CPC15 configuration and quotation

Send your load, lift height, aisle, surface, work hours, engine-emission requirement, destination port and attachment needs. MYZG will prepare a configuration and quotation based on the actual duty.
