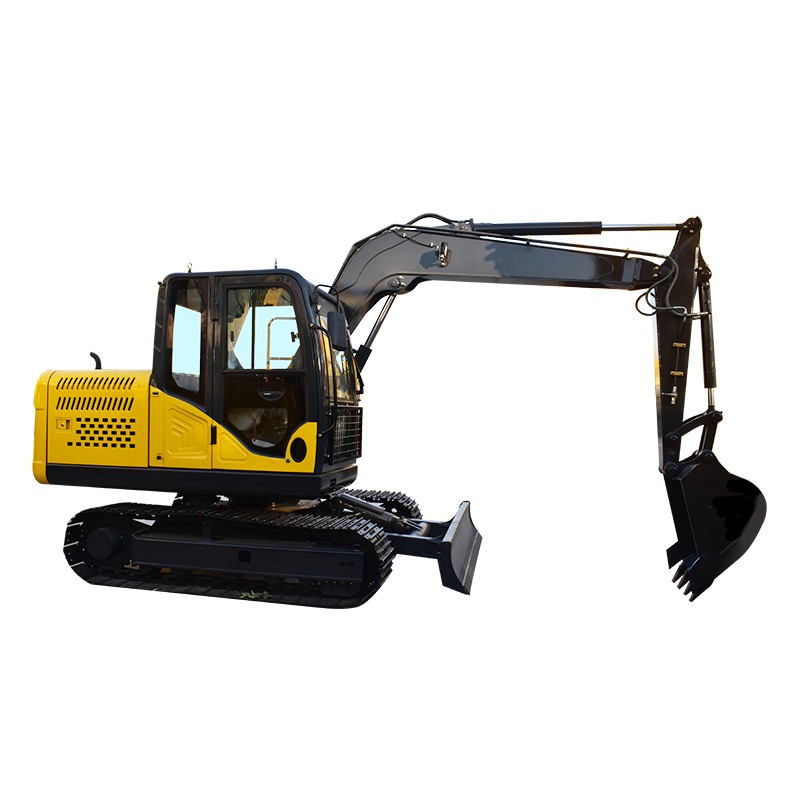

80 excavator

80 excavator
  • 80 excavator

Short Description:

80 excavator...


  • Bucket capacity : 0.34 m3:
  • Operating weight : 8T:
  • Engine model : YANMAR 4TNV98T:
  • Tail swing radius : 1755 mm:

Product Details

Product Tags

Product Feature


80 is an energy-saving, reliable and comfortable product developed by MYZG.     It is equipped with enhanced working device and optimized matching power hydraulic system, which is suitable for a variety of harsh working conditions.


● The original imported YANMAR engine with low speed and high torque is supercharged and Intercooled to meet the T3 emission.     The EMS engine management technology is carefully adjusted to achieve the best balance between fuel consumption and efficiency, with strong power, economic and environmental protection, and high reliability.


● Double pump constant power negative flow hydraulic system with automatic sensing control.

● The walking system is driven by two speed self-switching walking motor.     The walking and rotary braking are wet braking, with stable braking and high reliability.



Parameter

Operating weight 8T
Bucket capacity 0.34 m3
Engine model YANMAR 4TNV98T (turbocharger)
Rated power 54.3/2200 kw/r/min
Volume of fuel tank 130 L
Swing speed 10 r/min
Max climbing degree 70°
size 6100 x 2300 x 2680mm
Min. ground clearance 380 mm
Tail swing radius 1755 mm
Track length 2760 mm
Track gauge 1700 mm
Track width 2150 mm
Track shoe width 450 mm
Max. digging height 7165 mm
Max. dumping height 5065 mm
Max. digging depth 4038 mm
Max. vertical wall digging depth 3505 mm
Max. digging reach 6330 mm
Arm length 1650 mm
Boom length 3710 mm


● Rich differentiated products: optional with hammer, rotary grab and other working devices, accessories.


● Equipped with EECU, VECU and IECU electronic control system.     The whole machine has a variety of working modes to adapt to different working conditions, energy saving and high efficiency.     It has the functions of self-inspection, monitoring, emergency fault alarm, GPS positioning and remote monitoring, with good man-machine interaction and convenient operation and maintenance.


● The cab is spacious and has good sound insulation effect.     It is equipped with three sunshade nets.     Silicone oil rubber shock absorber is used to reduce vibration and impact.


● The X-shaped lower frame and reinforced upper frame with widened chassis make the whole machine more stable and easy to adapt to various working conditions.
