CPD05 Lithium Battery Electric Forklift

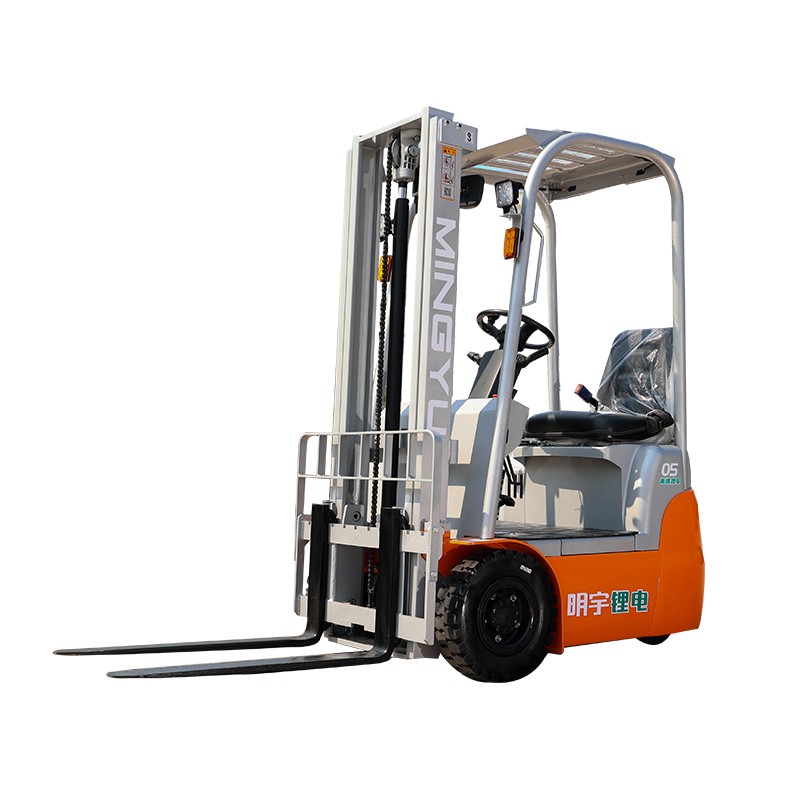

MYZG 0.5-Ton Lithium Battery Electric Forklift (Model: CPD05)
Ultra-Compact 500kg Capacity Micro Li-ion Forklift Designed for Extremely Narrow Aisles, Mezzanine Floors, and Small Industrial Warehouses.
Executive Overview: The Ultimate Micro Material Handling Solution
The MYZG CPD05 0.5-Ton Lithium Battery Electric Forklift is an innovative, ultra-compact material handling solution engineered to bridge the gap between traditional manual pallet jacks and heavy industrial forklifts. Manufactured by Mingyu Heavy Industry (MYZG), this micro sit-down electric forklift is specifically tailored for tight spatial environments, including narrow warehouse aisles, freight elevators, upper-story mezzanine floors, and retail logistics hubs.
Powered by a high-efficiency 76.8V / 60Ah lithium-ion battery system, the CPD05 boasts a rated lifting capacity of 500 kg (1,100 lbs) with a 400 mm load center. Featuring an overall width of just 887 mm and an exceptionally tight minimum turning radius of 1,285 mm, this machine delivers agile maneuverability without compromising on operator comfort, safety, or lifting stability.
MYZG CPD05 Factory Technical Specifications
Review the complete mechanical, electrical, and dimensional dataset for the MYZG 0.5T-A Lithium Electric Forklift (CPD05):
| Performance & Mechanical Parameter | Factory Specification Detail |
|---|---|
| Model Identification | CPD05 (0.5T-A Series) |
| Power Source Type | Li-ion (Lithium-ion Battery) |
| Rated Load Lifting Capacity | 500 kg |
| Load Centre Distance | 400 mm |
| Driving Style / Operator Position | Sit-down Style |
| Overall Length (With Fork / Without Fork) | 2230 mm / 1395 mm |
| Overall Width | 887 mm |
| Mast Height (Lowered / Overhead Guard) | 1820 mm / 1820 mm |
| Max. Height at Working (Full Extension) | 3188 mm |
| Standard Lifting Height / Free Lift Height | 2500 mm / 0 mm |
| Fork Adjustment Range | 152 mm – 782 mm |
| Minimum Turning Radius | 1285 mm |
| Minimum Right-Angle Channel Width | 2565 mm |
| Gantry Angle (Front / Rear Tilt) | 5° / 6° |
| Max. Lifting Speed (Without Load / Full Load) | 300 mm/s / 250 mm/s |
| Max. Operating Travel Speed (Unladen / Loaded) | 12 Km/h / 11 Km/h |
| Max. Gradeability (Full Load) | 10% |
| Unladen Machine Weight | 1220 kg |
| Wheel Layout (Driving / Steering Wheels) | 2 / 2 |
| Tyre Type (Front & Rear) | Puncture-Proof Solid Tyres |
| Tyre Size (Front / Rear) | 4.00-8 / 3.50-5 |
| Braking Systems (Service / Parking) | Electromagnetic Brake / Foot Brake |
| Battery Voltage & Capacity | 76.8V / 60Ah (Lithium) |
| Drive Motor Power Output | 2 kW |
| Oil Pump Hydraulic Motor Power | 2 kW |
| Wheelbase / Ground Clearance | 943 mm / 60 mm |
| Front Overhang / Rear Overhang | 278 mm / 174 mm |
| Front Wheel Track / Rear Wheel Track | 784 mm / 250 mm |
Engineering Breakdown & Key Product Advantages
1. High-Voltage 76.8V Lithium-Ion Power System
The MYZG CPD05 utilizes a maintenance-free 76.8V / 60Ah lithium battery pack that completely replaces messy, high-maintenance lead-acid alternatives. Lithium technology offers rapid opportunity charging, enabling operators to top up battery levels during short work breaks. With zero acid spills, zero harmful gas emissions, and up to three times the cycle life of traditional batteries, the CPD05 drastically lowers total cost of ownership.
2. Ultra-Narrow Chassis (887mm) & Extreme Maneuverability
Measuring just 887 mm wide and 1395 mm long (without forks), the CPD05 is engineered to operate in places standard forklifts cannot enter. With a 1285 mm minimum turning radius and a low overhead guard height of 1820 mm, it easily navigates narrow racking aisles, fits inside standard cargo elevators, and moves effortlessly under low-doorway clearances.
3. Advanced Electromagnetic Braking & Solid Tyres
Safety is paramount in tight working environments. The CPD05 features a responsive electromagnetic driving brake combined with a mechanical foot brake for reliable parking control. Equipped with puncture-proof solid tyres (4.00-8 front, 3.50-5 rear), the forklift eliminates flat-tire downtime while ensuring maximum lateral stability during 2500mm lifting maneuvers.
4. Efficient Dual-Motor System (2kW Drive + 2kW Pump)
Equipped with dedicated 2kW drive and 2kW hydraulic oil pump motors, the forklift balances smooth traction velocity with quick hydraulic lifting. It achieves a max travel speed of 12 km/h and a lifting speed of 300 mm/s (without load), providing swift cycle times while maintaining a 10% gradeability capability on ramps.
Target Application Environments
The light net weight (1220 kg) and compact footprint of the CPD05 make it ideal for specialized industrial and commercial settings:
Mezzanine & Elevators
Its low 1220kg total weight allows safe operation on upper-floor mezzanines and inside standard industrial freight elevators.
Small Warehouses & Retail
Ideal for stockrooms, back-of-store retail areas, and narrow aisle storage where space is at an absolute premium.
Pharma, Food & Cleanrooms
Zero exhaust emissions and low operating noise comply strictly with cleanroom, pharmaceutical, and food-grade logistics standards.
Frequently Asked Questions (FAQ)
Q: What is the fork adjustment range on the CPD05 forklift?
A: The fork position can be manually adjusted across a width range of 152 mm to 782 mm, allowing it to handle various pallet sizes, wooden crates, and specialized containers easily.
Q: Can the CPD05 operate on slopes and loading ramps?
A: Yes, the CPD05 features a maximum full-load gradeability of 10%, making it capable of navigating indoor ramps, dock levellers, and slight outdoor gradients safely.
Q: How does lithium battery maintenance compare to lead-acid?
A: The 76.8V lithium battery requires zero fluid topping, zero acid checks, and produces no gas during charging. It supports fast opportunity charging without suffering memory effect damage.
Ready to Maximize Your Tight-Space Warehouse Efficiency?
Contact MYZG today for factory-direct wholesale pricing, global shipping options, and technical support on the CPD05 0.5-Ton Lithium Electric Forklift.
Official Corporate Email: MYZG@my-forklift.com | whatsapp: +8613176910558
