Description
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE

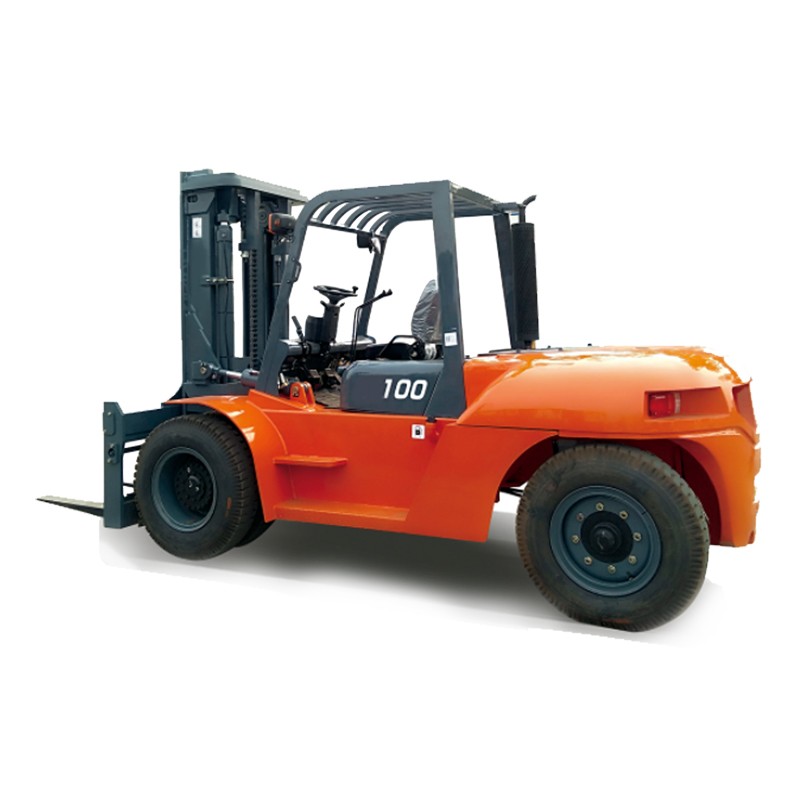

This new series forklift trucks that made with the latest technical design provide you excellent operating performance. MYZG forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier.
●Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
● Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
● Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in case of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plug.
THE MAIN PARAMETER
Load Center | 600mm | overall width | 2260mm |
Lifting height | 3000mm | Overall lifting height of mast | 4420mm |
Free lifting height | 220mm | Mast Lowered Height | 2840mm |
Fork size | 1220×175×80mm | tyre front | 9.00-20-14PR |
Mast tilt Angle front and rear | 6/12Deg. | tyre rear | 9.00-20-14PR |
min turning radius | 4150mm | wheel base | 2800mm |
ground clearance | 250mm | wheel track | 1600/1700mm |
Height of roof guard from ground | 2560mm | overall weight | 12500kg |
front overhang | 710mm | battery | (12/100)×2V/Ah |
Max driving speed full load | 26km/h | engine type | Mitsbishi / Isuzu / xichai / quanchai |
Max lifting speed full load | 400mm/s | Starting rated power | 81kw |
Max traction full load | 52KN | transmission | hydraulic |
Max climbing angle | 20(%) | working pressure | 20Mpa |
According to demands, can be matched with different accessories
