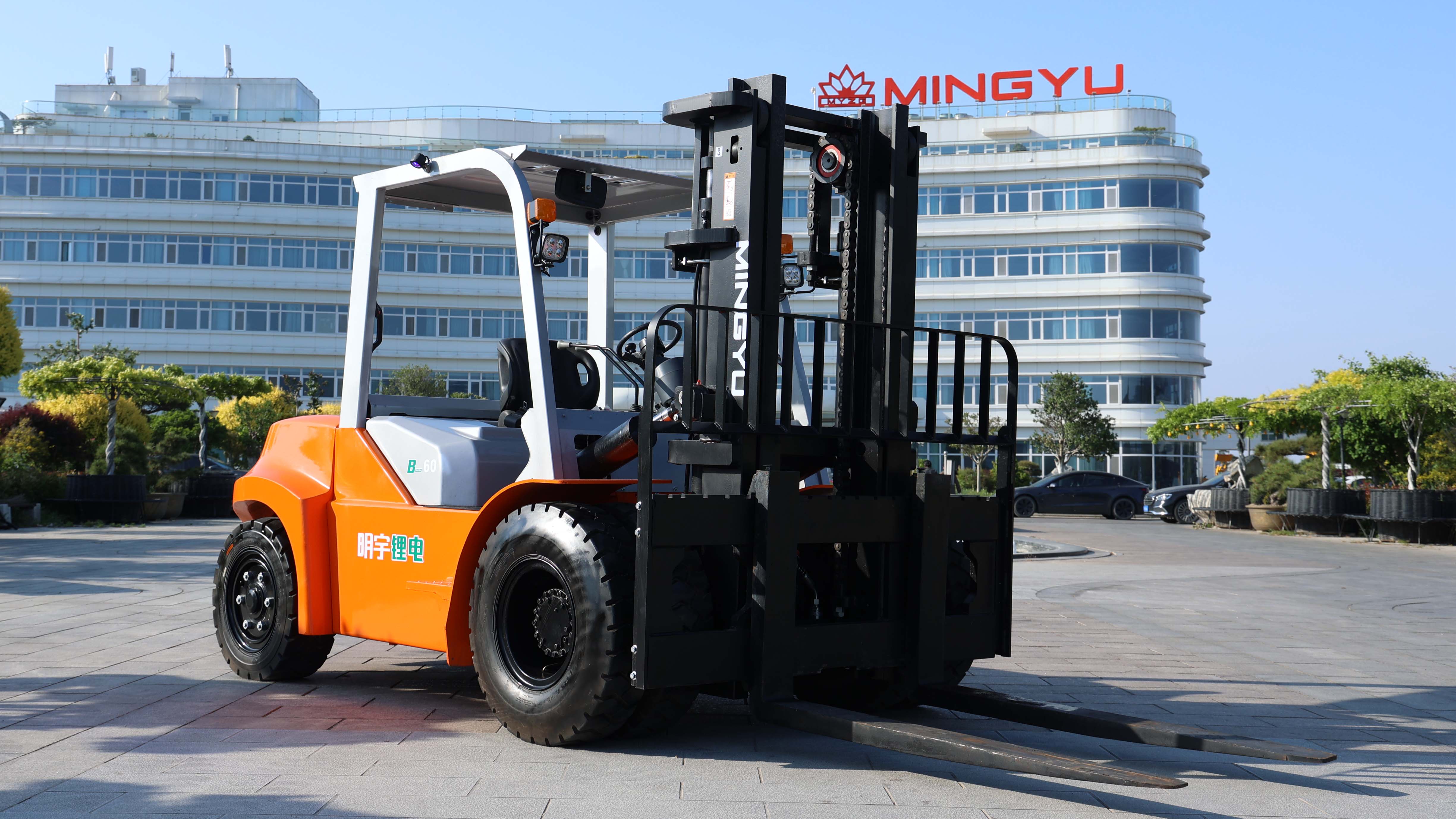

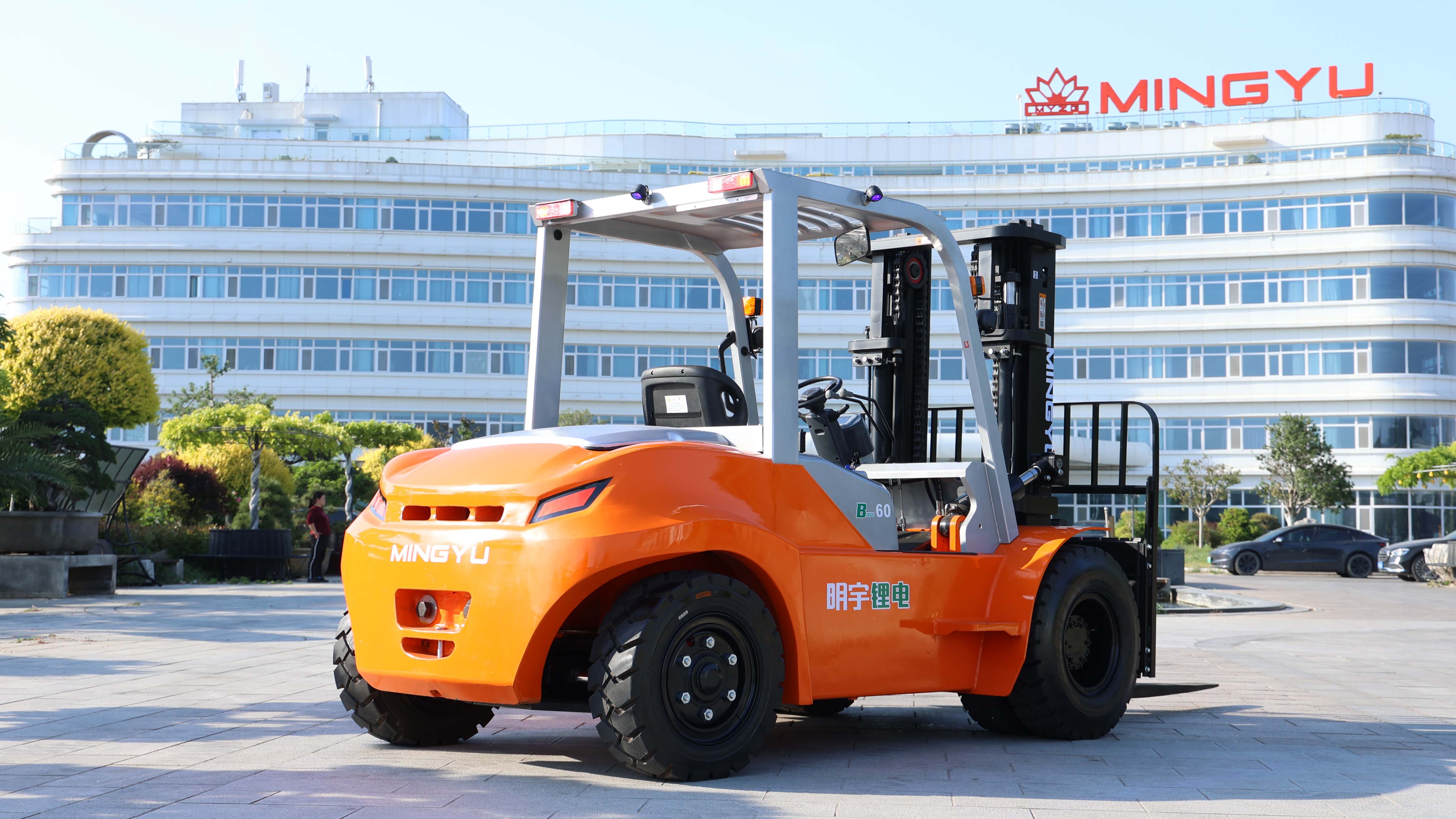

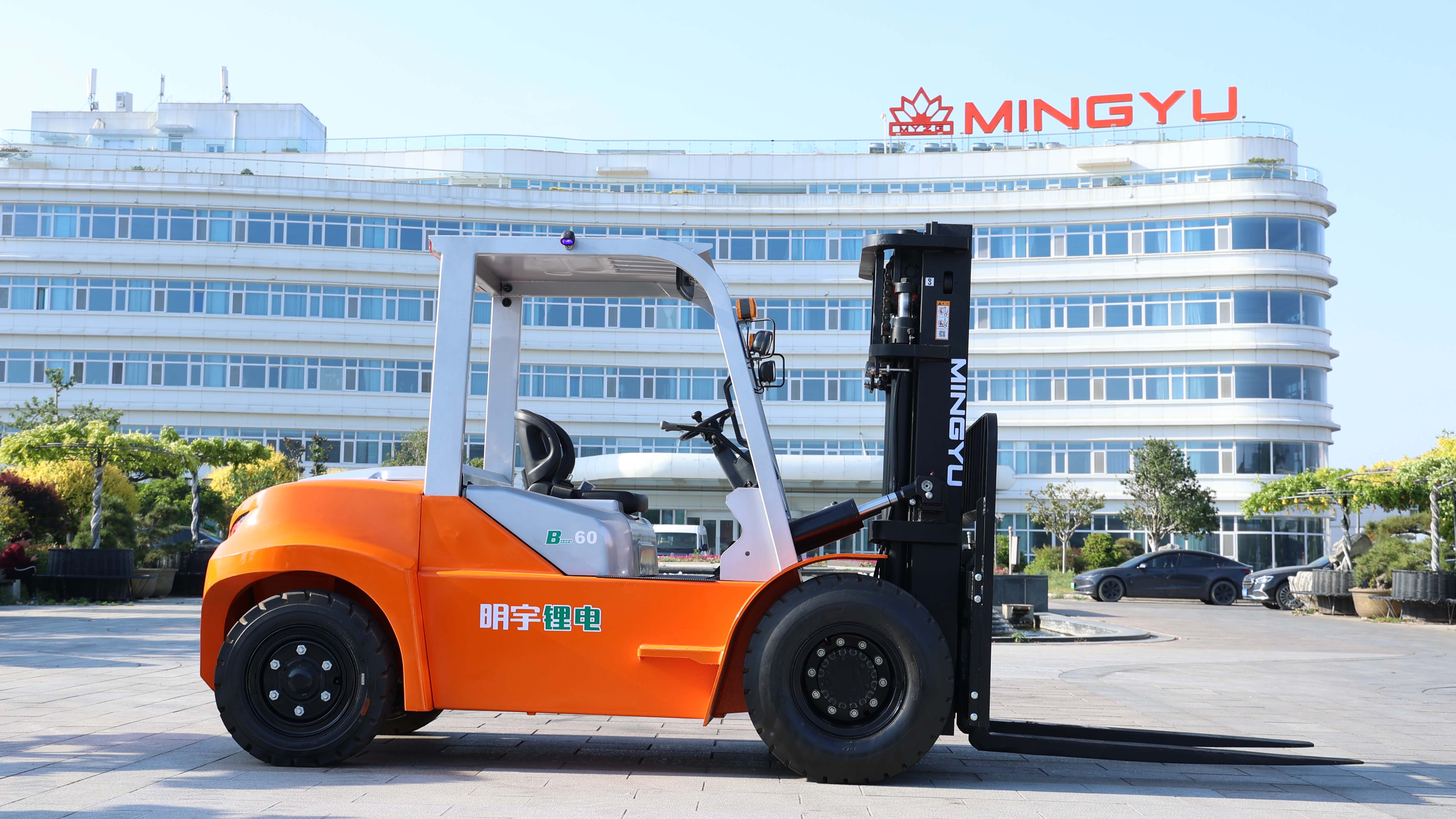

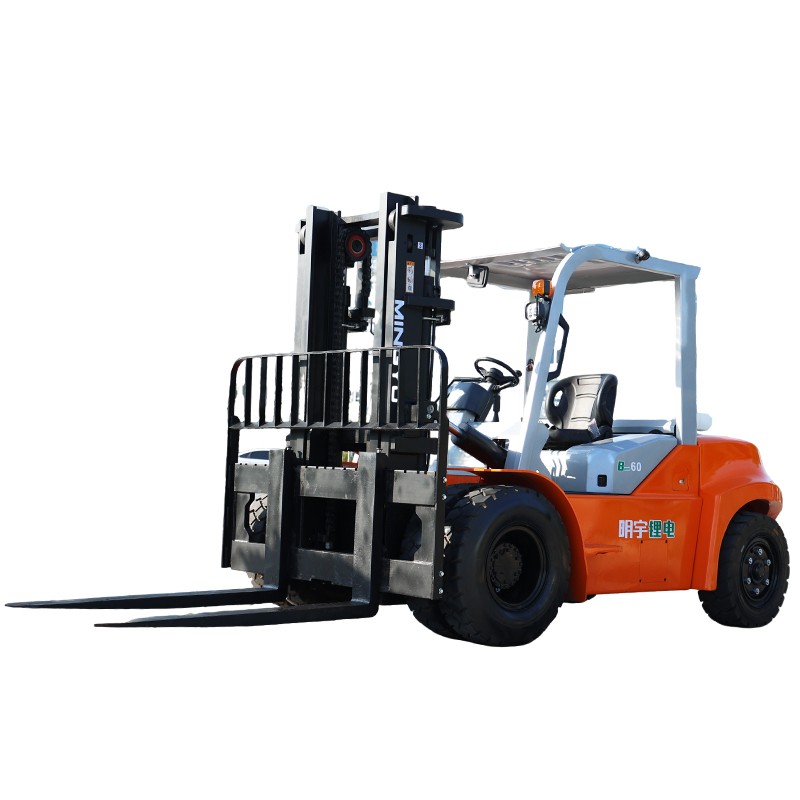

CPD60-B electric Forklift
Overview: The Future of Heavy-Duty Material Handling
Equipped with a high-voltage 386.4V 206Ah Li-ion battery system, this forklift is built for multi-shift operations, rapid charging, and zero-emission performance. Whether you are operating in a clean indoor warehouse or a rugged outdoor logistics terminal, the MYZG B60 delivers the reliability and torque required for your most demanding tasks.
Key Features & Advantages
Unlike traditional lead-acid batteries, our Li-ion system offers:
Rapid Charging: Full charge in significantly less time, supporting "opportunity charging" during lunch breaks.
Zero Maintenance: No watering, no acid spills, and no gas emissions.
Longer Lifespan: Up to 3x the cycle life of conventional batteries.
2. Eco-Friendly & Cost-Efficient
With zero exhaust emissions, the B60 is the perfect choice for food, beverage, and pharmaceutical industries. Furthermore, the cost of electricity per hour of operation is up to 80% lower than diesel or LPG equivalents.
3. Superior Operator Comfort
Spacious Cabin: Designed with ergonomic controls to reduce operator fatigue.
Full Visibility Mast: The wide-view mast design ensures safety and precision when stacking at the maximum 3000mm lifting height.
Low Noise: Quiet operation improves the workplace environment and allows for 24/7 operation in noise-sensitive areas.
4. Robust Build for Heavy Loads
The B60 features a reinforced chassis and a high-strength gantry with a 6/12° inclination angle, providing exceptional stability even when handling a 6-ton load at the 600mm load center distance.
Technical Specifications (Model: B60)
power
Li-ion
reted lifting capacity
6000Kg
load centre distance
600mm
opration mode
Driving style
length
with fork
4650mm
without fork
4290mm
width
1986mm
Full height
height of no-lifting
2285mm
height of roof gard
2235mm
Max height during opration
4365mm
wheel base
2250mm
front overhang
460mm
rear overhang
585mm
front track width
1470mm
rear track width
1498mm
ground clearance
180mm
lifting height
3000mm
free lifting height
/
fork adiustment range
/
Max turning radius
3350mm
Max right angle channel width
6120mm
gantry inclination angle
6/12°
Max lifting speed without load
380mm/s
Max lifting speed uder full load
320mm/s
Max operating speed without load
20Km/h
Maxioperating speed under full load
18Km/h
Max climbing speed under full load
20%
Weight unladen
9150Kg
number of wheel
4/2
tyre
pneumatic tyre
front tyre size
8.25-20-14PR
rear tyre size
250-15
brakes
hydraulic brake
brakes
mechanical brake
Battery voltage/capacity
386.4V206Ah
Charger
/
Drive motor power
30Kw
Oilpump motor power
30Kw
Performance & Stability
The MYZG 6T Electric Forklift is engineered for precision. With a dual-motor system (30Kw Drive + 30Kw Pump), it provides instantaneous torque for quick acceleration and smooth lifting. The hydraulic and mechanical braking systems ensure that the vehicle remains under total control, even on a 20% incline.
The tire configuration—8.25-20-14PR front and 250-15 rear—is specifically chosen for high load-bearing capacity and durability on varied surfaces, providing a stable foundation for the 9150kg unladen weight.
Applications
Manufacturing: Moving heavy machinery components and raw materials.
Warehousing & Logistics: High-density stacking of oversized pallets.
Construction Materials: Handling timber, steel, and concrete blocks in eco-conscious sites.
Port & Terminal: Loading and unloading containers and heavy cargo.
Why Choose MYZG?
At Shandong Mingyu Heavy Industry Machinery Co., Ltd., we have decades of experience in manufacturing premium construction and material handling equipment. Our B60 series electric forklift undergoes rigorous quality control and stress testing to ensure it meets international safety standards. With global support and a focus on green energy innovation, MYZG is your trusted partner in logistics.
Frequently Asked Questions (FAQ)
Q: How long does the battery last on a single charge?
A: Depending on the intensity of use, the 206Ah lithium battery typically supports a full shift. Thanks to Li-ion technology, you can "top-up" charge during short breaks without damaging battery health.
Q: Is this forklift suitable for outdoor use?
A: Yes. The B60 is built with high ground clearance (180mm) and durable pneumatic tires, making it capable of handling paved outdoor surfaces and moderate yard conditions.
Q: What are the maintenance requirements?
A: Maintenance is minimal compared to diesel forklifts. There is no engine oil, filters, or spark plugs to change. You only need to perform regular inspections on the hydraulic system, tires, and brake pads.
Contact Us for a Quote
Ready to upgrade your fleet to clean, 6-ton power? Contact our sales team today via WhatsApp or Email for the latest pricing and shipping options.
WhatsApp/Skype/Wechat: +8613176910558
Email: MYZG@my-forklift.com
