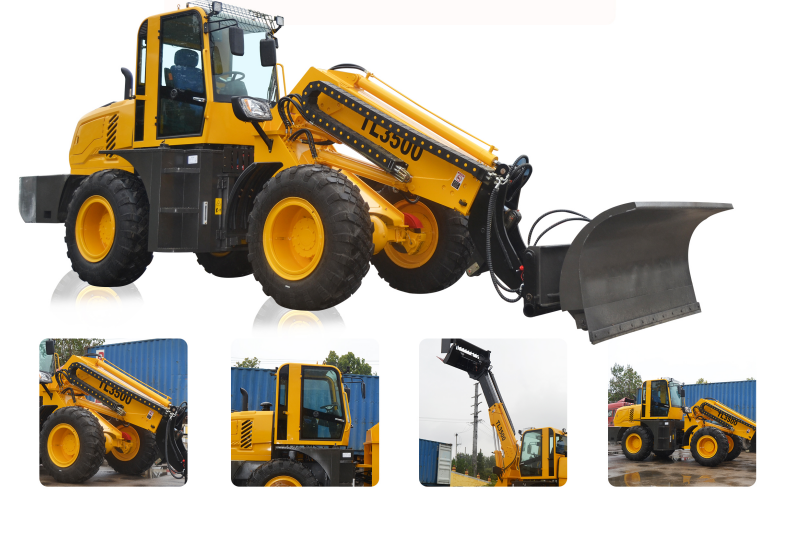

ZL-3500 telescope loader

  • Product Item:ZL3500-1
  • load capacity :3.5 ton
  • dimensions : 7500*2280*3200mm
  • weighht: 8000kg
  • Multifunctional telescopic arm , Telescopic Loader , Telescopic forklift
    Inquiry Send Email

    Description

    Product Feature


    Tl3500 is a new product developed by MYZG, which has better safety performance. Tl3000 telescopic boom loader has the function of load expansion, when stacking on uneven road surface, it can stop at the position far away from the stacking point, and use expansion and amplitude variation to complete the loading and unloading operation of goods. It is equipped with quick change device, boom shock absorption function, bucket Angle control function, and can be equipped with different auxiliary tools


    Parameter


    rated load capacity 3500kg
    rated bucket capacity 1.5 m3
    operating weight 8000kg
    engine model WEICHAI / WP6G125E22(STAGE Ⅱ)
    rated pOwer 92kw
    dimensions 7500*2280*3200mm
    Bucket hinge pin Height 6000mm
    wheel base 2800mm
    wheeltrack 1750mm
    tyre size 17.5-25
    System pressure 20Mpa


    The MYZG TL3500 Agri telescopic wheel loader features a spacious cab with deluxe, fully adjustable seating and intuitive, ergonomically positioned controls.   Air conditioning is standard on the MINGYU TL3500 Agri.


    The dash-mounted monitor provides operators with useful information such as efficient running, fuel remaining, fuel used since last fill, and current average fuel consumption figures.


    The TL3500 is equipped with sideshift for easier positioning of attachments and accurate placement of loads.


    Boom end damping on lower and retract reduces shock to the operator and the machine itself.




    Detail


    About us

    MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
    MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
    Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

    MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
