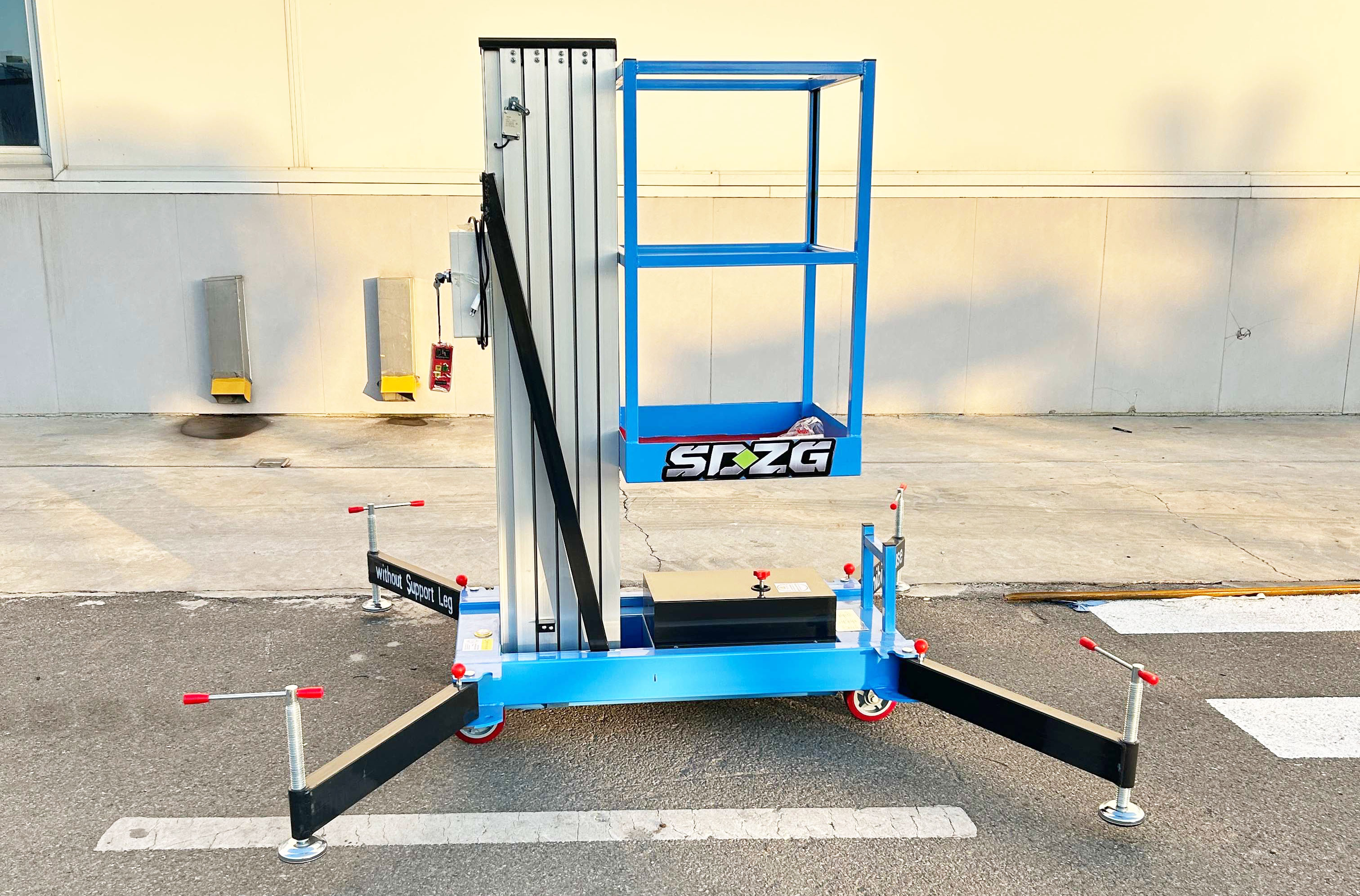

ZG-DZ-06CD Single-mast Aluminum Alloy Lift
ZG-DZ-06CD Portable Single-Mast Aluminum Alloy Lift: The Ultimate Lightweight Aerial Work Solution
Constructed from high-strength, aerospace-grade aluminum alloy, the ZG-DZ-06CD offers a perfect balance between a lightweight footprint and heavy-duty stability. Whether you are a facility manager or a contractor, this lift provides the reliable "reach" you need to get the job done safely.
Performance and Precision Engineering
The ZG-DZ-06CD is not just about height; it’s about the quality of the ascent. Every component is optimized for smooth operation:
Efficient Power System: Equipped with a 1.1kW motor, this lift provides consistent hydraulic pressure for a steady climb.
Voltage Compatibility: Designed for standard industrial and commercial environments with a 220V voltage requirement, making it plug-and-play for most facilities.
Rapid Deployment: Experience an efficient lifting/lowering speed of 4-6m/min, allowing operators to reach their target height quickly and move on to the next task.
Compact Maneuverability: With overall dimensions of 1250 x 830 x 1800 mm, this unit fits through standard doorways and into passenger elevators, reaching areas larger machines cannot.
Technical Specifications: ZG-DZ-06CD Model

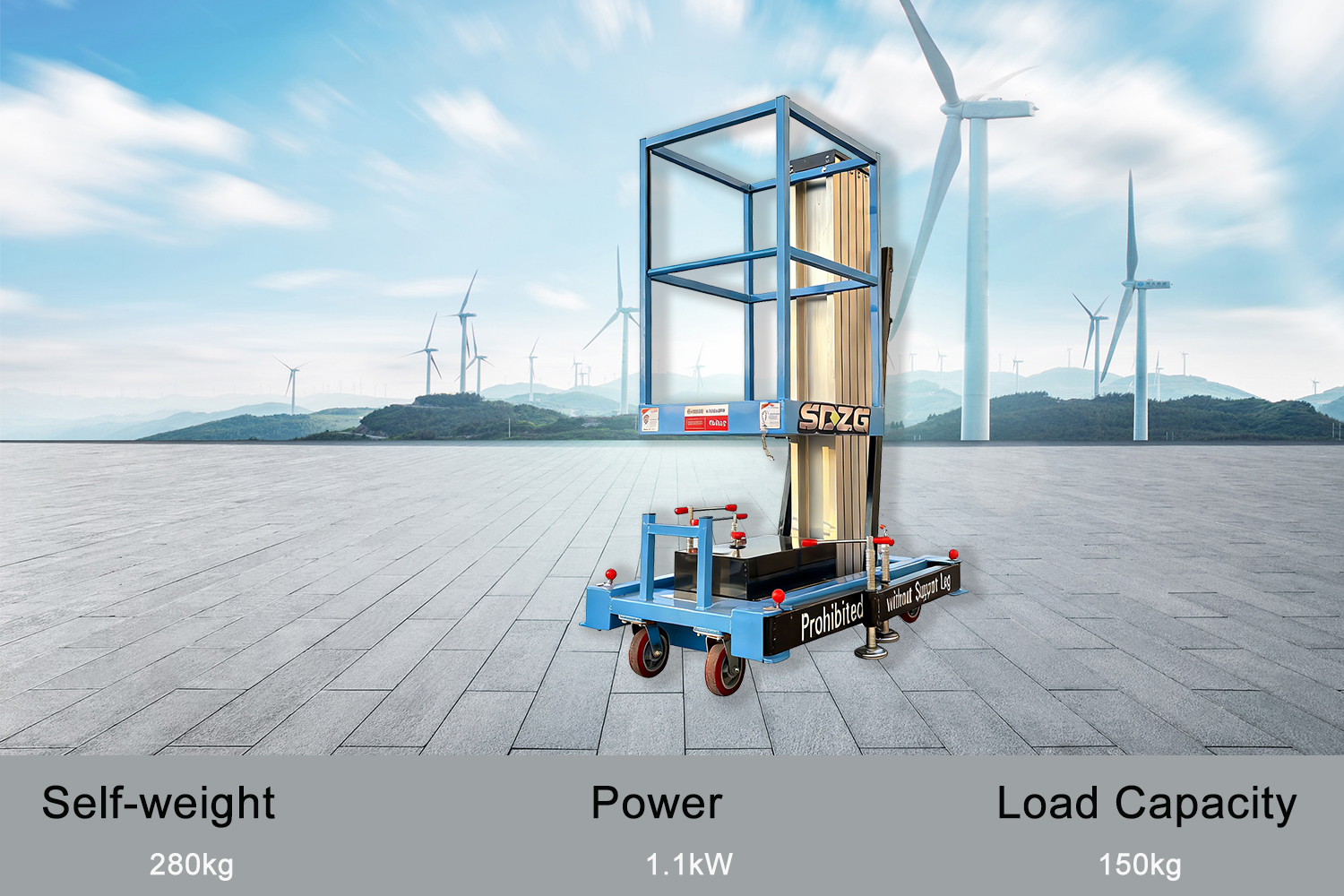

Self-weight
280kg
Tabletop
30"×30"×2.5mm
Lifting Column
200×100×6.4mm
Hydraulic Cylinder
2.10-43 M Pa
Power
1.1kW
Voltage
220v
Support Legs
100×50×3mm
Lifting/Lowering Speed
4-6m/min
Working Platform
60×60cm
Overall Dimensions
1250×830×1800
Load Capacity
150kg

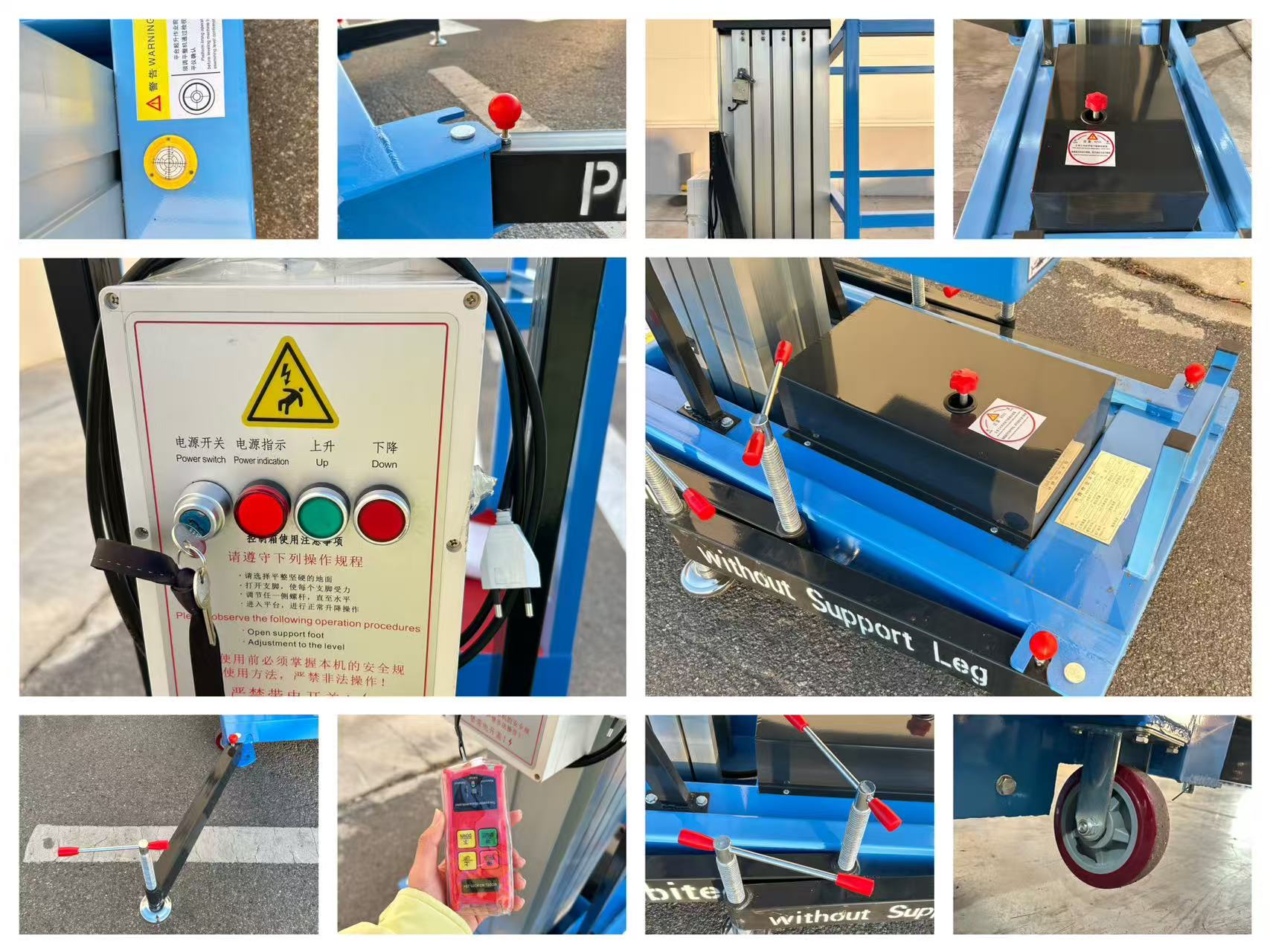

Safety First: Built-In Protection Systems
At SDZG, safety is our top priority. The ZG-DZ-06CD is packed with features to protect the operator at maximum height:
Reinforced Support Legs: The 100 x 50 x 3 mm support legs create a wide, stable base that prevents tipping even when the platform is fully extended.
Emergency Stop & Lowering: Built-in safety valves ensure the platform can be lowered manually in the event of a power failure.
High-Strength Mast: The 200 x 100 x 6.4 mm lifting column minimizes swaying, providing the operator with a "rock-solid" feel while working.
Non-Slip Platform: The 60 x 60 cm working platform features a textured surface to prevent accidental slips during operation.
Industry Applications
Where can the ZG-DZ-06CD make the biggest impact?
Hotel & Commercial Maintenance: Perfect for changing light bulbs, cleaning windows, or repairing HVAC systems in high-ceiling lobbies.
Warehouse Logistics: Easily reach high-tier shelving for inventory checks and small-item retrieval.
Exhibition Centers: Ideal for hanging banners and setting up overhead lighting for events.
Residential Management: A lightweight solution for apartment complex maintenance that won't damage delicate flooring.
Why Choose SDZG/MYZG Aluminum Lifts?
Ultra-Portable: At a self-weight of only 280 kg, it can be easily pushed by one person.
Zero-Maintenance Design: High-quality hydraulic seals and aerospace aluminum ensure a long service life with minimal upkeep.
Space-Saving: Its small footprint makes it easy to store in closets or small storage rooms when not in use.
