A compact wheel loader can have the right rated-load class and still be a poor match for a particular trailer if the bucket cannot reach above the side wall and discharge into the bed. The useful question is not simply whether a brochure lists a high number. Buyers should compare the receiving vehicle, the loader's bucket path and the ground where both will stand. A few careful measurements before ordering can reveal a mismatch that a product photograph will not show.
Keep three dimensions separate. Dump height is the vertical clearance from the ground to the bucket cutting edge when the lift arms are raised and the bucket is tipped as specified. Dump reach describes the forward position of the bucket edge at that working height. Hinge-pin height refers to a different point on the loader linkage and is not the same as clearance over a trailer wall. Ask which measurement a specification uses, at what bucket angle, and with which bucket or attachment fitted.
Measure the trailer in the actual loading position. On level ground, record the height from the loader's standing surface to the top of the side wall on the side where it will work. Note the inside bed width, wall thickness, bows, tarp rails, lights and any raised fittings that could interfere with the bucket. Also record the trailer's ground clearance, tire position and whether the frame will sit at the same elevation as the loader. A drawing with dimensions and photographs from both ends is more useful than a model name alone.

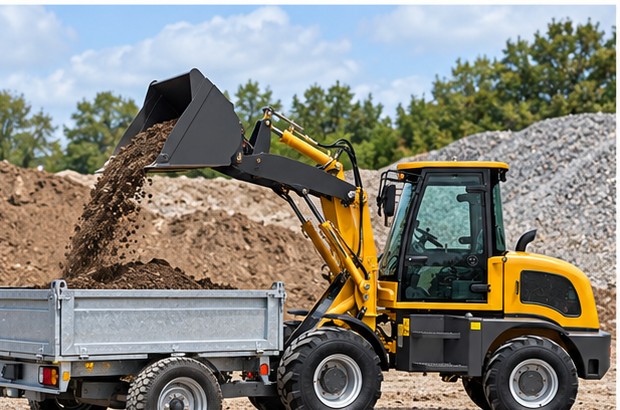

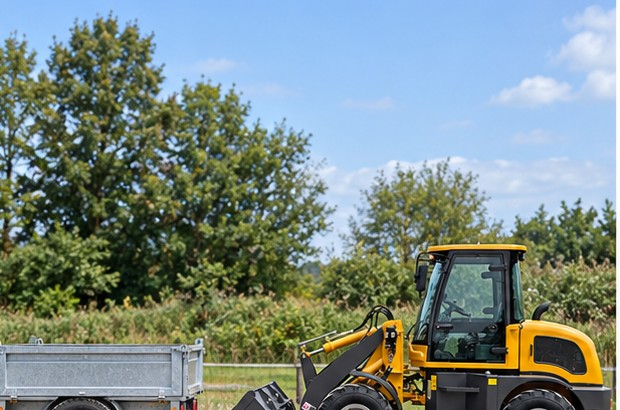

Next check the horizontal relationship. The loader must approach close enough for the bucket edge to clear the wall, while leaving room for the tires, articulated frame, steering movement and a controlled exit. Measure the available apron, turning space and distance from the trailer to nearby walls, posts or stored material. Consider where the bucket will be over the bed during tipping, not merely where the machine can stop. The final check should use the actual bucket profile because a different cutting edge or attachment can change the working envelope.

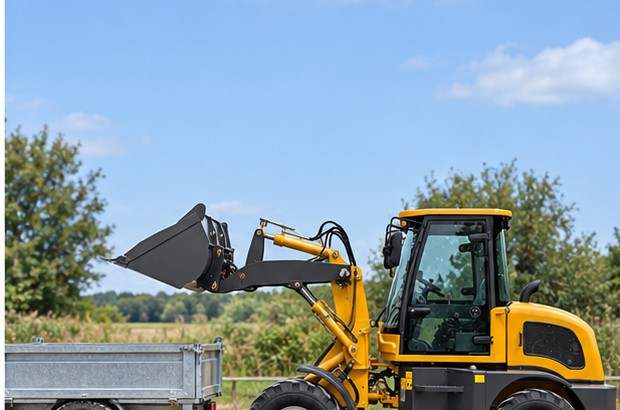

The published ZGLOADER / MYZG ZL16 reference information lists a maximum dump height of 2,370 mm and maximum dump reach of 800 mm. Those figures are a useful starting point, not a guarantee that every trailer can be loaded. Confirm how the factory measures them, the delivered bucket and linkage, the required dump angle, tire configuration and any options in the written quotation. Do not substitute maximum hinge-pin height or overall machine height for dump clearance. If your trailer wall is close to the stated dimension, ask for a configuration drawing or supervised fit check before purchase.
Clearance alone does not establish a safe load. The ZL16 product information also gives reference values of 1,600 kg rated load capacity and 0.8 m³ bucket capacity; capacity depends on the specified configuration and working conditions. Material density varies: a bucket of dry mulch, damp soil, gravel or feed can have very different mass. Bucket volume is not payload. Tell the supplier what material is handled, how it is loaded, the heaviest regular load and whether any attachment will be used. Keep the load within the machine's approved limits and follow its load and operating documentation.

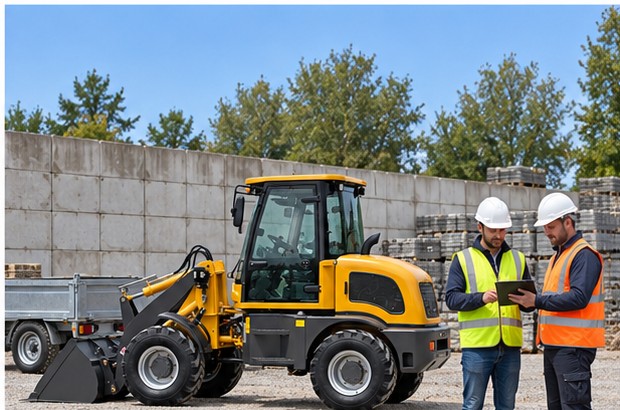

A practical fit review can be done with a stationary trailer, level ground and a marked exclusion zone. Use trained operators, keep bystanders clear, lower the attachment when travelling and never put anyone between the loader and trailer. Any demonstration should follow the exact machine and attachment manuals, site risk controls and the supplier's approved procedure. Stop if the bucket, tires or frame approach the trailer unexpectedly, if the ground is soft or sloped, or if the operator cannot see the discharge point. A site review is not permission to exceed rated capacity.
For a configuration review, send the trailer side height, bed width, wall and rail details, ground levels, approach distance, material type and density, expected load, required cycle frequency and photographs of the loading side. Compare the ZGLOADER / MYZG ZL16 reference with the compact wheel-loader range; the loader model overview and full product catalog can help identify alternatives if the geometry does not fit. Shandong Zhuogong Machinery equipment Co.,Ltd can review the information and clarify which dimensions and limits apply to the proposed machine. WhatsApp +86 131 7691 0558; email MYZG@my-forklift.com. Confirm the final specification in writing before placing an order.
