The short answer is: do not decide from a gate label or a model name. The published JC60 product reference lists a width of 1,880 mm and a bucket width of 1,880 mm. A nominal 1.9 m opening is only 20 mm wider on paper. That is not a practical operating margin, and it does not prove that the machine in its delivered configuration can pass without contact. The gate's actual clear opening and the machine's widest fitted point must be checked together.

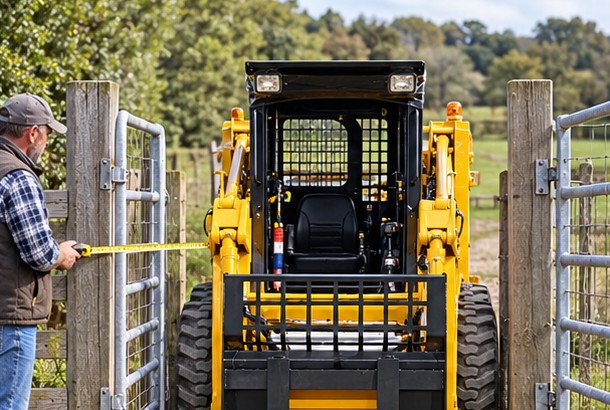

Start with the opening, not the fence description. Measure between the closest fixed obstructions with the gate fully open: hinge barrels, latch hardware, posts, wall returns, protective rails and any uneven ground can reduce the usable width. Take measurements at more than one height if the opening narrows or has a sloping frame. Repeat at the lowest point along the route, and note the clear height below beams, lights or roof edges. A drawing should show the narrowest measurement, not only the advertised gate size.

JC60 product specifications

Then identify the widest point of the exact loader configuration. The JC60 page separately lists overall width and bucket width at 1,880 mm, but tire selection, guards, coupler, fork carriage, bucket edges and other options can affect the delivered envelope. Ask the supplier to confirm the maximum transport width with the selected tires and attachment installed. If an attachment is removed for transport, confirm that the machine can be moved and reassembled using an approved method; do not assume that a narrow coupler or a different tool is automatically compatible.

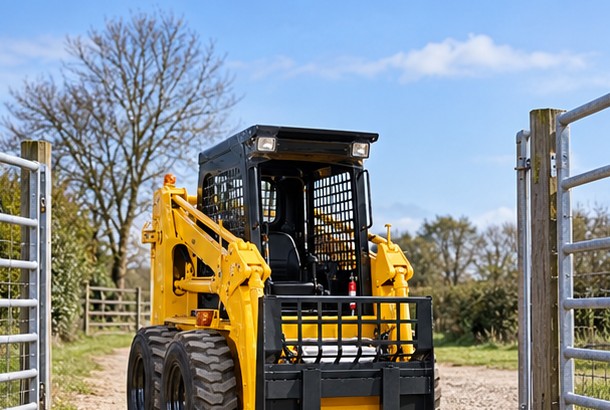

A straight-width comparison is only the first check. A machine may clear a gate when lined up square and still be unable to turn into the lane beyond it. Measure the approach area, the distance from the gate to the first turn, the turning space, side walls and any posts that limit the rear of the machine. Check whether the loader must travel forward or reverse through the opening and whether the operator can see both sides. Do not plan to steer at an angle simply to make a too-small opening appear usable; diagonal entry can increase the swept envelope and reduce control.

JC60 application and planning guide

Use a route sheet for the entire journey to the work point. Record every doorway, fence gap, corridor, loading bay and overhead restriction, including the tightest point after the gate. Note floor joints, soft shoulders, slopes and delicate paving. A skid-steer loader turns by differential motion, so a tight pivot can scrub or disturb finished ground; the surface may also change traction. A route that works on compact gravel may not behave the same on wet soil, polished concrete or a sloping apron. Review the site conditions with the operator and follow the supplied manual.

For a 1.9 m gate, the listed 1,880 mm width leaves just 20 mm nominal total difference before measurement tolerance, gate hardware, tire bulge, attachment variation or operator control is considered. That is too little to treat as a confirmed pass. If the measured clear opening is less than the confirmed delivered width, the standard fitted machine does not fit through that opening. If it is greater, the remaining margin still needs a site-specific review. Ask for the written configuration drawing and a measured demonstration when the margin is small; never force the machine through or rely on a photograph for clearance approval.

current product catalog

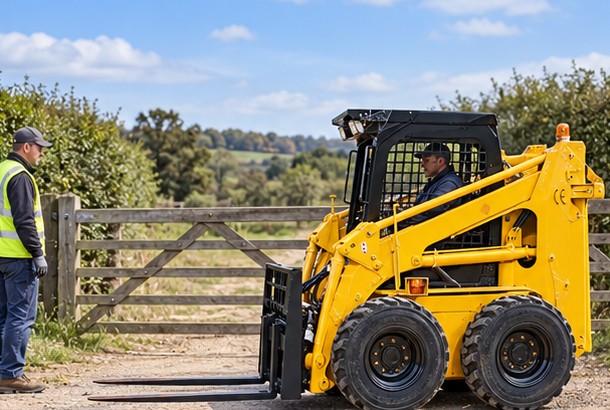

Any fit test must be controlled. Park on firm, level ground, lower the attachment, keep people outside the travel and pinch zones, and use a trained operator and a spotter positioned where the operator can see them. Agree on a stop signal before movement. Keep hands and feet away from posts and tires, and do not let anyone stand between the loader and the gate. If a test cannot be performed with safe clearance, stop and reassess the route. Removing a gate panel, changing an attachment or altering a guard should only be considered with the property owner's permission and a method approved for the equipment.

For a configuration review, send the narrowest gate opening, clear height, approach length, first-turn dimensions, ground condition, required attachment and photographs taken from both sides. Include whether the measurement is between the gate posts or between the closest hardware, and identify the selected tires and attachment. Compare the JC60 product reference with the JC60 application and planning guide; browse the current product catalog or skid-steer buyer guide if another configuration may suit the route better. Shandong Zhuogong Machinery equipment Co.,Ltd can confirm which published dimensions apply to the quoted build. WhatsApp +86 131 7691 0558; email MYZG@my-forklift.com. Request written confirmation before ordering.
