A long pallet can be within a truck’s headline weight rating and still require a careful configuration check. The important question is not simply whether the forks are long enough to reach beneath the load. Buyers also need to know where the load’s center of gravity will sit relative to the fork face, how the load is supported, and what capacity remains at the required lift height. This FAQ explains the measurements to collect before specifying a ZGFORKLIFT / MYZG CPC30 diesel forklift for lumber packs, steel profiles, panels, pipe bundles, or other extended loads.

Start with the load, not with a guessed fork size. Record the complete package length and width, its weight including packaging and straps, the direction it will be approached, and the distance from the fork face to the load’s center of gravity when it is correctly positioned. For a uniform load supported evenly along its length, the center may be near the midpoint, but real packages can be uneven, offset, or denser at one end. Ask the shipper for a load drawing or weigh the package as handled; do not assume that the geometric midpoint always describes the actual center of gravity.

review the CPC30 diesel forklift

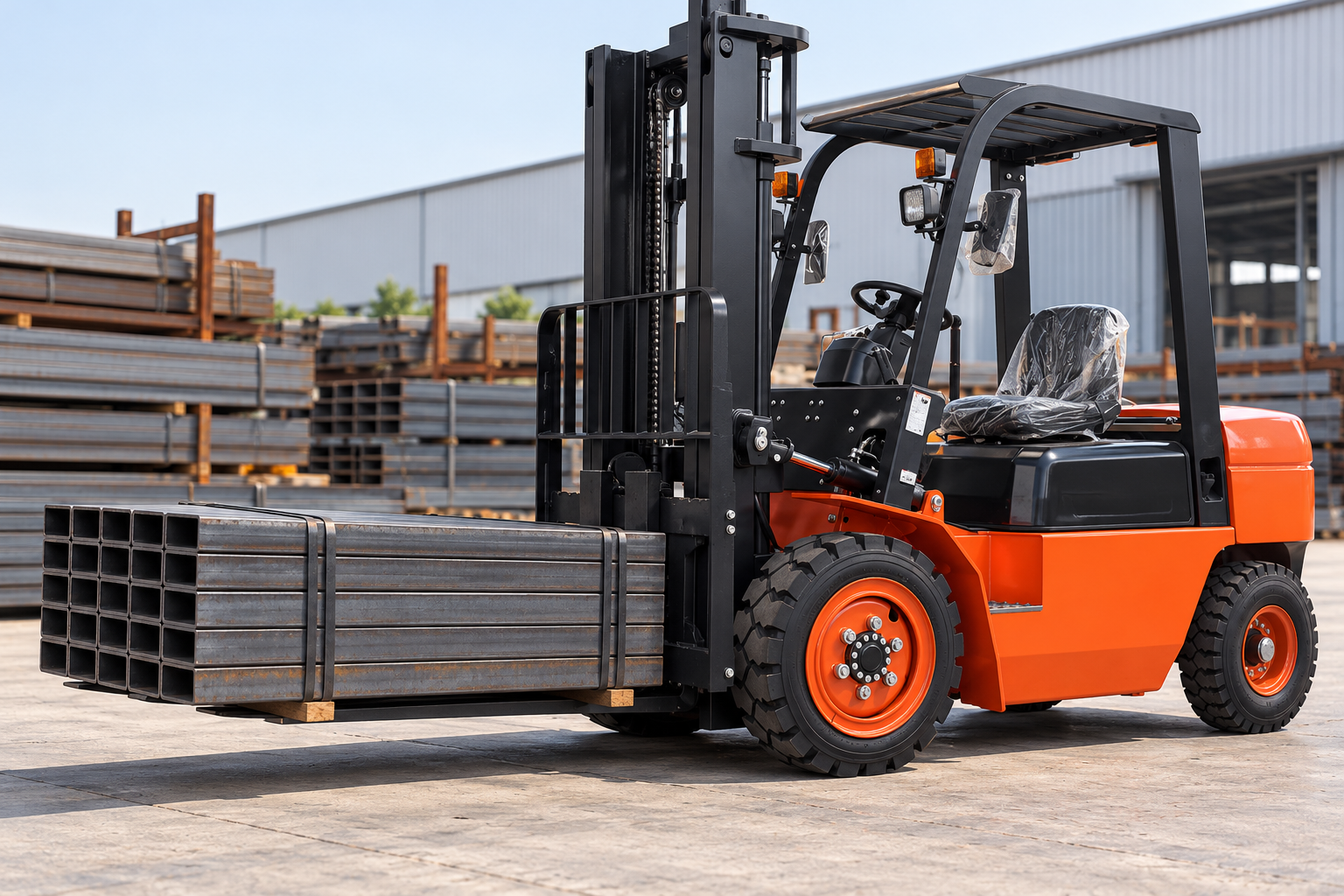

Fork length and load center are related but they are not interchangeable measurements. A longer fork can support more of a long package, yet it may also allow a load to be carried farther forward if the operator does not engage it correctly. The farther the center of gravity moves from the carriage, the greater the forward overturning moment. A nominal CPC30 capacity is valid only under the rated conditions shown for the exact machine; it is not a promise that every 3,000 kg load can be lifted at every load center, mast height, or attachment configuration. Never estimate a new safe capacity with a simple proportional formula.

For the CPC30 source configuration, the published model information lists 3,000 kg rated capacity at a 500 mm load center and a standard 3,000 mm lift. Those figures are a starting point for discussing an application, not a substitute for the machine nameplate and final capacity chart. A longer load, sideshifter, fork positioner, clamp, non-standard fork, or different mast can affect residual capacity. Provide the supplier with package dimensions, maximum and typical weight, lift height, attachment requirements, fork spacing, surface conditions, and expected daily cycles so the final truck can be checked against the real work.

compare a higher-capacity CPC40 model

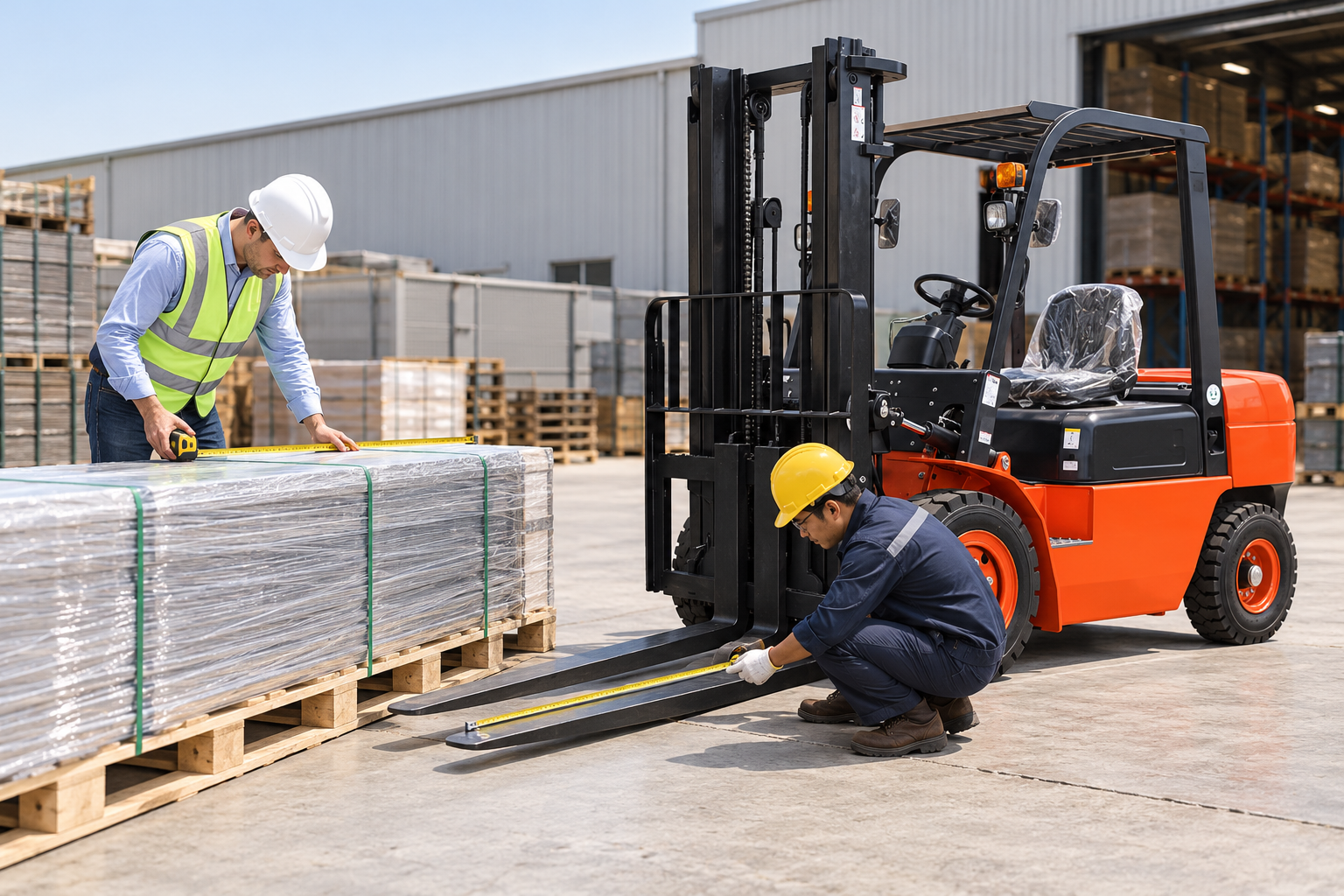

How should a buyer select fork length? First confirm the package’s support points and the minimum insertion depth needed to keep it stable. The forks must not project into an adjacent load, rack, trailer wall, or pedestrian route. They should be long enough for the intended support arrangement, but excessive length adds mass and can complicate turning, stacking, and maneuvering in confined staging lanes. The correct choice is a compatible fork pair with the right section, capacity rating, locking method, spacing range, and length, approved for the truck’s carriage. Ask for the fork specification and compatibility confirmation rather than ordering by length alone.

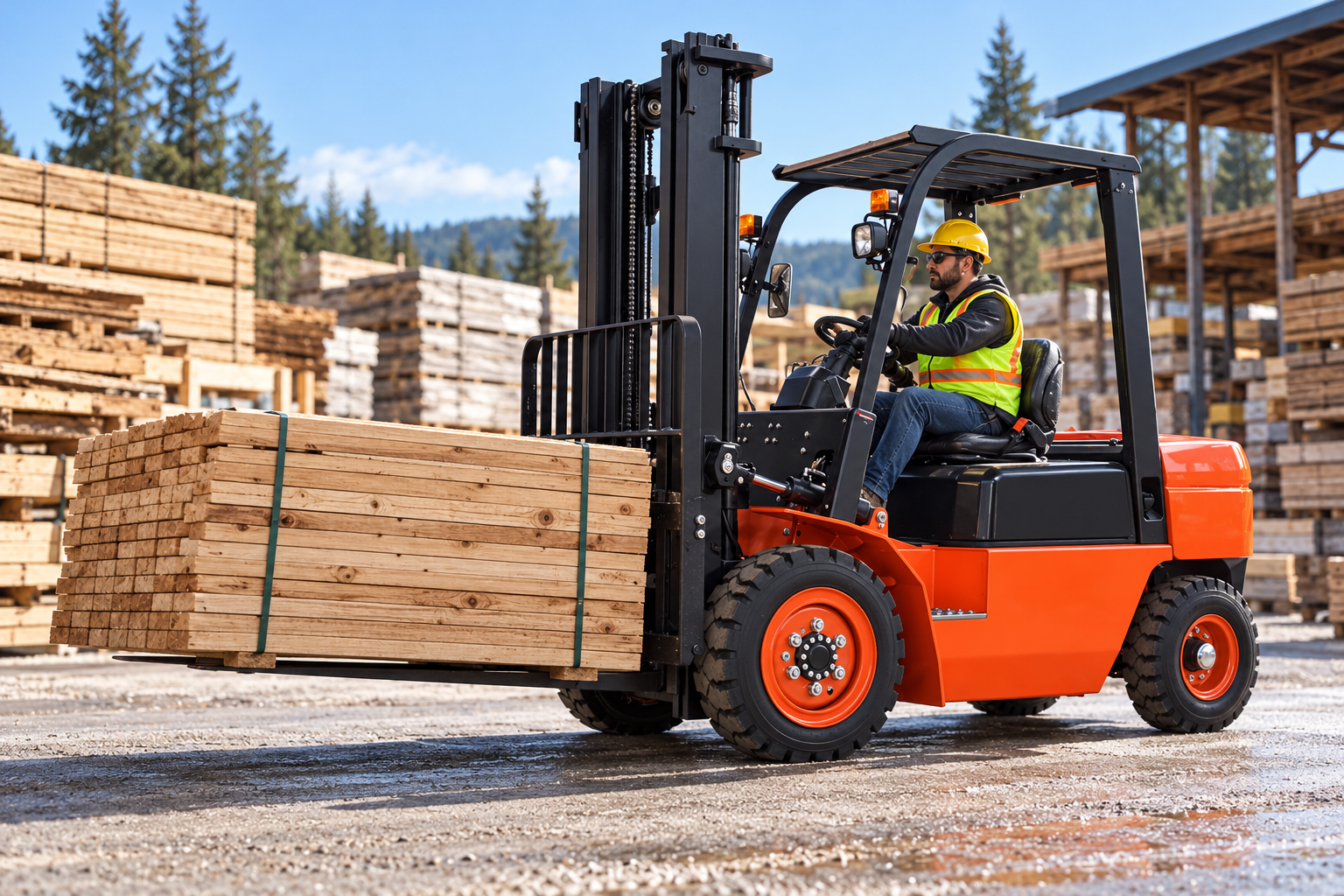

Next map the route with the load at its real dimensions. Measure aisle width, turning corners, dock openings, trailer entrances, rack uprights, overhead obstructions, floor joints, and the distance from the staging point to the destination. A long package swings through a larger envelope than a standard pallet, so the route may need a one-way movement plan or a separate staging area. Check the ground’s load-bearing condition and slope, keep pedestrians separated, and use a spotter where visibility is restricted. A diesel truck is appropriate only where ventilation and site rules allow its exhaust; indoor operations require a suitable, assessed environment.

view CPC70 diesel forklift details

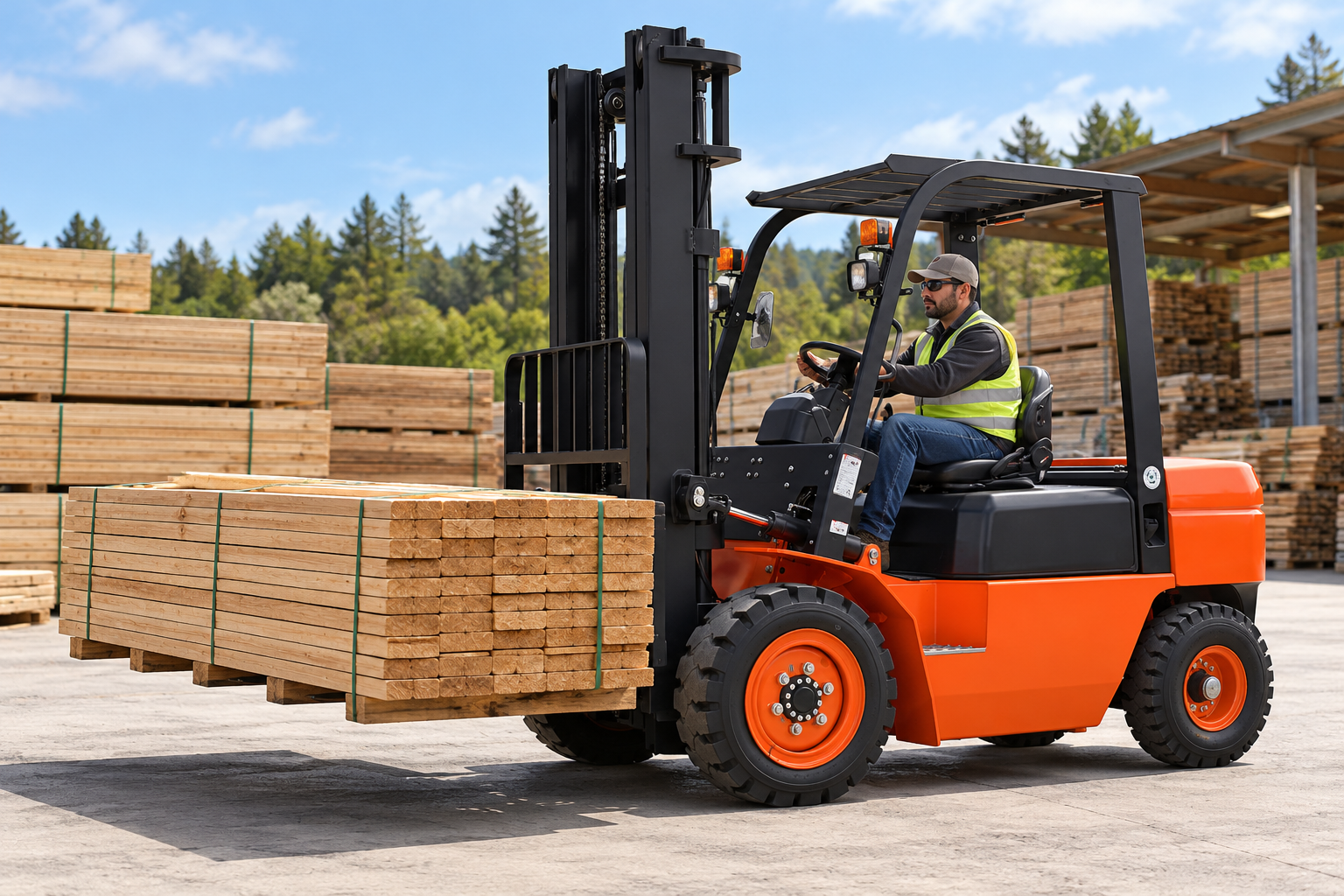

During receiving trials, inspect the package before lifting: straps should be intact, loose pieces restrained, the load should not be damaged, and its support surface should be suitable for fork entry. Approach squarely, set fork spacing to match the load, insert to the planned depth, and keep the load low while traveling. Avoid sudden turns, braking, or steering corrections with an extended load. The operator should follow the truck’s instructions and the capacity plate, keep the mast in the required travel position, and never carry people or allow anyone beneath a raised load. These are practical planning points, not a replacement for operator training or site-specific risk controls.

A useful quotation request includes a photo or sketch of the load, package dimensions, center-of-gravity estimate or supplier drawing, maximum weight, required lift height, fork length and section requested, fork spacing, attachment details, route photographs, floor and ramp information, duty pattern, and delivery destination. If load geometry varies between products, list the heaviest and most forward-centered combination rather than only the average pallet. Ask whether the delivered chart covers the exact mast, carriage, fork and attachment combination. The CPC30 product details and related CPC models can be reviewed before the application is finalized; the catalog helps compare models, but the load chart decides the permissible configuration.

browse the full product catalog

A well-matched forklift is the one that supports the package predictably through the complete route, not merely the one with the longest forks or largest advertised capacity. Shandong Zhuogong Machinery equipment Co.,Ltd can review your load measurements and discuss a suitable ZGFORKLIFT / MYZG configuration, available options, documentation, shipment preparation, and after-sales support. For a practical recommendation, send the load drawing and worksite details by WhatsApp at +86 131 7691 0558 or email MYZG@my-forklift.com. Include your destination country and preferred response language so the team can reply with the relevant product and configuration information.
