zl-906-807 wheel loader

zl-906-807 wheel loader
  • zl-906-807 wheel loader

Short Description:

Rated operating capacity:600kg Overall dimension (L×W×H):3680×1050×2300mm Rated bucket capacity:0.2m3 Bucket Dumping Height:1850mm ...


  • Rated operating capacity:600kg:
  • Overall dimension:3680×1050×2300mm:
  • Rated bucket capacity:0.2m3:

Product Details

Product Tags


Product Feature

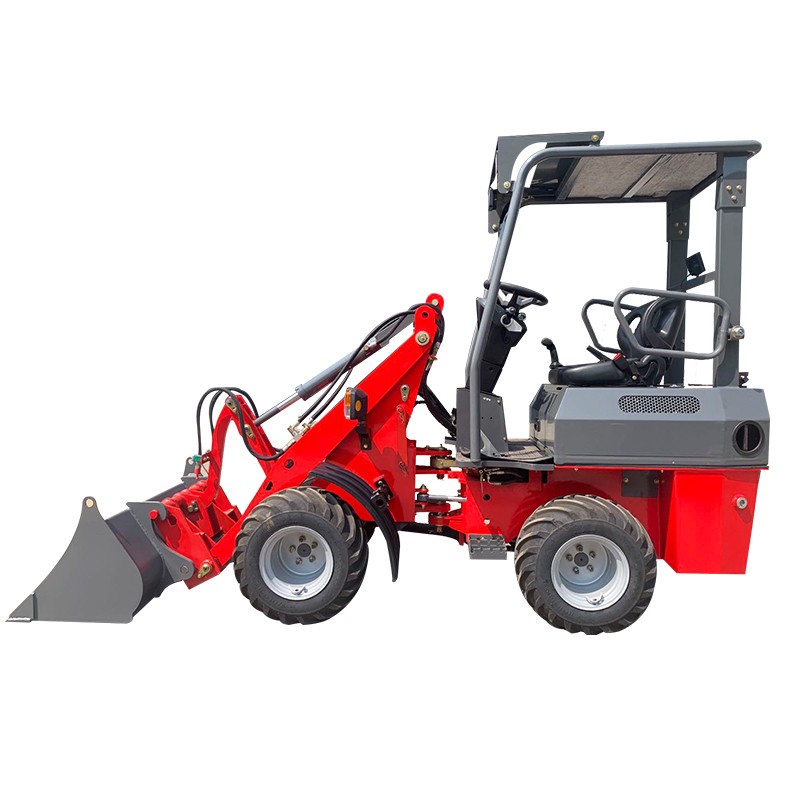

ZL906-807 is a mini wheel loader known for its compact design and manoeuvrability, and can be used for all kinds of odd jobs.  Especially this machine is perfectly suited to prevail where there are space constraints. It can be driven on the foot path without a problem because it only has a width of 1.05 m.  It is even possible to transport the machine on a car trailer thanks to its low dead weight.
The carefully chosen components make this machine extremely reliable, which in addition, is equipped with a ROPS/FOPS approved safety roof.

906 his biggest advantage is flexible steering, suitable height, warehouse can enter, Italy imported hydrostatic system, joystick, hydrostatic special axle, suitable for a variety of terrain environment


●quick change, safety cover,
●Adjustable instrument, adjustable seat,
●Valta battery, Perkins engine
●6x12.00-16 vacuum tires



Parameter

rated load capacity 600kg
rated bucket capacity 0.2m³
operating weight 1500kg
engine model

Perkins 403J-11 (EURO V)

QUANCHAI (Stage II)

rated power 18.4KW
dimensions 3690×1050×2300 mm
dump height 1850 mm
Dump distance 550mm
min.turning radius 1550mm
wheel base 1340mm
tyre size 26X12.00-16

1-MYZG articulated oscillating floating joint

The backbone of the MYZG ER4 design: The legendary articulated oscillating floating joint.  All four wheels remain in constant contact with the ground and the machine moves with maximum traction.  In addition, the machine has unrivalled manoeuvrability.

2-High quality powder coating


Quality creates added value. The powder coating is a key feature of the MYZG quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also
environmentally friendly in the process.

3-One bigger and stronger lift cylinder

MYZG always installs strong lift cylinder in all ER4 series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

4-Perfectly matched P-kinematics

The angled loading arm is designed to be particularly sturdy and torsion resistant. The kinematics are adjusted to the size of the machine - this ensures optimal balances of power for every machine. The advantage of P-kinematics lies in the exact parallel motion across the entyre lifting area.

5-Stainless steel steering stops

At a full steering stop, the front and rear carriage of the machine touch.  With MYZG, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion.  This provides for value preservation!

6-Large selection of attachments

Use your machine as a multi-tool: you have a wide selection of attachments available for your MYZG machine.

7-Large selection of tyres

The optimal tyres for every subgrade: you have a wide selection of different tyres available for your MYZG machine.


8-Secure canopy with restraint system

Maximum safety that is state of the art. As a standard, MYZG installs a canopy with a restraint system on mini models. The canopy and the restraint system for the operator meet the ROPS and FOPS protection.

9-Quick and easy tool change

Thanks to the hydraulic quick-change system, attachments can be easily and conveniently exchanged. In this way, your machine is again ready for application at once. This increases productivity and profitability. The exchange of the tool takes place through 2-hand operation, which makes an unwanted change impossible — safety always comes first at MYZG!

10-Good maintenance accessibility for all ER4 series models

There is service hole inside the cabin, and the engine hood can be opened backward widely. This makes the engine, hydraulic system and electrical system easily accessible for our ER4 series models.

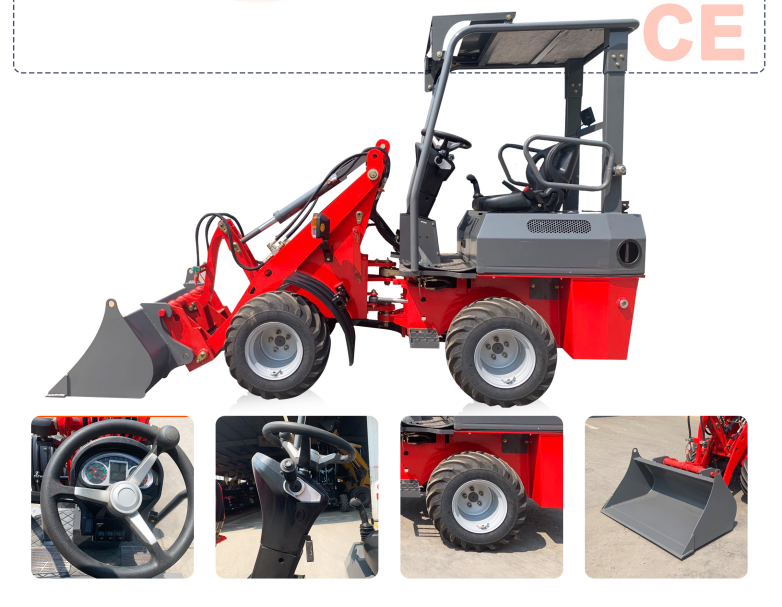

Detail


DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.



About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
