MY-08 mini excavator
Product Feature

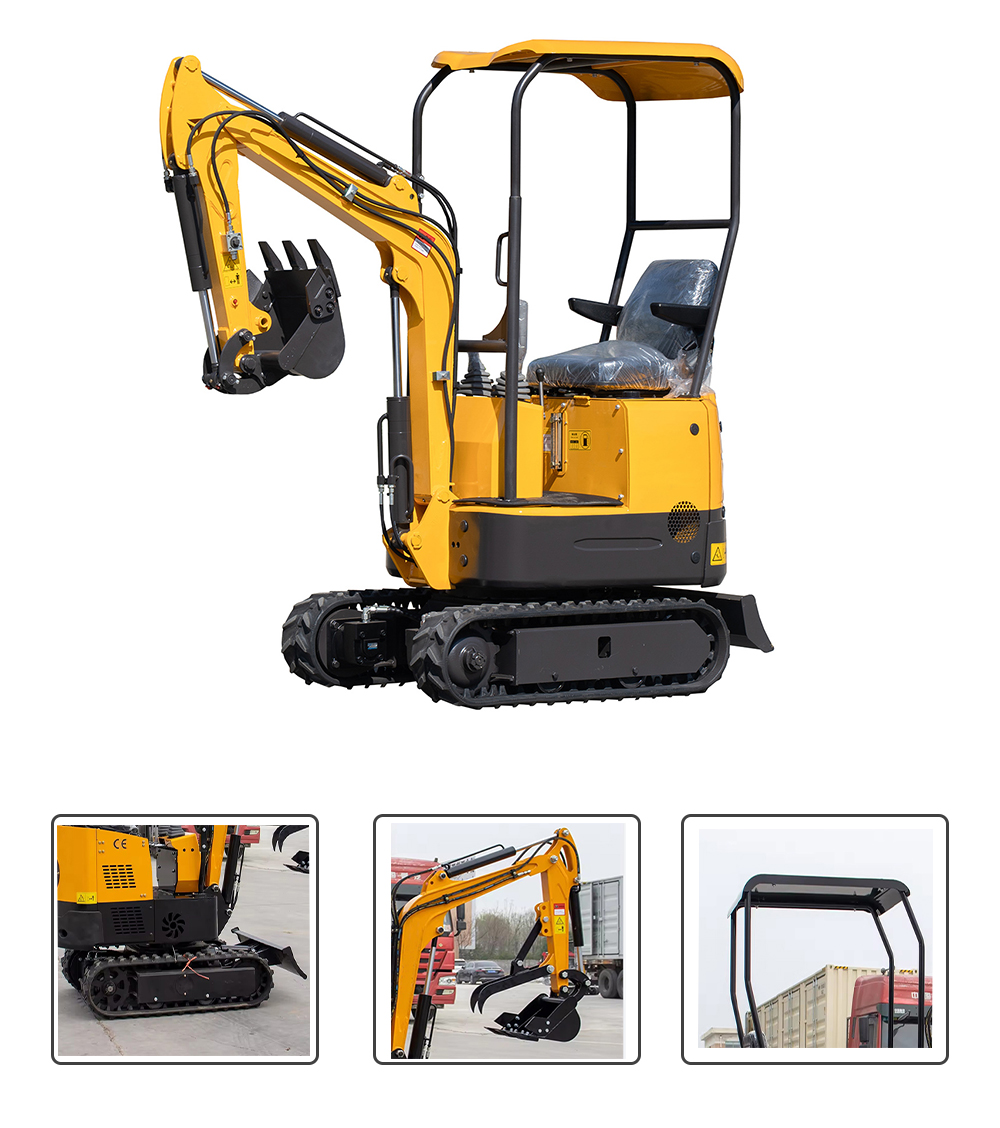

MY-08 With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 6 feet 1 inch and a radius of 10 feet 3 inches to help you dig foundations, bury downspout lines, install electrical services, and more. The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them. Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites. The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator's seat to get your job done right.
1. Compact size for effective operation within confined space.
2. Optional for Euro V Koop engine, and deflection boom.
3. Rubber tracks, pilot control.
4. Easy to maintain.
5. Wide range of attachments available.
Parameter
Model
MY08
Net weight
880kg
Operation weight
1000kg
Digging bucket capacity
0.02cbm/100kg
Bucket width
380mm
Engine
KOOP/Briggs & Stratton engine(gas)
Rated power
7.6kw/7kw/13hp
Displacement
0.499 L
Bore stroke
70x55
Main pump
CBK-F6.8
Displacement
6.8ml/r
Swing motor
SJ-TECH (MP-1-160)
Traveling motor
KERSEN (OMS-2450)
Travel speed
1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)
2550x946x1330 mm
Wheelbase
770 mm
Total length of track
1090mm
Upper chassis ground clearance
380 mm
Counter weight turning radius
733 mm
Chassis width
946 mm
Track width
180 mm
Track height
320 mm
OPERATING RANGE
Max. Digging depth
1400 mm
Max. Vertical digging depth
1320 mm
Max. Digging height
2490mm
Max. Dumping height
1750 mm
Max. Digging radius on ground
2400 mm
Min. Rotation radius
1190 mm
Max. Upgrade height of bulldozer blade
325 mm
Max. Digging depth of bulldozer blade
175 mm
Hydraulic and liquid capacity
Pump type
Gear pump
Pressure
16Mpa
Displacement
18L
Capacity of hydraulic tank
16.5L
Capacity of engine oil tank
1.5L
Capacity of diesel oil tank
7L
Detail

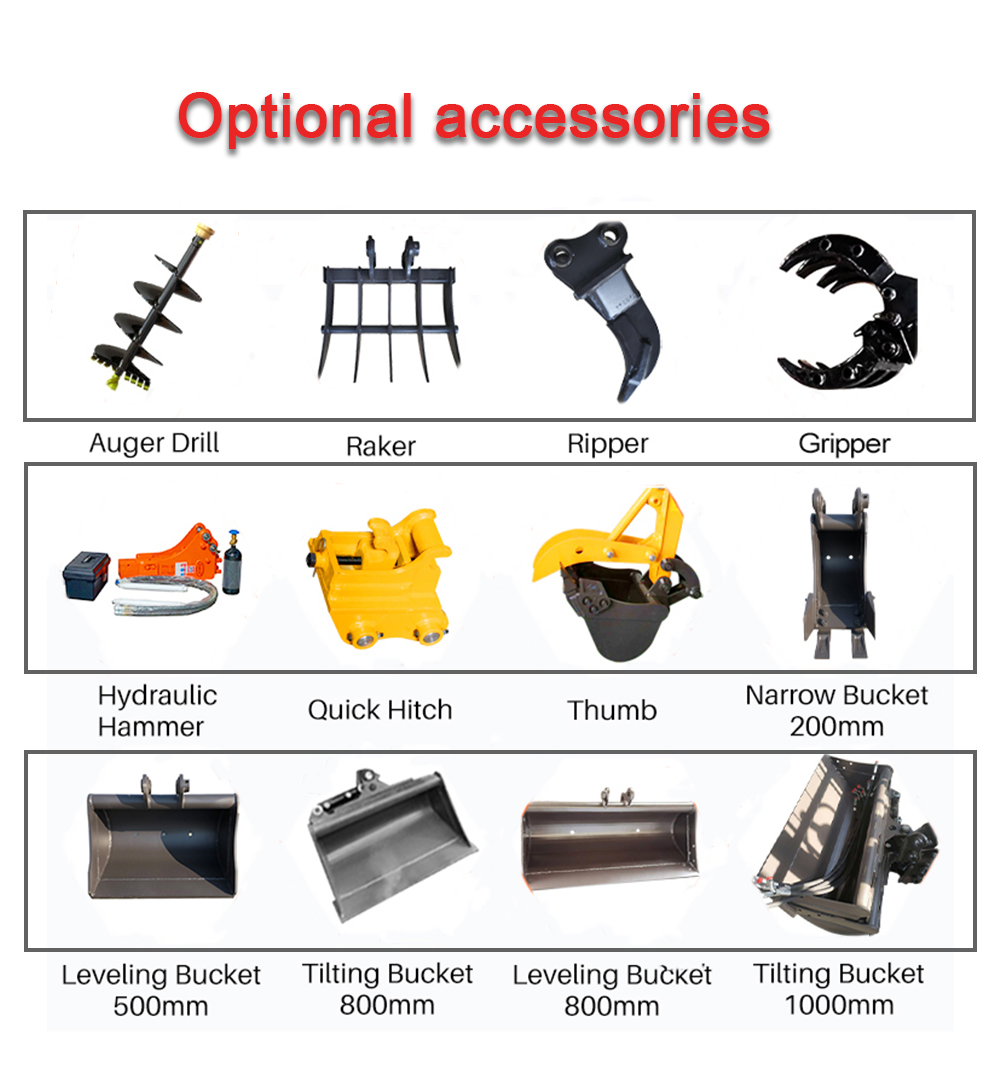

China hydraulic 0.9ton mini excavator with rubber track can equip with Auger, Wood Grab, Roof, Ripper, Rake, Narrow Bucket, Standard Bucket, Leveling Bucket.It is durable and has low loss, and has a longer service life. It has a competitive advantage among similar products.
Products sold all over the world have proved that our factory is fully capable of producing high-quality products and providing the best service to our customers.
