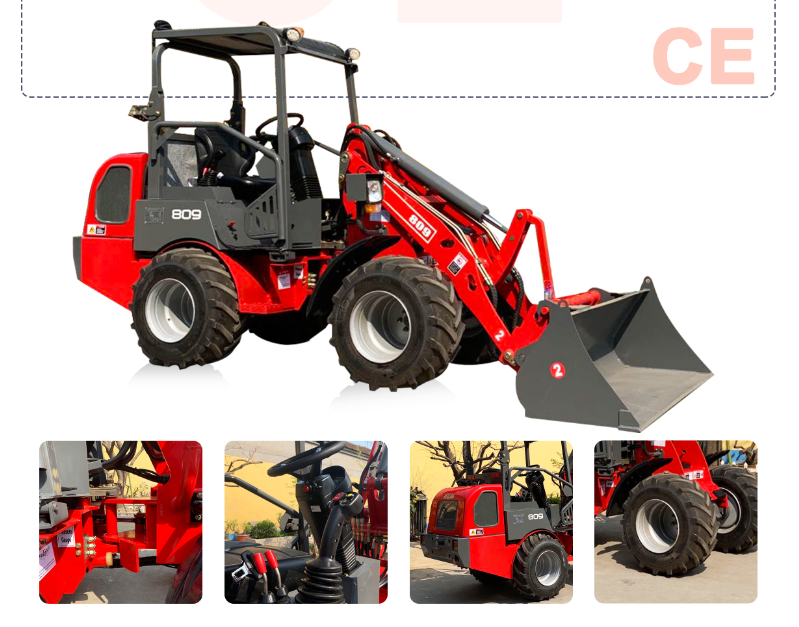

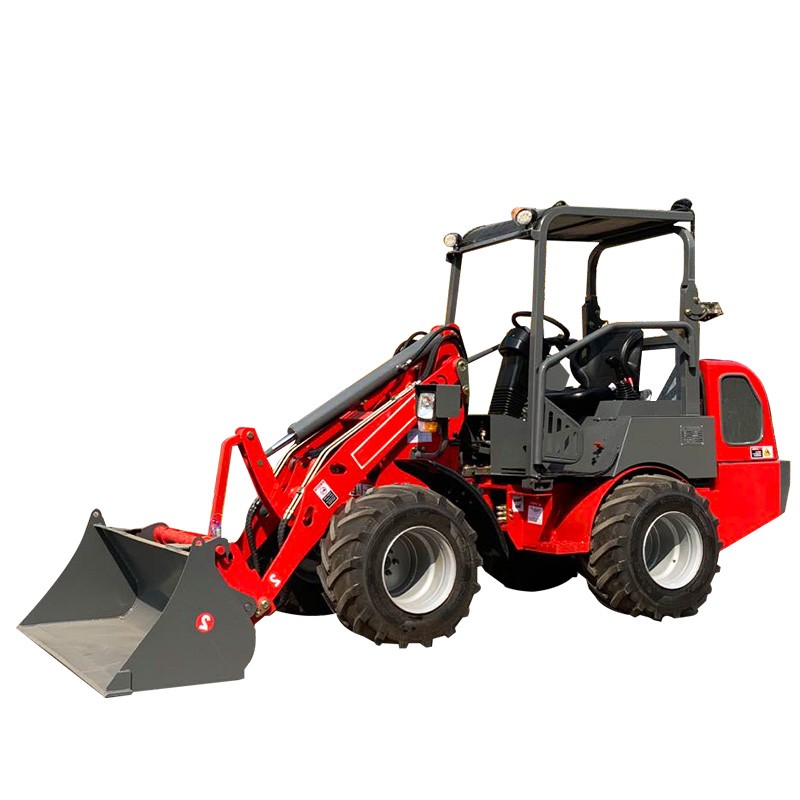

809-810 wheel loader

809-810 wheel loader
  • 809-810 wheel loader

Short Description:

Rated load capacity:900kg Overall dimension (L×W×H):4036×1446×2260mm Rated bucket capacity:0.4-0.6m3 Bucket Dumping Height:1980mm ...


  • Rated load capacity:900kg:
  • Overall dimension:4036×1446×2260mm:
  • Rated bucket capacity:0.4-0.6m3:

Product Details

Product Tags


Product Feature

Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterised the MYZG series for years and still determine the immense success of the machines. The MYZG series effortlessly fulfil any work task and work quickly, flexibly and safely – a MYZG model is simply always ready for use.

809 its biggest advantages are flexible steering, suitable height, warehouse can enter, Italy imported hydrostatic system, joystick, hydrostatic special axle, suitable for a variety of terrain environment,


●quick change, safety cover,
●Adjustable instrument, adjustable seat,
●Valta battery, Kubota EURO5 engine
●31x15.5-15 Vacuum tires.

Ø  Kubota EuroV/ EPA4 Engine
Ø  Italy Brand hydrostatic system
Ø  Italy Brand 4 wheel driving motor
Ø  Quick hitch
Ø  Electric hand brake, inch function
Ø  Folded canopy, or luxury cab,electric tipping cabin
Ø  Front 2 wheel of the driving motor with service brake


Parameter

rated load capacity 900kg
rated bucket capacity 0.4-0.6m³
operating weight 2300kg
engine model

Kubota V1505 (EURO V)

quanchai (stage II)

rated power 18.2KW
dimensions 4036×1446×2260mm
dump height 1980 mm
Dump distance 614mm
min.turning radius 2805mm
wheel base 1101mm
tyre size 31X15.5-15 tubeless tire
Max.turning angle 42°

· Articulated pendulum joint

The backbone of the MYZG series design: the legendary articulated swing joint. All four wheels are in constant contact with the ground and the machine moves with maximum traction. It also makes the machine uniquely manoeuvrable.

·One strong lift cylinder

MYZG always installs one lift cylinder in all wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entyre loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

·Ergonomic joystick

The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. You therefore always have the machine and the key functions under control.

Detail


DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.


About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
