Description
Product Feature

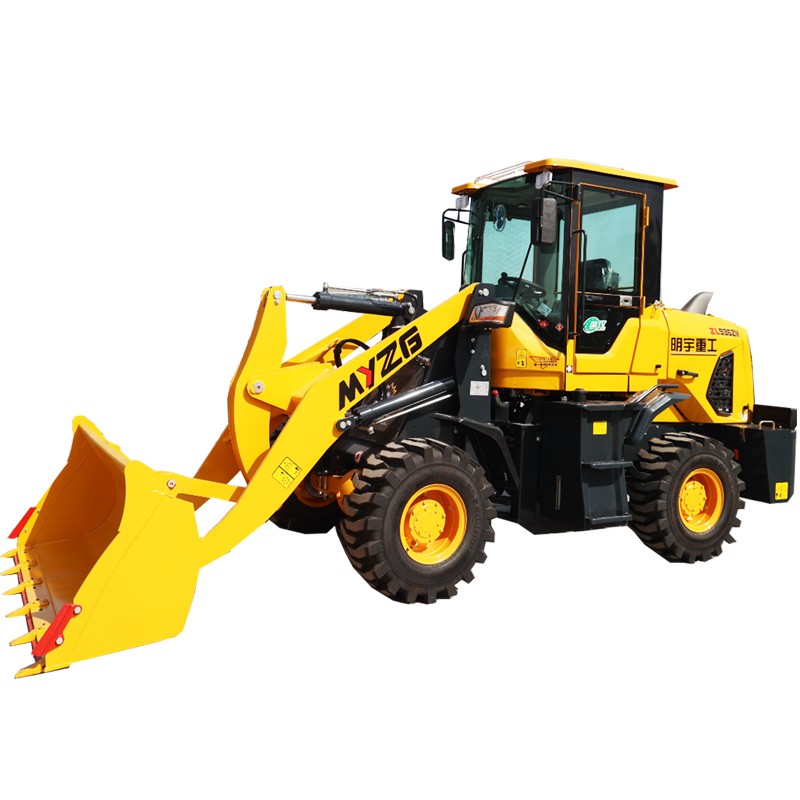

ZL-A928Z is a self-developed product of Mingyu. Adopt high-quality engine, thickened manganese steel material, strengthen cast steel integrated bridge, new hydraulic system, more lifting force, higher work efficiency, more suitable for material shovel transportation and loading and unloading operations, widely used in coal yard, railway, construction, stone yard and other workplaces, is a widely used, reliable and efficient products.
·Traction force ≥ 36KN, rising force 25KN, outstanding capability.
·Turning radius 2750mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
| Rated load capacity | 1600kg |
| Rated bucket capacity | 0.85m3 |
| Operating weight | 4250kg |
| Engine model |
QUANCHAI 4B2-75M22 |
| Rated power | 55kw |
| Rated speed | 2400 r/min |
| Dimensions | 5540*1940*2720mm |
| Dump height | 3200mm |
| Dump distance | 980mm |
| Min.turning radius | 2750mm |
| Wheel base | 2240mm |
| Wheeltrack | 1492mm |
| Tyre size | 20.5/70-16 |
Variable hydraulic system is adopted in which oil flow is supplied to demand, for less power loss and higher efficiency.
Ergo-power electric control gearbox enables smooth and comfortable shifting.
The cooling fan with temperature control is driven by a hydraulic motor. Reversal rotation available to extrude dust.
Centralized hydraulic pressure measuring points for easy checks and troubleshooting.

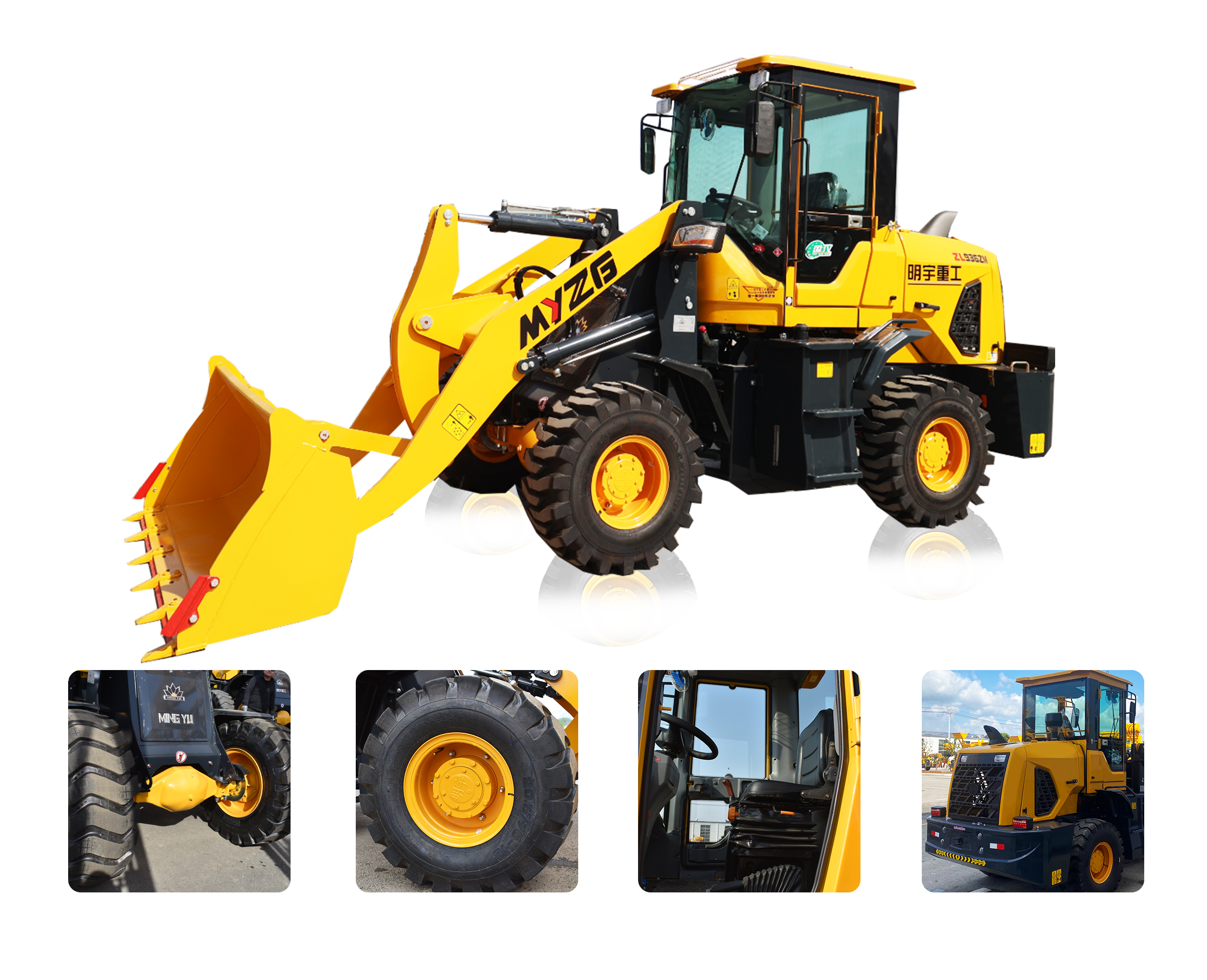

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.

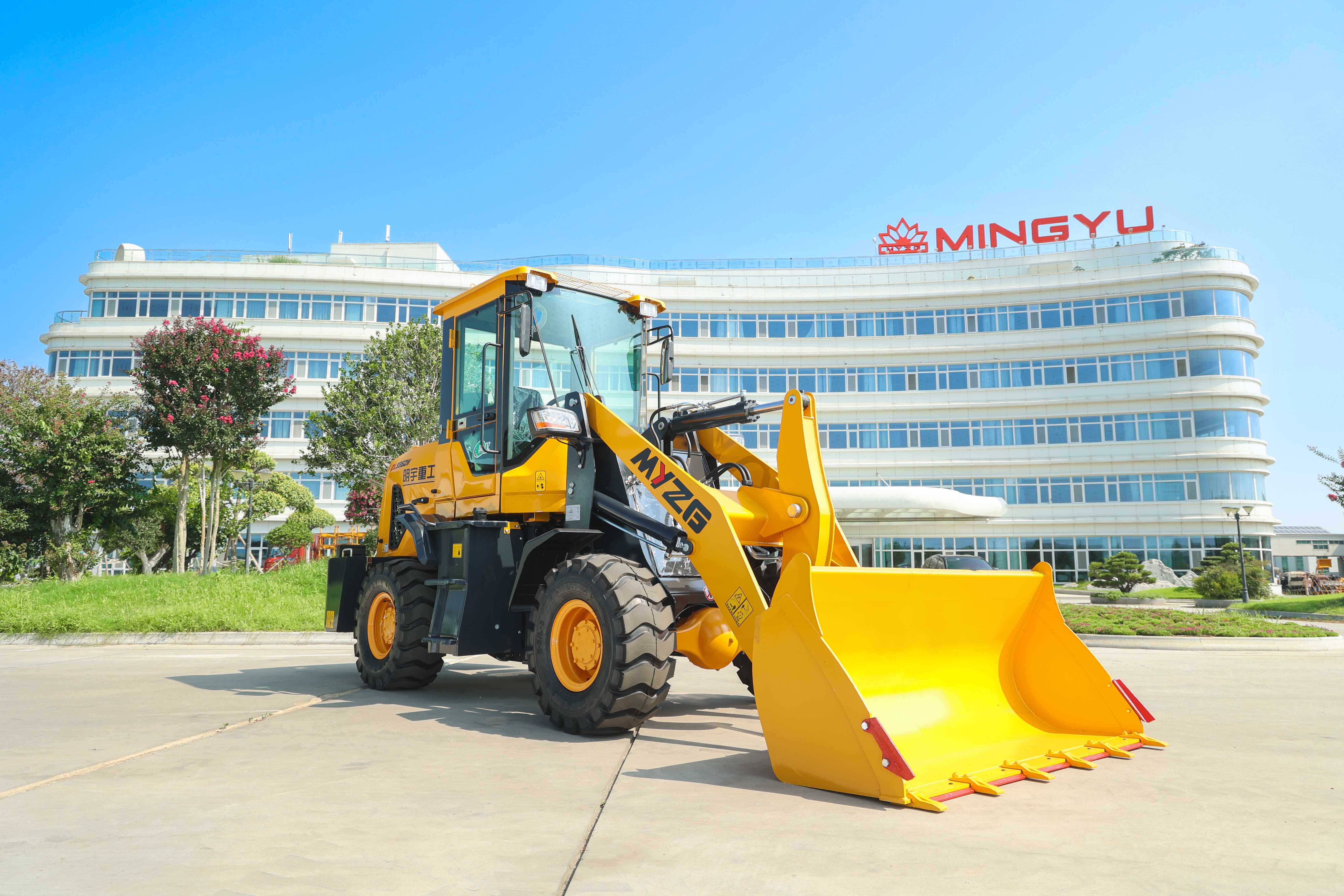

About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
