JC60 Wheel Loader: Compact Powerhouse with 850kg Rated Load Unveiled

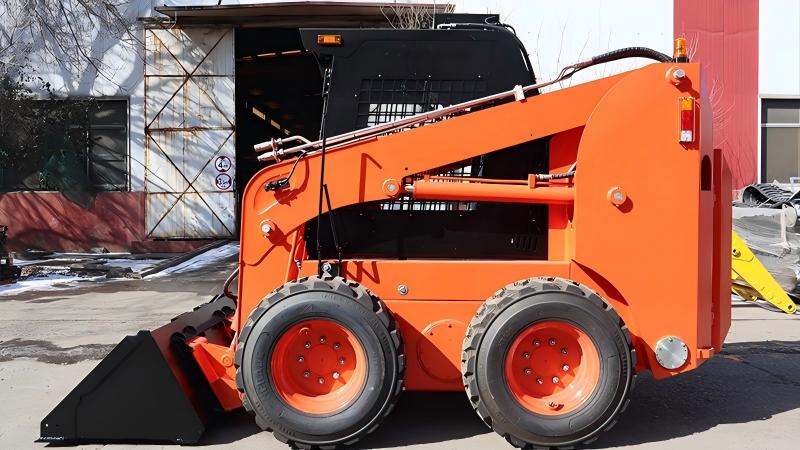

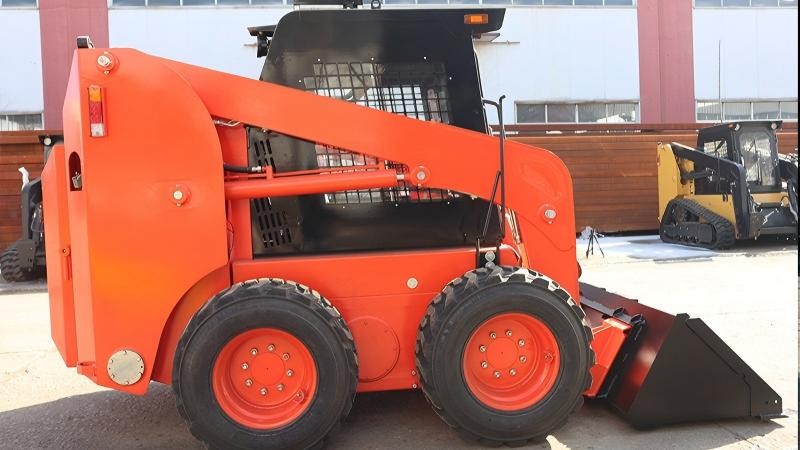

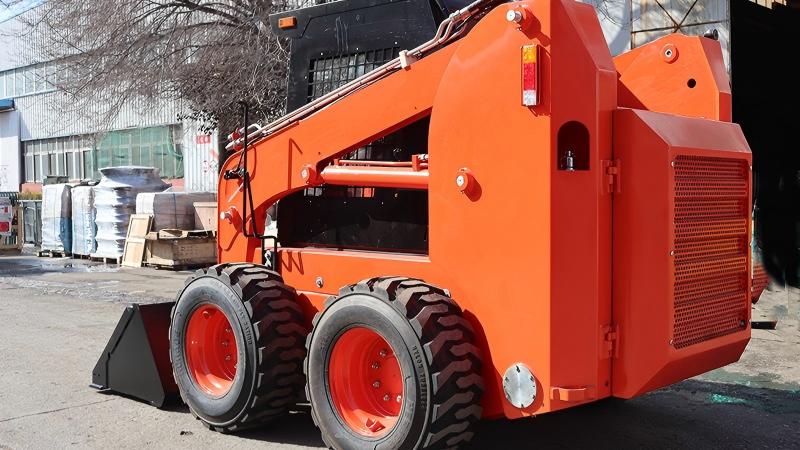

The construction and material handling landscape welcomes a robust new contender with the introduction of the JC60 Skid steer  Loader. This compact yet powerful machine is engineered to deliver exceptional performance in a versatile package, making it an ideal choice for a wide range of applications, from agricultural operations and landscaping to warehouse logistics and light industrial projects. At the heart of its capability is a substantial 850kg rated load, allowing it to handle significant materials with ease, whether it's moving aggregates, palletized goods, or debris. This capacity, combined with its manageable operating weight of 2800kg, strikes an excellent balance between power and agility. The inclusion of the reliable Xinchai 498 engine ensures that the JC60 has the necessary torque and endurance for sustained operation, providing operators with dependable power day in and day out. Its compact machine dimensions of 3490mm in length, 1880mm in width, and 2160mm in height mean it can navigate through confined spaces and work efficiently on job sites where larger machinery would struggle, offering a practical solution without compromising on core lifting and loading functions.

Delving into the powertrain and running gear, the JC60 is designed for efficiency and durability. The Xinchai 498 diesel engine is a proven workhorse in the industry, delivering a rated power of 45 kW. This provides ample energy not only for propulsion but also for the hydraulic systems that power the loader arm and bucket, ensuring smooth and responsive operation during demanding tasks like digging, lifting, and loading cycles. The machine rides on sturdy 12-16.5 tires, a specification chosen to offer a solid grip and stability across various terrains, from loose soil to harder packed surfaces. These tires contribute to the loader's overall traction and flotation, minimizing ground disturbance while maximizing productivity. With a wheelbase of 991mm and a ground clearance of 205mm, the JC60 achieves a stable platform for lifting operations while maintaining sufficient underbody clearance to traverse uneven ground and common job site obstacles. This thoughtful engineering in the chassis and drivetrain translates directly to operator confidence and machine reliability in diverse working conditions.

The performance metrics of the JC60 are precisely tailored for effective loading and dumping cycles. A key advantage is its bucket volume of 0.4 cubic meters, which is perfectly sized for quick, efficient cycles when moving material like soil, gravel, or sand. The loader's geometry is optimized for reach and dump height. The overall operating height reaches 4000mm, providing ample clearance for dumping into waiting trucks or hoppers. More specifically, the height to the bucket hinge pin is 3100mm, a critical dimension for calculating lift capacity at various points. When it's time to discharge the load, the JC60 offers a dumping height of 2400mm and a substantial dumping reach of 750mm from the front wheels. This combination allows the operator to place materials precisely where needed, reducing the need for repeated machine repositioning and significantly speeding up workflow. These dimensions make the loader particularly effective in tasks like truck loading, stockpiling, and feeding processing equipment.

In summary, the JC60 Skid steer Loader presents itself as a formidable and flexible tool in the compact equipment segment. Its specification sheet—highlighted by the 850kg load capacity, 45kW engine, and 0.4m³ bucket—is backed by thoughtful design in its operating dimensions. The machine's physical footprint and weight make it highly transportable between sites, while its performance parameters ensure it is more than capable once on location. From its 205mm ground clearance navigating rutted paths to its 4000mm maximum lift height servicing containers, every figure contributes to a machine built for real-world utility. For businesses seeking a reliable, maneuverable, and powerful loader to enhance their material handling capabilities without the footprint and cost of larger models, the JC60 stands out as a compelling and productive investment, ready to tackle daily challenges with strength and precision.
