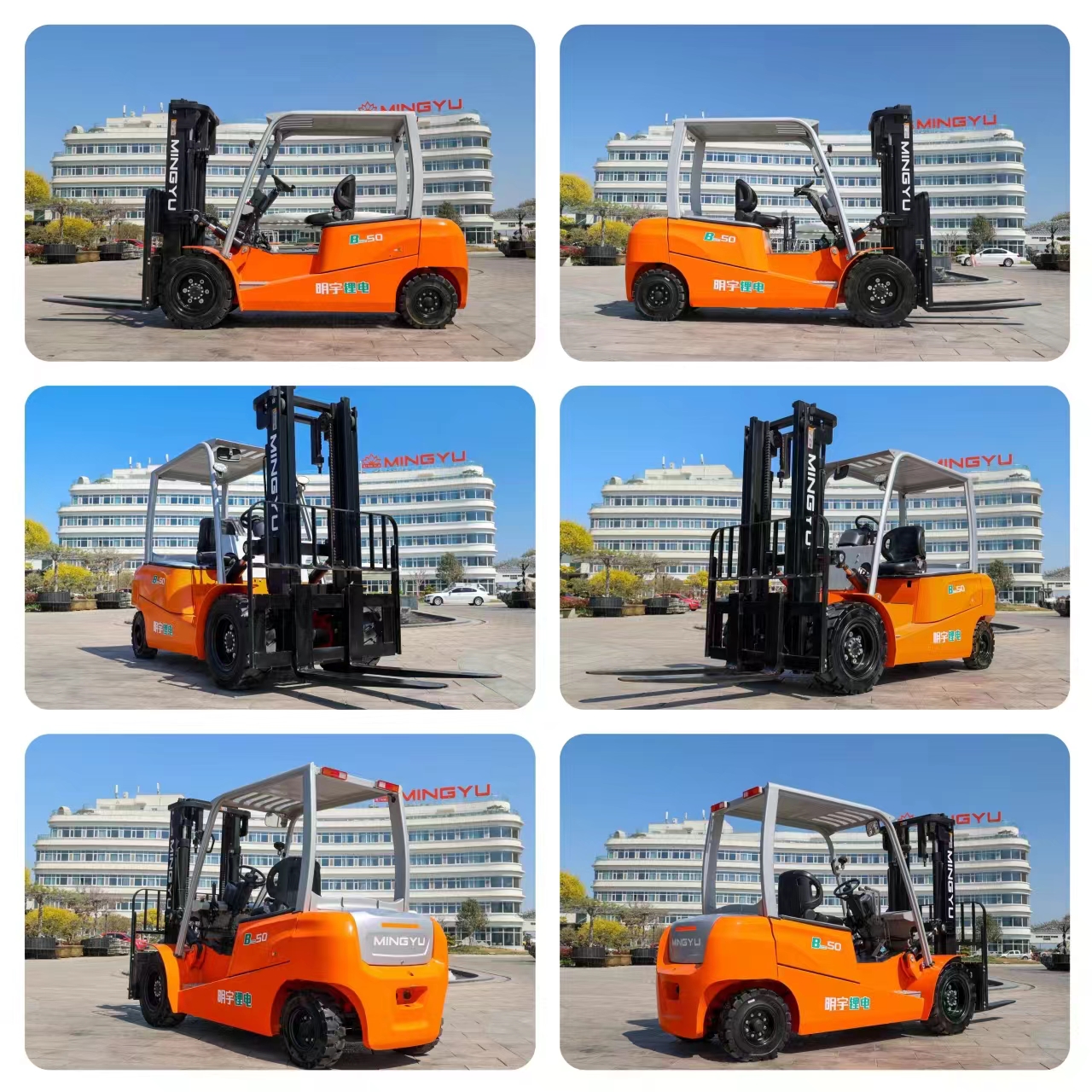

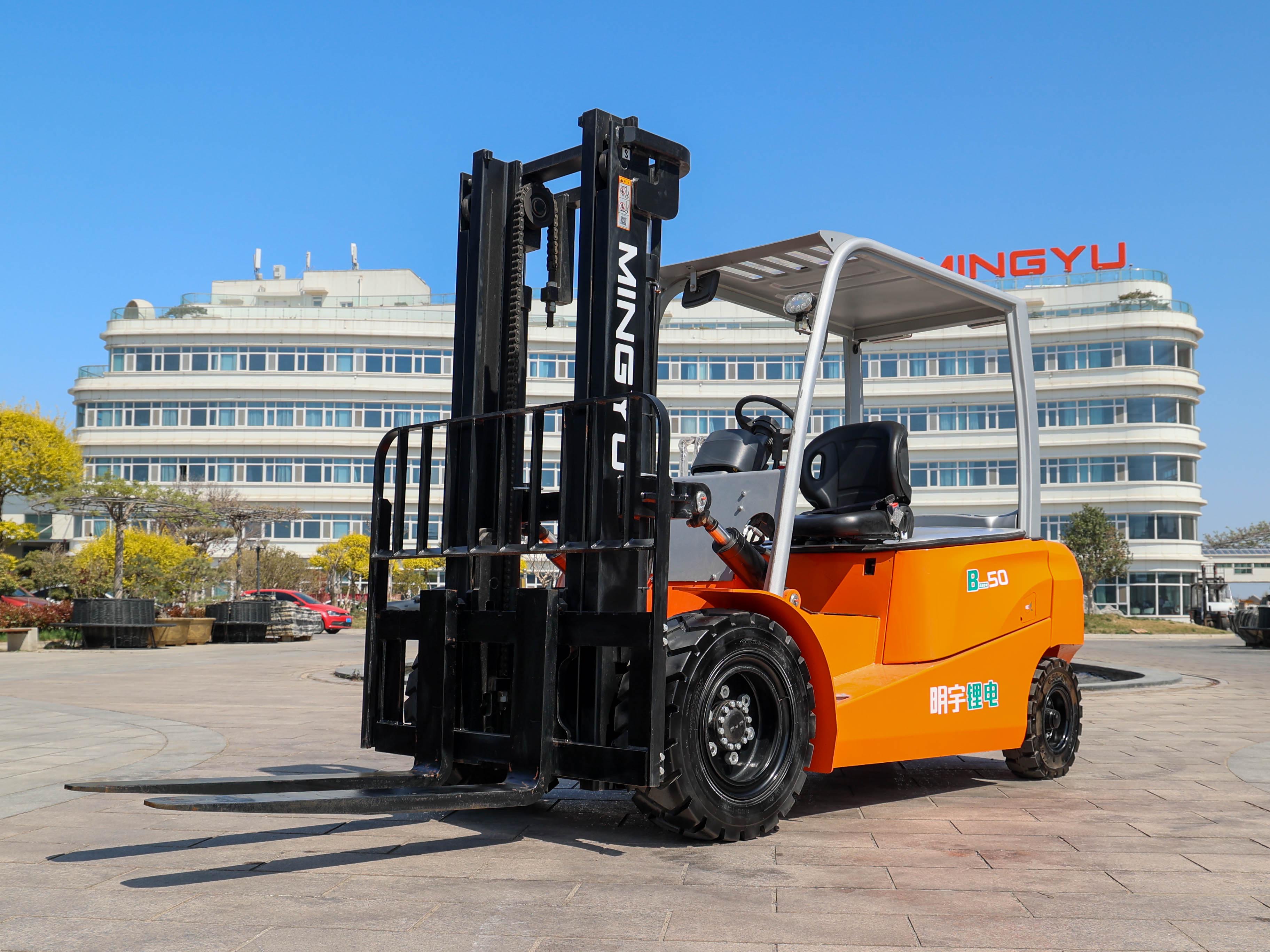

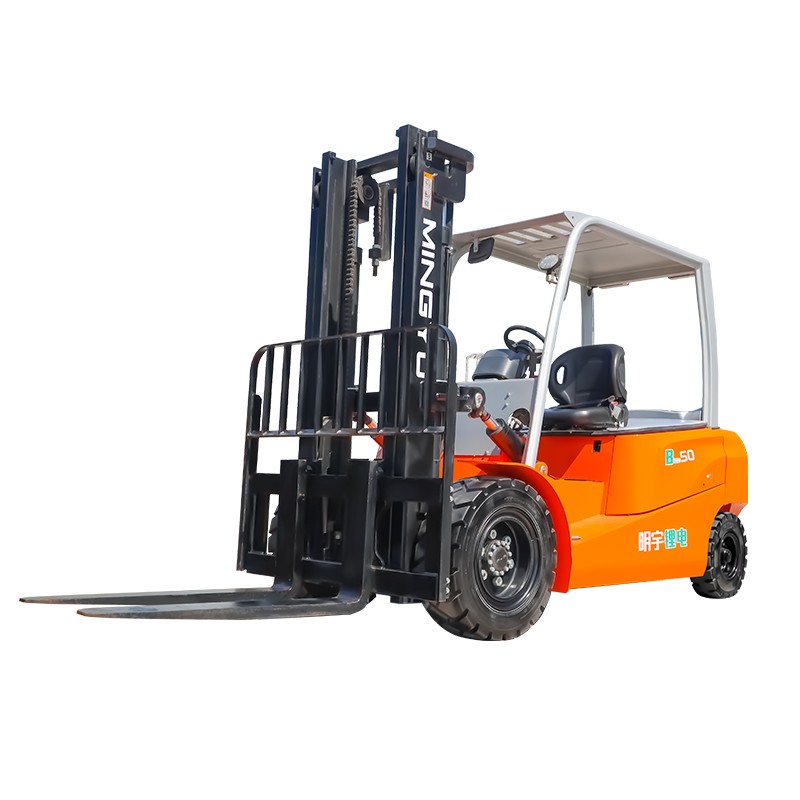

B50 Electric Forklift
MYZG 5-Ton Heavy-Duty High-Voltage Lithium Electric Forklift (Model: B50)
Extreme Power & Superior Torque: Engineered for 5000kg Heavy Industrial Loads, High-Climates, Tough Outdoor Yards, and Continuous Multi-Shift Logistics.
Executive Overview: Redefining Heavy Material Handling with 5-Ton Clean Power
The MYZG B50 5-Ton Lithium Battery Electric Forklift represents the apex of heavy-duty clean energy equipment developed by Mingyu Heavy Industry (MYZG). Designed specifically to take on traditional 5-ton diesel forklifts in extreme industrial settings, the B50 combines massive lifting power with the zero-emission, low-noise, and zero-maintenance advantages of modern high-voltage lithium technology.
At the heart of the B50 is a ultra-high-voltage 153.6V / 175Ah lithium accumulator system powering a massive 21.6kW traction drive motor and a powerful 22.6kW hydraulic oil pump motor. Boasting a robust net chassis weight of 5740 kg, an impressive 180 mm minimum ground clearance, and a wide 2215 mm wheelbase, the B50 easily navigates deep gravel yards, unpaved construction zones, and steep 15% ramps while lifting 5000 kg (11,000 lbs) payloads with absolute stability.
MYZG B50 Factory Technical Specifications
Examine the comprehensive engineering and performance specifications for the MYZG B50 5T Heavy-Duty Lithium Electric Forklift:
| Specification Parameter | Factory Data Detail |
|---|---|
| Model Identification | B50 (5 Ton Series) |
| Power Type | Accumulator / High-Voltage Lithium-Ion |
| Rated Load Lifting Capacity | 5000 kg |
| Load Centre Distance | 500 mm |
| Driving Style / Operator Position | Sit Down Style |
| Overall Length (With Fork / Without Fork) | 4510 mm / 3275 mm |
| Overall Chassis Width | 1430 mm |
| Mast Height (Lowered / Overhead Guard) | 2280 mm / 2175 mm |
| Max. Height at Working (Full Mast Extension) | 4210 mm |
| Standard Lifting Height / Free Lift Height | 3000 mm / 45 mm |
| Fork Adjustment Range | 300 mm – 1380 mm |
| Minimum Turning Radius | 2980 mm |
| Min. Right-Angle Channel Width (1100x1100 Pallets) | 4797 mm |
| Gantry Angle (Front / Rear Tilt) | 6° / 12° |
| Max. Lifting Speed (Without Load / Full Load) | 315 mm/s / 280 mm/s |
| Max. Operating Speed (Unladen / Full Load) | 15 Km/h / 13 Km/h |
| Max. Gradeability (Full Loading) | 15% |
| Unladen Machine Net Weight | 5740 kg |
| Wheel Layout (Driving Wheels / Steering Wheels) | 2 / 2 |
| Tyre Type Options (Front / Rear) | Pneumatic Tyre / Solid Tyre Options |
| Tyre Size (Front / Rear) | 250-15 / 6.50-10 |
| Braking Systems (Driving Brake / Parking Brake) | Foot Brake / Hand Brake |
| Battery Voltage & Capacity System | 153.6V / 175Ah (High-Voltage Lithium) |
| Drive Traction Motor Power Output | 21.6 kW |
| Oil Pump Hydraulic Motor Power Output | 22.6 kW |
| Wheelbase / Minimum Ground Clearance | 2215 mm / 180 mm |
| Front Overhang / Rear Overhang | 517 mm / 560 mm |
| Front Wheel Track / Rear Wheel Track | 1150 mm / 1020 mm |
Engineering Breakdown & Key Product Advantages
1. 153.6V/175Ah High-Voltage System & Massive 44.2kW Combined Motor Output
Moving a 5-ton payload requires massive torque. The B50 features an advanced 153.6V / 175Ah high-voltage lithium battery architecture that works at lower electrical current draw, eliminating cable heat buildup under heavy duty cycles. Equipped with a 21.6kW drive motor and a 22.6kW hydraulic oil pump motor (totaling 44.2kW of electric power), the B50 delivers rapid lifting speed up to 315 mm/s and top travel speeds of 15 km/h unladen and 13 km/h under full load.
2. Outstanding 180mm Ground Clearance & Reinforced 5740kg Frame
With an extra-high 180 mm ground clearance, a 2215 mm wheelbase, and heavy pneumatic or solid tire options (250-15 front, 6.50-10 rear), the B50 bridges the gap between indoor material handling and rugged outdoor logistics. The unladen weight of 5740 kg acts as a rigid, low-center-of-gravity counterweight that guarantees exceptional tip-over safety margins even when carrying full 5-ton capacity at maximum tilt (6° front / 12° rear).
3. Wide 300mm - 1380mm Fork Adjustment Range for Large Oversized Cargo
To handle awkward 5-ton payloads such as wide steel bundles, precast concrete pipes, large timber crates, and marble blocks, the B50 offers an expansive fork spread range from 300 mm up to 1380 mm. The robust mast assembly reaches a working height of 4210 mm with standard 3000 mm lift height configurations.
4. Zero Maintenance Lithium Tech & 15% Gradeability Performance
Unlike old lead-acid batteries, the lithium-ion power pack requires no water refills, emissions venting, or battery swapping. With rapid opportunity charging capabilities, operators can top off the battery during shift breaks. Combined with a 15% loaded gradeability, the B50 easily tackles outdoor ramps and incline docks.
Heavy Industrial Application Scenarios
The B50 5-ton electric forklift is designed to handle demanding high-capacity material handling tasks across clean factories and harsh outdoor yards:
Steel Mills & Metal Processing
Lifting heavy steel coils, sheet metal bundles, structural beams, and heavy alloy ingots indoors and outdoors.
Stone Quarries & Marble Plants
Moving heavy granite blocks, stone slabs, and concrete elements across unpaved gravel storage yards.
Heavy Manufacturing & Ports
Loading large machinery components, heavy containers, and industrial transformers continuously across multi-shift routines.
Frequently Asked Questions (FAQ)
Q: Why is a 153.6V high-voltage system important for a 5-ton electric forklift?
A: Higher voltage allows the forklift to draw less electrical current while generating higher power (21.6kW drive / 22.6kW pump). This reduces system heat buildup, extends motor life, and ensures maximum hydraulic power for 5000kg lifts.
Q: What is the turning radius and right-angle aisle requirement for the B50?
A: The B50 has a minimum turning radius of 2980 mm and requires a right-angle channel width of 4797 mm for standard 1100x1100mm pallet handling.
Q: Are solid tires available for the B50 5-ton forklift?
A: Yes, MYZG offers both heavy pneumatic tires and solid puncture-proof tires (250-15 front, 6.50-10 rear) for metal recycling yards and glass processing facilities where puncture hazards exist.
Upgrade to the Powerful 5-Ton MYZG B50 Lithium Electric Forklift Today!

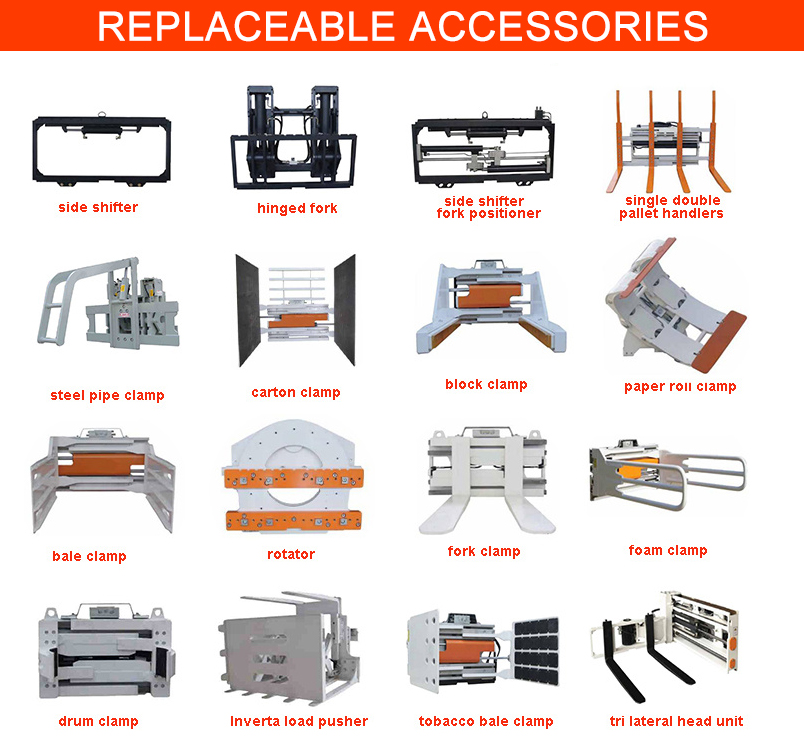

Contact MYZG factory representatives today for direct factory quotes, technical drawings, custom attachment options (side shifters, hydraulic clamps, rotators), and global sea freight rates!
