Can a Standard Lithium Forklift Work in a Freezer? Check the CPD20 Temperature Limits First

Can a Standard Lithium Forklift Work in a Freezer? Check the CPD20 Temperature Limits First — ZGFORKLIFT / MYZG. Shandong Zhuogong Machinery equipment Co.,Ltd

A lithium-powered forklift is often shortlisted for refrigerated distribution because it has no tailpipe exhaust at the point of use and can suit indoor material handling. That does not automatically make a standard warehouse truck suitable for a freezer. Buyers need a clear answer to a narrower question: what temperatures are approved for the complete truck, battery, controls and charger during operation, storage and charging? A model may be described for indoor use while its published specification says nothing about sub-zero duty. Treat a missing temperature rating as an open item to confirm, not as evidence that the machine is freezer-ready.

The MYZG CPD20 product page lists a 2,000 kg rated capacity at a 500 mm load centre, an 80 V / 105 Ah lithium-ion battery, 2,780 kg unladen weight, 3,000 mm standard lift and indoor / controlled-outdoor application. It does not publish a freezer operating range, minimum battery charging temperature, battery-heating option or condensation rating. The word ‘indoor’ should not be expanded into a claim for chilled rooms or deep-freeze service. Before considering this model for a cold store, obtain a written, configuration-specific answer from the supplier and compare it with the facility temperature profile and local requirements.

CPD20 published specification

Separate the temperature questions. Ask for the permitted ambient range while driving and lifting, the battery-cell range during discharge, the battery range for charging, and the permitted storage range when parked. Ask whether any low-temperature package or controlled battery heating is available on the exact CPD20 build, and what conditions or power source it needs. Request the battery manufacturer’s manual, charger specification and battery-management limits. Do not infer a charging temperature from an operating-temperature number: the two limits may differ. If a document gives only a broad ambient range, ask whether it applies to the installed battery and the complete forklift, not just an individual component.

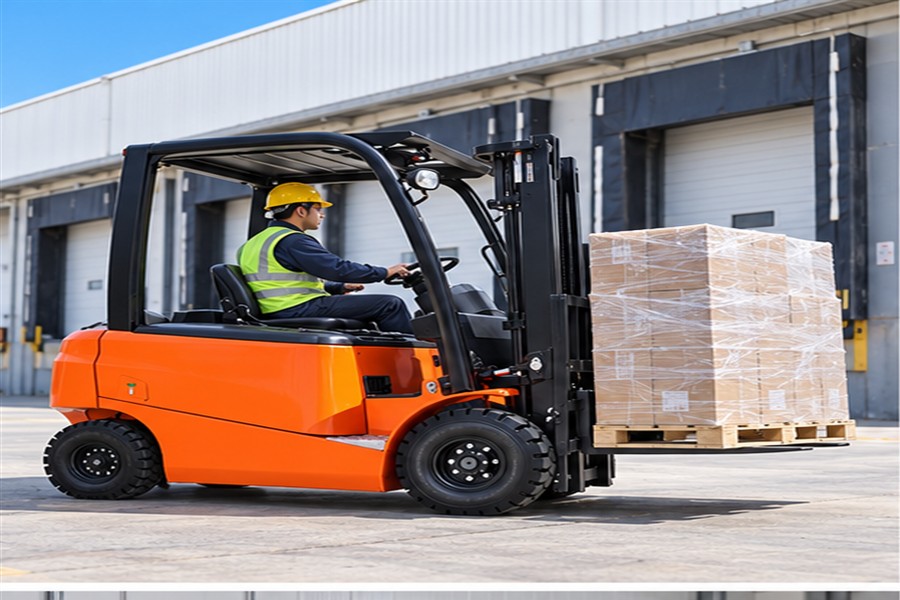

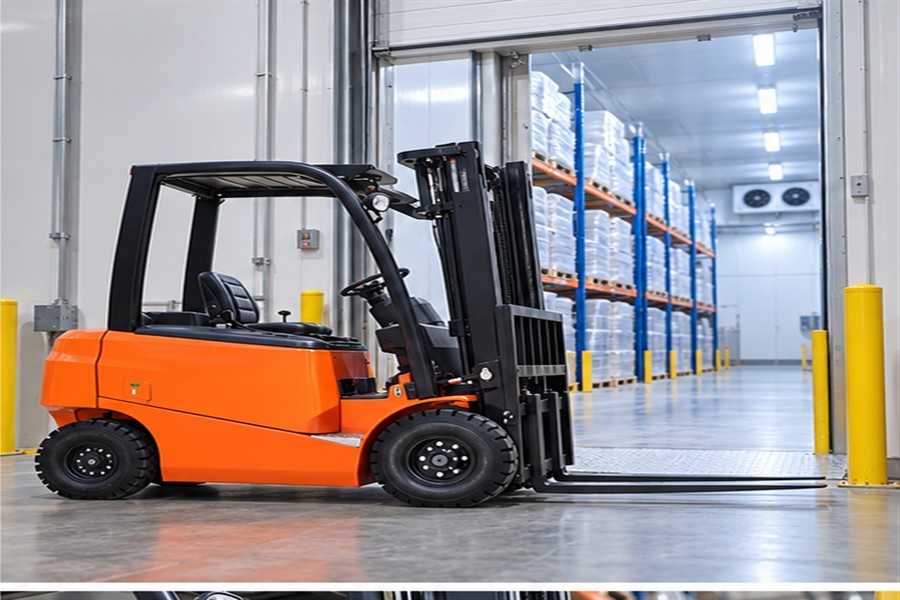

Map the cold-chain route by zone: ambient receiving dock, chilled staging, refrigerated room, freezer aisle, and the return path to charging. Record the lowest and highest temperatures, time spent in each zone, door-open periods, shift length, load mass, lift frequency and pauses. Repeated movement between cold and warm air can create condensation on surfaces and electrical connections; the supplier should state what environmental protection and inspection routine apply to the quoted configuration. Also evaluate floor traction, joints, ramps, visibility, operator clothing, door clearances and pedestrian routes. A battery specification alone cannot establish that the full vehicle and workplace are suitable.

CPD20-B electric forklift reference

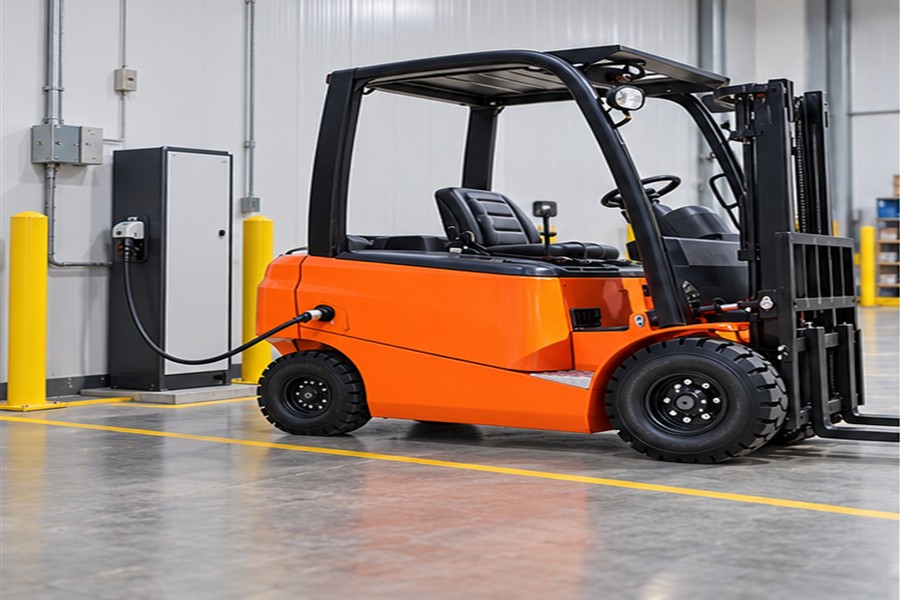

Plan charging as a separate operating task. Use only the charger approved for the supplied battery and follow the manufacturer’s stated temperature and connection procedure. If charging must happen outside the cold room, include travel to the charging area, acclimation instructions, waiting time, charger capacity and spare-truck or battery coverage in the shift plan. If charging is proposed inside a cold zone, require explicit written confirmation that the battery, BMS and charger are designed and approved for those conditions. Never bypass a low-temperature protection or connect an unapproved charger to keep production moving. Local electrical and fire-safety rules, the battery manual and the site risk assessment take precedence.

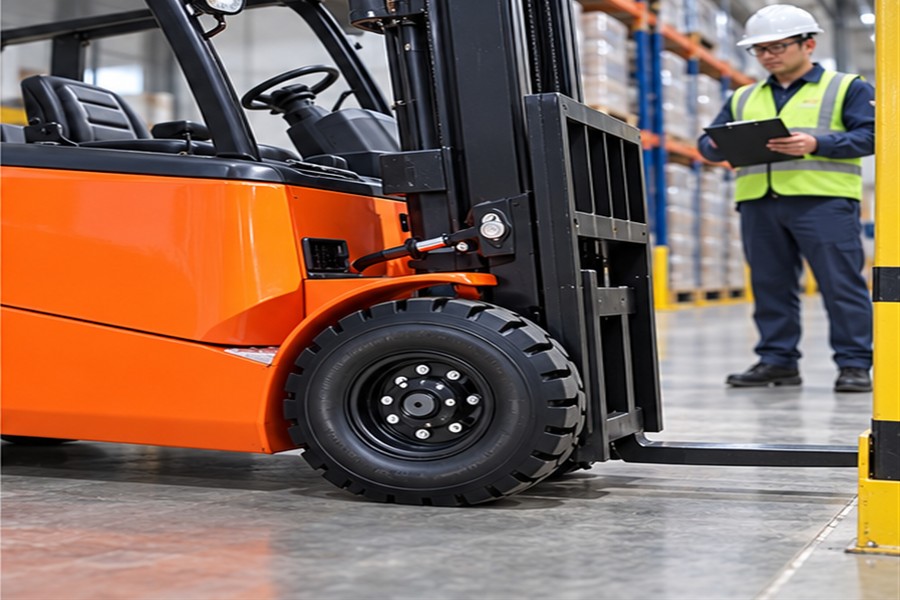

Check capacity and handling separately from temperature. The CPD20’s published 2,000 kg rating applies at the stated 500 mm load centre and the specified truck configuration. Cold-store pallets may be tall, wide, uneven or wrapped; a longer load, attachment or higher lift can reduce residual capacity. Confirm the actual load chart, mast, fork length, attachment, tyre choice and clearances for every required zone. The listed 2,100 mm minimum turning radius and 3,670 mm 90-degree aisle figure are reference values for the stated pallet assumption, not a replacement for a route survey. Verify that the floor and any dock plate can support the truck, load and dynamic operation.

CPD160-B lithium forklift guide

A useful quotation request includes the room setpoints and excursions, transition-zone temperatures, hours per shift, number of shifts, heaviest load and dimensions, centre of load, lift height, aisle and doorway measurements, floor type, charging location, available electrical supply and destination market. Ask the supplier to identify the exact battery chemistry and pack, voltage and capacity, battery heating if any, operating and charging limits, charger model, applicable certificates, warranty exclusions and service requirements. Ask which published values apply to the delivered serial-number configuration. If the requested temperature range is not documented or cannot be confirmed in writing, pause the purchase decision or evaluate equipment explicitly specified for cold-store duty.

Shandong Zhuogong Machinery equipment Co.,Ltd can help buyers review the published CPD20 data against a cold-chain work plan, but the available specification does not itself establish freezer approval. Send the facility temperature schedule, route sketch, load details and charging plan, then request written confirmation of the intended configuration before ordering. The CPD20 reference values include 2,000 kg at a 500 mm load centre and an 80 V / 105 Ah lithium battery; temperature suitability remains a separate confirmation. Contact ZGFORKLIFT / MYZG on WhatsApp at +86 131 7691 0558 or email MYZG@my-forklift.com. For freezer work, the decisive question is not simply ‘Is it lithium?’ but ‘Are the complete truck and matched charging system documented for our actual temperature cycle?’
