Can a Stand-On Electric Pallet Truck Cross a Dock Plate? CBD20/25/30 Checks Before Use
Can a Stand-On Electric Pallet Truck Cross a Dock Plate? CBD20/25/30 Checks Before Use — ZGFORKLIFT / MYZG. Shandong Zhuogong Machinery equipment Co.,Ltd
A stand-on electric pallet truck can make repeated warehouse-to-dispatch movements more efficient, but a dock plate or leveler changes the route into a safety-critical transition. The first buyer question is not simply whether the machine is electric or whether it has a rider platform. It is whether the exact truck configuration, load, dock equipment, trailer and operating procedure are all approved for the same crossing. The ZGFORKLIFT / MYZG CBD20/25/30 is a low-lift pallet transport truck; its published product information does not state a gradeability limit for every configuration. Do not assume it can cross a ramp because it handles a level warehouse route.
Start by identifying the transfer surface. A fixed concrete ramp, portable dock plate and hydraulic dock leveler are not interchangeable. Each has its own rated capacity, usable width, slope, edge support and operating method. Confirm the plate or leveler can support the combined load of the truck, operator and pallet with the required safety margin, and that its lip is properly seated and secured. Check the dock equipment maker's instructions and the truck manual together. If either document does not explicitly cover the proposed use, keep the truck on level ground until the site owner and equipment suppliers clarify the procedure.
review the CBD20/25/30 verified model data
Next, confirm the pallet truck's own limits for the exact model and operating condition. The CBD20/25/30 family is listed with 2,000, 2,500 and 3,000 kg capacity variants, a 600 mm load center and a maximum lift height of 205 mm. These are model-family figures, not a guarantee that any variant can negotiate a ramp at maximum load. Request the manual or written manufacturer guidance for gradeability, travel direction, load orientation, braking and rider-platform use. Never substitute a generic electric-truck slope percentage or a figure from a different model for the approved value on the machine being purchased.

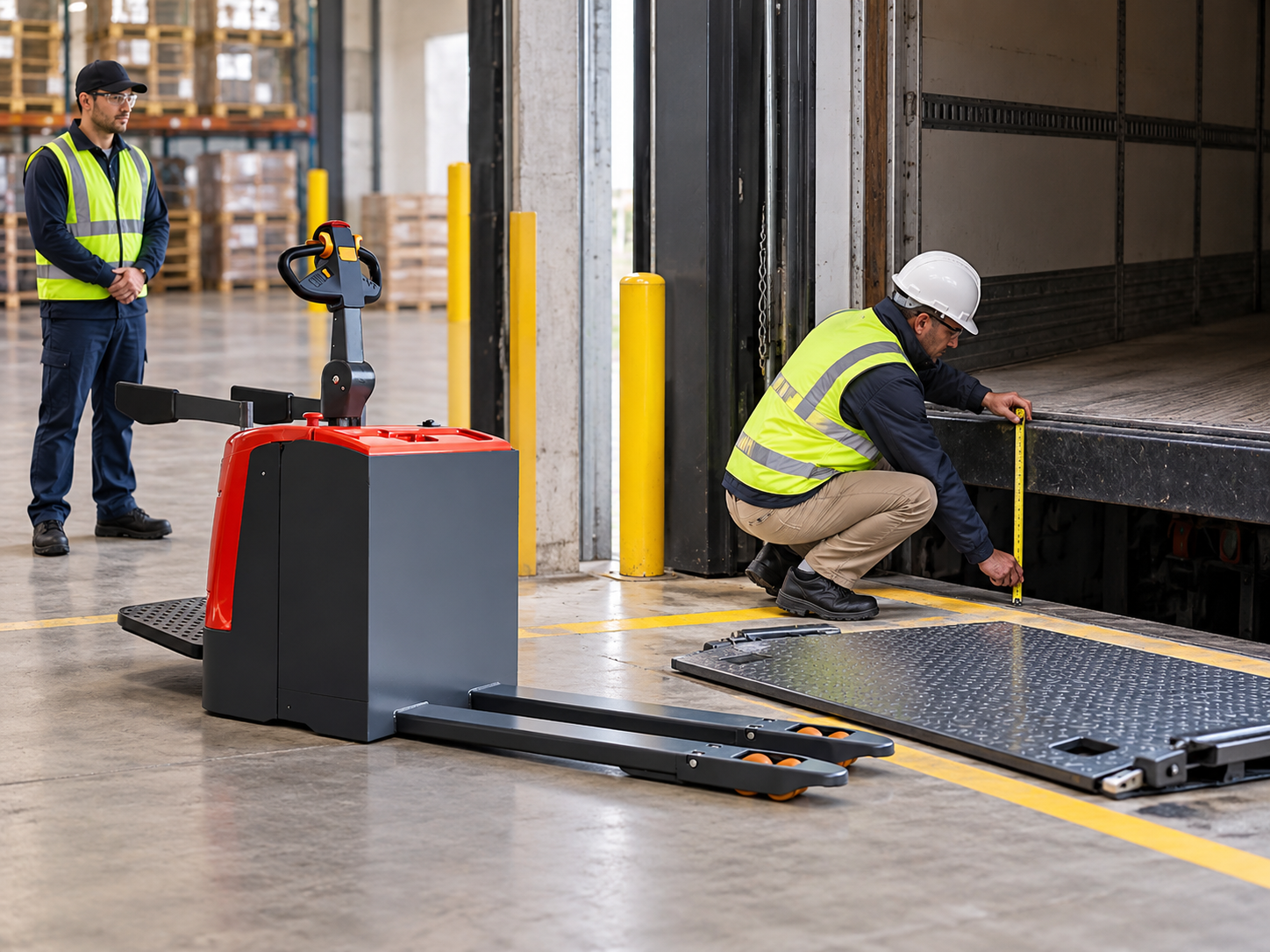

A dock-transfer review should also cover the trailer itself. Confirm it is correctly positioned, restrained against movement and at a compatible height before the bridge is deployed. Inspect the transition for gaps, a raised lip, damaged surface, loose debris, water, oil or an abrupt change in level. Check that the plate is wide enough for the truck and load, that the wheels cannot approach an unprotected edge, and that no person is required to stand in a crush zone while the truck crosses. If the trailer shifts, the leveler moves or the approach becomes unstable, stop and reset the transfer under the site procedure.
view the stand-on electric pallet truck
Measure the route rather than relying on a quick visual judgment. Record the vertical difference between dock and trailer, the leveler or plate length, the resulting slope, clear width, turning space and any transition at the warehouse floor. Also document the heaviest pallet, load position, pallet condition, daily crossings and expected travel direction. An electric pallet truck is designed for low-level horizontal transport, not for lifting a pallet onto a rack. The product listing publishes fork dimensions of 1,220 × 170 × 55 mm and a 600 mm load center for the family; confirm the ordered variant and pallet fit before specifying a dock workflow.
The rider platform and side guards support a particular operator position; they do not replace training, restraint procedures or the truck's operating instructions. Define who may ride, where the operator stands, how speed is controlled, how pedestrians are separated and how communication works at the dock. Travel only in the direction and configuration allowed by the manufacturer, keep the load low and stable, avoid abrupt steering or braking, and do not turn across an incline unless the manual expressly permits it. If the operator cannot maintain control or visibility, do not make the crossing. A pedestrian truck or a different loading method may be more suitable for the route.
Before each shift, inspect the forks and tips, load wheels, drive wheel, platform hinge, side guards, tiller, controls, horn, emergency stop, brake response, battery connector and visible hydraulic components. Check the dock plate and leveler separately under their own inspection program. Verify floor condition and lighting, keep the path clear, and establish a stop signal and exclusion zone. Remove a truck with a warning, damaged guard, braking concern or other safety defect from service. Local work rules and a site-specific risk assessment govern; the operating manual for the exact machine remains essential for equipment limits.
For purchasing, provide the supplier with a dock sketch, level difference, plate or leveler specifications, trailer height range, pallet dimensions, maximum gross load, travel frequency and intended crossing direction. Ask for a written response identifying the permissible grade and any load or rider restrictions for the exact CBD20, CBD25 or CBD30 variant. The source page lists a 24 V / 210 Ah lead-acid battery and a 720 kg machine weight without battery for the family; confirm which figures apply to the quoted unit and include the operator and pallet when checking dock-equipment capacity. Shandong Zhuogong Machinery equipment Co.,Ltd can help match the requested configuration and documentation, but the dock owner must approve the site procedure.
contact MYZG about dock-route suitability

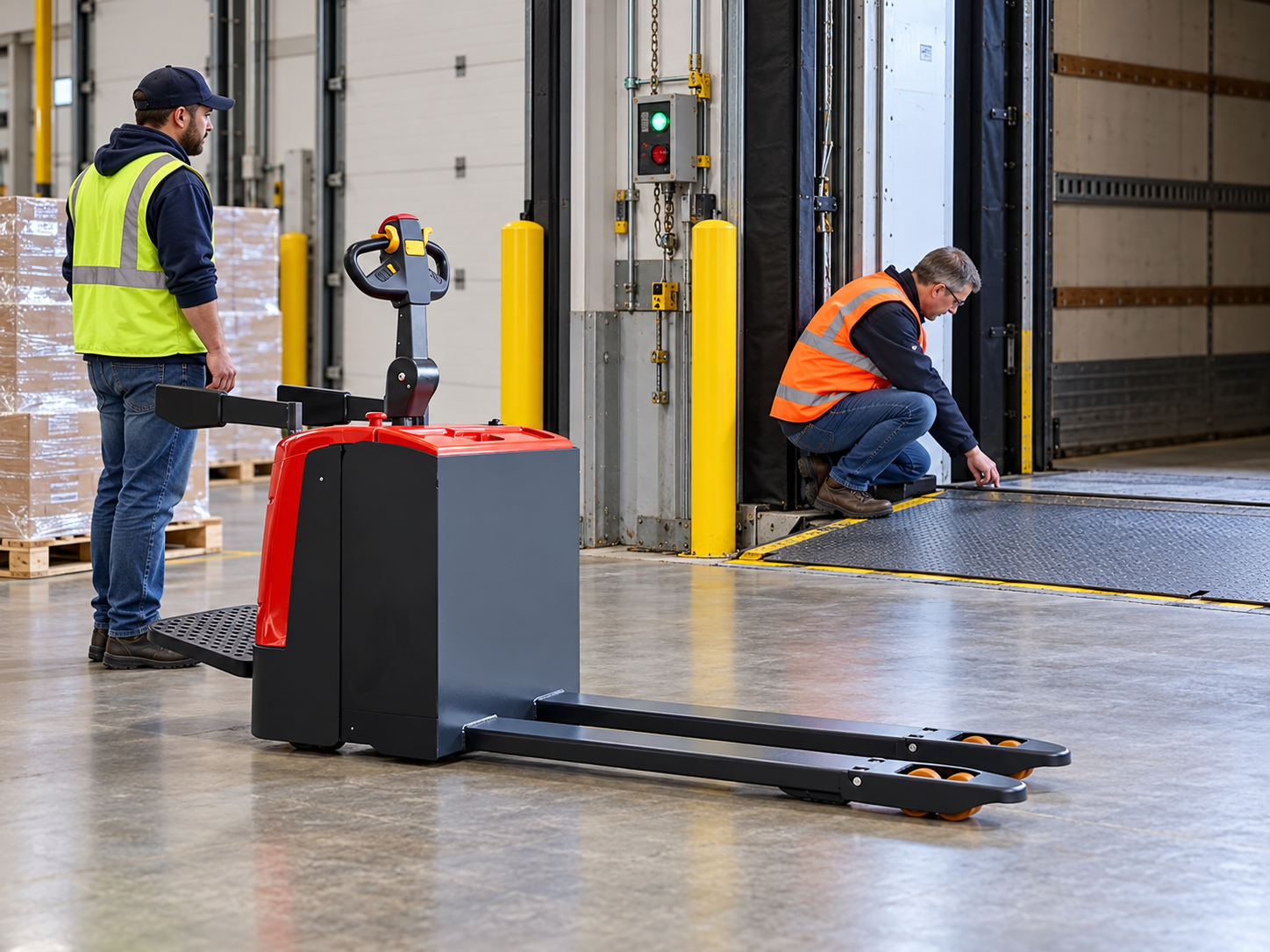

A sound decision may be to use the stand-on truck only on level staging floors and move goods across a dock transition with equipment specifically approved for it. That is not a failure of the pallet truck; it is a clear division of tasks. Before commissioning, review the route with warehouse, safety and dock-equipment personnel, train operators, document the approved configuration and keep the manual accessible. The images in this article are illustrative scenes, not a report of a named customer's installation. For a quotation, share the route details and ask for model-specific written guidance rather than relying on a generic claim about ramp use.
