Will the ZGLOADER Q36 Load My Dump Truck? Check Dump Height and Reach Before Buying

Will the ZGLOADER Q36 Load My Dump Truck? Check Dump Height and Reach Before Buying — ZGLOADER / MYZG. Shandong Zhuogong Machinery equipment Co.,Ltd

Will the ZGLOADER Q36 load your dump truck? The honest buyer answer is: compare the exact truck, bucket and working position with the loader's confirmed working-range drawing before you order. The published Q36 product record lists a 3300 mm dump height and 540 mm dump distance. Those figures are useful screening data, not a promise that every truck can be loaded. Truck body shape, ground levels, bucket angle, tires, attachment and the measurement definition can change the real clearance.

What does dump height mean on a wheel loader? It is a stated measurement taken at a defined lift and bucket-dump position; it is not the cab height, maximum boom-pin height or guaranteed clearance above every truck wall. Ask the supplier to identify the measurement point, bucket configuration, dump angle and ground reference on the exact specification drawing. If the page and drawing use different terms, have the difference explained in writing rather than treating the largest number as usable clearance.

check the official Q36 wheel loader specifications

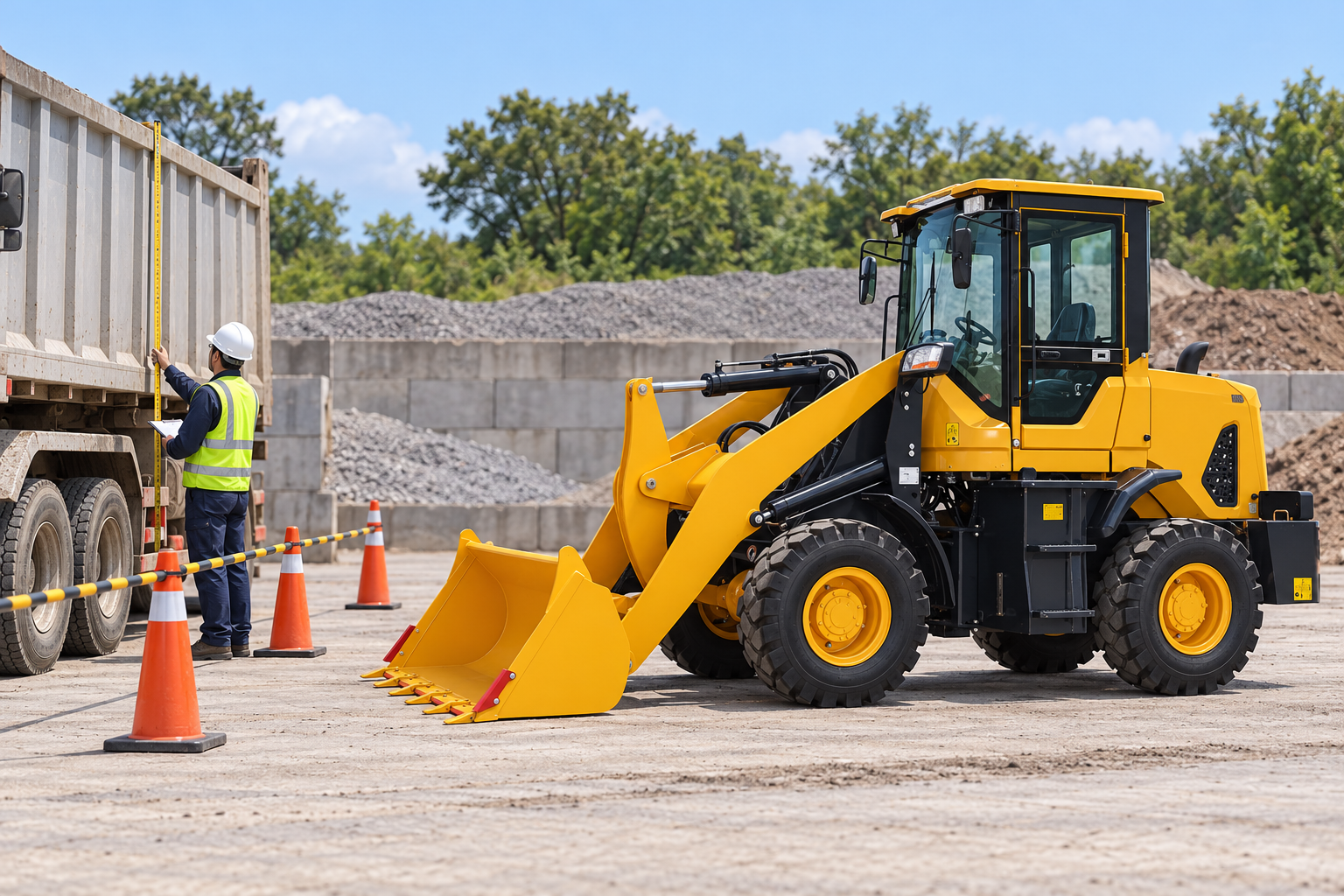

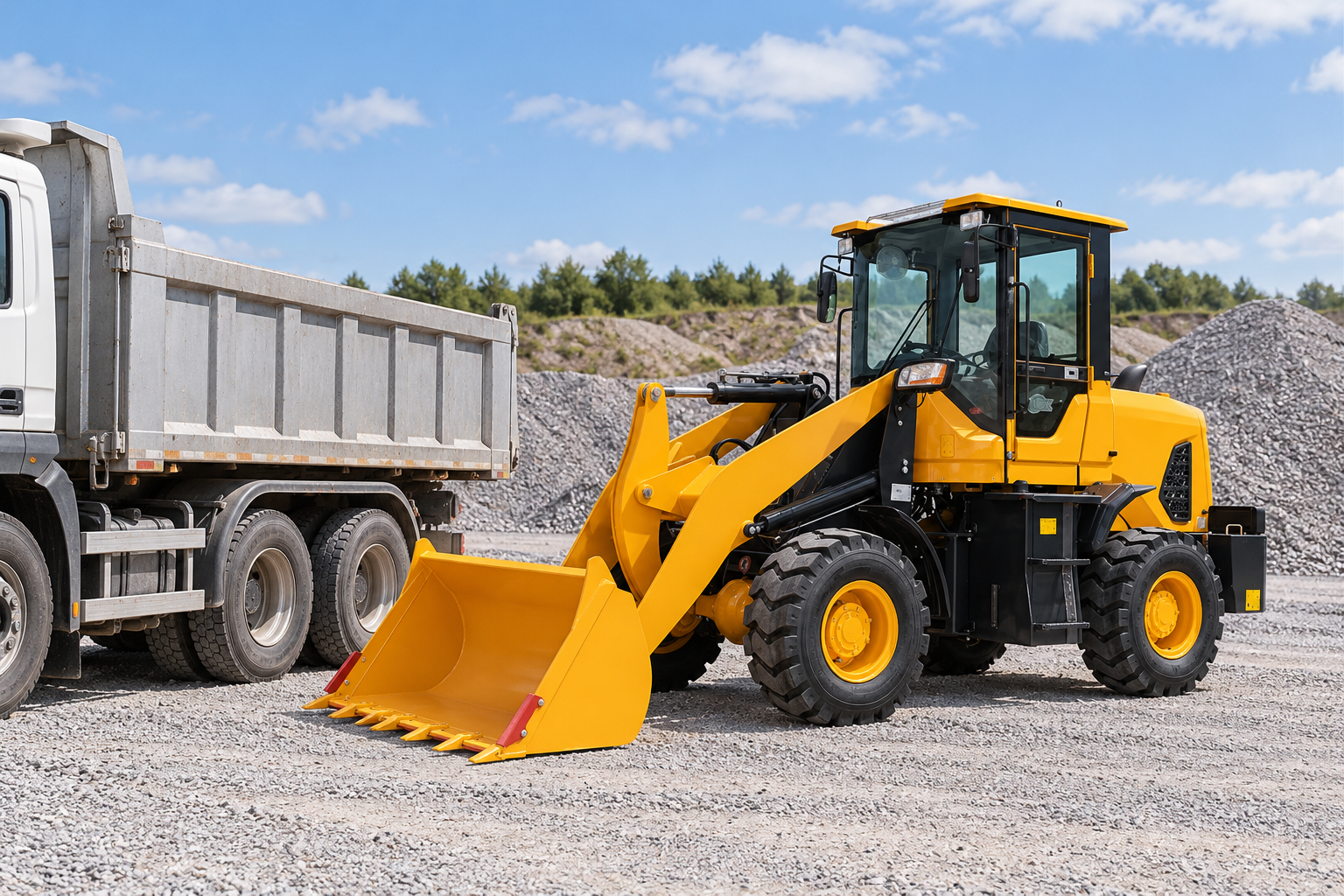

How should you measure a truck before choosing a loader? Park the actual receiving truck on the same level surface where loading will occur, set its suspension and tires as normally used, and measure from that surface to the highest sideboard or obstacle along the bucket path. Record the bed width, internal height, body rails, tarp bows, cab guard, and any raised tailgate. Check the intended approach direction too: a truck parked on a crown or beside a ramp can change the relative height even when the loader's published dimension stays the same.

Is 540 mm of dump distance enough? The number cannot answer that without knowing the reference point and bucket position used in the product drawing. A bucket may clear a sideboard vertically yet still dump too close to the outside edge, or the machine may need more forward reach to place material near the center of a wide body. Ask for a dimensioned side view at the required dump angle and compare the bucket lip position with the truck's near wall, far wall and usable opening. Do not infer reach from a product photo.

compare diesel wheel loader models

The Q36 reference record lists a 1500 kg rated load, 0.65 m³ rated bucket, 3250 kg operating weight and 5490 × 1900 × 2740 mm overall dimensions. Treat these as model reference values and confirm the offered machine, bucket and attachment in the quotation. Bucket volume is not the same as payload: wet soil, gravel, grain and mulch have different bulk densities. The heaviest material and the approved operating limit matter more than a nominal bucket volume when you calculate a truck-loading cycle.

For a practical fit check, send a side photograph of the truck beside a tape or known measurement, a top view of the loading bay, the truck bed dimensions, the material, the expected bucket and any site slope. Ask MYZG to mark the Q36 dump height and dump distance on the matching machine-and-bucket drawing. Include tire specification, bucket type, ground level and whether the truck is loaded from the side or rear. A written comparison helps reveal a mismatch before transport and commissioning.

review the MYZG wheel loader range

What if the dump height looks adequate but the machine still cannot work comfortably? Check approach room, turning path and where the loader's front end must stop to keep a safe margin from the truck. The Q36 product record lists a 2680 mm minimum turning radius; confirm the exact reference and assess the complete swept path with the chosen bucket. Include pedestrian routes, truck queues, reversing visibility and a stable level loading zone. A workable loading point must allow the operator to see the truck opening and keep people out of the machine's operating area.

A demonstration should reproduce the real job rather than use an empty bucket on a different truck. Use the intended material, receiving vehicle, bucket and ground conditions, while following the operator manual and the site's risk controls. Never raise a loaded bucket over a person or exceed the machine's rated limits to prove a point. If the drawing does not show the needed clearance, stop the selection process and request a compatible configuration or consider a different machine or loading arrangement.

request a truck-to-loader geometry review

Before requesting a quote, prepare a simple buyer checklist: truck make and body height; usable opening and sideboard profile; loader-side ground elevation; required dumping angle; material and bulk density; bucket type; access width and turning room; daily cycles; destination and local compliance documents. Ask for the exact Q36 configuration, approved attachment, dimension drawing, operating instructions, shipping dimensions and recommended spare parts. These details make the answer to “Will this wheel loader load my truck?” specific to your job instead of a generic sales assurance.

For the official reference, review the ZGLOADER Q36 product page and send your measurements, photos or short site video to Shandong Zhuogong Machinery equipment Co.,Ltd. The team can compare the truck interface with the requested configuration and identify what must be confirmed by drawing or demonstration. Final suitability depends on the delivered machine, manual, attachment and site assessment. Contact MYZG on WhatsApp at +86 131 7691 0558 or email MYZG@my-forklift.com for a written, job-specific review.
