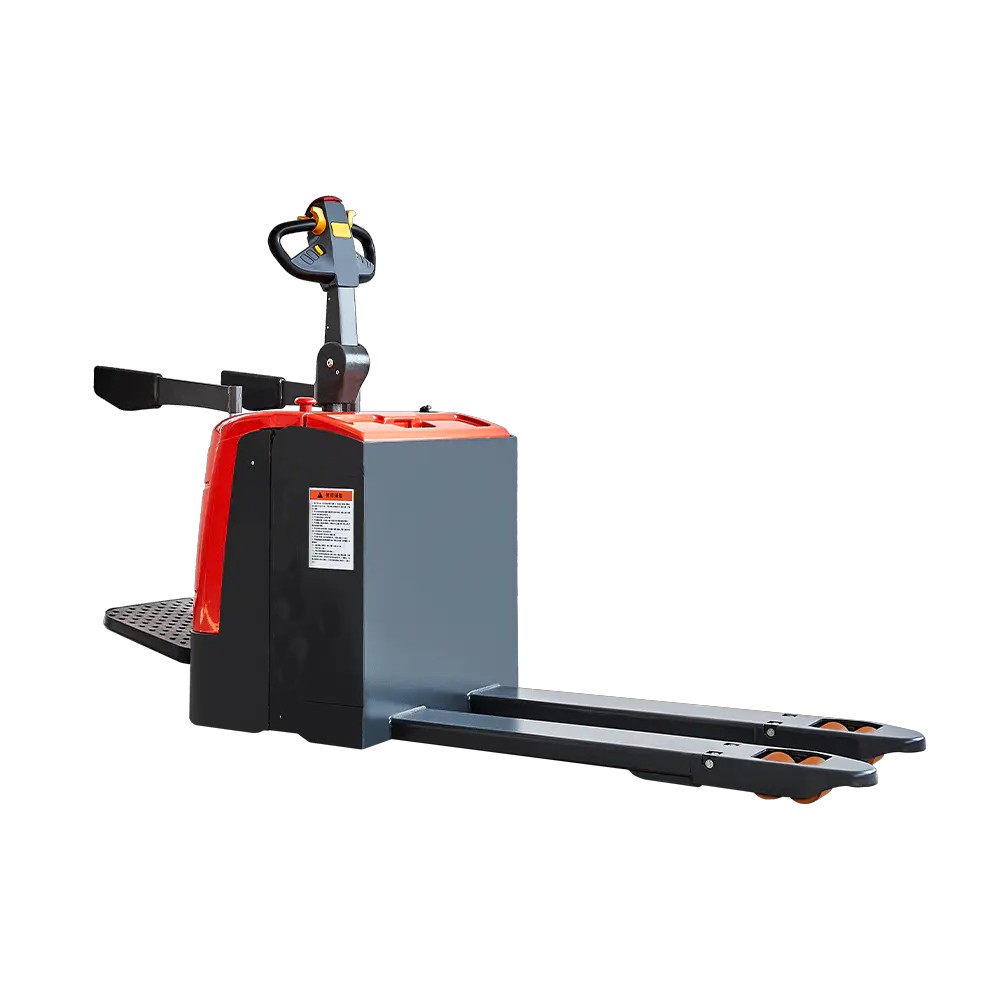

ZGLOADER / MYZG CBD20/25/30 Stand-On Electric Pallet Truck

Stand-on productivity for repeated pallet transport

The ZGLOADER / MYZG CBD20/25/30 stand-on electric pallet truck is built for repeated horizontal movement of palletized goods between receiving, reserve storage, picking buffers, production lines and dispatch lanes. Its foldable rider platform and protective side arms allow an operator to ride during suitable travel tasks, reducing walking over longer internal routes, while electric power steering supports controlled maneuvering. It remains a low-lift pallet transport machine rather than a forklift or stacker: it moves compatible pallets at floor level and does not place loads on elevated racking. The best result comes from matching load, pallet entry, aisle, traffic plan, floor and shift intensity to the selected configuration. browse the warehouse equipment category.

review the verified stand-on source product.

Verified CBD20/25/30 data and configuration control

The verified source lists models CBD20/25/30 with maximum load capacities of 2000/2500/3000 kg, a 600 mm load center, maximum lifting height of 205 mm and travel speed without/with load of 5/4.5 km/h. It identifies weight without battery of 720 kg, overall frame length/width without platform of 1820*775/1942*850 mm, wheelbase of 1350/1472 mm, fork size of 1220*170*55 mm and fork outside width of 550/685 mm. The source also lists a 24V/210Ah lead-acid battery, 1.5 kW AC vertical drive motor, electric power steering and optional Curtis-brand controller. Variant-dependent figures must be confirmed in the written quotation and delivered technical documents. read application and purchasing guidance

Applications, customer needs and equipment selection

Selection starts with measured work, not only nominal capacity. Record the heaviest pallet, load center, pallet type, fork-pocket height and width, entry direction, aisle width, turning areas, gradients, doorways, dock plates, floor joints, daily distance, cycles per hour and charging window. Choose CBD20, CBD25 or CBD30 according to the verified duty and confirm which dimensional value belongs to the ordered configuration. A stand-on platform is useful for repeated medium or longer routes, but a pedestrian truck may suit short congested movements. For stacking, elevated loading or rough outdoor terrain, select a stacker, forklift or purpose-built outdoor machine instead of using this pallet truck beyond its intended duty.

Safe operation, battery care and maintenance

Before every shift inspect forks, fork tips, frame, welds, load rollers, drive and caster wheels, foldable platform, protective side arms, tiller, steering, horn, emergency functions, braking response, battery connector, cables and visible hydraulic components. Test the truck in a clear area according to the delivered manual. Approach squarely, insert both forks fully, lift only enough to clear the floor and keep the load centered. The trained operator must remain within the protected riding position, slow before turns, crossings, doors and dock transitions, maintain visibility and yield to pedestrians. Do not carry a passenger, stand on the forks or operate on an unapproved slope. Park on level ground with forks lowered and controls isolated.

Safe operation, battery care and maintenance

Battery care, planned inspection and parts availability determine uptime. Confirm battery type, connector, charger input, charging window, ventilation or site requirements, ambient temperature and replacement route before ordering. Keep connectors clean and dry, avoid unauthorised charger combinations and record charge cycles or faults according to the battery supplier guidance. Maintenance includes cleaning debris from wheels and rollers, checking wear and damage, tightening specified fasteners, monitoring hydraulic leakage and replacing safety-related components promptly. Service intervals follow load, distance, floor condition and shift intensity; a documented checklist supports consistent maintenance across a fleet.

Total ownership cost and parts planning

Total ownership cost includes purchase price, battery, charger, energy, wheels, rollers, bearings, seals, switches, contactors, cables, brakes, freight, documents, planned service, downtime and operator time. A lower initial price can be offset by wrong fork fit, insufficient charging time or unavailable wear parts. Dealers and rental partners create value through site surveys, commissioning, operator familiarization, configuration records, local parts stocking and a clear technical escalation route. Shandong Zhuogong Machinery equipment Co.,Ltd supports ZGLOADER / MYZG configuration review, export coordination and after-sales communication without inventing customer names, certificate numbers or unsupported performance figures.

Compliance, export service and dealer support

CE-related documentation, labels, manuals and destination requirements depend on the final configuration and market and must be confirmed before contract. EPA engine-emission requirements do not apply to a battery-electric pallet truck in the same way as diesel equipment, but battery transport, electrical safety, product labeling and workplace rules still require review. A useful quotation request includes pallet and load data, route drawing, floor and ramp details, shift pattern, charging window, destination, delivery terms, documents and spare-parts expectations. This turns the product page into a practical selection step and helps the supplier, dealer and end user agree on a verifiable solution.

Request a route-matched quotation

Send pallet dimensions, maximum load, load center, route distance, aisle and floor conditions, gradients, daily cycles, battery and charger needs, destination, delivery terms and required documents for a comparable quotation. contact the MYZG export team.
