A product listing can show a headline capacity and a maximum lift height, but those two numbers do not by themselves prove that the full rated load can be carried at the top of the mast. For the ZGFORKLIFT / MYZG SBD101/520, the published summary lists a maximum load capacity of 2,000 kg and a lift height of 3,500 mm. The page also describes the model family as 1,000–2,000 kg and identifies a 2-stage mast. Treat these as configuration references, then confirm the exact unit and its capacity at the lift condition your warehouse will use.

This distinction matters because capacity depends on the load center, pallet dimensions, mast and configuration, not only the weight printed on a shipment label. A dense short pallet and a long, uneven load can produce different moments even when the scale reading is identical. If the load center is farther from the fork face than the rated value, or if the load is not centered, the safe working capacity may be lower. Ask for the official capacity chart or data plate for the exact mast height and configuration rather than inferring a curve from the headline figure.

review the SBD101/520 published configuration

A clear quotation request should state the normal and maximum load, pallet length and width, load center, fork-entry direction, target rack beam height, and whether the pallet is open-bottom or closed-bottom. Add photographs or a simple drawing if the load overhangs the pallet or has an irregular center of gravity. Ask the supplier to confirm in writing the permissible load at the required height and load center, the number of shifts, and any restrictions on travel with the load raised. Do not treat a 2,000 kg headline as a universal allowance for every pallet and mast position.

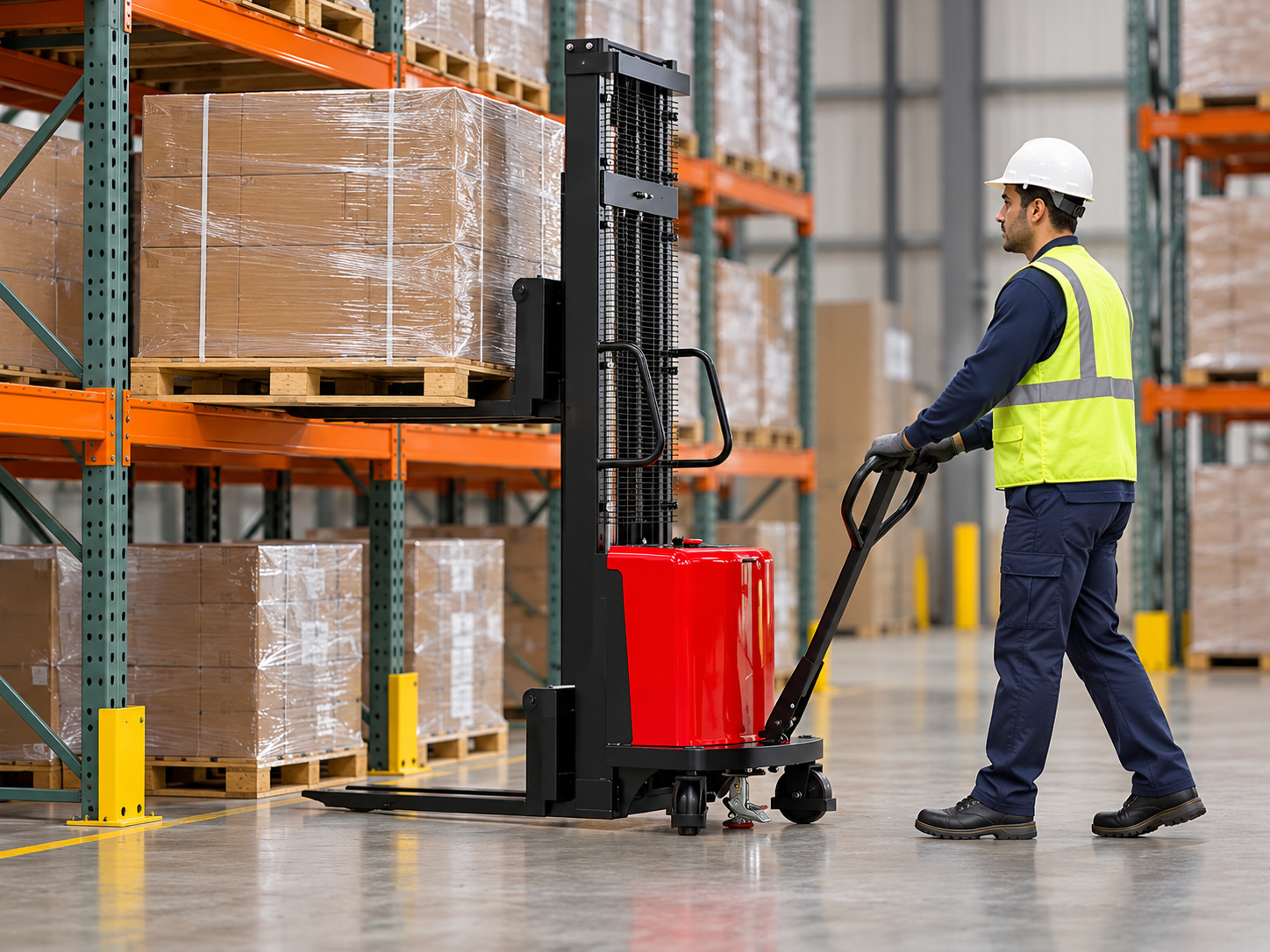

The product page publishes a 3,500 mm lift height, 12 V / 120 Ah battery, two-stage mast and 1,625 mm turning radius. Verify these points against the final quotation and machine documents, since options and production configurations can differ. Measure the lowest doorway, overhead pipework, rack beam, turning pocket and clear aisle. Also check floor joints, thresholds and slopes along the route. Lift height is only useful if the mast clears the building and the stacker can approach, turn and place the pallet without striking the rack or obstructing pedestrian traffic.

compare the short-axis counterbalanced stacker

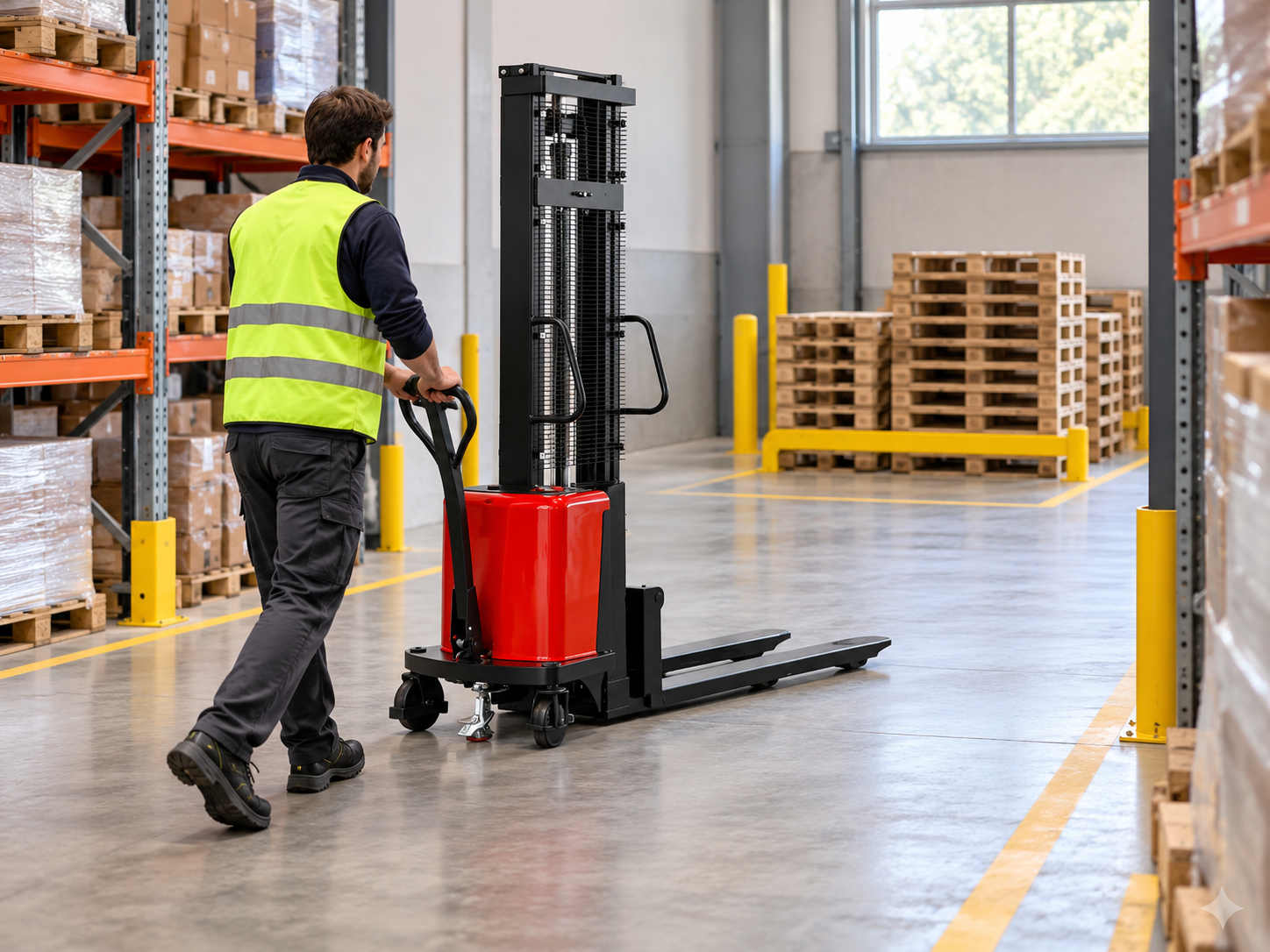

The SBD101/520 is described as a semi-electric walk-behind pallet stacker. Confirm the operating arrangement for the supplied version: which functions are powered, which travel movements require the operator to push or guide the equipment, and what control and braking features are included. A short, level route with intermittent lifting may suit a different duty pattern from repeated loaded travel over long distances. Plan the workflow with actual pallet moves per hour, distance, lift cycles and operator breaks instead of choosing from the model name alone.

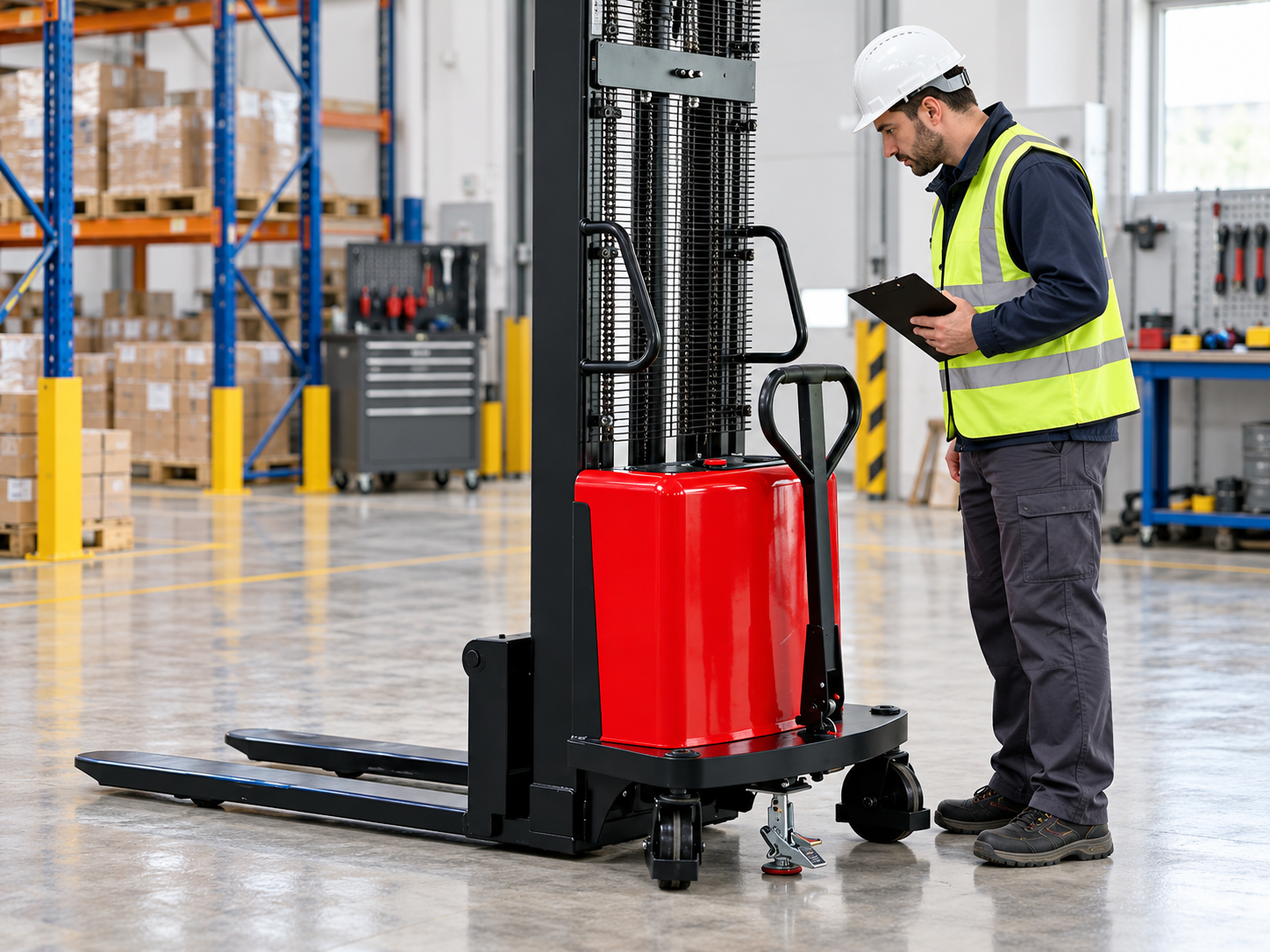

Before a shift, operators should follow the manual and site procedures to inspect forks, mast channels, chains, wheels, tiller return, brakes, emergency stop, battery condition and visible hydraulic components. Check the pallet for broken boards, loose wrapping and shifted goods. Insert forks fully, approach squarely, keep the load low while traveling and stop when visibility is blocked. Do not turn with a raised load or use a stacker on a slope unless the manufacturer documents that operation and its limits. Remove equipment from service if a safety-critical defect or unreadable capacity label is found.

browse the pallet stacker range

For an import or fleet purchase, request the model-specific data plate image, capacity information at the required height, operating manual, battery and charger details, packing dimensions, warranty scope and spare-parts identification. The site listing includes both a 2,000 kg headline and a 1,000–2,000 kg family range, so the order documents should remove any ambiguity about the exact build. Shandong Zhuogong Machinery equipment Co.,Ltd can review the pallet and rack requirements with buyers and confirm which documents and configuration details must be stated on the quotation.

The practical buying decision is not simply whether the SBD101/520 is marked “2,000 kg.” It is whether the supplied stacker is documented for your actual load center, pallet, mast height, floor and work cycle. Compare the capacity chart with the heaviest real load; confirm residual capacity at the target beam; and make sure the operator understands the label before commissioning. These checks prevent a mismatch between a brochure headline and a real storage task, while giving purchasing, warehouse and safety teams a shared basis for approving the machine.
