Can a Backhoe Loader Work Beside Asphalt? Check Stabilizer Pads Before You Buy
Can a Backhoe Loader Work Beside Asphalt? Check Stabilizer Pads Before You Buy — ZGLOADER / MYZG. Shandong Zhuogong Machinery equipment Co.,Ltd

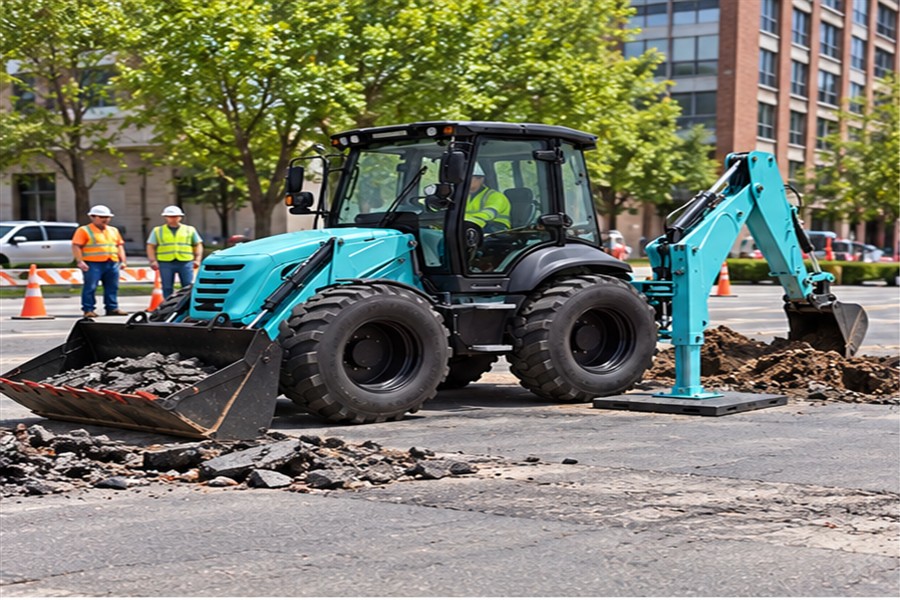

A backhoe loader can be used on many urban utility projects, but a finished asphalt surface changes the planning question: not only whether the machine can reach the work, but how its rear stabilizers will contact the ground. A stabilizer foot concentrates load into a small area. If the pavement is thin, recently repaired, undermined by a trench, or weakened by a buried chamber, a mark or local failure may occur even when the surface looks sound. There is no universal pad that makes every site safe. The machine configuration, support area, pavement construction and sub-base all matter, so surface protection must be assessed for the actual job rather than assumed from a photograph.

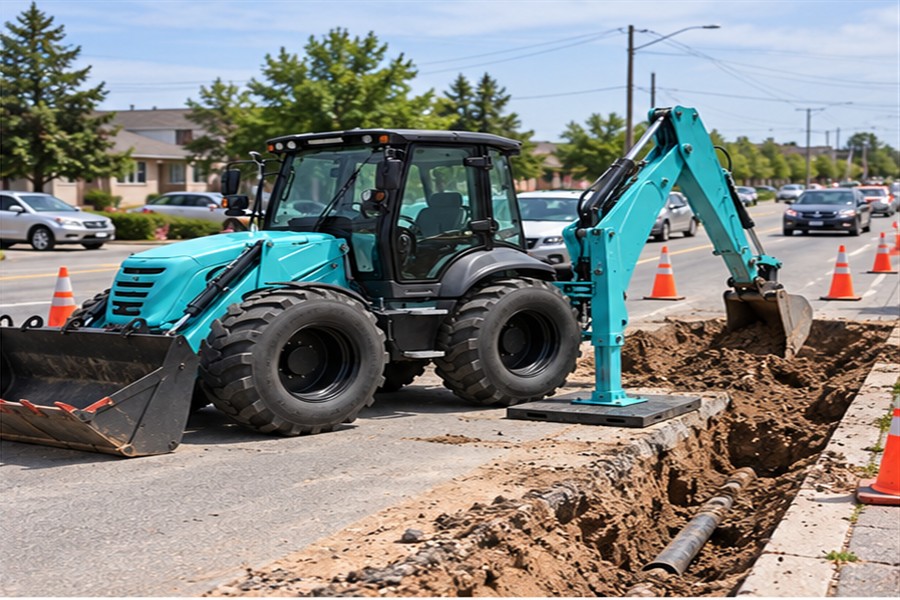

Start with the work plan. Identify the intended digging line, the pavement edge, utility covers, kerbs, drainage channels and any earlier reinstatement. Ask the site owner or responsible engineer whether the asphalt and underlying layers can carry the machine's wheel and stabilizer reactions at the proposed position. A drawing of a utility route is not a ground-bearing assessment. Keep the stabilizer support away from unsupported edges and concealed voids as directed by the site plan, and stop to reassess if excavation reveals loose fill, water, a cavity or a different ground condition. The safe offset is site-specific; it should not be guessed from a generic online dimension.
WZ30-25 published specifications

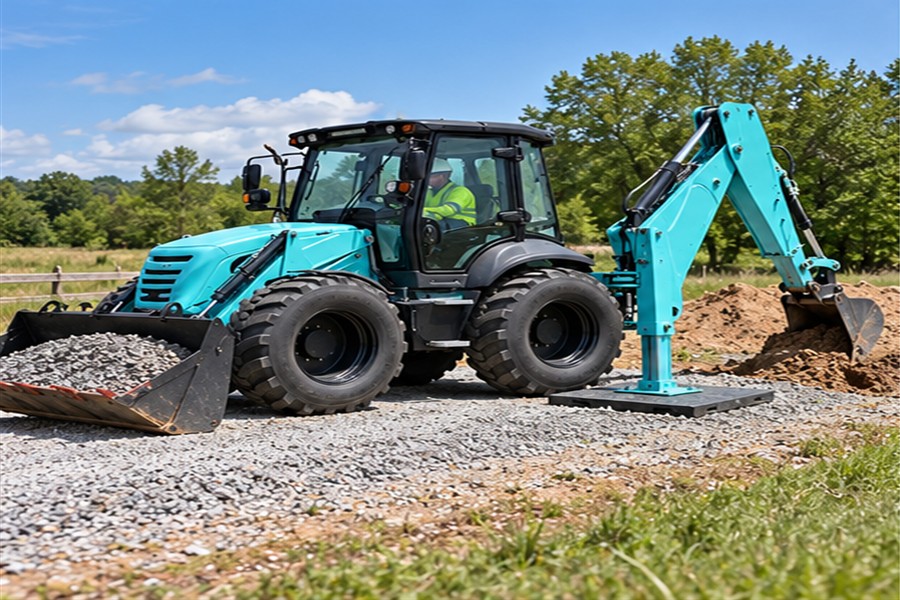

For a paved surface, buyers commonly ask whether rubber-faced shoes, removable pads or a separate load-spreading mat are available. Confirm the answer for the exact delivered WZ30-25 configuration in writing. The published product page does not state the stabilizer foot material, pad dimensions or an approved asphalt-protection accessory, so those details should not be inferred. A wider, compatible support plate can distribute contact over a larger area, but its suitability depends on design, load, surface condition and correct placement. Do not place improvised timber, loose blocks or an unverified mat beneath a loaded stabilizer; a shifting or crushing support can create a sudden loss of stability.
Before ordering, send the supplier a clear description of the surface and task: asphalt age and condition, whether the work is beside a trench, the expected digging direction, available working width, access restrictions, and whether the machine will travel between positions. Include photographs showing the road, kerb, covers and proposed support locations. Ask what pad or shoe options are included, their material and dimensions, whether a manufacturer-approved mat is offered, and what operating restrictions apply. Request a written confirmation tied to the serial-number configuration and the intended ground conditions. This turns a vague promise of ‘road-safe’ operation into a checkable equipment specification.
WZ30-25 project workflow guide
The WZ30-25 page lists an operating weight of 7,640 kg, overall dimensions of 6,170 × 2,268 × 3,760 mm, a 2,370 mm wheelbase, a 1.0 m³ front bucket and a 0.3 m³ rear bucket. These figures help with transport and general planning, but machine weight alone does not tell you the pressure beneath a stabilizer foot. Nor do bucket capacities establish the safe support position for a particular pavement. Confirm which engine and options are included in the quotation: the page lists YC4A105Z-T20 Stage II and Xinchai Euro V alternatives. Compare the exact configuration and applicable local requirements, rather than treating a model name as a complete specification.

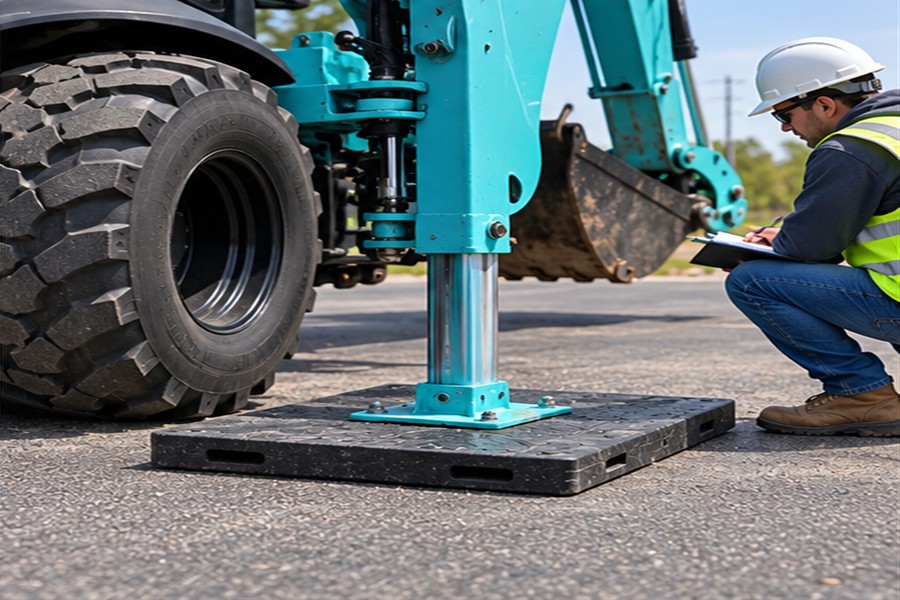

On site, use the operator's manual and the project method statement. Select a level, assessed position; deploy and load the stabilizers only as the manufacturer permits; and keep people clear of the machine's working and slew zones. A competent person should check that each support is seated flat, fully supported and not bridging a drain, cover or trench edge. Watch for cracking, sinking, rocking or pad movement. If any change appears, stop work, lower the attachment as instructed, secure the area and obtain a reassessment. Do not reposition a loaded stabilizer or continue digging to ‘test’ a questionable surface. Local rules and the machine manual take precedence over general guidance.
A practical buyer checklist is short but specific: What is the exact stabilizer-shoe design on the quoted machine? Are rubber pads or approved spreader plates included, optional or unavailable? What are their dimensions and material? Is there a manufacturer limit or procedure for paved surfaces? What ground information must the customer provide? Which inspection and maintenance checks are required for pins, cylinders, feet and locking components? Ask for photographs or drawings of the delivered arrangement and record the answers before deposit and dispatch. If the work is close to a public road, confirm traffic management, permits, barriers and utility-owner requirements with the local authority; a machine accessory does not replace those controls.
Shandong Zhuogong Machinery equipment Co.,Ltd can help buyers compare the stated WZ30-25 specifications with their access, digging and surface-protection needs. For a configuration review, send the task description and site photographs, then request written confirmation of the stabilizer pads and any approved protection accessories. Contact the team by WhatsApp at +86 131 7691 0558 or email MYZG@my-forklift.com. The useful question is not simply ‘Can it work on asphalt?’ but ‘Which confirmed configuration, support arrangement and site assessment make this specific job acceptable?’
