Description
Product Feature

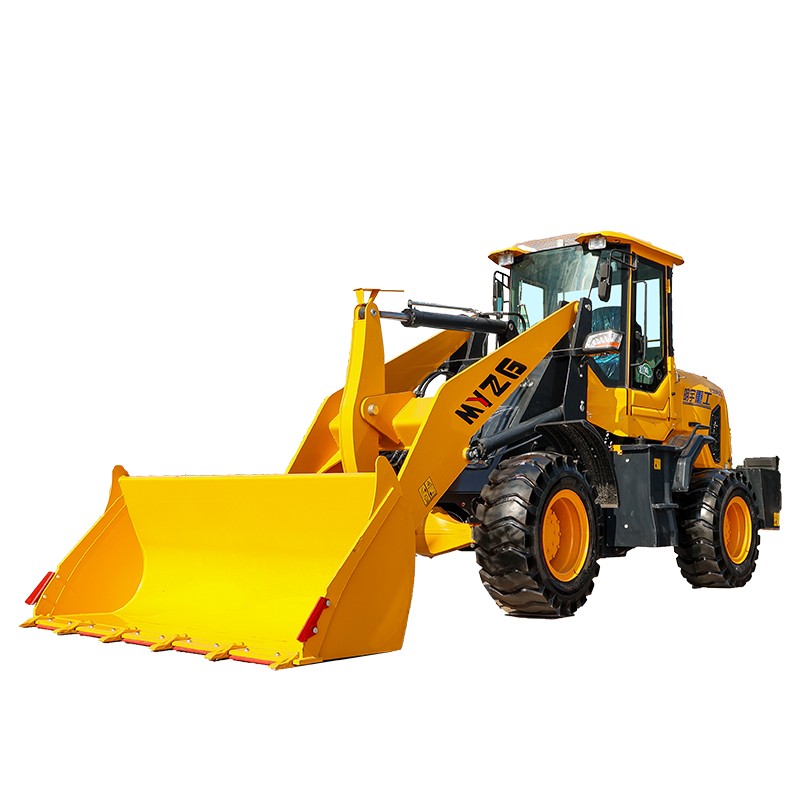

Minyu 938D adopts a unique wind inlet and exhaust rear hood design, which can effectively avoid engine high temperature, improve service life, large driving space, widly vision, comfortable driving, small turning radius and flexible control, lifting height, to meet different unloading height, is your best choice.
MYZG ZL-938D is a suitable for bulk materials, with short base, high cost performance. The entire machine is of large breakout force, small turning radius, high operating efficiency, flexible to operate and is widely used in harbor, building site, aggregate plant, timber yard and etc.
1. It is equipped with the Yuchai / Quanchai turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Weichai DEUTZ Engine is alternative.
2. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system, which provides the entire machine with high cooling efficiency.
3. Axis-fixed power shift transmission case and single-turbine three-element hydraulic torque converter are used, with compact structure and high reliability and are convenient for maintenance; MYZG reinforced drive axle is configured, with large bearing capacity and high reliability.
4. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Mechanically-operated working device hydraulic system is used, with high performance reliability and is easy to operate. It is equipped with hydraulic element of famous brand and high reliability.
5. New steel structure cab is adopted, which ensures wide vision, a larger operation space，good sealing performance; The air conditioner can be installed optionally, which ensures good comfort.
6. Electrical apparatus element is of high-end and mature system of MYZG, which makes it stable and reliable.
7. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
8. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and is reliable and high-efficient.
Parameter
| Rated load capacity | 2000kg |
| Rated bucket capacity | 0.9m3 |
| Operating weight | 5200kg |
| Engine model |
QUANCHAI 4C6-88M22 |
| Rated power | 76kw |
| Rated speed | 2400 r/min |
| Dimensions | 5690*2090*2910mm |
| Dump height | 3200mm |
| Dump distance | 950mm |
| Min.turning radius | 3200mm |
| Wheel base | 2315mm |
| Wheeltrack | 1600mm |
| Tyre size | 16/70-20 |
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
