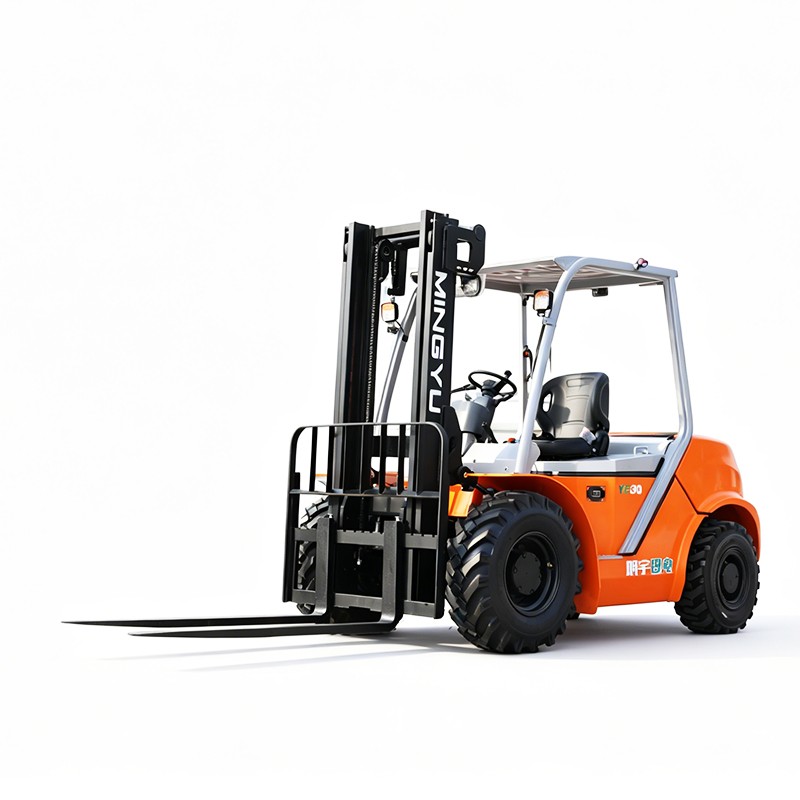

MYZG YE30 Lithium Electric Off-Road Forklift
MYZG YE30 Lithium Electric Off-Road Forklift: Eco-Friendly Power Meets Rugged Terrain
Whether you are operating in muddy construction sites, uneven agricultural fields, or zero-emission indoor-outdoor logistics hubs, the YE30 delivers a 3000kg rated load capacity without the noise, fumes, or high maintenance costs of traditional diesel engines.
⚡ Revolutionary Lithium-Ion Performance
Advanced Battery System: Equipped with a massive 153.6V / 280Ah lithium battery, providing the voltage needed for high-torque maneuvers and long-lasting operation.
Dual-Motor Drive: Features a dedicated 20kW drive motor for powerful traction and a separate 22.6kW oil pump motor to ensure smooth, responsive hydraulic lifting performance.
Fast Charging & Zero Maintenance: Unlike lead-acid or diesel alternatives, our lithium technology supports opportunity charging and requires zero daily maintenance, maximizing your fleet's uptime.
Superior Lifting Speed: Achieve high productivity with a maximum lifting speed of 0.4 m/s, allowing for rapid stacking and loading cycles.
Technical Specifications: YE30 Model
| Parameter | Unit | Value | Remarks |
| Rated Load | kg | 3000 | |
| Load Center | mm | 500 | |
| Wheelbase | mm | 1800 | |
| Weight | kg | 4880 | |
| Tyre Model (Front) | - | 11.5/80-15.3 | Pneumatic tyre |
| Tyre Model (Rear) | - | 27X10-12/8.00 | Pneumatic tyre |
| Wheel Tread | mm | 1255 | |
| Battery (Voltage/Capacity) | V/Ah | 153.6V/280Ah | |
| Drive Motor Power | kW | 20 | |
| Oil Pump Motor Power | kW | 22.6 | |
| Dimension | mm | 2820×1532×2230 | Without fork teeth |
| Ground Clearance | mm | 250 | |
| Gantry Inclination | ° | Front 10° / Back 12° | |
| Free Lift Height | mm | / | |
| Standard Lifting Height | mm | 3000 | 2-stage mast |
| Minimum Turning Radius | mm | 3375 | |
| Maximum Driving Speed | km/h | 20 | |
| Maximum Lifting Speed | m/s | 0.4 |
Engineered for Rough Terrain Dominance
The YE30 is not just an electric forklift; it is a purpose-built rough terrain vehicle.
1. Superior Ground Clearance & Traction
With a massive 250mm ground clearance, the YE30 easily navigates rocks, debris, and steep inclines that would ground a standard warehouse forklift. The 1800mm wheelbase and 1255mm tread provide a stable, wide stance for lifting 3 tons on uneven soil.
2. Specialized Industrial Tires
Front Tires: Robust 11.5/80-15.3 pneumatic tires provide the flotation needed for soft ground.
Rear Tires: Heavy-duty 27X10-12/8.00 pneumatic tires ensure precise steering and stability under load.
3. Precision Gantry Control
The mast is designed for versatility in difficult environments, featuring a gantry inclination of 10° forward and 12° backward. This allows operators to secure and tilt loads safely when working on non-level gradients.
Efficiency and Sustainability in One Package
The MYZG YE30 offers a total weight of 4880kg, providing the necessary ballast for safe, heavy lifting while remaining compact enough for tight site navigation. With a minimum turning radius of 3375mm, it offers surprisingly agile handling for a machine of this power class.
Why Switch to Lithium Off-Road?
Lower Operating Costs: Electricity is significantly cheaper than diesel fuel.
Reduced Noise: Ideal for working near residential areas, schools, or in noise-sensitive agricultural environments.
No Emissions: Safely move from outdoor yards into enclosed warehouses without venting issues.
Long Lifespan: Lithium-ion batteries typically last thousands of cycles, offering a far better ROI than traditional energy sources.
