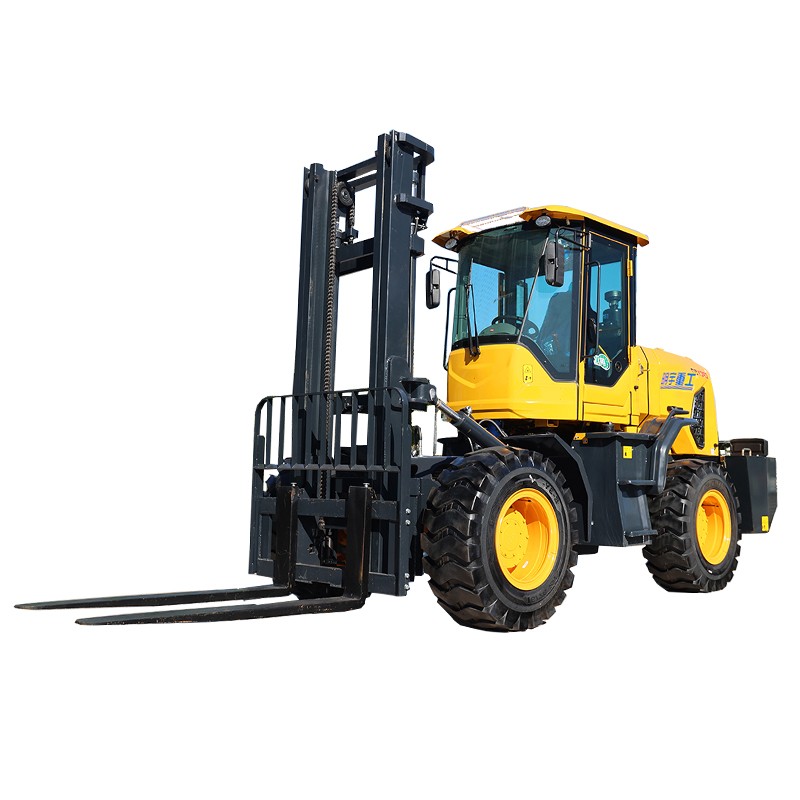

5T Off-road forklift
Product Feature
The 5 ton MYZG 5T is powered by our highly efficient 74hp (55kW) QUANCHAI engine and has a 5,000lbs lift capacity.
It has several mast options available so you can tailor your MYZG 5T OFF-ROAD FORKLIFT to the perfect lift height.
DRIVE SAFELY
All cabs are FOPS certified, ensuring excellent operator protection at all times.
A hydraulic velocity fuse (HVF) is fitted to the mast rams which reduce the speed of collapse in the event of a hose failure.
22ft (6.7m) mast is equipped with an automatic deration valve, which reduces lift capacity above 15ft (4.5m) for safety and stability.
MYZG's LiveLink telematics system provides real-time machine location data with Geofencing alerts, allowing you to track your machine coverage and protect your investment.
Factory-fit MYZG immobilizer can be set via key or keypad and automatically arms itself after a set period following engine shutdown.
-Operator Presence System (OPS)
-Audible and visual alarms
-LED working, turn and tail lights
-Low mounted LED strobe light
-Optional weighing system; to improve operational efficiency
-Optional cab and screen configurations
-Simple and clear dash; keeping the operator informed
-Optional rear grab handle with horn button, mirror and front and rear cameras to assist operators in specific applications
-Secure overhead guard
Parameter
| rated load lifting capacity | 5000kg |
| Maximum load lifting capacity | 6000kg |
| load centre distance | 500mm |
| wheel base | 2360mm |
| total weight | 7000kg |
| Tyre type | 16/70-20 |
| Tyre distance | 1735mm |
| engine | quanchai |
| engine Power | 76kw |
| length without fork | 4750mm |
| wideth | 2120mm |
| height | 2820mm |
| minimum ground clearance | 230mm |
| Gantry angle | Front6°/rear12° |
| Standard lifting height | 3000mm |
| fork length | 120*1500 |
| minimum turning radius | 2650mm |
| Maximum operating speed | 30km/h |
| Maximum lifting speed | 300mm/s |
Rough terrain forklifts, off road forklifts and heavy-duty lifts are essential for large construction projects. They’re also used by roadway crews, surveying companies and similar enterprises. These powerful machines lift heavy loads across uneven, rocky surfaces. It’s no wonder they’ve become the go-to equipment for so many different industries. From construction sites to highways, dockyards to beaches, rough terrain forklifts are essential to the success of so many different kinds of projects.

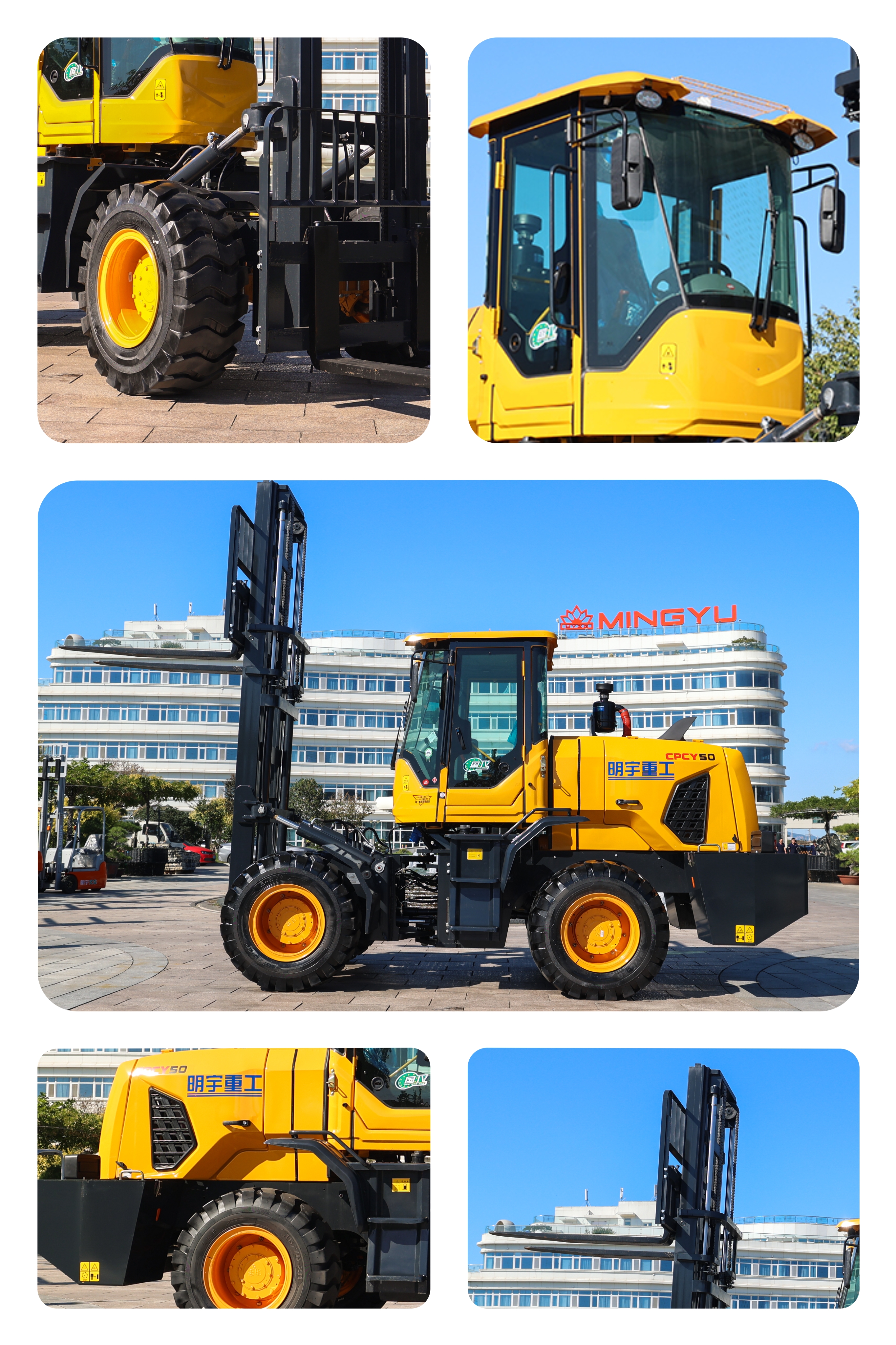

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
