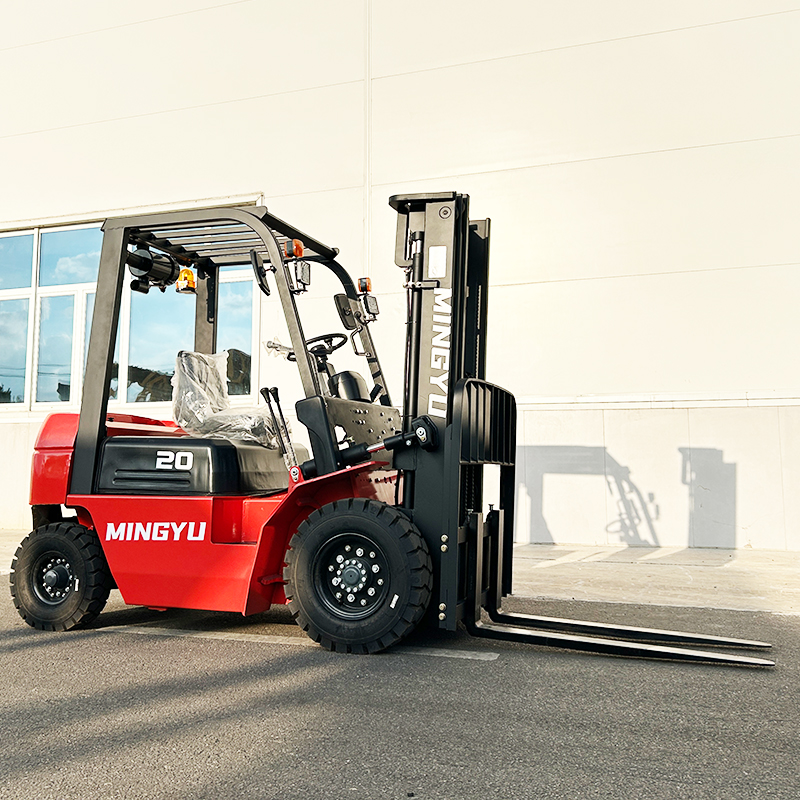

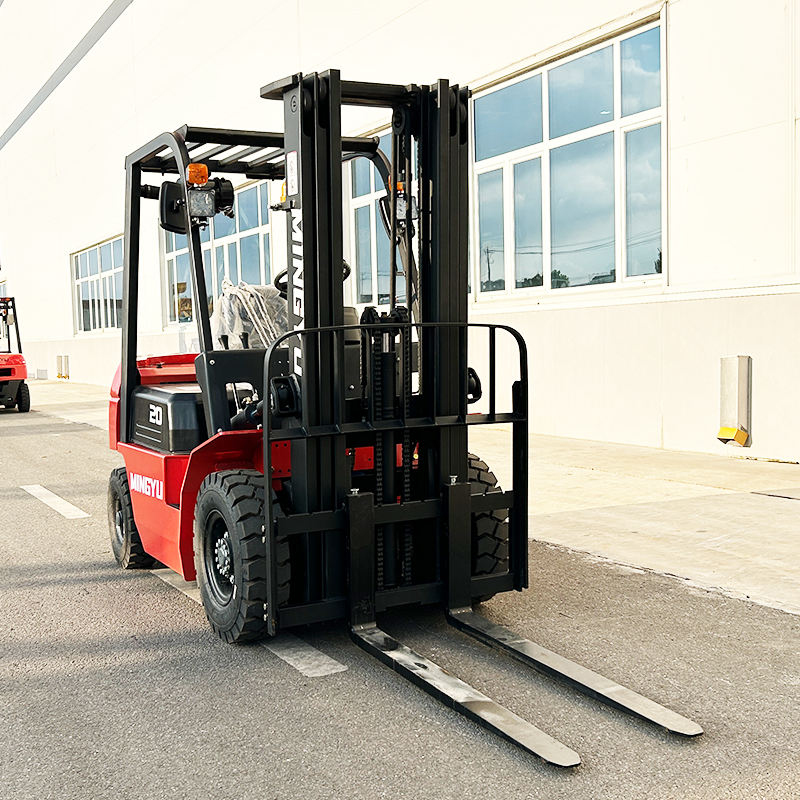

CPC20 Diesel Powered Industrial Forklift

The CPC20 diesel-powered industrial forklift is a robust and reliable material handling solution designed to meet the demanding needs of modern warehouses, distribution centers, and industrial facilities. With a substantial load capacity of 2000kg and a load center distance of 500mm, this forklift ensures stable and efficient lifting and transportation of heavy goods. Its powerful diesel engine, the Xinchai 490 model, delivers a rated power of 40kW, providing the necessary torque and performance for continuous operation in challenging environments. The forklift features a lifting height of 3000mm and a mast tilt angle of 6 degrees forward and 12 degrees backward, allowing for precise load placement and enhanced safety during stacking and retrieval tasks. The compact design, with a minimum turning radius of 2190mm, enables easy navigation in narrow aisles and confined spaces, maximizing storage density and operational efficiency. The forklift's dimensions, including a length of 3600mm with forks and a width of 1160mm, make it suitable for various applications, from loading docks to manufacturing lines. Additionally, the free lifting height of 0mm ensures that the mast does not extend beyond the overhead guard, maintaining stability and safety when working in low-clearance areas. The CPC20 is equipped with durable tires—7.00-12-12PR at the front and 6.00-9-10PR at the rear—that provide excellent traction and durability on different surfaces, including rough terrains. The wheelbase of 1600mm and wheel track of 970mm front and rear contribute to its stability and load-bearing capacity. Weighing 3530kg without load, this forklift offers a solid build without compromising on maneuverability. The diesel engine not only ensures high performance but also offers fuel efficiency with a 60L fuel tank capacity, reducing downtime for refueling and supporting extended work shifts. The forklift's maximum driving speed of 19km/h and lifting speed of 500mm/s further enhance productivity, making it an ideal choice for businesses seeking to optimize their material handling processes.

Safety and operator comfort are key priorities in the design of the CPC20 diesel forklift. The overhead guard height of 2160mm provides protection for the operator against falling objects, while the mast tilt angle and precise controls allow for smooth and secure load handling. The forklift's minimum ground clearance of 120mm at the mast and 130mm at the frame ensures that it can traverse minor obstacles and uneven surfaces without damage, enhancing its versatility in diverse working conditions. The maximum climbing capacity of 20% enables the forklift to handle inclines and ramps with ease, which is essential for facilities with multi-level storage or outdoor operations. The engine's rated torque of 156Nm at 1700-1900 rpm ensures consistent power delivery, even under heavy loads, and the 4-cylinder configuration with a displacement of 2.54L offers a balance of power and fuel economy. The forklift's gear system, with 2 forward and 2 reverse manual shifts, provides operators with flexible control over speed and direction, adapting to various tasks such as pallet stacking, truck loading, or material transport. The front overhang distance of 450mm and fork dimensions of 1070mm in length, 122mm in width, and 40mm in thickness are optimized for standard pallet sizes, ensuring compatibility with most storage systems. Moreover, the maximum lifting height of the fork with a stopper shelf is 4220mm, and the landing height of the gantry is 2060mm, allowing for high-level stacking in warehouses with elevated storage racks. These features, combined with a drawbar pull of 17kW, make the CPC20 a dependable workhorse for intensive industrial applications. The forklift's design also includes ergonomic considerations, such as easy-access controls and a comfortable operator compartment, to reduce fatigue and improve productivity during long shifts.

The CPC20 diesel forklift is engineered for durability and low maintenance, making it a cost-effective solution for long-term use. The diesel engine, known for its robustness, requires less frequent maintenance compared to other power types, and the simple manual gear system minimizes the risk of complex electrical failures. The forklift's construction uses high-quality materials, such as the reinforced mast and sturdy frame, to withstand daily wear and tear in harsh environments like construction sites, lumber yards, or agricultural settings. The tire selection—front 7.00-12-12PR and rear 6.00-9-10PR—ensures reliable performance on both indoor and outdoor surfaces, reducing the need for frequent replacements. With a fuel tank capacity of 60L, the CPC20 can operate for extended periods without interruption, which is crucial for businesses with high-throughput requirements. The accumulator voltage and capacity are specified as 1280, though this may refer to auxiliary systems, ensuring that additional features like lights or sensors function efficiently. The engine's bore and stroke dimensions of 90x105mm contribute to its efficient combustion and power output, while the 4-cylinder setup ensures smooth operation. Weighing 3530kg unloaded, the forklift maintains stability without being overly heavy, and its turning radius of 2190mm allows for agile movements in tight spaces. The maximum lifting speed of 500mm/s enables quick load handling, and the drawbar pull of 17kW provides ample force for towing or pushing tasks. Additionally, the forklift's climbing ability of 20% makes it suitable for facilities with sloped access, enhancing its adaptability. The combination of these features results in a machine that not only performs reliably but also reduces total cost of ownership through lower fuel consumption and maintenance needs. Businesses can rely on the CPC20 for consistent performance in applications ranging from warehouse logistics to port operations, where efficiency and reliability are paramount.
